RCA RS2028 User Manual

Compact audio system
Hide thumbs

Advertisement

Quick Links

RS2028
3/5/03
8:39 AM
Page 1
EN

Advertisement

loading

  Related Manuals for RCA RS2028

  Summary of Contents for RCA RS2028

  • Page 1 RS2028 3/5/03 8:39 AM Page 1...
  • Page 2 RS2028 3/5/03 8:39 AM Page 2 EXPORTER Thomson Inc. P.O. Box 1976 Indianapolis, IN 46206 -1976 © 2003 Thomson Inc. IMPORTADOR Trademark(s) ® Registered Comercializadora Thomson de México, S.A. de C.V. Marca(s) Registrada(s) Miguel de Cervantes Saavedra 57 Marque(s) ® Déposée(s) Col.
  • Page 3 RS2028 3/5/03 8:39 AM Page 3 RS2028 It is important to read this instruction book prior to using your new product for the first time. Es importante leer este manual antes de usar por vez primera su euipo.
  • Page 4: Fcc Information

    CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. Technical specification Product: Compact Audio System Brand: RCA Model: RS2028 Electrical Consumption: Power Supply: 120V~ 60 Hz Power consumption: 28 Watts IMPORTER Comercializadora Thomson de México, S.A. de C.V.
  • Page 5: Table Of Contents

    RS2028 3/5/03 8:39 AM Page 5 Safety Information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN T H E L I G H T N I N G CAUTION: TO REDUCE THE FLASH AND ARROW- RISK OF ELECTRIC SHOCK, HEAD WITHIN THE...
  • Page 6: Getting Started

    RS2028 3/5/03 8:39 AM Page 6 Getting Started Unpacking the system: You should have the following: • one main unit (with 2 main speakers); • one remote control; • one user’s guide; • one safety leaflet. • Owner and registration Card...
  • Page 7: General Controls

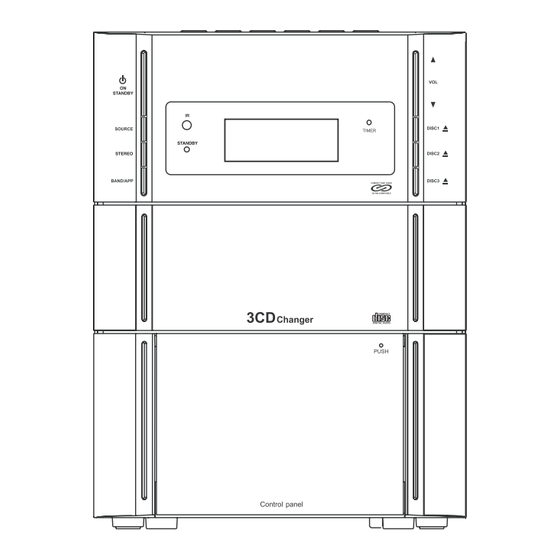

    RS2028 3/5/03 8:39 AM Page 7 General Controls Main Unit Front Panel ON/STANDBY — Turns power on or off (STANDBY mode). SOURCE - Selects CD player / tuner / tape player. - Increases / decreases volume. DISC1 , DISC2 , DISC3 - Opens the corresponding disc tray.
  • Page 8: Remote Control

    RS2028 3/5/03 8:39 AM Page 8 General Controls Remote Control ON/STANDBY — Turns power on or off from standby mode. MUTE - Mutes audio output. TUNER — Selects radio tuner. TAPE — Selects tape player. VOLUME - or + - Decreases or Increases volume level.
  • Page 9: Display Settings

    RS2028 3/5/03 8:40 AM Page 9 Display Settings Display Display Clock / Timer Setting the Clock 1. Press CLOCK twice. The hour flashes on the display. 2. Press HOUR - or + on the main unit or PRESET on the remote control to set the hour and then press CLOCK to shift to minute digits.
  • Page 10: Sound Features

    RS2028 3/5/03 8:40 AM Page 10 Sound Features X-BASS Press X-BASS to turn on/off boosting the bass fre- quency. Volume Control Press VOL on the main unit or VOLUME + or - on the remote control to adjust volume level.
  • Page 11: Shuffling The Play Order

    RS2028 3/5/03 8:40 AM Page 11 CD Player Shuffling the Play Order Press SHUFFLE to turn on/off the playing of tracks in random order. Sampling Tracks Press INTRO to play the first 10 seconds of each track on the current disc, all discs in the tray, or turn INTRO mode off.
  • Page 12: Radio

    RS2028 3/5/03 8:40 AM Page 12 Radio Selecting Tuner Band 1. Press SOURCE on the main unit or TUNER on the remote control to enter Tuner (TU) mode. 2. Press BAND/APP to select between AM or FM radio band. Tip: Your audio system has 30 preset stations.
  • Page 13: Tape Player

    RS2028 3/5/03 8:40 AM Page 13 Tape Player Tape Player RECORD PLAY REWIND FAST FORWARD STOP/EJECT PAUSE Playing a Tape 1. Press SOURCE on the main unit repeatedly or TAPE on the remote to enter Tape mode (CA). 2. Press STOP/EJECT to open the cassette door.
  • Page 14: Troubleshooting Tips

    RS2028 3/5/03 8:40 AM Page 14 Troubleshooting Tips Problem Solution System will • Check power cord for a secure not turn on connection. • Unplug the unit for a moment, and then plug into power source again. • Check the outlet by plugging in another device.
  • Page 15: Maintenance

    RS2028 3/5/03 8:40 AM Page 15 Maintenance Disconnect the audio system from the power source before performing any maintenance. Cleaning Clean the exterior of the system using a soft dust cloth. CD Player CAUTION! This system operates with a laser. It must be opened by only a qualified technician.
  • Page 16: Safety Precautions

    RS2028 3/5/03 8:40 AM Page 16 Important Information Safety Precautions • Never open the cabinet under any circumstances. Any repairs or internal adjustments should be made only by a trained technician. • Never operate this product with the cabinet removed.
  • Page 17: Limited Warranty (U.s.)

    What we will do: • Pay any Authorized RCA Audio Service Center the labor charges to repair your unit. • Pay any Authorized RCA Audio Service Center for the new or, at our option, refurbished replacement parts required to repair your unit.
  • Page 18 RS2028 3/5/03 8:40 AM Page 18 Limited Warranty (U.S.) Limitation of Warranty: • THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMA- TION GIVEN BY THOMSON INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY...
  • Page 19: Limited Warranty (Canada)

    What we will do: • Pay any Authorized RCA Audio Service Center the labor charges to repair your unit. • Pay any Authorized RCA Audio Service Center for the new or, at our option, refurbished replacement parts required to repair your unit.
  • Page 20 RS2028 3/5/03 8:40 AM Page 20 Limited Warranty (Canada) Limitation of Warranty: • THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. NO VERBAL OR WRITTEN INFORMATION GIVEN BY THOMSON MULTIMEDIA LTD., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.
