Addressable Heat Detector
Advanced embedded MCU
360° visible LED driven by Control panel
Manually addressing via a dedicated hand
held programmer.
Two Response Modes：A1R/A2
Designed to comply with EN 54-5
Description
The detector has pleasing appearance and is easy to install and maintain. It is suitable for the environment without
smoke but a lot of dust or the places where smoke and vapor stay such as indoor parking, kitchen, boiler room, tea
stove room, generator room and drying workshop.
Technical data
Operating Voltage:
Standby Current:
Alarm Current:
Wiring
Signal Transmission distance:
Detector Classification
Temperature range:
Humidity:
LED Alarm Indication:
LED Polling Indication:
IP Rating:
Installation
Dimensions：Showing on Fig.1

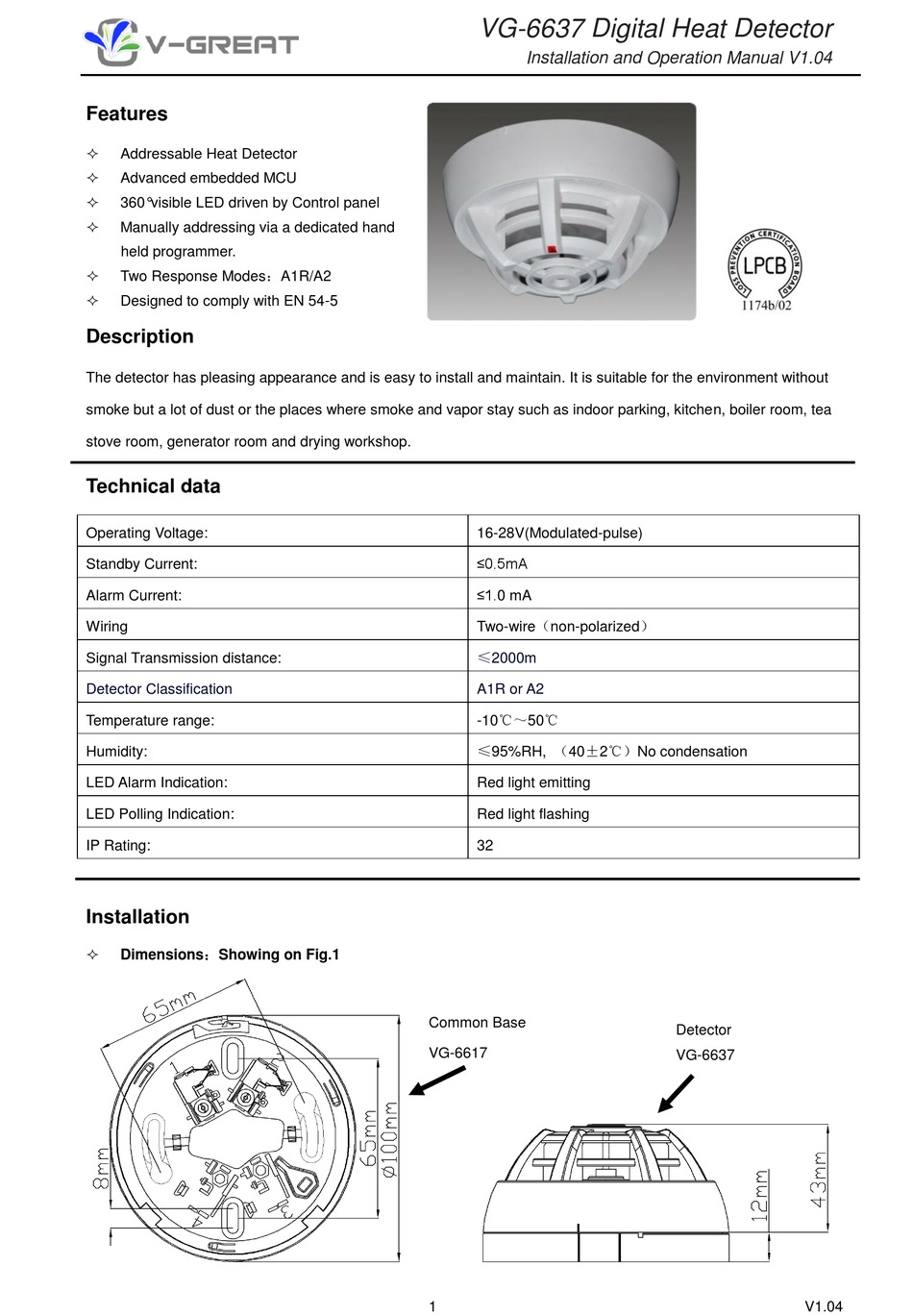

VG-6637 Digital Heat Detector
Installation and Operation Manual V1.04
16-28V(Modulated-pulse)
≤0.5mA
≤1.0 mA
Two-wire（non-polarized）
≤2000m
A1R or A2
-10℃～50℃
≤95%RH, （40±2℃）No condensation
Red light emitting
Red light flashing
32
Common Base
VG-6617
1
Detector
VG-6637
V1.04
Advertisement
Related Manuals for V-GREAT VG-6617
Summary of Contents for V-GREAT VG-6617
- Page 1 Signal Transmission distance: Detector Classification A1R or A2 Temperature range: -10℃～50℃ ≤95%RH, （40±2℃）No condensation Humidity: LED Alarm Indication: Red light emitting LED Polling Indication: Red light flashing IP Rating: Installation Dimensions：Showing on Fig.1 Common Base Detector VG-6617 VG-6637 V1.04...
- Page 2 VG-6637 Digital Heat Detector Installation and Operation Manual V1.04 Fig.1Dimensions Mounting: Warning: Please disconnect the loop power in order to avoid control panel broken by short circuit when mounting Common Base. Detector Head Mounting showing in Fig.2 Back Box Locking Mark Mounting Mark Alignment Mark...
- Page 3 VG-6637 Digital Heat Detector Installation and Operation Manual V1.04 Address setting 1. VG-6537Digital Programmer is used to write an address of the Detector. Connecting Programmer with loop terminals:1,2 of the Detector before it installation. 2.Set address, Pressing Write key, the address will be shown on the numeric display if successful. It is fail if there is no address.
- Page 4 Please contact your local distributor for products not covered by this warranty. Company: V-GREAT GLOBAL CORPORATION Add.: Second Floor, Capital City, Independence Avenue, P.O.
