Features
Addressable
Easy Installation
Designed to comply with EN 54-18:2005
Operation without external power supply
Description
VG-6727 Digital Control Interface is designed for
linkage control of fire alarm system andfire
extinguishing system. It can transmit action
signals from those devices to the fire alarm
control panel through a loop.
Technical data
Operating Voltage:
Standby Current:
Alarm Current:
Wiring
Temperature range:
Humidity:
Remote Control OutputIndication:
Signal inputtingIndication:
IP Rating:
Installation Base
Installation
Dimensions：Showing on Fig.1

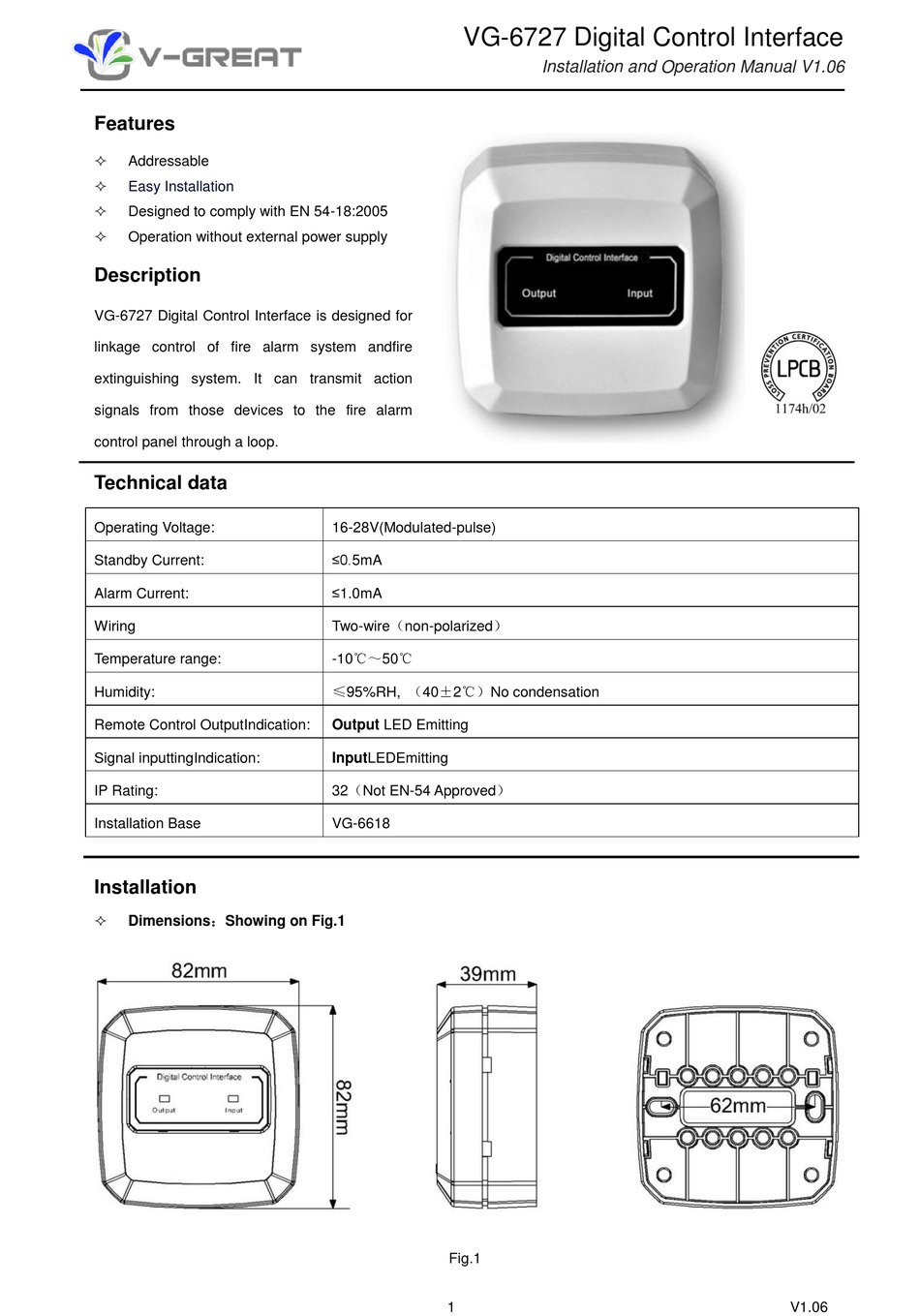

VG-6727 Digital Control Interface
Installation and Operation Manual V1.04
16-28V(Modulated-pulse)
≤0.5mA
≤1.0mA
Two-wire（non-polarized）
-10℃～50℃
≤95%RH, （40±2℃）No condensation
Output LED Emitting
InputLEDEmitting
32（Not EN-54 Approved）
VG-6618
Fig.1
1
Installation and Operation Manual V1.06
V1.06
