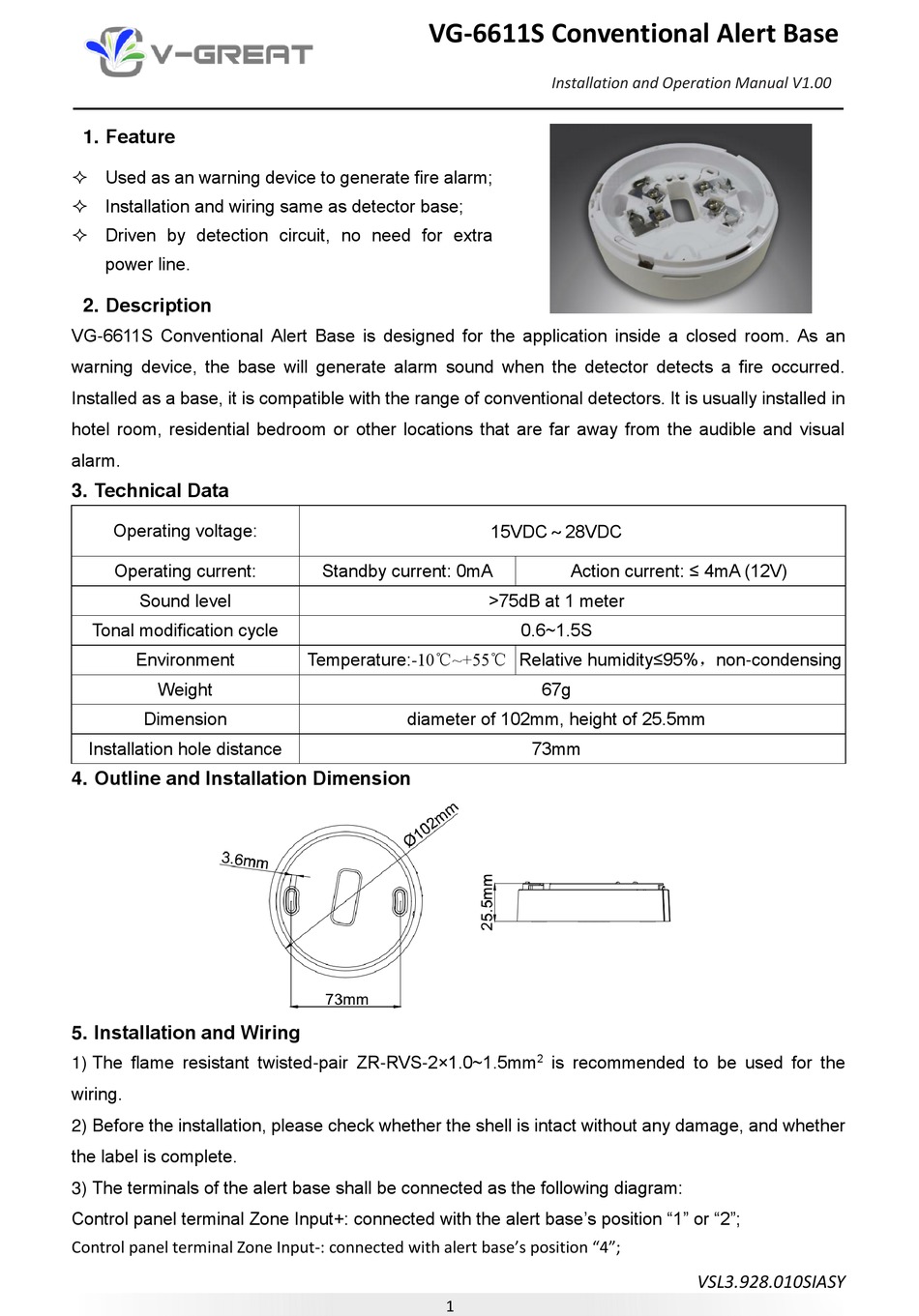

1. Feature
Used as an warning device to generate fire alarm;
Installation and wiring same as detector base;
Driven by detection circuit, no need for extra
power line.
2. Description
VG-6611S Conventional Alert Base is designed for the application inside a closed room. As an
warning device, the base will generate alarm sound when the detector detects a fire occurred.
Installed as a base, it is compatible with the range of conventional detectors. It is usually installed in
hotel room, residential bedroom or other locations that are far away from the audible and visual
alarm.
3. Technical Data
Operating voltage:
Operating current:
Sound level
Tonal modification cycle
Environment
Weight
Dimension
Installation hole distance
4. Outline and Installation Dimension
5. Installation and Wiring
1) The flame resistant twisted-pair ZR-RVS-2×1.0~1.5mm
wiring.
2) Before the installation, please check whether the shell is intact without any damage, and whether
the label is complete.
3) The terminals of the alert base shall be connected as the following diagram:
Control panel terminal Zone Input+: connected with the alert base's position "1" or "2";
Control panel terminal Zone Input-: connected with alert base's position "4";
VG-6611S Conventional Alert Base
Standby current: 0mA
Temperature:-10℃~+55℃ Relative humidity≤95%，non-condensing
diameter of 102mm, height of 25.5mm
1
Installation and Operation Manual V1.00
15VDC～28VDC
Action current: ≤ 4mA (12V)
>75dB at 1 meter
0.6~1.5S
67g
73mm
2
is recommended to be used for the
Base
VSL3.928.010SIASY
Advertisement
Table of Contents
Related Manuals for V-GREAT VG-6611S
Summary of Contents for V-GREAT VG-6611S
- Page 1 2. Description VG-6611S Conventional Alert Base is designed for the application inside a closed room. As an warning device, the base will generate alarm sound when the detector detects a fire occurred. Installed as a base, it is compatible with the range of conventional detectors. It is usually installed in hotel room, residential bedroom or other locations that are far away from the audible and visual alarm.
- Page 2 6. Usage and Operation Silence: Resetting the control panel can silence the alarm of the alert base. Loop capacity: Maximum 32 pieces of VG-6611S can be connected in one conventional detection zone. 7. Attentions 1) If the alert base alarm cannot be started, inspect whether the alert base is damaged.
