Features
Addressable Smoke Detector
Advanced embedded MCU
Drift compensation makes it environment
adaptable
360° visible LED driven by Control panel
Manually addressing via a dedicated hand
held programmer
Designed to comply with EN 54-7
Description
VG-6627 Digital smoke detector can compensate the variation of environmental parameters and judge fire alarms
through algorithm fixed inside the excellent MCU, and send current operating state, smoke concentration,
environment parameter etc.to control panel via digital signals transmission. With the pleasing appearance, it is easy to
install and maintain. The detector is suitable for hotels, restaurants, computer rooms, banks, malls, warehouses,
libraries, museums, offices and places with heavy moistures among the air. Besides, it is also applicable for places
where black smokes occurred when there is fire.
Technical data
Operating Voltage:
Standby Current:
Alarm Current:
Wiring
Temperature range:
Humidity:
LED Alarm Indication:
LED Polling Indication:
IP Rating:
Installation
Dimensions：Showing on Fig.1
VG-6627 Digital Somke Detector
16-28V(Modulated-pulse)
≤0.5mA
≤1.0 mA
Two-wire（non-polarized）
-10℃～50℃
≤95%RH, （40±2℃）No condensation
Red light emitting
Red light flashing
32
Common Base
VG-6617
Fig.1 Dimensions
1

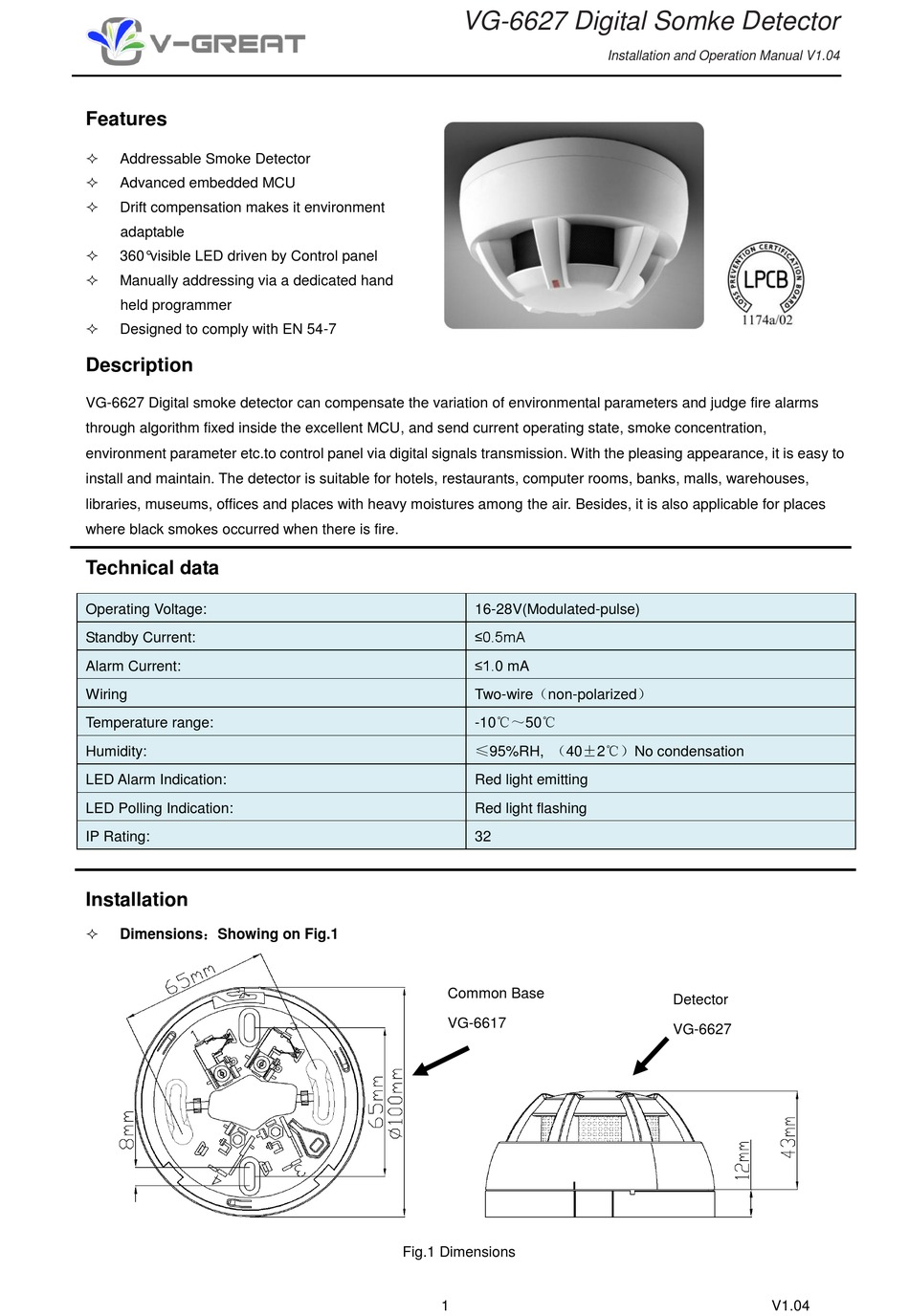

Installation and Operation Manual V1.04
Detector
VG-6627
V1.04
Advertisement
Related Manuals for V-GREAT VG-6627
Summary of Contents for V-GREAT VG-6627
- Page 1 Designed to comply with EN 54-7 Description VG-6627 Digital smoke detector can compensate the variation of environmental parameters and judge fire alarms through algorithm fixed inside the excellent MCU, and send current operating state, smoke concentration, environment parameter etc.to control panel via digital signals transmission. With the pleasing appearance, it is easy to install and maintain.
- Page 2 VG-6627 Digital Somke Detector Installation and Operation Manual V1.04 Mounting: Warning: Please disconnect the loop power in order to avoid control panel broken by short circuit when mounting Common Base. Detector Head Mounting showing in Fig.2 Back Box Locking Mark...
- Page 3 Ware House,Car Park Factory Setting：Sensitivity Mode 1 The VG-6627 sensitivity mode can be set by Control Panel,please refer to the corresponding Manual for details. Testing Warning：Power is switched off before all devices are installed completely. The detector must be tested after installation or regular maintenance.
- Page 4 VG-6627 Digital Somke Detector Installation and Operation Manual V1.04 Cautions Dust cover on the detector shouldn’t be removed between installation and acceptance test to avoid contamination. If the detector gives fault warning after a long operation, first check if the chamber in detector are too dirty, or the position is changed.
