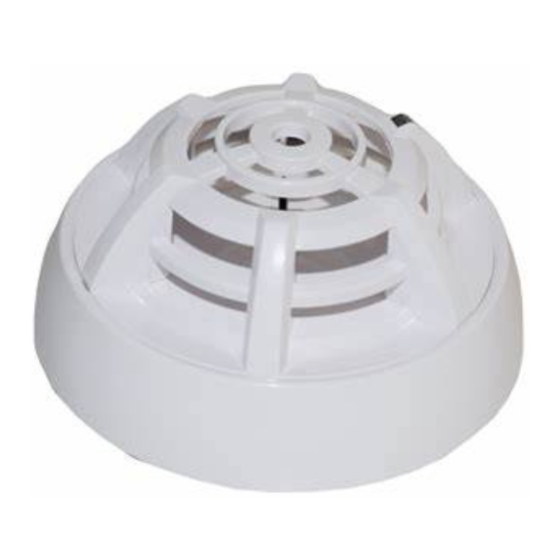

Addressable Heat Detector
Advanced embedded MCU
360° visible LED driven by Control panel
Manually addressing via a dedicated hand
held programmer.
Two Response Modes：A1R/A2
Designed to comply with EN 54-5
Description
The detector has pleasing appearance and is easy to install and maintain. It is suitable for the environment without
smoke but a lot of dust or the places where smoke and vapor stay such as indoor parking, kitchen, boiler room, tea
stove room, generator room and drying workshop.
Technical data
Operating Voltage:
Standby Current:
Alarm Current:
Wiring
Signal Transmission distance:
Detector Classification
Temperature range:
Humidity:
LED Alarm Indication:
LED Polling Indication:
IP Rating:
Installation
Dimensions：Showing on Fig.1
Mounting:
Warning: Please disconnect the loop power in order to avoid control panel broken by short circuit when
mounting Common Base.
VSL2.909.025VGASY
VG-6637 Digital Heat Detector
Installation and Operation Manual V1.03
16-28V(Modulated-pulse)
≤0.5mA
≤1.0 mA
Two-wire（non-polarized）
≤2000m
A1R or A2
-10℃～50℃
≤95%RH, （40±2℃）No condensation
Red light emitting
Red light flashing
32
Common Base
VB-6617
Fig.1Dimensions
Detector
VG-6637
V1.03
Advertisement
Related Manuals for V-GREAT VG-6637
Summary of Contents for V-GREAT VG-6637

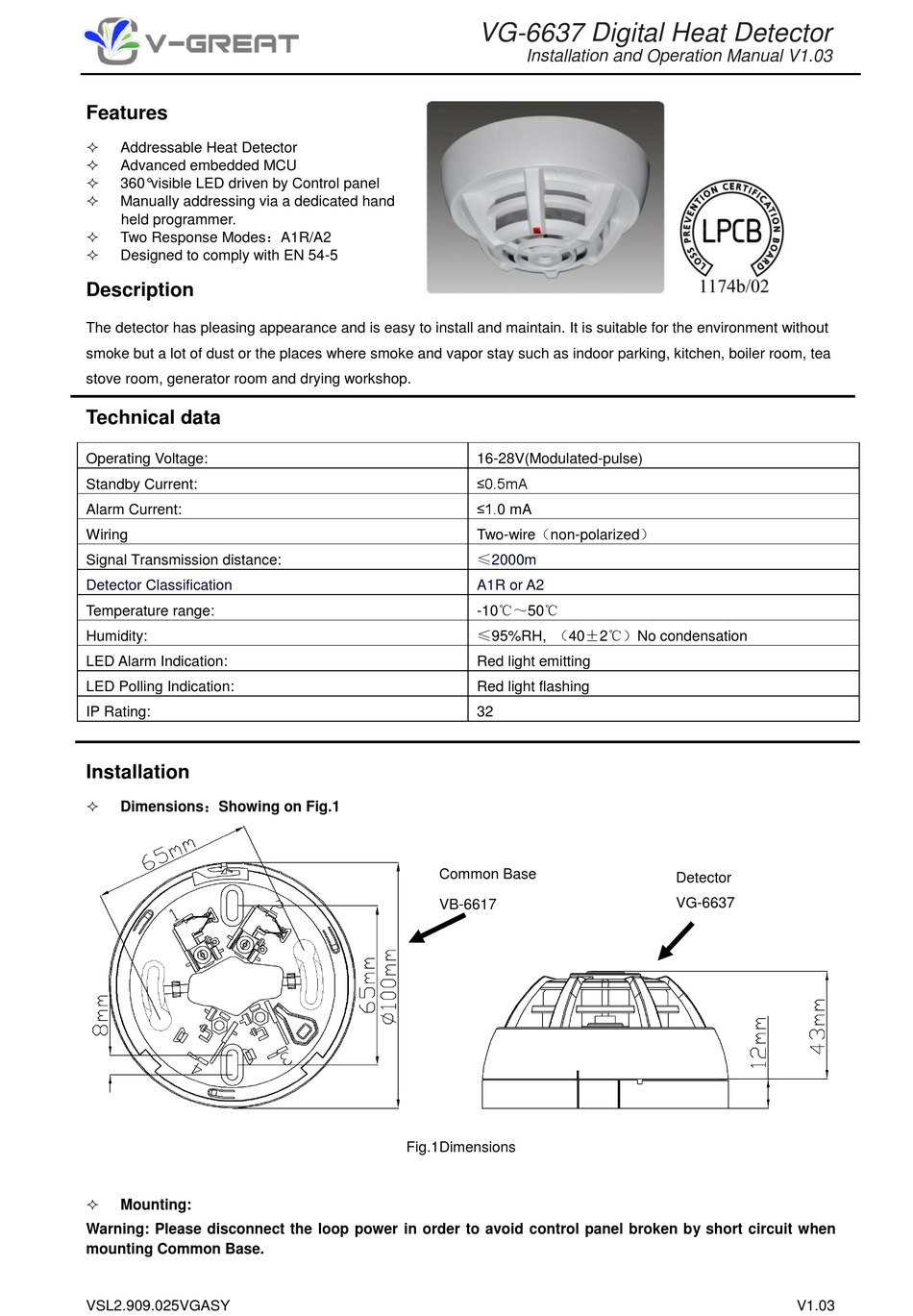

- Page 1 VG-6637 Digital Heat Detector Installation and Operation Manual V1.03 Features Addressable Heat Detector Advanced embedded MCU 360° visible LED driven by Control panel Manually addressing via a dedicated hand held programmer. Two Response Modes：A1R/A2 ...
