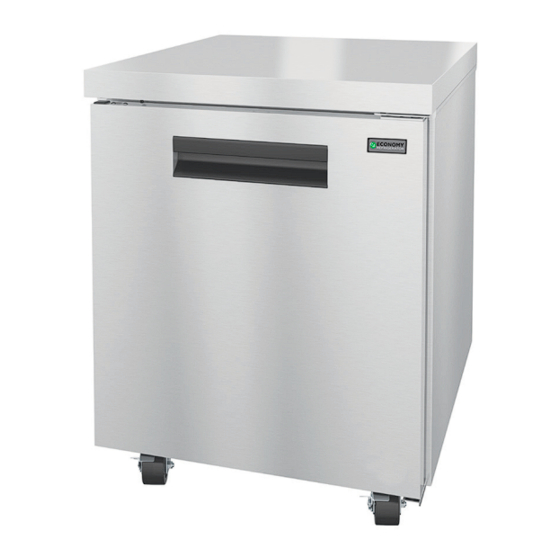

- Page 1 FREEZER Instruction Manual EUR27A EUR48A EUF27A EUF48A Issued: 07-26-2019 Revised: 03-26-2020...
- Page 2 Should the reader have any questions or concerns which have not been satisfactorily addressed, please call, send an e-mail message, or write to the Technical Support Department for assistance. Phone: (800) 227-3172 E-mail: techsupport@economyseries.com ECONOMY SERIES 618 Highway 74 South Peachtree City, GA 30269 Attn: Technical Support Department Web Site: www.economyseries.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Important Safety Information ............. 5 Know your Equipment ..............9 Check for Shipping Damage ............10 Handling the Cabinet ..............11 Location ..................11 Remove the Crate and Skid ............12 Level the Cabinet ................ 12 Electrical Installation ..............13 Installation the Shelves ... - Page 4 EUR27A, EUF27A EUR48A, EUF48A...
-
Page 5: Important Safety Information
Important Safety Information Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, damage to the appliance, or damage to property. Indicates a hazardous situation that, if not avoided, will result in DANGER death or serious injury. - Page 6 WARNING This appliance should be destined only to the use for which it has been expressly conceived. Any other use should be considered improper and therefore dangerous. The manufacturer cannot be held responsible for injury or damage resulting from improper, incorrect, and unreasonable use. Failure to install, operate, and maintain the appliance in accordance with this manual will adversely affect safety, performance, component life, and warranty coverage.
- Page 7 WARNING, continued • This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 8 WARNING, continued • Do not store gasoline or other flammable liquids or gases, near this or other electrical equipment. • Keep your fingers away from grills; the spaces between doors and cabinet are small, so be careful when closing doors when children are around. •...
-
Page 9: Know Your Equipment
Know your Equipment POWER DOOR CORD BACK GRILL CONTROL MODULE SHELF CLIP SHELF CONDENSER BOLT HEAD CASTER... -
Page 10: Check For Shipping Damage
Check for Shipping Damage Prior to leaving the factory, each cabinet is throughly inspected and performance tested to assure proper operating temperatures. Check the crate thoroughly for signs of shipping damage. If external damage exists, internal damage is also probable. Uncrating should be done while the carrier´s representative is present. -
Page 11: Handling The Cabinet
Handling the Cabinet 1. Always move the unit in an upright position. Do not set it on its side or upside down as you may damage the cabinet and spill the compressor oil. 2. If lifting the unit, hold it from its base. It is recommended to use a dolly. 3. -
Page 12: Remove The Crate And Skid
Remove the Crate and Skid 1. Remove the external packaging (corrugated board and plastic wrapping). Check for concealed damage. If any damage is identified, immediately forward a complaint to the transportation company. 2. Move the cooler to its final location, before removing the skid. -
Page 13: Electrical Installation
Electrical Installation Electrical Connection WARNING • Electrical connection must meet national, state, and local electrical code requirements. Failure to meet these code requirements could result in death, electric shock, serious injury, fire, or severe damage to equipment. • This appliance requires an independent power supply of proper capacity. -
Page 14: Installation The Shelves
Installation the Shelves Shelves and shelf clips (4 clips per shelf) are packed inside the cabinet prior to shipment. After selecting the appropriate spacing inside the cabinet, install shelf clips by inserting top of clip inside the pilaster and then press the lower section of the clip while pushing inwards until it snaps into place. -
Page 15: Controls And Adjustments
Controls and Adjustments To EUR27A, EUR48A: NOTES: - THE FACTORY DEFAULT TEMPERATURE SET POINT IS 32°F. - THE SET POINT RANGE IS FROM 32°F TO 40°F. To EUF27A, EUF48A: NOTES: • THE FACTORY DEFAULT TEMPERATURE SET POINT FOR EUF27A IS -11°F AND FOR EUF48A IS -8°F. - Page 16 TEMPERATURE DIAL “OFF” POSITION cycling compressor compressor cycling The control knob can be set to the ‘Off’ position by turning it fully counterclockwise. This setting turns off the compressor and the fans regardless of temperature, allowing manual defrost, cleaning etc. ATTENTION This controller has a feature to protect the cooler against an electrical spike/surge.
-
Page 17: Cleaning And Preventive Maintenance
Cleaning and Preventive Maintenance Your unit requires very little maintenance. However, periodic cleaning can help maintain efficiency and prolong product life. Remember to disconnect the power source before cleaning. Remove all products and place them in another cooler. 1. Clean once a month the condenser with a grease remover. The condenser is located in the lower part of your unit, behind the front grill. -
Page 18: Disposal
Disposal DANGER FLAMMABLE • The appliance contains refrigerant and must be disposed of in accordance with applicable national, state, and local codes and regulations. Refrigerant must be recovered by properly certified service personnel. • The insulation foaming agent used for the unit body contains flammable gas cyclopentane. - Page 20 SERIES MAN-343-R 618 Hwy. 74 South, Peachtree City, GA 30269 USA (P) (800) 227-3172 www.economyseries.com...
