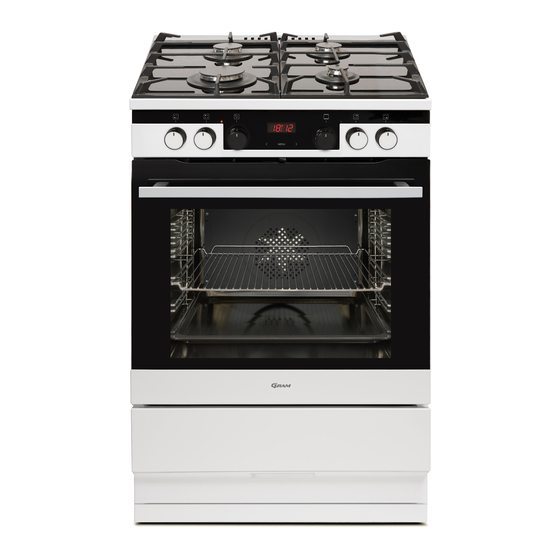

Gram GK 20642-90 Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Type
GK 20642-90
GK 20642-90 X
(EN) INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the GK 20642-90 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gram GK 20642-90

Summary of Contents for Gram GK 20642-90

  • Page 1 Type GK 20642-90 GK 20642-90 X (EN) INSTRUCTION MANUAL...
  • Page 2 DEAR CUSTOMER, The cooker is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the cooker will be easy. Before being packaged and leaving the manufacturer, the cooker was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ................... 10 Installation ......................... 12 Operation ........................... 17 Baking in the oven – practical hints ................28 Test dishes..........................31 Cleaning and maintenance.....................33 Technical data ........................39...

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning...
  • Page 5 SAFETY INSTRUCTIONS Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibillity of electric shock. Before opening the cover, cleaning it of any dirt is recom- mended. The cooker hob surface should be cooled down before closing the cover.
  • Page 6 SAFETY INSTRUCTIONS  Please pay attention to children whilst the cooker is in operation, as children do not know the rules of cooker use. In particular, hot surface burners, the oven chamber, grates, the door pane, and pans containing hot liquids standing on the hob may cause burns to children.
  • Page 7 SAFETY INSTRUCTIONS  Do not make your own alterations to the cooker in order to adapt it to a different type of gas, move the cooker to another place or make changes to the power supply. These operations may only be carried out by an authorised electrician or fitter. ...
  • Page 8 HOW TO SAVE ENERGY Using energy in a respon- Make sure the oven door is properly sible way not only saves closed. money but also helps the Heat can leak through spillages on the door environment. So let’s save seals. Clean up any spillages immediately. energy! And this is how you Do not install the cooker in the direct can do it:...
  • Page 9 DISPOSAL OF THE APPLIANCE UNPACKING Old appliances should not sim- During transportation, protec- ply be disposed of with normal tive packaging was used to household waste, but should protect the appliance against be delivered to a collection and any damage. After unpack- recycling centre for electric and ing, please dispose of all electronic equipment.

  • Page 10: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE 5, 6 3, 4 1 Temperature control knob 2 Oven function selection knob 3, 4, 5, 6 Gas burner control knobs 7 Temperatureregulatorsignal light 8 Cooker operation signal light 9 Oven door handle 10 Child safety lock 11 Drawer 12 Programmer Burner safety valve...
  • Page 11 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Grill grate (drying rack) Baking tray Roasting tray Sideracks...

  • Page 12: Installation

    INSTALLATION The following instructions are addressed to the qualified specialist installing the cooker. These instructions aim at ensuring that hood OKAP installation and maintenance activities are performed as professionally as possible. Min. 600 mm Installing the cooker  The kitchen should be dry and airy and have effective ventilation according to the existing technical provisions.
  • Page 13 INSTALLATION Gas connection Mounting the overturning prevention bracket. Caution! The cooker should be connected to a The bracket is mounted to prevent overtur- gas supply of the particular type of gas ning of the cooker. When the overturning that the appliance is manufactured to prevention bracket is installed, a child who function with.
  • Page 14 INSTALLATION Caution! Caution! On completion of the cooker installa- The cooker may only be connected tion, the tightness of all connections to a liquid gas cylinder or the existing should be checked, e.g. applying gas supply by an authorised fitter, water with soap.
  • Page 15 INSTALLATION Adapting the cooker to another In order to adapt the cooker to burn a different type of gas. type of gas, you should:  exchange nozzles (see tables below), This operation may only be carried out by an  adjust the “economical” flame. appropriately authorised fitter.
  • Page 16 INSTALLATION Surface burners applied do not require adjust- In cookers with a safety device, a knob with ment of primary air. A correct flame has dis- a surface burner safety valve is used, fig. tinct internal cones of blue and green colour. Knobs should be adjusted with the burner A short, humming flame or long, yellow and switched on and set to the economical flame...

  • Page 17: Operation

    OPERATION Before first use Important! In ovens equipped with the electronic  remove packaging elements, programmer Ts, the time “0.00” will  gently (slowly) remove labels from the start flashing in the display field upon oven door, trying not to break the glue connection to the power supply.
  • Page 18 OPERATION Child safety lock Oven door features a child safety lock de- vice that prevents children from opening of the door. The appliance is supplied by the manufacturer with the door safety lock de- vice engaged. Release the child safety lock. The lock is released and you can open...
  • Page 19 OPERATION How to use surface burners Ignition without an ignitor Choice of cookware  light a match, Mind that the diameter of a pan base is always  press in the knob to the end and turn it larger than the burner flame crown, and that the pan itself is covered.
  • Page 20 OPERATION Caution! Operation of the burner protection valve In cooker models equipped with a surface burner safety valve, hold the Some models are equipped with an automatic knob pressed down to the end when system that cuts off gas supply to a burner igniting for 10 seconds at the “large when the flame has disappeared.
  • Page 21 OPERATION Operate the control panel You can adjust the time later. To do this touch < / > simultaneously and adjust the current time while the dot below the symbol is flashing. Note: The oven can be turned on when you see the symbol on the display.
  • Page 22 OPERATION Timed operation Delayed timed operation To set the appliance to switch off after a In order to set the appliance to switch off at a specific duration: specific time after a set Duration has elapsed, set the Duration and the End Time: ...
  • Page 23 OPERATION Change the beep tone  set the function selector knob and the temperature selector knob to preferred You can change the beep tones as follows: settings. The functions are now active. The appliance will switch on at  simultaneously touch the < / >, sensors End Time minus Duration (i.e.
  • Page 24 OPERATION  Use the < / > sensors to select your pre- ferred brightness: Use > to select the setting 1 to 9 Use < to select the setting 9 to 1 Note: The display is at its brightest setting when active, i.e.
  • Page 25 OPERATION Oven is off Oven functions and operation. Oven with automatic air circu- Rapid Preheating lation (including a fan and ring Ring heater and roaster on. Use to preheat the oven. heater) The oven can be heated up using the bottom Defrosting and top heaters, the grill or the ultra-fan he- Only fan is on and all heaters are off.
  • Page 26 OPERATION Top and bottom heaters on Convection with ring heating ele- Set the knob in this position for co- ment and bottom heater on nventional baking. This setting is ideal With this setting the convection fan for baking cakes, meat, fish, bread and bottom heater are on, which in- and pizza (it is necessary to preheat creases the temperature at the bottom...
  • Page 27 OPERATION Use of the grill The grilling process operates through infrared rays emitted onto the dish by the incandes- cent grill heater. In order to switch on the grill you need to:  Set the oven knob to the position marked grill ...

  • Page 28: Baking In The Oven - Practical Hints

    BAKING IN THE OVEN – PRACTICAL HINTS Baking  we recommend using the baking trays which were provided with your cooker;  it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;...
  • Page 29 BAKING IN THE OVEN – PRACTICAL HINTS ECO fan assisted heating ECO fan assisted heating is an optimised heating function designed to save  energy when preparing food. You cannot reduce the cooking time by setting a higher temperature; preheating ...
  • Page 30 BAKING IN THE OVEN – PRACTICAL HINTS Oven with automatic air circulation (including a fan and ring heater) Type of Type Temperature ( Level Time dish of heating (min.) Sponge cake 160 - 200 2 - 3 30 - 50 Yeast cake/ 160 - 170 25 - 40...

  • Page 31: Test Dishes

    TEST DISHES. According to standard EN 60350-1. Baking Type of dish Accessory Level Type Temperature Baking of heating time (min.) Baking tray 28 - 32 Baking tray 23 - 26 Baking tray 26 - 30 Small cakes 2 + 4 Baking tray 2 - baking tray 27 - 30...
  • Page 32 TEST DISHES. According to standard EN 60350-1. Grilling Type of dish Accessory Level Type Temperature Time of heating (min.) White bread Wire rack 3 - 7 toast Wire rack + 4 - wire rack roasting tray 1st side 13 - 18 Beef burgers 3 - roasting (to gather...

  • Page 33: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Important: By ensuring proper cleaning and mainte- The burner caps and leads must be reposi- nance of your cooker you can have a sig- tioned correctly so that they sit squarely onto nificant influence on the continuing fault-free the hob as shown.
  • Page 34 CLEANING AND MAINTENANCE Replacement of the oven light Oven bulb  The oven should be cleaned after every In order to avoid the possibility of an use. When cleaning the oven the lighting electric shock ensure that the appliance is should be switched on to enable you to switched off before replacing the bulb.
  • Page 35 CLEANING AND MAINTENANCE Wire shelf supports  Ovens in cookers marked with the letters have stainless steel sliding telescopic Wire shelf supports are esay to remove for runners attached to the wire shelf sup- wasking. Pull the front catch, then tilt the sup- ports.
  • Page 36 CLEANING AND MAINTENANCE Removing the inner panel Door removal 1. Pull the upper door slat loose. (fig. B, C) In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards (fig.
  • Page 37 CLEANING AND MAINTENANCE 2. Pull the inner glass panel from its seat (in the lower section of the door). Regular inspections fig. D, D1. 3. Clean the panel with warm water with Besides keeping the cooker clean, you some cleaning agent added. should: Carry out the same in reverse order to ...
  • Page 38  call the service centre  some minor faults can be fixed by referring to the instructions given in the table below. Before calling the customer support centre or the GRAM service centre check the following points that are presented in the table.

  • Page 39: Technical Data

    TECHNICAL DATA Voltage rating 230V~50 Hz Power rating max. 3,6 kW Small burner 1000 W Medium burner 1750 W Large burner 3000 W Cooker dimensions H/W/D 90/60/60 cm Basic Information: The product meets the requirements of European standards EN 60335- 1; EN60335-2-6, EN 30-1-1 The data on the energy labels of electric ovens is given according to standard EN 60350-1 / IEC 60350-1.
  • Page 40 Gram A/S Gram A/S Gram A/S Tel.: 22 07 26 30 Tel.: 040 38 08 40 Tel.: 020 7756 350 www.gram.no www.gram.se www.gram.fi Gram A/S Gejlhavegård 2B DK-6000 Kolding +45 73 20 10 00 www.gram.dk IO-CFS-1564 / 8508708 (01.2020 / v1)
