TM70 (7") / TM50 (5") Touchscreen Keypads
Installation
1. Separate the top
assembly from the back
plate. Insert a flathead
screwdriver into the tab
located, as shown in
Figure 1.
2. Mount the back plate
to the wall or to a gang
box using appropriate
screws. Ensure that
the UP arrow on the
back plate is in the up
position.
Note: We recom-
mend to feed the
TM70 with 18
gauge wire.
Installation Manual
TM70
Gang Box
TM50
Tab
Location
Figure 1
TM70
SD Card Cover
when needed
Gang Box
TM50
SD Card Cover
when needed
Gang Box
Figure 2
Tab
Location
SD
Card
SD
Card
Advertisement
Table of Contents
Related Manuals for Paradox TM70
Summary of Contents for Paradox TM70

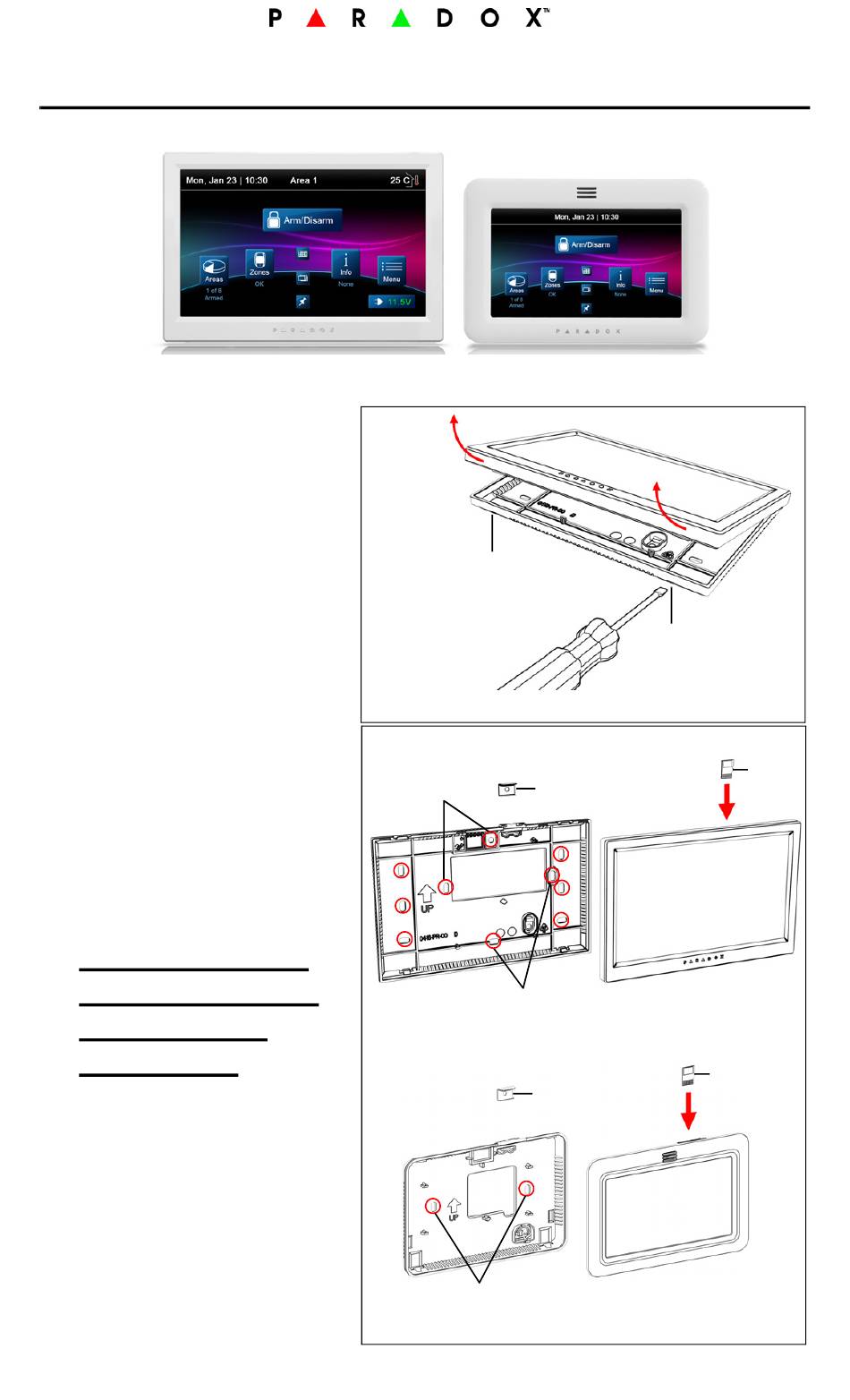

- Page 1 TM70 (7”) / TM50 (5”) Touchscreen Keypads Installation Manual TM70 TM50 Installation 1. Separate the top assembly from the back plate. Insert a flathead screwdriver into the tab located, as shown in Figure 1. Location Location Figure 1 2. Mount the back plate...
- Page 2 Figure 2. Secure the wire plug to the PCB socket the wires as per the color code to match the Paradox keypad bus code. The blue wire is key- pad zone input. Note: We recommend to feed the TM70 with 18 gauge wire.
