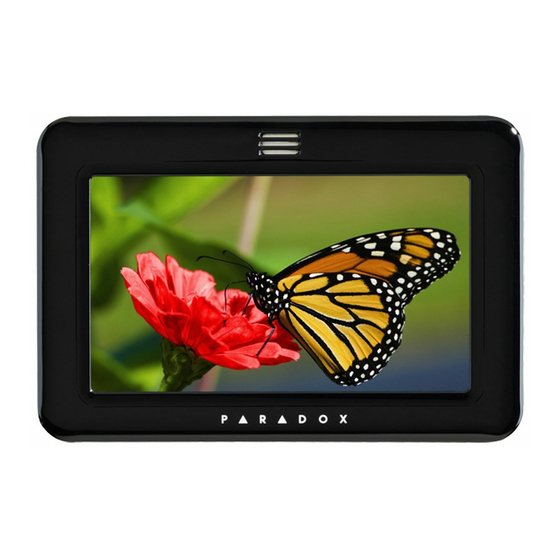

TM50 Touch
Interactive Touchscreen
Quick Install Guide

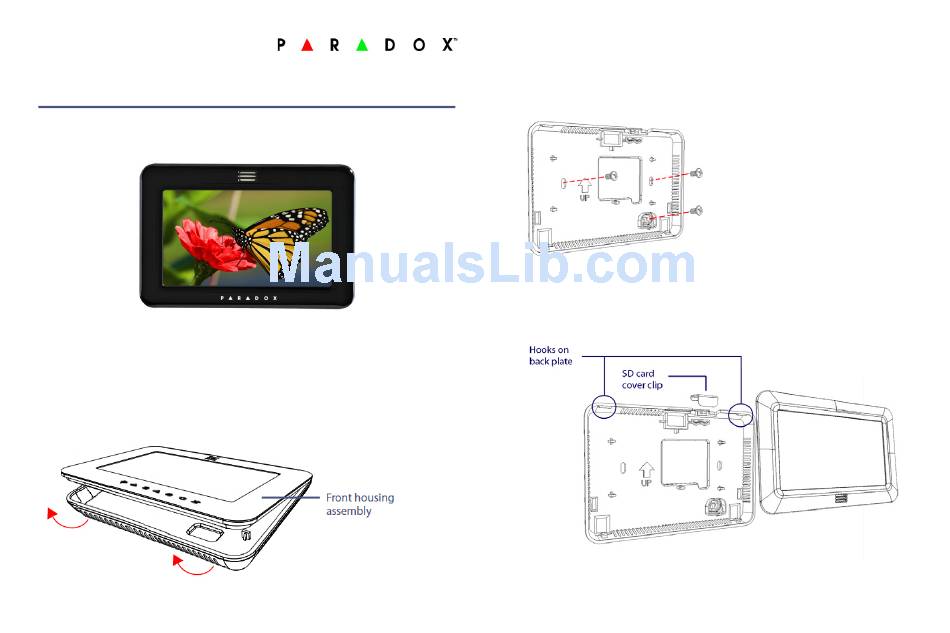

Installation
1.
Using a screwdriver, pry the front housing assembly from
the backplate.
Printed in Canada | 05/2012
2.
Mount the backplate to the wall by securing a M3.5 (#6)
screw in each of the dedicated mounting holes and tamper
hole. Ensure that the UP arrow on the backplate is in the up
TM50-EI00
position.
3.
Assemble both items by joining the hooks on the backplate
to their respective slots on the front housing assembly. Make
sure the SD card cover clip is secured.
TM50 Quick Install Guide
