Paradox TM50 Touch Quick Install Manual

Paradox TM50 Touch Quick Install Manual

Intuitive touchscreen
Hide thumbs Also See for TM50 Touch:

Advertisement

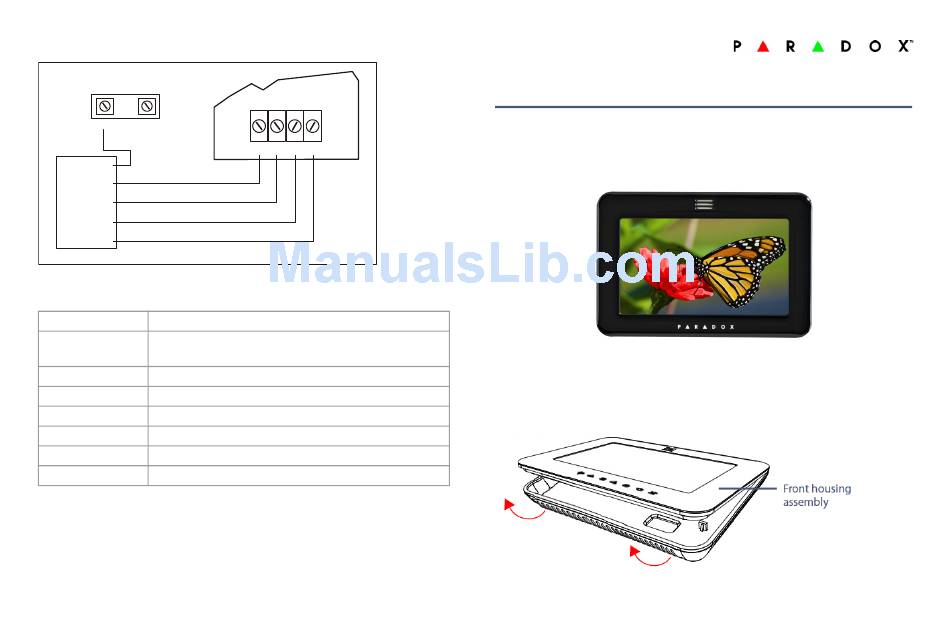

Wiring Diagram

Kpd 1 or Kpd 2
N.C
COM
.
BLUE
ZONE/TEMP
RED
BLK
GRN
YEL

Technical Specifications

Power Input 9 to 16Vdc
16-bit, color LCD; 6.4 x 11.2 cm (2.5 x 4.4 in.), 480 x
Display
272 pixels
Consumption Standby: 100mA, Alarm: 200mA
Dimensions 14.4 x 9.6 x 1.4 cm (5.7 x 3.8 x 0.6 in.)
Weight 165 g (5.8 oz)
Humidity 5-90%
Sensors Indoor temperature sensor
Compatibility EVO v2.16 or higher, MG/SP v4.72 or higher
Warranty: For complete warranty information on this product, please refer to
the Limited Warranty Statement found on the Web site www.paradox.com/
terms. Your use of the Paradox product signifies your acceptance of all
warranty terms and conditions.
© 2012 Paradox Ltd. All rights reserved. Specifications may change without
prior notice.
www.paradox.com
Printed in Canada | 06/2012
CONTROL PANEL
AUX +
AUX - GRN YEL

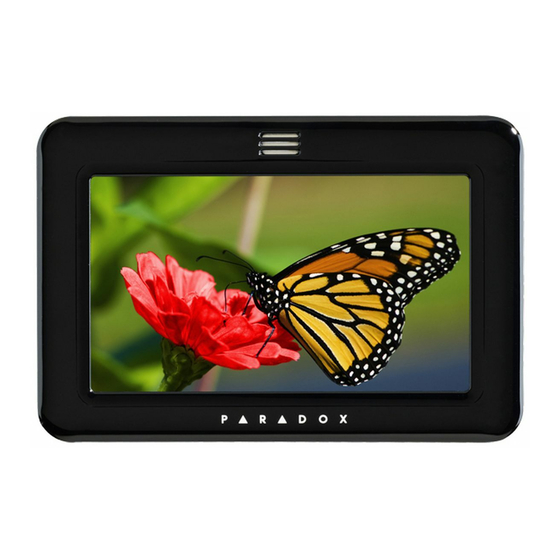

TM50 Touch
Intuitive Touchscreen
Quick Install Guide
The TM50 Touch Intuitive Touchscreen allows you to control your
Paradox system's functions through its touchscreen interface. Use
the following instructions to install your new TM50 Touch.

Installation

1.
Using a screwdriver, pry the front housing assembly from
the backplate.
TM50-EI01
TM50 Quick Install Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM50 Touch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Paradox TM50 Touch

  • Page 1: Technical Specifications

    Warranty: For complete warranty information on this product, please refer to the Limited Warranty Statement found on the Web site www.paradox.com/ terms. Your use of the Paradox product signifies your acceptance of all warranty terms and conditions. © 2012 Paradox Ltd. All rights reserved. Specifications may change without prior notice.
  • Page 2 TM50 Touch to Panel Connections As shown in the Wiring Diagram, the red, black, green, and yellow wires on the TM50 Touch must be connected to their corresponding labeled terminals on the control panel’s PCB. The blue wire is connected to either a keypad zone or external...
