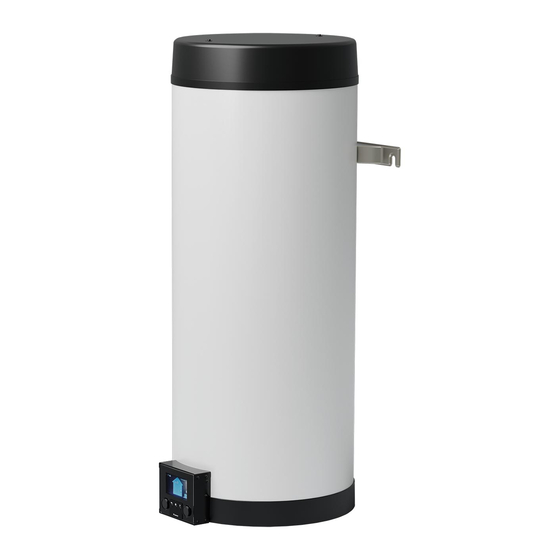

Daikin EKHWET120B V3 Series User Reference Manual
Domestic hot water tank
Hide thumbs
Also See for EKHWET120B V3 Series:
- Installer's reference manual (120 pages) ,
- Installation manual (24 pages) ,
- Operation manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for Daikin EKHWET120B V3 Series
Summary of Contents for Daikin EKHWET120B V3 Series
- Page 1 User reference guide R32 Split series – Domestic hot water tank EKHWET90B▲V3▼ EKHWET120B▲V3▼ ▲= 1, 2, 3, …, 9, A, B, C, …, Z ▼= , , 1, 2, 3, …, 9...
-
Page 2: Table Of Contents
Table of contents Table of contents 1 About this document Meaning of warnings and symbols..........................2 User safety instructions General.................................... Instructions for safe operation ............................3 About the system Components in a typical system layout.......................... 10 4 Quick guide User permission level..............................11 Domestic hot water ................................ - Page 3 Table of contents 12 Installer settings: Tables to be filled in by installer 12.1 Configuration wizard............................... 48 12.2 Settings menu ................................. 48 EKHWET90+120B User reference guide R32 Split series – Domestic hot water tank 4P680076-1A – 2022.11...
-
Page 4: About This Document
Format: Paper (in the box of the indoor unit) ▪ User reference guide: Detailed step-by-step instructions and background information for basic and advanced usage Format: Digital files on https://www.daikin.eu. Use the search function find your model. ▪ Installation manual – Outdoor unit: Installation instructions Format: Paper (in the box of the outdoor unit) ▪... -
Page 5: Meaning Of Warnings And Symbols
About this document ONECTA app If set up by your installer, you can use the ONECTA app to control and monitor the status of your system. For more information, see: http://www.onlinecontroller.daikineurope.com/ Breadcrumbs Breadcrumbs (example: [5.1]) help you to locate where you are in the menu structure of the user interface. - Page 6 About this document DANGER: RISK OF BURNING/SCALDING Indicates a situation that could result in burning/scalding because of extreme hot or cold temperatures. DANGER: RISK OF EXPLOSION Indicates a situation that could result in explosion. WARNING Indicates a situation that could result in death or serious injury. WARNING: FLAMMABLE MATERIAL CAUTION Indicates a situation that could result in minor or moderate injury.
-
Page 7: User Safety Instructions
User safety instructions 2 User safety instructions Always observe the following safety instructions and regulations. 2.1 General WARNING If you are NOT sure how to operate the unit, contact your installer. WARNING This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning... -
Page 8: Instructions For Safe Operation
User safety instructions ▪ Units are marked with the following symbol: This means that electrical and electronic products may NOT be mixed with unsorted household waste. Do NOT try to dismantle the system yourself: dismantling the system, treatment of the refrigerant, of oil and of other parts MUST be done by an authorised installer and MUST comply with applicable legislation. - Page 9 User safety instructions WARNING ▪ The refrigerant inside the unit is mildly flammable, but normally does NOT leak. If the refrigerant leaks in the room and comes in contact with fire from a burner, a heater, or a cooker, this may result in fire, or the formation of a harmful gas.
-
Page 10: About The System
About the system 3 About the system Depending on the system layout, the system can: ▪ Produce domestic hot water 3.1 Components in a typical system layout a Outdoor unit heat pump b Domestic hot water (DHW) tank c User interface of the indoor unit A Technical room. -
Page 11: Quick Guide
Quick guide 4 Quick guide 4.1 User permission level The amount of information you can read and edit in the menu structure depends on your user permission level: ▪ User: Standard mode ▪ Advanced user: You can read and edit more information To change the user permission level 1 Go to [B]: User profile. - Page 12 Quick guide 1 Go to [C.3]: Operation > Tank. Operation Tank 2 Set operation to On or Off. To change the tank temperature setpoint In Reheat only mode, you can use the tank temperature setpoint screen to read out and adjust the domestic hot water temperature. 1 Go to [5]: Tank.
-
Page 13: Operation
Operation 5 Operation 5.1 User interface: Overview The user interface has the following components: a LCD screen b Dials and buttons LCD screen The LCD screen has a sleeping function. After 15 min of non-interaction with the user interface, the screen darkens. Pressing any button or rotating any dial awakens the display. - Page 14 Operation Item Description Right dial The LCD shows an arc on the right side of the display when you can use the right dial. ▪ : Turn, then press the right dial. Change a value or setting, shown at the right side of the screen. ▪...
-
Page 15: Menu Structure: Overview User Settings
Operation 5.2 Menu structure: Overview user settings Tank [7.2] Time/date Powerful operation Hours Comfort setpoint Minutes Eco setpoint Year Reheat setpoint Month Schedule (**) Heat up mode Daylight savings time Disinfection (**) Format (**) Maximum (**) Hysteresis [7.3] Holiday (**) Setpoint mode Activation (**) -
Page 16: Possible Screens: Overview
Operation 5.3 Possible screens: Overview The most common screens are as follows: – a Home screen b Main menu screen c Lower level screens: c1: Setpoint screen c2: Detailed screen with values c3: Screen with weather-dependent curve c4: Screen with schedule 5.3.1 Home screen Press the button to go back to the home screen. -
Page 17: Main Menu Screen
Operation Item Description Domestic hot water Domestic hot water Measured tank temperature Disinfection / Powerful Disinfection mode active Powerful operation mode active Emergency Heat pump failure and system operates in Emergency mode. Current date and time Outdoor / quiet mode Measured outdoor temperature Quiet mode active Outdoor unit... -
Page 18: Setpoint Screen
Operation Submenu Description Malfunctioning Restriction: Only displayed if a malfunction occurs. "8.1 To display the help text in case of a malfunction" [ 43] for more information. Set the domestic hot water tank temperature. Tank Gives access to user settings such as holiday User settings mode and quiet mode. -
Page 19: Detailed Screen With Values
Operation Possible actions on this screen Adjust and automatically apply the desired temperature. Item Description Minimum temperature limit Fixed by the unit Restricted by the installer Maximum temperature limit Fixed by the unit Restricted by the installer Current temperature Measured by the unit Desired temperature Turn the right dial to increase/ decrease (for Reheat only... -
Page 20: To Turn On Or Off
Operation Tank heating operation a Tank operation ON b Tank operation OFF 5.4.2 To turn ON or OFF Tank heating operation NOTICE Disinfection mode. Even if you turn OFF tank heating operation ([C.3]: Operation > Tank), disinfection mode will remain active. However, if you turn it OFF while disinfection is running, an AH error occurs. -
Page 21: Domestic Hot Water Control
Operation In menu… You can read out… [8.8] Connection status Information about the connection status of the unit, the room thermostat and WLAN. [8.9] Running hours Running hours of specific system components 5.6 Domestic hot water control 5.6.1 About domestic hot water control Depending on the DHW tank mode (installer setting), you use a different domestic hot water control: ▪... -
Page 22: Reheat Mode
Operation If… is displayed Then the DHW tank mode =… All items including [5.4] Reheat Schedule + reheat setpoint are displayed 5.6.2 Reheat mode In reheat mode, the DHW tank continuously heats up to the temperature shown on the home screen (example: 50°C) when the temperature drops below a certain value. -
Page 23: Scheduled + Reheat Mode
Operation ▪ During the morning, you consume hot water and the DHW tank temperature decreases. ▪ At 14:00 the DHW tank is programmed to heat up the water to a preset value (example: Eco = 50°C). Hot water is available again. ▪... -
Page 24: Using Dhw Powerful Operation
Operation 2 Adjust the domestic hot water temperature. °C – Tank a Actual domestic hot water temperature b Desired domestic hot water temperature In other modes, you can only view the setpoint screen but not modify it. Instead, you can modify the settings for the Comfort setpoint [5.2], Eco setpoint [5.3] and Reheat setpoint [5.4]. -
Page 25: Preset Values And Schedules
Operation 5.7 Preset values and schedules 5.7.1 Using preset values About preset values For some settings in the system, you can define preset values. You only need to set these values one time, then reuse the values in other screens such as the scheduling screen. - Page 26 Operation You can… See… Select which schedule you currently want to use for a specific control. The system contains some predefined schedules. You can: Consult which schedule is currently "Schedule/Control" in "Possible selected. schedules" [ 26] Program your own schedules if the ▪...
-
Page 27: Schedule Screen: Example
Operation Schedule/Control Description [5.F] Tank > Priority Predefined schedules: Domestic hot water schedule as priority for each month Schedule for the outdoor unit Activation screen: Not applicable. This schedule to determine priority between is only used when more than one indoor unit domestic hot water tank (e.g. - Page 28 Operation To clear the content of the week schedule 1 Select the name of the current schedule. User defined 2 Select Delete. Delete 3 Select OK to confirm. To clear the content of a day schedule 1 Select the day of which you want to clear the content. For example Friday User defined 2 Select Delete.
- Page 29 Operation 3 Use the left dial to select an entry and edit the entry with the right dial. You can program up to 4 actions each day. 6:00 Comfort 22:00 8:30 17:30 Comfort Note: To clear an action, set its time as the time of the previous action.
-
Page 30: Weather-Dependent Curve
Operation 5 Repeat this action for all other weekdays. — User defined To program the schedule for Saturday and copy it to Sunday 1 Select Saturday. 2 Select Edit. 3 Use the left dial to select an entry and edit the entry with the right dial. -
Page 31: 2-Points Curve
Operation Weather-dependent curve To be able to compensate for differences in temperature, the unit relies on its weather-dependent curve. This curve defines how much the target temperature of the tank must be at different outdoor temperatures. Because the slope of the curve depends on local circumstances such as climate and the insulation of the house, the curve can be adjusted by an installer. -
Page 32: Slope-Offset Curve
Operation 5.8.3 Slope-offset curve Slope and offset Define the weather-dependent curve by its slope and offset: ▪ Change the slope to differently increase or decrease the target temperature of the tank for different ambient temperatures. For example, if tank water temperature is in general fine but at low ambient temperatures too cold, raise the slope so that the tank temperature is heated increasingly more at decreasingly lower ambient temperatures. -
Page 33: Using Weather-Dependent Curves
Operation Possible actions on this screen Select slope or offset. Increase or decrease the slope/offset. When slope is selected: set slope and go to offset. When offset is selected: set offset. Confirm changes and return to the submenu. 5.8.4 Using weather-dependent curves Configure weather-dependent curves as following: To define the setpoint mode To use the weather-dependent curve, you need to define the correct setpoint... -
Page 34: Priority Schedule
Operation The domestic hot water temperature is … Fine-tune with slope and offset: At regular outdoor At cold outdoor Slope Offset temperatures … temperatures … Cold ↓ ↑ ↑ ↓ Cold ↑ ↓ — ↓ "5.8.3 Slope-offset curve" [ 32]. To fine-tune the weather-dependent curve: 2-points curve The following table describes how to fine-tune the weather-dependent curve of the tank: The domestic hot water temperature is …... -
Page 35: Operation Mode
Operation 2 Select which month to set. Priority schedule January February March 3 Select the priority schedule of that month. Priority schedule January February March Example of possible outcomes based on scheduled Priority schedule are as follow: If … Then heat pump operation = … Which is A/C request is priority? -
Page 36: Other Functionalities
Operation ▪ Efficient: Booster heater only allowed when outdoor unit is unable to perform DHW (e.g. water temperature is outside operation range of outdoor unit, or outdoor unit decides to only perform A/C operation – refer to "5.9 Priority schedule" [ 34]) ▪... -
Page 37: Using Holiday Mode
Operation 1 Go to [7.4.2]: User settings > Quiet > Schedule. 2 Program the schedule. — Possible actions: You can use the following system-defined preset values: ▪ ▪ Quiet ▪ More quiet ▪ Most quiet For more information about scheduling, see "5.7.2 Using and programming schedules" [... -
Page 38: Using Wlan
Operation 3 Set the last day of your holiday. — ▪ Go to [7.3.3]: Till. ▪ Select a date. ▪ Confirm the changes. 5.11.4 Using WLAN INFORMATION Restriction: WLAN settings are only visible when a WLAN cartridge is inserted in the user interface. - Page 39 Operation 1 Go to [D.1]: Wireless gateway > Mode. 2 In the Enable AP mode screen, select Yes. [D.2] Reboot: Reboot the WLAN cartridge: 1 Go to [D.2]: Wireless gateway > Reboot. 2 In the Reboot the gateway screen, select OK. [D.3] WPS: Connect the WLAN cartridge to the router: INFORMATION You can only use this function if it is supported by the software version of the WLAN,...
-
Page 40: Energy Saving Tips
Energy saving tips 6 Energy saving tips Tips about DHW tank temperature ▪ Set the Priority schedule to DHW to minimize the usage of the electric booster heater. ▪ Use a weekly schedule for your normal domestic hot water needs (ONLY in scheduled mode). -
Page 41: Maintenance And Service
Maintenance and service 7 Maintenance and service 7.1 Overview: Maintenance and service The installer has to perform a yearly maintenance. You can find the contact/ helpdesk number via the user interface. 1 Go to [8.3]: Information > Dealer information. As end user, you have to: ▪... - Page 42 Maintenance and service NOTICE Applicable legislation on fluorinated greenhouse gases requires that the refrigerant charge of the unit is indicated both in weight and CO equivalent. Formula to calculate the quantity in CO equivalent tonnes: GWP value of the refrigerant × total refrigerant charge [in kg]/1000 Contact your installer for more information.
-
Page 43: Troubleshooting
Troubleshooting 8 Troubleshooting Contact For the symptoms listed below, you can try to solve the problem yourself. For any other problem, contact your installer. You can find the contact/helpdesk number via the user interface. 1 Go to [8.3]: Information > Dealer information. 8.1 To display the help text in case of a malfunction In case of a malfunction, the following will appear on the home screen depending on the severity:... -
Page 44: Symptom: The Water At The Tap Is Too Cold
Troubleshooting 8.3 Symptom: The water at the tap is too cold Possible cause Corrective action You ran out of domestic hot water If you immediately need domestic hot because of unusually high consumption. water, activate the DHW tank Powerful operation. However, this The desired DHW tank temperature is consumes extra energy. -
Page 45: Relocation
Relocation 9 Relocation 9.1 Overview: Relocation If you want to relocate parts of your system, contact your installer. You can find the contact/helpdesk number via the user interface. 1 Go to [8.3]: Information > Dealer information. EKHWET90+120B User reference guide R32 Split series –... -
Page 46: Disposal
Disposal 10 Disposal NOTICE Do NOT try to dismantle the system yourself: dismantling of the system, treatment of the refrigerant, oil and other parts MUST comply with applicable legislation. Units MUST be treated at a specialised treatment facility for reuse, recycling and recovery. EKHWET90+120B User reference guide R32 Split series –... -
Page 47: Glossary
Optional equipment Equipment made or approved by Daikin that can be combined with the product according to the instructions in the accompanying documentation. Field supply Equipment NOT made by Daikin that can be combined with the product according to the instructions in the accompanying documentation. - Page 48 Installer settings: Tables to be filled in by installer 12 Installer settings: Tables to be filled in by installer 12.1 Configuration wizard Setting Fill in… System Indoor unit type (read only) Emergency [9.5] Booster heater capacity [9.4.1] Quick mode timer [9.4.3] Operation [9.4.4] Tank Heat up mode [5.6]...
- Page 52 4P680076-1A 2022.11 Verantwortung für Energie und Umwelt...
