This damage is not covered by your warranty. Cable TV Installer: This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper...
Key Features Overview Your TV/DVD is equipped with some special features that will add to your viewing experience. The following information summarizes some of these features. On-screen TV Program Guide Description: The GUIDE Plus+ system is an on-screen interactive list of programs and information that is built into your TV/DVD and available when in TV mode.
Info Display icons, you can access features including Repeat, Audio, Subtitles, Bookmarks and Camera Angle. Requirements: • Put your TV/DVD in DVD mode and insert a disc into the disc tray. • Wait for the disc to play, then press INFO to view the Info Display menu.
Important Stand and Base Safety Information ... 8 Use Indirect Light ... 8 Connection Pictures ... 8 Types of Discs Your TV/DVD will Play ... 8 Choose Your Connection ... 9 TV/DVD Only ... 10 TV/DVD + VCR ... 11 TV/DVD + Receiver ...
Page 6
Using Bookmarks ... 33 Changing the Camera Angle ... 34 Disc Playback Features Using the Remote ... 34 Chapter 3: Using the TV’s Features About the GUIDE Plus+ System ... 38 Downloading Data ... 38 Getting In & Out of the GUIDE Plus+ System ... 39 The GUIDE Plus+ System Menus ...
Page 7
The Languages Menu ... 66 Glossary ... 67 Code List ... 68 Chapter 5: Using the TV’s Menu System How to Use Your TV’s Menu System ... 70 Audio Menu ... 70 Picture Quality Menu ... 71 Screen Menu ... 72 Using Closed Captioning ...
Page 8
Handling Cautions ... 89 Formation of Condensation ... 89 Handling Discs ... 90 Cleaning Discs ... 90 The Front of Your TV/DVD ... 91 Universal Remote ... 92 Test the Remote ... 92 Program the Remote ... 92 Automatic Code Search ... 92 Direct Entry ...
• Things to Consider Before You Connect • Choose Your Connection • Connections • Why You Should Connect This G-LINK Cable • Plug in the TV/DVD • Put Batteries in the Remote • How to Use the Remote Control to Complete the Interactive Setup •...
Important Stand and Base Safety Information Choose the location for your TV/DVD carefully. Place the TV/DVD on a stand or base that is of adequate size and strength to prevent the TV/DVD from being accidentally tipped over, pushed off, or pulled off. This could cause personal injury and/or damage the TV/DVD.
Please locate the G-LINK cable (provided) when you’re getting ready to set up your TV/DVD. You need to connect this cable to your TV/DVD, and to your VCR and/or cable box in order for all of the features of the program guide to work properly.
2. If you’re connecting a cable box, connect the G-LINK cable Connect the G-LINK cable to the G-LINK jack on the TV/DVD. Next step, place the wands of the G-LINK cable to the cable box (instructions are on page 14).
TV/DVD (R and L/MONO) and to the Audio Output Jacks on the VCR (sometimes labeled OUT R L). C. Connect the video cable (yellow) to the VIDEO IN jack on the back of the TV/DVD and to the Video Output Jack on the VCR.
DIGITAL AUDIO OUT jack. For more information, see Chapter 4. *Dolby Digital is a trademark of Dolby Laboratories Licensing Corporation **DTS is a registered trademark of Digital Home Theater Systems, Inc. TV/DVD ANTENNA L/ MONO VIDEO S-VIDEO...
2A. Connect the A/V receiver to your TV/DVD Connect the audio/video cables. Connect audio cables (white and red) to the AUDIO OUT jacks on the back of the TV/DVD (R and L) and to the Audio Input Jacks on the receiver (sometimes labeled AUDIO IN L R).
VCR and/or cable box. Cable Box – If your TV/DVD is connected to a cable box you must connect the G-LINK cable to receive TV program listings for your area, and to tune directly to a channel when the program guide is on your TV screen.
The tips in this section tell you how to access the Setup menu screens manually. Note: Pressing the TV button not only turns on the TV, but puts the remote into TV mode. “TV mode” means that the buttons on the remote control operate the TV’s...
2. Press OK to select that language. Complete Auto Channel Search The next part of the SETUP asks you if you want the TV to search for all channels viewable through your antenna or cable TV system. This is sometimes called “auto programming.”...
Page 19
The left arrow button moves you to the left. Step 2: Configuring for Cable The next series of screens asks you about your cable setup. To supply your TV with the correct TV program listings, the GUIDE Plus+ system needs to know if your TV/DVD is connected to cable.
Page 20
Connections & Setup 3. Highlight the channel to which you have to tune your TV in order to see cable programming, and press OK (a screen appears reminding you to connect your G-LINK cable to your TV/DVD and cable box).
Page 21
3. Tune your VCR to channel 02. Next, turn OFF your VCR. When you complete these steps, press OK to begin testing. Important Note: When code testing is in progress, don’t touch your TV/DVD, VCR, or any of the remote controls for these products.
Page 22
OK. Follow the instructions on the screen. 2. You can choose to view a demo of the GUIDE Plus+ features, which may take a few minutes to load. If you don’t want to see the demo right now, press OK to watch TV. Chapter 1...
What to Expect The next time you are in TV mode, the GUIDE Plus+ system will appear on the screen. The following examples explain what you might see: • If all of the program information has been sent to your TV, the GUIDE Plus+ system appears with all of your TV program listings.
You can program this button to control a cable box, most RCA, GE and Proscan audio components, a laserdisc player, or a VCR. If you set up the Auto Tuning feature (Chapter 3), pressing the AUX button automatically tunes the TV/DVD to the correct channel.
Page 25
REVERSE In DVD mode, press REVERSE to go backwards on a disc. SAT•CABLE In TV mode, puts the remote in SAT•CABLE mode. SKIP In TV mode, if you press this button before you change the channel, the TV waits 30 seconds and automatically goes back to the original channel. Each time you press SKIP, you add 30 seconds (i.e, if you press SKIP two times before...
Chapter 2 Playing DVDs Chapter Overview: • Regional Coding • Using Different Menus • Loading and Playing Discs • Using a Disc Menu • Using the On-Screen Info Display • Disc Playback Features Changing Entertainment. Again. Graphics contained within this publication are for representation only.
Regional Coding Both the TV/DVD unit and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes don’t match, the disc won’t play. This unit’s code is region 1.
To Load and Play a Disc To put the TV/DVD in DVD mode and play a disc, press the DVD button on the remote control. 1. Press the OPEN•CLOSE button on the front of the TV/DVD. The disc tray opens.
Page 30
Playing DVDs In this example, The Language setting is highlighted. To select this option, press OK on the remote. In the example on the left, English is highlighted. Press OK on the remote to play the disc with English dialog. 2.
Playing DVDs Using the On-Screen Info Display The on-screen Info Display contains many playback features. To see the Info Display, press the INFO button on the remote while a disc is playing. The Info Display appears across the top of the screen.
Playing DVDs Time Display This feature displays the audio/video time. For DVD discs, the time displayed refers to the current title time. For Audio CDs, it refers to the current track time. For DVD video discs, the Time Display also acts as a Time Search feature. This lets you go to a particular scene in a movie by entering the time that scene is played.
Selecting Subtitles By default, subtitles are off. To turn subtitles on: 1. While the disc is playing, press INFO on the remote. 2. Highlight the Subtitles icon. The Subtitle icon acts as a toggle to turn subtitles on and off. When subtitles are on, the text box below the icons will display the current subtitle language.
Playing DVDs Using the Repeat Feature The default mode for the Repeat feature is Off. There are four Repeat options: • Disc – repeats the disc that is playing • Title – repeats the title that is playing • Chapter – repeats the chapter that is playing •...
Using Bookmarks The bookmark feature lets you mark a point on the disc that you can go to quickly. You can store up to 6 bookmarks per disc. When you turn the TV/DVD off or remove the disc, bookmarks are cleared.
Playing DVDs Changing the Camera Angle Some discs contain multiple angles of a particular scene or sequence. If the disc only has one angle, this feature won’t work. When multiple angles are available, the Camera Angle icon appears in the upper right corner of the screen. To change the camera angle: 1.
Playing DVDs Slow Motion Playback (in Freeze Frame Mode) While the disc is in freeze frame mode, you can use slow motion playback. 1. While the disc is playing, press PAUSE on the remote. 2. Press the REVERSE or the FORWARD button. 3.
Chapter 3 Using the TV’s Features Chapter Overview: • About the GUIDE Plus+ System • The Channel Banner • Auto Tuning • Parental Controls and V-Chip Changing Entertainment. Again. Graphics contained within this publication are for representation only.
The GUIDE Plus+ system is an interactive on-screen program guide that lists TV schedules for your area and allows your TV/DVD direct control of a cable box and/or VCR. You must first set up the GUIDE Plus+ Menu system in order to view this on-screen program guide (see Chapter 1 for details).
GUIDE Plus+ system. To remove the program guide from the screen, press OK, GUIDE, or CLEAR. Chapter 3 Using the TV’s Features Getting In & Out of the GUIDE Plus+ System To enter the GUIDE Plus+ system: • Press GUIDE on the remote.
Page 42
When highlighting the program, the following Action buttons appear: • Watch Press 1 on the remote to place a timer in the Schedule for the TV to turn on and tune to the program highlighted in the channel listing. When the TV turns on, the GUIDE Plus+ system will automatically appear with the scheduled program highlighted and tuned in the video window.
Watch Press 1 on the remote to place a timer in the Schedule, and then follow the on-line help for further options. Placing a timer in the Schedule will cause the TV to turn on and tune to the program highlighted in the channel listing at the predetermined time.
5. If you select Record, make sure to place a blank tape in the VCR and turn it off. Note: If you have a cable box connected to your TV/DVD and VCR, tune your VCR to the cable box output channel prior to turning off the VCR.
Messages menu selection Chapter 3 Using the TV’s Features To remove or change the frequency (daily, once, or weekly) of a scheduled event, access the Schedule menu from the Menu bar. 1. Press GUIDE to bring up the GUIDE Plus+ system.
Using the TV’s Features Channels menu Channels menu action buttons selection Setup The Setup menu allows you to access the GUIDE Plus+ system setup information. To access the Setup option: 1. If the Guide Plus+ system isn’t on your screen, press GUIDE on your remote control.
Off The station name isn’t displayed when you change channels. Continuous Demo Runs the GUIDE Plus+ system demonstration until it is turned off. To turn off the demonstration, you must turn off the TV. Note: If you have not completed your GUIDE Plus+ system setup, these options will not be available.
TV/DVD (like a VCR, satellite receiver, etc.) When you set up auto tuning in the menu system you don’t have to remember to change your TV to channel 3, for example, when you want to watch the tape in your VCR.
Page 49
Video Input Component is connected to the VIDEO jack on the back of the TV/DVD and when in TV mode you want to tune to VID (SVID if you used an S-Video cable) Input Channel when you press the component button.
TV (referred to as V-Chip) which allows you to block TV programs and movies based on violence, sex, or other content you may believe children should not view. In other words, it lets you program your TV so it won’t display certain programs.
2. Press MENU to continue. 3. Highlight and select V-Chip TV Rating Limit. 4. Once you get to the V-Chip TV Rating Limit screen, use the arrow buttons and OK on your remote to change the status of a TV program rating or content theme from View to Block.
For example, if you only want your child to watch programs that have a TV-G rating and lower (in other words, you want the child to watch TV-G, TV-Y7, and TV-Y), then you need to block out other programming with higher ratings.
You can block programs based on their content. (Content is represented by the D, L, S, V, FV and TV-Y on your screen. See the beginning of this section for details.) When you block a content theme for a particular rating, you automatically block that content theme for higher rated programs as well.
TV-PG or TV-MA language content. Note: Only the content theme status corresponding to TV-14 (L) language changes to (V) View. Higher rated content themes, such as that for TV-MA language, do not change. Chapter 3...
How to block movie ratings and view movie ratings is explained in the next two sections. To access the V-CHIP MOVIE RATING LIMIT menu: 1. Press MENU on the remote control (the TV MAIN MENU appears). 2. Select Parental Controls (press 6). 3. Select V-Chip Movie Rating Limit (press 2).
V-Chip Unrated Program Block Selecting this option lets you decide if programs that the V-Chip recognizes as “unrated” can be viewed. Note that “unrated” TV programs may include news, sports, political, religious, local and weather programs, emergency bulletins, public announcements, and programs without ratings.
Using the DVD’s Menu System Chapter Overview: • The DVD’s Menu System • The Play Mode Menu • The Lock Menu • The Display Menu • The Sound Menu • The Languages Menu • The Glossary Changing Entertainment. Again. Graphics contained within this publication are for representation only. Chapter 4...
TV/DVD, the option reads Play with the prompt Insert Disc to the right. If there is a disc in the TV/DVD and it was previously playing, the option reads Resume Play and the name of the disc is displayed on the right.
The DVD’s Play Mode menu lets you choose different ways to play the disc. To see Play Mode menu options, a disc must be in the TV/DVD. 1. If the disc is playing, press STOP (the DVD’s main menu appears).
You can play your program by highlighting Play and pressing OK, or you can save the program by highlighting Done and pressing OK. The program will be erased when you remove the disc from the TV/DVD. Editing a Program Deleting Chapters To delete chapters from the playlist: 1.
Inserting Chapters To insert chapters into the playlist: 1. If the disc is playing, press STOP to stop playback (the DVD’s main menu appears). 2. Highlight Play Mode and press OK (the Play Mode menu appears). 3. Highlight Edit Program and press OK (the Edit Program screen appears). 4.
Using the DVD’s Menu System The Lock Menu The padlock icon is displayed on the DVD’s main menu which shows whether your DVD is locked or unlocked. Locked: A password is needed in order to play discs that aren’t included in the rating limits you have set.
Note: When in DVD mode, the TV/DVD alerts you when you try to play a movie with a rating that exceeds the limit you’ve set. Some discs include a rating override feature. When you play a disc with this feature, the message Override Limit or Cancel Selection appears on the screen.
Using the DVD’s Menu System The Rated Titles screen lets you set the Rating Limit Unrated Titles Some titles (movies) aren’t rated, but may contain material that is unsuitable for children. You decide how you want the Ratings Limits feature to handle these discs: free access or password required.
The Display Menu The Display menu contains the settings that affect how disc content looks on your TV/DVD. TV Image The TV Image menu adjusts the way a movie appears on your TV/DVD. Standard TVs are 4 x 3 format. 4x3 Letterbox...
The default is to show all on-screen displays. To turn one of the options on or off: The On-Screen Displays option lets you choose which on-screen display items appear on your TV/DVD. The Sound Menu The Sound menu lets you select different sound settings to match the equipment you have connected to your unit.
3. Press the left arrow button to return to the main menu. Note: The performance of the Sound Logic feature varies depending on the type of equipment you have connected to your TV/DVD and the audio format of the disc you’re playing.
5. Press the left arrow button or press GO BACK to return to the previous menu screen. Note: Remember, your TV/DVD can’t play the disc in the language you have chosen if the disc wasn’t created with that language option.
The Glossary explains terms used regarding the DVD mode of the TV/DVD and discs. Chapter 4 Using the DVD’s Menu System Glossary The glossary contains definitions and information about the features and controls when in the DVD mode. 1. If the disc is playing, press STOP (the DVD’s main menu appears).
Using the DVD’s Menu System Code List Don’t forget to press the OK button after you enter the code. Language Code Abkhazian Afar Afrikaans Albanian Ameharic Arabic Armenian Assamese Aymara Azerbaijani Bashkir Basque Bengali; Bangla Bhutani Bihari Bislama Breton Bulgarian Burmese Byelorussian Cambodian...
Using the TV’s Menu System Chapter Overview: • How to Use the Different Types of Menus • Audio Menu • Picture Quality Menu • Screen Menu • Using Closed Captioning • Channel Menu • Time Menu Changing Entertainment. Again. Graphics contained within this publication are for representation only.
Using the TV’s Menu System How to Use Your TV’s Menu System You use the buttons on the remote or the front of your TV/DVD to access the menu system and make changes to the settings. The following pages explain how to use the different types of menus to adjust the features of your TV.
When exiting this menu, the Save Personal Picture Preset choice list will appear. You can choose either Yes or No. If you save the settings as a Personal Picture Preset, the TV/DVD will store the settings so you can re-select them quickly if someone changes the settings.
On always Captioning information is shown always, when available. On when sound is muted Captioning information is shown, when available, whenever the TV/DVD’s sound is muted. (To mute the sound, press the MUTE button.) The captioning information is not displayed when the sound is not muted.
The TV can store up to 27 labels in memory. Auto Tuning Displays a choice list that lets you set up the TV to automatically tune to the correct input channel when you press a component button (VCR1, VCR2, or SAT•CABLE) on the remote.
TV/DVD before it shuts itself off. Schedule Displays a control panel that lets you set up a schedule for turning the TV/DVD on and off automatically. Reminder: you must turn the schedule On. The on-screen directions guide you through the steps needed to set the schedule.
Playing Other Types of Discs Chapter Overview: • Using the Info Display • Using the Time Display • Selecting a Specific Track • Selecting a Specific Index • Selecting a Play Mode • Using the Repeat Feature • Changing the Audio Channel Output •...
Playing Other Types of Discs Using the Info Display Your TV/DVD gives you many options when playing different types of discs. You can access these features through the on-screen Info Display. To access the Info Display while a disc is playing, press INFO on the remote. The Info Display appears across the top of the screen.
Press the up/down arrow buttons to scroll through the play mode choices until Random appears in the text box. The tracks on the disc will now play in random order. Note: The TV/DVD defaults to Standard playback whenever you put a new disc into your TV/DVD. Chapter 6...
OK. If you save the program, you can select it from the Info Display. The program will be erased when you remove the disc from the disc tray or the TV/DVD is turned off. To edit a MP3: 1. If the disc is playing, press STOP to stop playback (the DVD’s main 00:04:01 menu appears).
Editing a Playlist 1. If the disc is playing, press STOP to stop playback. The DVD’s main menu appears. 2. Highlight Play Mode and press OK (the Play Mode menu appears). 3. Highlight Edit Program and press OK (the Edit Program screen appears). 4.
Playing Other Types of Discs Changing the Audio Channel Output (Available only on Video CDs) If you are playing a stereo Video CD, you can change the channel output. 1. Press INFO on the remote to bring up the Info Display. 2.
Page 83
4. When you reach the place you want to mark, press OK. The unmarked icon changes to two icons (side-by-side): • An arrow that is used to activate the bookmark. • A trashcan that is used to clear the bookmark. Next to the icons, the bookmark start time and track are displayed.
Playing Other Types of Discs Dub Assist (Available only on Audio CDs) Dub Assist helps you record a CD onto an audio cassette tape by determining the number of tracks that will fit on one side of the tape so you have time to turn the tape over to record on the other side.
Chapter 7 Other Information Chapter Overview: • Troubleshooting • Care and Cleaning • The Front of Your TV/DVD • The Universal Remote • Limited Warranty • Accessory Order Form • Index Changing Entertainment. Again. Graphics contained within this publication are for representation only.
• If the disc is a DTS music CD, it requires a DTS decoder. If you have a DTS receiver hooked up to your TV/DVD and you are still not getting sound, make sure the sound is set correctly (see Chapter 4).
Page 87
• Your TV/DVD is equipped with a screen saver that appears on the screen after the DVD mode has been idle for several minutes. Press STOP or GO BACK on the remote to make the screen saver disappear from the screen and return to the DVD’s main menu.
Page 88
• Channel may be blocked or not approved in the Parental Controls menu. • If using a VCR, make sure the TV/VCR button on the VCR is in the correct mode (press the TV/VCR button on your VCR). Chapter 7...
Page 89
If you’re watching your VCR and it’s connected with coaxial cable to the ANTENNA jack, tune the TV to channel 3 or 4 (whichever channel is selected on the 3/4 switch on the back of your VCR). Also check to make sure the TV/VCR button on the VCR is in the correct mode (press the TV/VCR button on your VCR).
Record option won’t be available. Go to page 19 for detailed instructions. • If a cable box is attached to your TV/DVD, make sure you set it up correctly in the GUIDE Plus+ Setup menus. Go to page 17-18 for detailed instructions.
Care and Cleaning CAUTION: Turn OFF your TV/DVD before cleaning. You can clean the TV/DVD as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet to help assure adequate ventilation. The TV/DVD’s screen may be cleaned with a soft, lint-free cloth as well. Take care not to scratch or mar the screen.
Other Information Handling Discs • Don’t touch the disc’s signal surfaces. Hold by the edges or by one edge and the hole in the center. • Don’t affix labels or adhesive tape to label surfaces. Don’t scratch or damage the label. •...

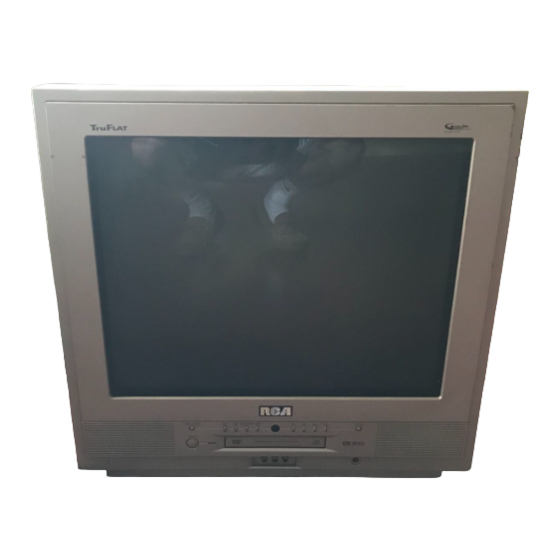

The Front of Your TV/DVD Front Panel If you can’t find your remote control you can use the buttons on your TV/DVD to operate many of the TV/DVD’s features. OPEN/CLOSE Press to open and close the disc tray. STOP Stops disc play.
RCA, Proscan, and GE VCRs and satellite receivers. The AUX button can be programmed to operate a cable box, most RCA, GE and Proscan audio components, a laserdisc player, or a VCR. Note: The TV and DVD buttons cannot be programmed.
How you get service: • For 20” screen size: Take your RCA unit to any Authorized RCA Television Service Center and pickup when repairs are complete. • For screen sizes larger than 20”: Request home or pick up, repair and return service from any Authorized RCA Television Service Center, provided that your unit is located within the geographic territory covered by an Authorized RCA Television Service Center.
Page 98
Other Information Limitation of Warranty: • THE WARRANTY STATED ABOVE IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED (INCLUDING ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE) ARE HEREBY DISCLAIMED. NO VERBAL OR WRITTEN INFORMATION GIVEN BY THOMSON MULTIMEDIA INC., ITS AGENTS OR EMPLOYEES SHALL CREATE A GUARANTY OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.
Can also be used to connect a VCR to your TV. Cable is color- coded and shielded. Has Gold-Tipped cable RCA-type phono plugs on each end. VH83 (6-ft) Stereo VCR Dubbing Cable Triple cable that lets you connect the jacks of stereo components.
Page 100
ANT200 Remote Control VCR1 ON OFF VCR2 SAT CABLE This is the remote control that MUTE SKIP came packed with your TV. Replacements or spares can be SOUND GO BACK GUIDE INFO ordered as needed. MENU CLEAR WHO INPUT...
