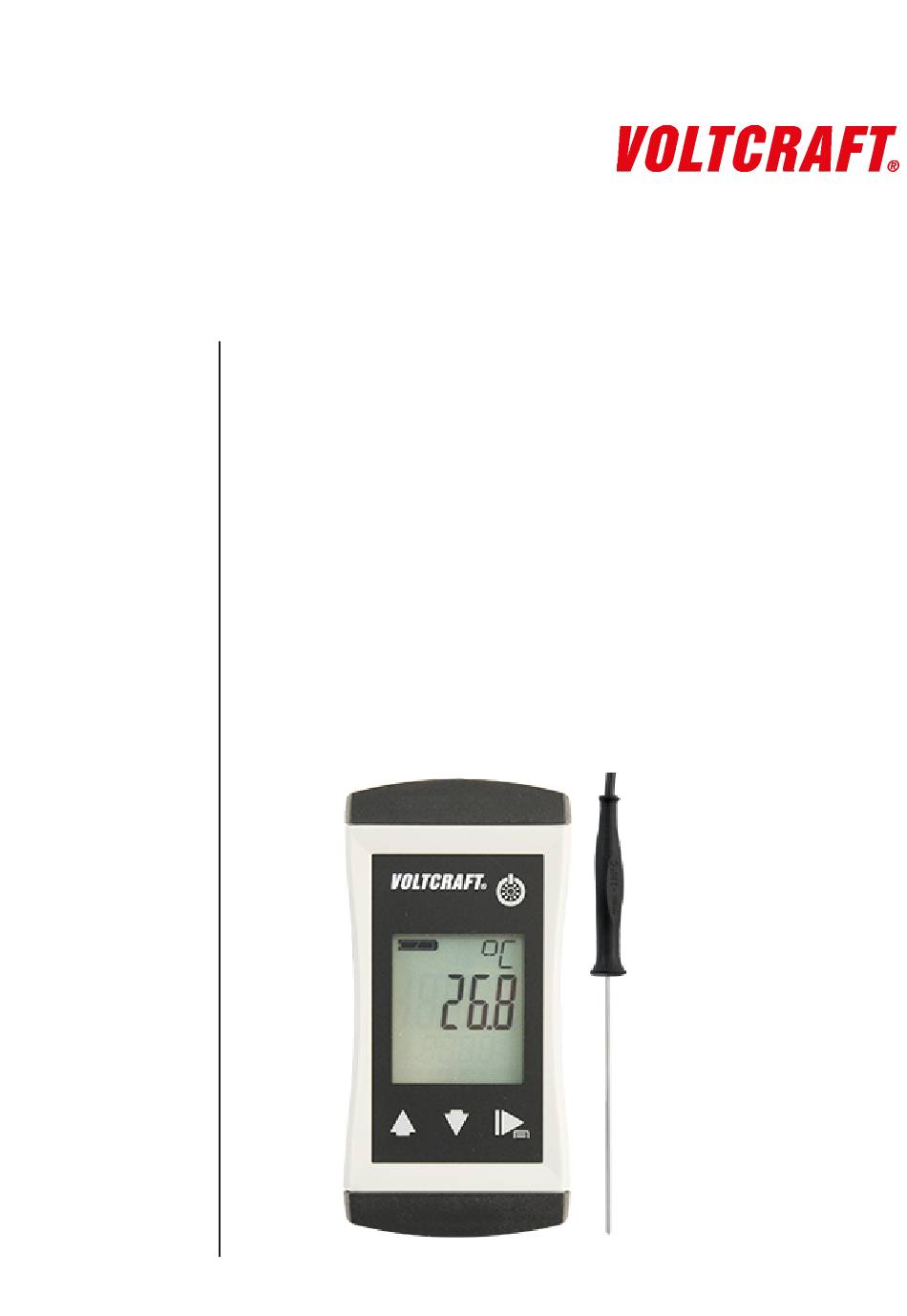

- Page 1 Operating manual PTM-130 Thermometer with fixed insertion probe Permanently connected sensor Waterproof Precise and fast...
-
Page 2: Table Of Contents
Intended use ............................ 8 Qualified personnel.......................... 9 Description ............................ 10 Scope of delivery .......................... 10 Job description............................ 10 The product at a glance ........................ 11 The PTM-130............................ 11 Display elements .......................... 11 Operating elements .......................... 11 Operation............................ 13 Commissioning ........................... 13 6.1.1 Explanation ............................ - Page 3 Table of contents Disposal............................. 23 Technical data........................... 24 Service ............................... 25 12.1 Manufacturer............................ 25 B-H86.0.0D.DB214-1.0 3 / 25...
-
Page 4: Legal Address Of The Manufacturer
1 | Legal address of the manufacturer PTM-130 1 Legal address of the manufacturer Conrad Electronic SE Klaus-Conrad-Str. 1 D-92240 Hirschau http://www.conrad.com WEEE reg. no. DE 28001718 4 / 25 B-H86.0.0D.DB214-1.0... -
Page 5: About This Documentation
PTM-130 About this documentation | 2 2 About this documentation 2.1 Foreword Read this document carefully and familiarise yourself with the operation of the product before you use it. Keep this document ready to hand and in the immediate vicinity of the product so that it is available to the personnel/user for reference at all times in case of doubt. -
Page 6: Further Information
2 | About this documentation PTM-130 Outcome of an action Result, consequence or effect of an instruction. Emphases In order to simplify legibility and provide a clearer overview, various sections / informa- tion are emphasised. – 1234 Display elements – Mechanical controls –... -
Page 7: Safety
PTM-130 Safety | 3 3 Safety 3.1 Explanation of safety symbols DANGER This symbol warns of imminent danger which can result in death, severe bodily injury, or severe property damage in case of non-observance. CAUTION This symbol warns of potential dangers or harmful situations which can cause damage to the device or to the environment in case of non-observance. -
Page 8: Intended Use
3 | Safety PTM-130 CAUTION Erratic behaviour! On suspicion that the product can no longer be operated without danger, it must be decommissioned and prevented from recommissioning with appropriate labelling. The safety of the user can be impaired by the device if, for example, if it shows visible damage, it no longer works as specified or if it was stored for an extended period of time under unsuitable conditions. -
Page 9: Qualified Personnel
PTM-130 Safety | 3 See Technical data [} p. 24]. 3.5 Qualified personnel For commissioning, operation and maintenance, the relevant personnel must have ad- equate knowledge of the measuring process and use of the measurements, for which purpose this document makes a valuable contribution. The instructions in this docu- ment must be understood, observed and followed. -
Page 10: Description
4 | Description PTM-130 4 Description 4.1 Scope of delivery Please check to ensure the completeness of the product after opening the package. You should find the following components: – Quick reference guide – Handheld measuring device, ready for operation, including batteries 4.2 Job description... -
Page 11: The Product At A Glance
PTM-130 The product at a glance | 5 5 The product at a glance 5.1 The PTM-130 LCD Display PTM-130 PTM-130 5.2 Display elements Display Battery indicator Evaluation of the battery status Unit display Display of units, if applicable, with unstable symbol... - Page 12 5 | The product at a glance PTM-130 Function key Press briefly Freeze measurement Return to measurement display Call up next parameter Long press, 2s Open menu, frozen measurement is displayed Close menu, changes are saved 12 / 25 B-H86.0.0D.DB214-1.0...
-
Page 13: Operation
PTM-130 Operation | 6 6 Operation 6.1 Commissioning 6.1.1 Explanation Description The product is switched on with the On/Off button. It may be necessary to configure the product after switching on. See Configuration [} p. 13]. Prerequisite – Sufficiently full batteries are inserted in the product. -
Page 14: Configuring Parameters Of The Configuration Menu
6 | Operation PTM-130 Representation Call up menu Next parameter Change value Save changes Discard changes Press: Single step Hold: Rapid change The Configuration menu is closed after the last parameter. Outcome of an action NOTE If the product is switched off without saving the configuration, the last save value is re- produced on the next start-up of the product. -
Page 15: Adjustment Of The Measuring Input
PTM-130 Operation | 6 Backlighting L,TE Backlighting deactivated Automatic shut-off of the backlighting after a selec- 15 30 60 120 240 ted time in seconds, during which no buttons have been pressed No automatic shut-off of the backlighting Temperature unit UN,T Temperature display in °C... -
Page 16: Configuring Parameters Of The Adjustment Menu
6 | Operation PTM-130 5. In order to save the new parameter value, press and hold the Function key for longer than 1 second. Representation Call up menu Hold Release Outcome of an action The Configuration menu is closed after the last parameter. - Page 17 PTM-130 Operation | 6 – Display in water bath 36.6 °C – Display in water bath setpoint T.SL = 37.0 °C – T.OF = display zero point correction – setpoint zero point – T.OF = -0.2 °C – 0.0 °C = -0.2 °C –...
-
Page 18: Bases For Measurement
7 | Bases for measurement PTM-130 7 Bases for measurement 7.1 Possible measuring errors 7.1.1 Immersion depth Liquids Immerse to a depth of at least 20 mm and then stir. Otherwise, measuring errors can occur due to the heat transmission of the sensor tube if the immersion depth is too shallow. -
Page 19: Maintenance
PTM-130 Maintenance | 8 8 Maintenance 8.1 Operating and maintenance notices NOTE The product and temperature probe must be handled with care and used in accord- ance with the technical data. Do not throw or strike. NOTE If the product is stored at a temperature above 50 °C, or is not used for an extended period of time, the batteries must be removed. -
Page 20: Calibration And Adjustment Service
8 | Maintenance PTM-130 NOTE Read the following handling instructions before replacing batteries and follow them step by step. If disregarded, the product could be damaged or the protection from moisture could be diminished. Description Proceed as follows to replace the batteries. - Page 21 PTM-130 Maintenance | 8 NOTE Only the manufacturer can check the basic settings and make corrections if neces- sary. B-H86.0.0D.DB214-1.0 21 / 25...
-
Page 22: Error And System Messages
9 | Error and system messages PTM-130 9 Error and system messages Display Meaning Possible causes Remedy No suitable measur- Incorrect measuring Connect a suitable measur- ---- ing probe connected probe ing probe Measurement far Measuring probe or Measurement leaves the... -
Page 23: Disposal
PTM-130 Disposal | 10 10 Disposal NOTE The device must not be disposed of with household waste. If the product is disposed of, please take it to a municipal collection point, where it will be transported to a dis- posal company in accordance with requirements of hazardous goods laws. Otherwise, return it to us, freight prepaid. -
Page 24: Technical Data
11 | Technical data PTM-130 11 Technical data Measuring range temperature -70.0 .. +250.0 °C (-94.0 .. +482.0 °F) Accuracy temperature -20 .. +100 °C: ±0.1 K ±1 digit otherwise: ±0.2 % of measured value ± 2 digits Response time T90 water (0.4 m/s) approx. -
Page 25: Service
PTM-130 Service | 12 12 Service 12.1 Manufacturer If you have any questions, please do not hesitate to contact us: Contact VOLTCRAFT Distributed by Conrad Electronic SE Klaus-Conrad-Str. 1 92240 Hirschau, Germany Tel.: +49 9604 40 87 87 Fax: +49 180 5 312110 kundenservice@conrad.de...
