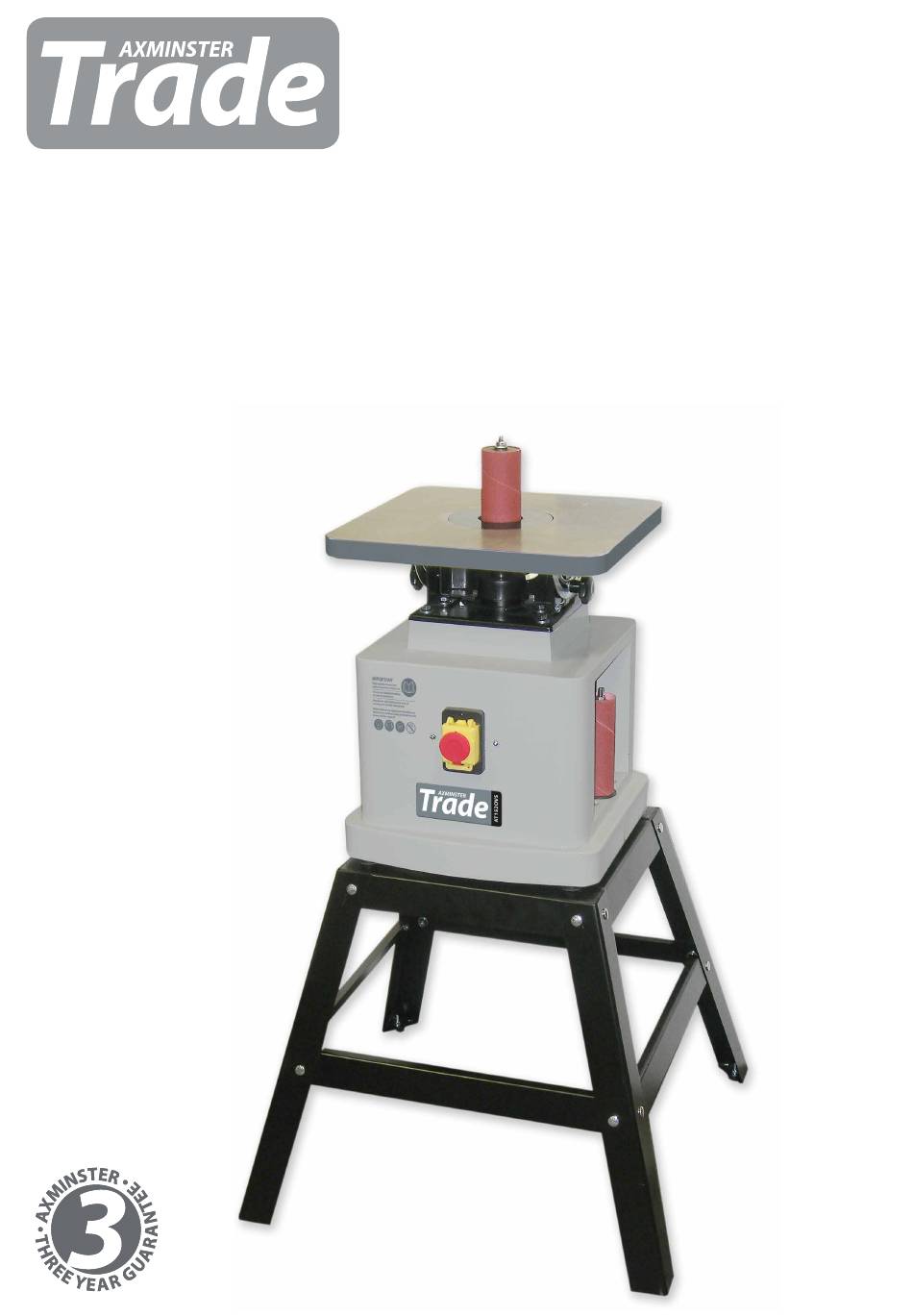

- Page 1 Code 106005 Original Instructions AT152OVS Oscillating Sander AT: 01/09/2020 BOOK REF: 106379 BOOK VERSION: 02...
- Page 2 EN ISO 12100:2010 EN 60204-1:2018 Type Oscillating Sander Model AT152OVS and conforms to the machinery example for which the EC Type-Examination Certificate No 685-C1-32015.R1 has been issued by MAO SHAN MACHINERY INDUSTRIAL CO., LTD. Signed at: No. 45 Yichang E. Rd., Taiping District, Taichung City 41163, Taiwan and complies with the relevant essential health and safety requirements.
-
Page 3: Table Of Contents
TABLE OF CONTNETS Table of contents _____________________________________________ 1 Safety rules __________________________________________________ 2 Specifications ________________________________________________ 3 Machine legend_______________________________________________ 3 Machine dimension ___________________________________________ 4 Safe operating position ________________________________________ 4 Instructions for operations _____________________________________ 5 Tilting the table _______________________________________________ 5 Mounting spindle drum ________________________________________ 6 Selection guide for drum to table insert___________________________ 7 Maintenance of spindle sander __________________________________ 8 Troubleshooting ______________________________________________ 9... -
Page 4: Safety Rules
SAFETY RULES Read carefully before operating the machine 1. Learn the machine’s applications and limitations, as well as the specific potential hazards particular to this machine. Follow available safety instructions and safety rules carefully. 2. Keep working area clean and be sure adequate lighting is available. 3. -
Page 5: Specifications
Code 106005 Model AT152OVS Power 375W 230V 50Hz 1Ph Spindle Speed 1,425 rpm Drum Speed 1,500 rpm Oscillation Per Minute Stroke 24 mm Max Cap @ 90 110 mm Height of Bobbins 140 mm & 152 mm Table Height 465 mm Table Tilt 0 - 45˚... -
Page 7: Instructions For Operations
INSTRUCTIONS FOR OPERATIONS Select spindle that is smaller than the curve to be sanded. 2. Use an insert plate that comes closest to the spindle without touching it. 3. Make sure that spindle is properly positioned in taper sleeve socket. With the wrench provided , tighten the nut. -
Page 8: Mounting Spindle Drum
MOUNTING SPINDLE DRUM Disconnect the sander from the power source. 2. Select the proper diameter of spindle drum. 3. Clean the taper part of the spindle drum before mounting it into the spindle. 4. Use an open-end wrench to lock the spindle by holding its flat surface. At the same time, use another open-end wrench to tighten the spindle drum. -
Page 9: Selection Guide For Drum To Table Insert
SELECTION GUIDE FOR DRUM TO TABLE INSERT This machine is furnished with 10 drums. The range of drum diameter is from 1/4” to 4”. If the drum diameter is changed, the table insert needs to be changed to the proper size. The table below shows which table insert to use for various drum diameters. -
Page 10: Maintenance Of Spindle Sander
MAINTENANCE OF SPINDLE SANDER To keep spindle sander in perfect condition, clean machine and attachments at all times. 2. Clean tapered sleeves and tapered socket before use, this will protect spindle sleeves from nicks. 3. Bent sleeves are easily straightened by placing them in the tapered socket and slipping a small pipe over the steel shaft. -
Page 11: Troubleshooting
TROUBLESHOOTING TROUBLE CAUSES CORRECTION Motor does not run when 1. Switch is burned out. 1. Replace the switch. power switch is turned “ON”. 2. Connection wire is loose 2. Tighten or replace the or damaged. wire. Motor does not run at full 1. -
Page 12: Assembly Diagram
ASSEMBLY DIAGRAM... - Page 13 SPARE PARTS FOR OVS-TG Key no. Part no. DISCRIPTION Quantity 30201001G BASE 101a 30201001a TOP PLATE W0000000 SWITCH S1006P1 STRAIN RELIEF L000000 POWER CORD S0030622M PHILIPS HEAD SCREW 10107098 RUBBER FEET S0210403 FLAT WASHER S0011600M HEX. NUT S00303040 PHILIPS HEAD SCREW S0030318 PHILIPS HEAD SCREW S0220300 GEAR WASHER S0110300 HEX.
- Page 14 SPARE PARTS FOR OVS-TG Key no. Part no. DISCRIPTION Quantity S0530028 C RING S0230506 SPRING WASHER S0210500C FLAT WASHER 30202009 OIL CAP 30202012 STORAGE PLATE FOR DRUMS 30202013 STORAGE PLATE FOR TABLE INSERTS 30202014 OIL CAP S0030304 PHILIPS HEAD SCREW 30203001 HOUSING 304a...
- Page 15 SPARE PARTS FOR OVS-TG Key no. Part no. DISCRIPTION Quantity 30203019b 1/4" CLAMP 30204001 TABLE 20301002 2" LOWER FOLLOWER PLATE 20801002 1-1/2" UPPER FOLLOWER PLATE 20301044 2" UPPER FOLLOWER PLATE S0210500 FLAT WASHER S0110500L HEX. NUT 30204003 2" TABLE INSERT (OVAL) 30204004 2"...
- Page 16 The Axminster guarantee Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminstertools.com/3years The packaging is suitable for recycling. Please dispose of it in a responsible manner. EU Countries Only Do not dispose of electric tools together with household waste material.
