Index of contents Index of Contents Declaration of Conformity What’s Included General Instructions for 230V Machines Specific to Sanding Machines Specification Assembly Identification and Description Setup/Adjustments 08-09 Changing the Sanding Disc 10-11 Maintenance Troubleshooting Parts List/Breakdown 12-13 Wiring Diagram Notes Declaration of Conformity Copied from CE Certificate Manufactured by META INTERNATIONAL CO., LTD.

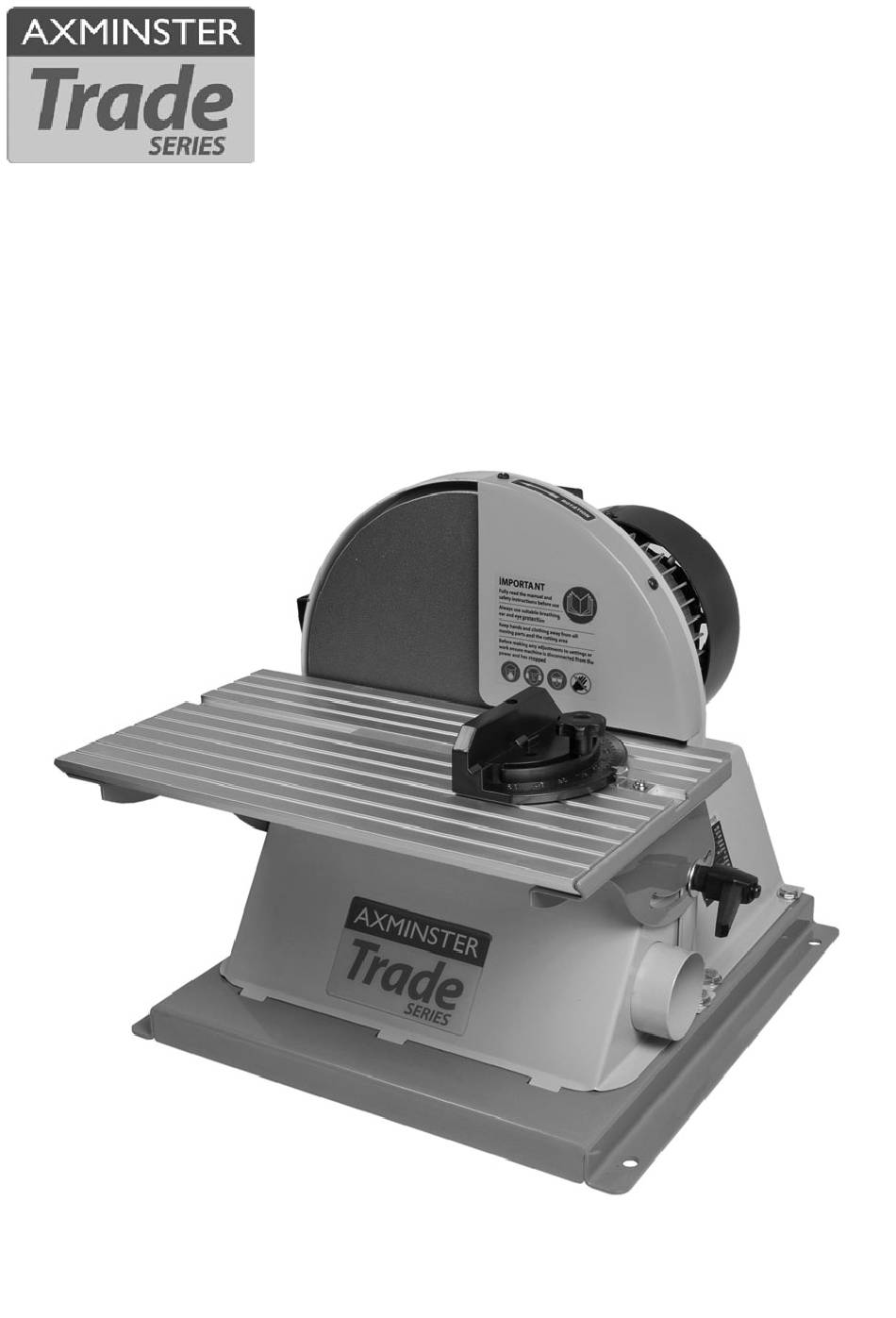

What’s Included Quantity Item Part Model Number WD-12 1 No DS12DL-DS12DLMB 300mm Disc Sander 1 No Mitre Fence 1 No 10-13mm spanner 1 No Bag Containing Handle and two Phillips Screws 1 No Instruction Manual NOTE: Please read the Instruction Manual prior to using your new machine; as well as the operating procedures for your new machine, there are numerous hints and tips to help you to use the machine safely and to maintain its efficiency and prolong its life.
General Instructions for 230V Machines However when you mount your machine, make sure it is Good Working Practices/Safety fastened down and stable before use. The following suggestions will enable you to observe good Paper belts and discs do not respond well to wet or damp working practices, keep yourself and fellow workers safe and conditions.
Specific to Sanding Machines Once the sander is mounted, carry out any setting DO NOT use the machine within the designated safety areas operations, (mitre, tilt..?), and remove all tools used in the of flammable liquid stores or in areas where there may be setting operations (if any) and place safely out of the way.
Page 8
Setup/Adjustments Fig 03 Setting the table clearance The gap between the table and the disc should be set to a maximum of 1.6mm to clear the debris and to ensure sufficient support for the timber. The table should be positioned so that sanding only occurs from downward movement of the disc face.
Page 9
Setup/Adjustments Step 6 Check the pointer is set to ZERO on the tables scale Securing the Sander and adjust until correct (see fig 6). It is recommended to secure the sander to a work bench or stand using the four pre-drilled holes (d) in the chassis, (see Fig 06 fig 07).
Changing the Sanding Disc Fig 13 DISCONNECT THE SANDER FROM THE MAINS SUPPLY BEFORE CONTINUING! Fig 10 Step 4 Locate the supplied spanner (C) and using the 10mm end remove the two nuts on either side of the extraction housing (see fig 13) Fig 14 Step 1 Remove the two table clamping handles (see fig 10).
Changing the Sanding Disc clean dry cloth. Locate the sanding disc, peel the cover from Fig 16 the adhesive surface and apply CAREFULLY to the disc (see fig 16). Use a piece of cloth in your hand or wear a glove, to firmly press the abrasive to the disc, the application will be reinforced by a gentle sanding action across the face when you first use the new sanding disc.
Page 16
Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local recycling centre and place into the appropriate recycling bin. Only for EU countries Do not dispose of electric tools together with household waste material.
