EN ISO 12100 -2:2003+A1:2009 Type Disc Sander EN 60204-1:2006+A1:2009 Model AT305DS & AT305BDS conforms to the machinery example for which the EC Type-Examination Certificate No TW.CE.0023.01-07/10 has been issued by META INTERNATIONAL CO., LTD Signed at: NO. 38-46, YA TAN Rd., TA YA HSIANG. TAICHUNG HSIEN, TAIWAN, R.O.C.
What’s Included Quantity Item Part Model Number WD-12 1 No ATY305DS 300mm & AT305BDS 305mm Disc Sander 1 No Mitre Fence 1 No 10-13mm spanner 1 No Bag Containing Handle and two Screws 1 No Manual NOTE: Please read the Instruction Manual prior to using your new machine; as well as the operating procedures for your new machine, there are numerous hints and tips to help you to use the machine safely and to maintain its efficiency and prolong its life.
General Instructions for 230V Machines However when you mount your machine, make sure it is Good Working Practices/Safety fastened down and stable before use. The following suggestions will enable you to observe good Paper belts and discs do not respond well to wet or damp working practices, keep yourself and fellow workers safe and conditions.
Specific to Sanding Machines Once the sander is mounted, carry out any setting DO NOT use the machine within the designated safety areas operations, (mitre, tilt..?), and remove all tools used in the of flammable liquid stores or in areas where there may be setting operations (if any) and place safely out of the way.

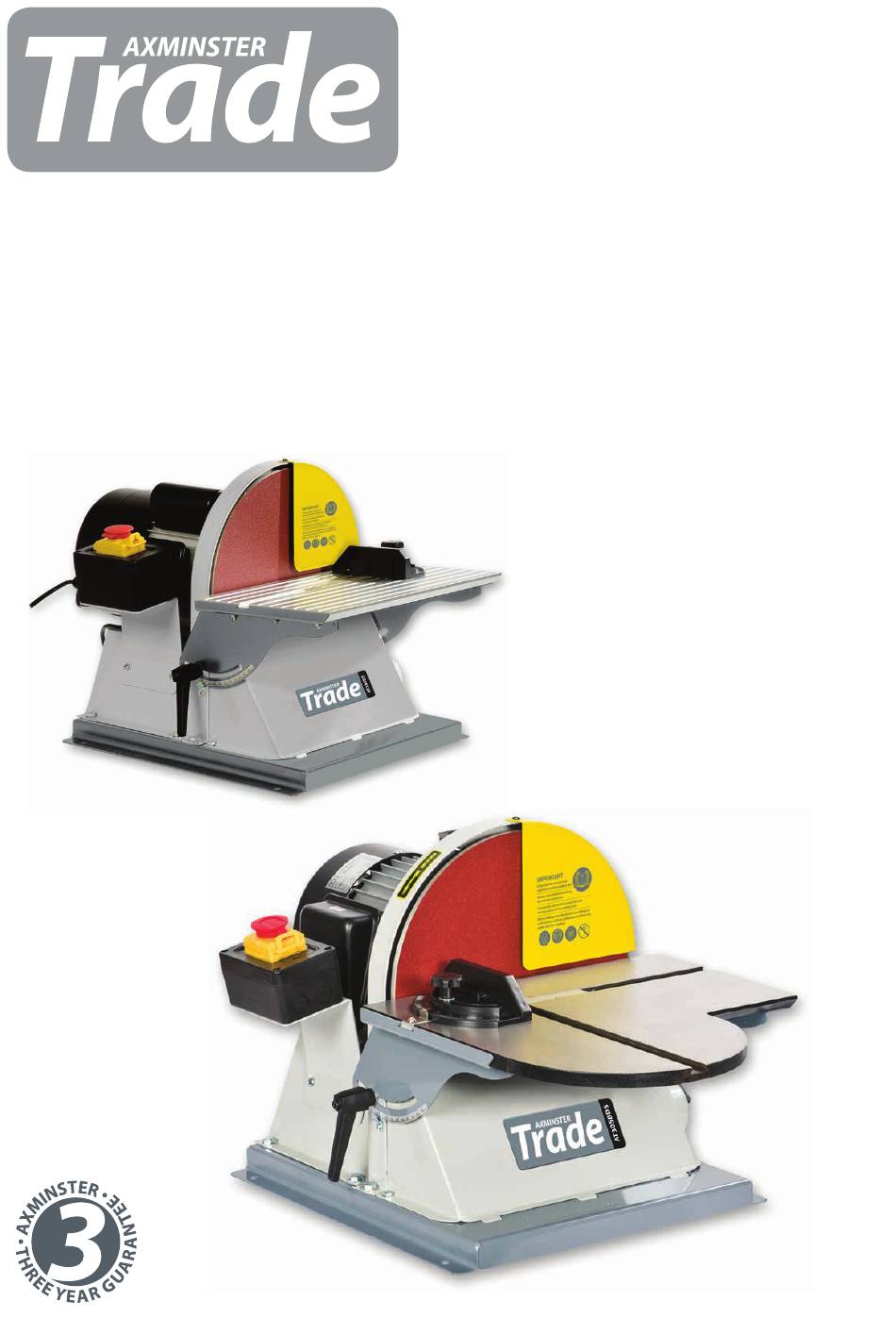

Illustration & Parts Description Motor Model: AT305DS Disc Sanding table Disc guard Mitre fence ‘T’ slot Table clamping handle Extraction housing Dust extraction outlet Base Securing hole Mitre fence clamp Model: AT305BDS Pointer Scale Scale Emergency stop Pointer Control Switch...
Page 8
Setup/Adjustments Fig 03 Setting the table clearance The gap between the table and the disc should be set to a maximum of 1.6mm to clear the debris and to ensure sufficient support for the timber. The table should be positioned so that sanding only occurs from downward movement of the disc face.
Page 9
Setup/Adjustments Step 6 Check the pointer is set to ZERO on the tables scale Securing the Sander and adjust until correct (see fig 6). It is recommended to secure the sander to a work bench or stand using the four pre-drilled holes (d) in the chassis, (see Fig 06 fig 07).
Changing the Sanding Disc Fig 13 DISCONNECT THE SANDER FROM THE MAINS SUPPLY BEFORE CONTINUING! Fig 10 Step 4 Locate the supplied spanner (C) and using the 10mm end remove the two nuts on either side of the extraction housing (see fig 13) Fig 14 Step 1 Remove the two table clamping handles (see fig 10).
Changing the Sanding Disc clean dry cloth. Locate the sanding disc, peel the cover from Fig 16 the adhesive surface and apply CAREFULLY to the disc (see fig 16). Use a piece of cloth in your hand or wear a glove, to firmly press the abrasive to the disc, the application will be reinforced by a gentle sanding action across the face when you first use the new sanding disc.
Page 13
Exploded Diagrams/Lists Model: DS12DL (AT305DS) PART DESCRIPTION SPECIFICATION PART DESCRIPTION SPECIFICATION Base Washer M8xl8 Motor Base Motor 3/4 HP Switch Disc Cover Switch Disc 12” Power Cord Sanding Paper 12” Pan Head Screw M6x20 Left Tilting Washer M6xl3 Turing Right Tiltin...
Page 15
Exploded Diagrams/Lists Model: DS12DLMB2 (AT305BDS) PART DESCRIPTION SPECIFICATION PART DESCRIPTION SPECIFICATION Base Hex Head Screw M8x16 Motor Base Washer 5/16”x18 Motor 3/4HP Disc Cover Switch Disc 12” Power Cord Sanding Paper 12” Switch Board Left Tilting Wire protectors Turning Pan Head Screw M6x12 Right Tilting Hex Head Screw M6x16 Turning...
Page 20
The Axminster guarantee is available on Craft, Trade, Engineer, Air Tools & CNC Technology Series machines Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminster.co.uk/3years The packaging is suitable for recycling.
