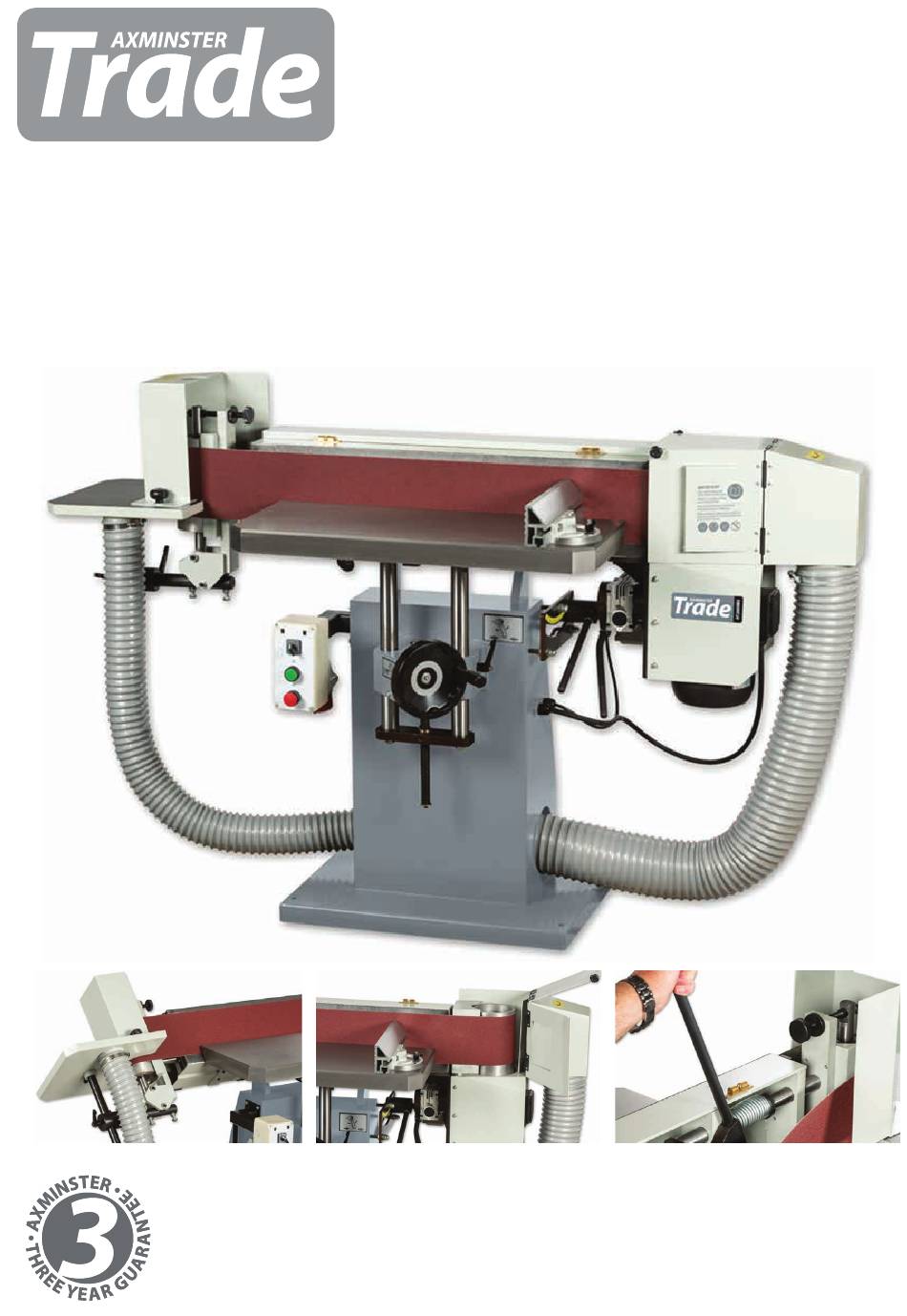

- Page 1 Code 106007 Original Instructions AT2600BS Belt Sander AT&M: 27/11/2019 BOOK REF: APT008012 BOOK VERSION: 1...
- Page 2 Type Belt sander EN 55014-1:2017 EN 55014-2:1997+A1+A2 Model AT2600BS and conforms to the machinery example for which the EC Type-Examination Certificate No AM 50314357, AE 50397846 has been issued by Laizhou Planet Machinery Co., Ltd. Signed at: Yutai West Street,Laizhou, Shandong 261400, China (Mainland) and complies with the relevant essential health and safety requirements.
- Page 3 What’s Included Quantity Item Part Model Number AT2600BS Trade Belt Sander End Table Assembly Side Table Guard Belt Tension Bar Instruction Manual CAUTION! YOUR MACHINE WEIGHS CAUTION! WHEN UNPACKING THE 180KG YOU ARE ADVISED TO SEEK CRATE BE CAREFUL OF EXPOSED...
- Page 4 Introduction The AT2600BS Belt Sander is a sturdy, well made medium sized belt oscillating. The dust hoods at each end have their own extraction hose, sander. It is suitable for the sanding of many woods or plastics, shaping joined into a single 125mm outlet, making connection to a ducting or sizing jobs in small to medium sized woodworking workshops.
- Page 5 Above all, OBSERVE…. make sure you know what is happening around you, and USE YOUR COMMON SENSE. Specification Code 106007 Model AT2600BS Rating Trade Power 230V 50Hz 3.0kW Belt Speed 1,200 m/min Abrasive Belt Size...
- Page 6 Locking knob AND RECYCLE! THE MACHINE IS HEAVY YOU WILL REQUIRE ASSISTANCE TO MOVE IT! The AT2600BS Belt Sander comes fully assembled apart from the end table (B) and the guard (C) assembly. Follow the Mounting bar instructions below for assembly.
- Page 7 Assembly/Setup Mitre Fence Adjust the mitre fence so it’s clear of the belt, see fig 9. Quick Start Up CLEAR ALL TOOLS AWAY FROM WORK AREA! CONNECT A THREE PIN 230V SOCKET INTO THE MACHINES PLUG! Beneath the main table, loosen the locking knob and adjust the table until there is a clearance of 1.6mm between the abrasive Connect a 16 Amp 230V three pin socket into the plug to the belt and the table, see fig 7.
- Page 8 Assembly/Setup If adjustment is required, loosen the tracking control locking assembly using the operating handle (b) until the belt is at the required angle, see fig 15. Pull the locking lever up to secure. wheel (a) and turn the tracking wheel (b) clockwise or anti-clockwise until the belt is tracking in the centre.
- Page 9 Operating Instructions Press the ‘GREEN’ button to start the machine, see fig 18. MAKE SURE THE SANDER IS ON A Wait until it’s at full speed. To the front of the control box there FLAT LEVEL SURFACE. is a selector switch to select the oscillating belt to move in a bobbin action.
- Page 10 Illustration & Parts Description Rear access door Abrasive belt tension assembly Side table guard Tracking control Main table Abrasive belt Mitre fence Guard doors Side table Control box Side table Extraction hose extraction hose Table rise & fall Tilt control operating wheel Base Main table rise &...
- Page 11 Illustration & Parts Description Control Box Oscillating & bobbin selector switch Side table guard, remove the guard to use the table Tracking control assembly 0-45˚ Tilt assembly Locking wheel (A) and tracking wheel (B) Clamping lever (A) Belt tilting lever (B) Main table clamping knob Side table height clamp (A) Belt tension bar (A)
- Page 12 Changing the Belt Lower the door WEAR A DUST MASK AND GOOGLES WHEN CLEANING THE SANDER! With the belt removed clean the belt sander using a ‘M’ class vacuum cleaner. Inspect the new belt, ensure that there are no tears or rips especially along the edges, check the direction arrows on the inner surface of the belt and fit it over the two pulleys.
- Page 13 Maintenance replace if necessary. DISCONNECT THE MACHINE FROM Re-assemble the sander. THE MAINS SUPPLY! • If the sander is not going to There is very little mechanical maintenance that can be be used for a period of time, carried out on the machine. Most prudent maintenance use ‘Ambersil Dry PTFE Film is preventative and concerned with keeping the machine Antistick’...
- Page 14 Exploded Diagrams/List Parts 1 DESCRIPTION 1-22 Phillips head screw Base 1-23 Switch box cover 1-24 Cam switch Switch plate Rear cover 1-25 Push button switch 1-26 Push button switch Connector 1-27 Tap screw Supporting base 1-28 Earth plate Extension handle 1-29 Tap screw Switch box...
- Page 15 Exploded Diagrams/List Parts 2 DESCRIPTION 2-25 Spring washer Table 2-26 Hex bolt Sliding base 2-27 Flat washer Sliding axle 2-28 Spring washer Lifting sleeve 2-29 Big flat washer Column 2-30 Cap screw Lifting gear bar 2-31 Spring washer Big gear 2-32 Cap screw Small gear...
- Page 16 Exploded Diagrams/List Parts 3 DESCRIPTION 3-24 Cap screw Connecting frame 3-25 Cap screw Motor plate 3-26 Big flat washer Support block 3-27 Spring washer Sliding bar 3-28 Handle 3-29 Cap screw Locking handle 3-30 Scale base 3-31 Phillips head screw Locking nut 3-32 Flat washer...
- Page 17 Exploded Diagrams/List Parts 4 DESCRIPTION 4-13 Flat washer Sanding belt support 4-14 Cap screw Protecting cover 4-15 Connecting plate 4-16 Flat washer Connecting plate 4-17 Rivet Shim plate 4-18 Cap screw Graphite plate 4-19 Flat washer Press plate 4-20 Support leg 4-21 Phillips head screw Hinge...
- Page 18 Exploded Diagrams/List Parts 5 DESCRIPTION 5-12 Locating plate Driver pulley frame 5-13 Washer Driver pulley cover 5-14 Spring washer Driver pulley 5-15 Cap screw Driver pulley axle 5-16 Roundness locking nut 5-17 Setscrew Roundness nut 5-18 External retainer ring 5-19 Bearing Locking nut 5-20...
- Page 19 Exploded Diagrams/List Parts 7 DESCRIPTION Hinge Suction body Rivet Side plate Hex bolt Upper cover Aluminium plate 7-10 Flat washer Wiring Diagram...
- Page 20 The Axminster guarantee is available on Craft, Trade, Engineer, Air Tools & CNC Technology Series machines Buy with confidence from Axminster! So sure are we of the quality, we cover all parts and labour free of charge for three years! For more information visit axminster.co.uk/3years The packaging is suitable for recycling.
