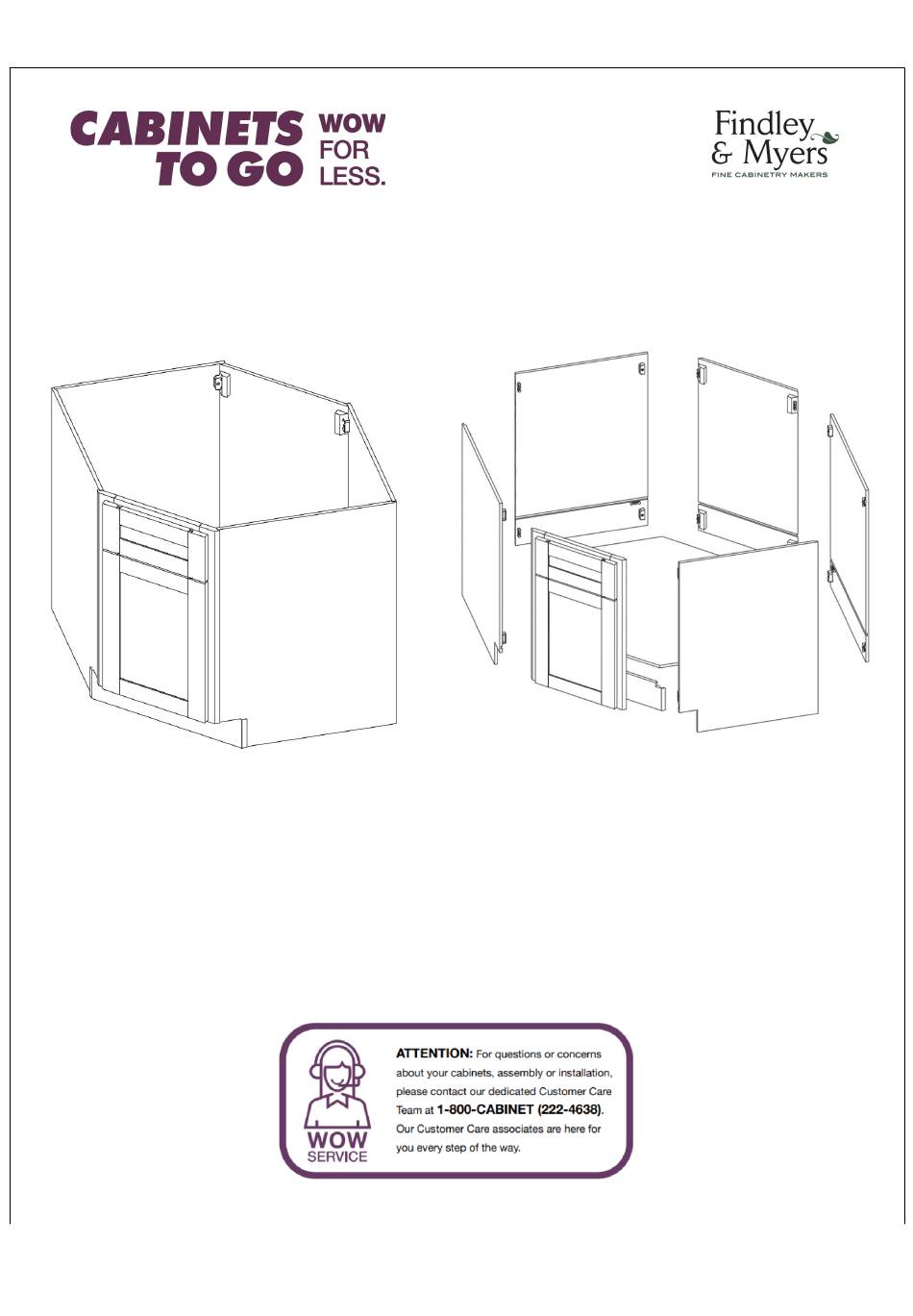

- Page 1 ASSEMBLY INSTRUCTIONS These assembly instructions are only applicable for all Corner Cabinets CBD36 Page 1...
- Page 2 ►General Instructions: Thank you for purchasing a Cabinets To Go product. You are now the proud owner of a high quality product designed to face the test of daily use and guaranteeing your enjoyment for many years to come. Carefully read the instructions before starting the installation. During assembly, please follow all generally accepted safety procedures. Failure to adhere to the following instructions will invalidate the warranty and Cabinets To Go will decline any responsibility for any damages caused. Any installation which does not correspond to the instructions may result in defects, malfunctioning parts, significant damage and/or injury. Before the assembly begins, check that all appropriate and required plumbing and electrical connections exist. Before drilling, make absolutely sure that there are no pipes (gas, water,electricity, heating, etc.) at the drilling location. Cabinets To Go will not be held responsible for failure to follow these instructions. PRIOR TO ASSEMBLY, PLEASE MAKE SURE YOU HAVE ONE FACE FRAME BOX AND ONE CARCASS BOX, WHICH HAVE ALL THE PARTS IN THE QUANTITIES MENTIONED BELOW. IF YOU ARE MISSING ANY PARTS, PLEASE STOP AND CONTACT CUSTOMER CARE IMMEDIATELY AT 1-800- CABINET.
- Page 3 Assemble the Side Panels (E,D) onto the Frame (F) by connecting the male and female cam locks and using a screwdriver to turn the lock clockwise. (Figure 1) { NOTE: Assemble cabinet parts on a flat smooth soft work surface. } Figure 1 Insert the bottom panel (H) into the slots of the side panels and...
- Page 4 Assemble the back side panels (A,B) onto the front side panels and bottom panel. (Figure 3) Figure 3 Install the back panel (C) into the position shown. { NOTE: You may need to gently spread the back panels to seat the cam locks. } (Figure 4) Figure 4 Page 4...
- Page 5 Install the toe kick (G) to the assembled cabinet. You may lay the cabinet face down on a soft flat surface to better install the brackets (b) using screws (c). (Figure 5) Figure 5 Page 5...
- Page 6 Install the bumpers (a) onto the door at the corners where the door comes in contact with the frame. (Figure 5) ►Maintenance For daily cleaning, use a dry cloth and a soft liquid cleaner. Never use abrasive cleaners containing acetone, chlorine or strong bleach. Also, do not use tools as scrapers, metallic brushes, and other products which can scratch or tarnish surfaces.
