Midland G18 - PMR446 Transceiver Manual

Main features

• PMR446 Transceiver
• IP67 certified
• Output power: ≤ 500mW ERP
• Channel spacing: 12.5KHz
• Scan
• Vocal tuning
• Roger Beep
• Battery save
• Monitor
• Squelch
• Scrambler
• Multi-function keys

Display LCD

1. Keypad lock
2. Selected CTCSS tone or DCS code
3. Number of the menu/channel indicator
4. Battery status indicator
5. Channel in use
6. Priority scan mode
7. VOX function activated
8. Low power indicator
9. Function key activated
10. Indicator of rx and tx signal strength

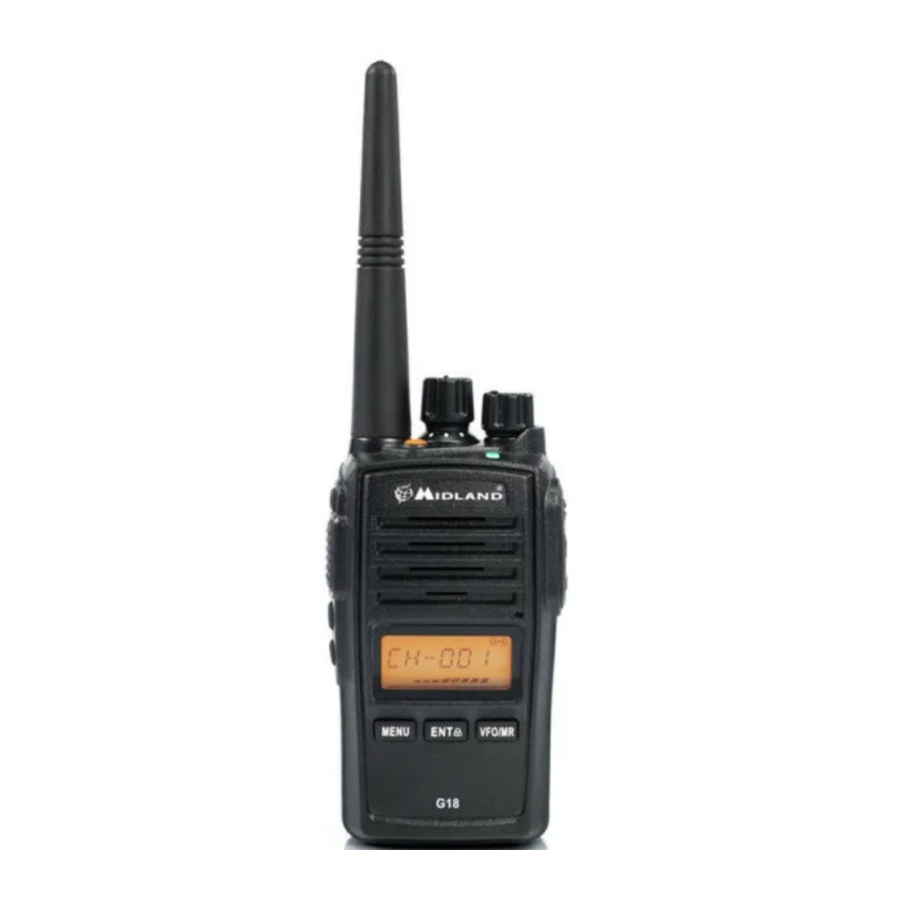

Main controls and parts of the radio

1. Antenna
2. Encoder: rotate clockwise or counter-clockwise to select the diff erent settings.
3. Power/volume knob: turn clockwise to power on and increase the volume level. Turn counter-clockwise to decrease the volume level and power off.
4. Speaker
5. Built-in microphone
6. Led indicator: RED: TX; GREEN: RX.
7. Emergency button (it can be activated through the programming software)
8. PTT: push this button to transmit, release it to receive.
9. Function key 1: Short pressure: Monitor function activation (PF3).
10. Function key 2: Long pressure: SCAN function activation (PF4).
11. External Speaker/Mic Jack (Motorola type) - allows the connection with external devices such as headsets, microphones.
12. Multi-function key 'FUN': it allows to activate secondary functions.
13. LCD Display
14. Multi-function keys MENU - ENT - VFO/MR

To download the complete user manual and for information about the warranty please visit www.midlandradio.eu
