Antunes HDC-20 Owner's Manual

Hot dog corral
Hide thumbs
Table of Contents

Advertisement

Quick Links

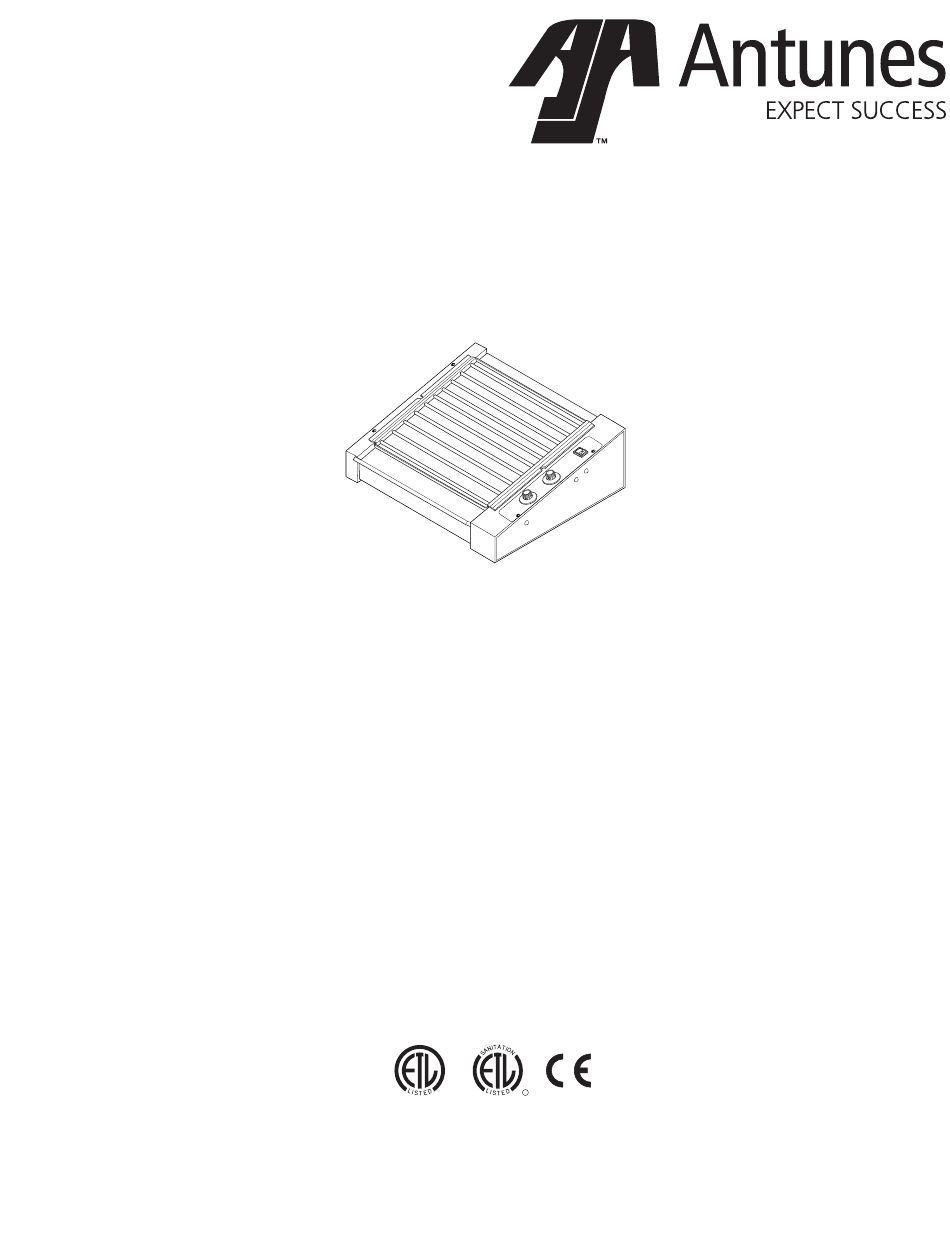

HDC-20 Shown
Hot Dog Corral
Models HDC-20, HDC-20RC, HDC-21A,
HDC-30A, HDC-35A, & HDC-50A
owner's manual
Manufacturing Numbers:
9300300, 9300302, 9300303, 9300304, 9300305,
9300307, 9300306, 9300308, 9300309, 9300320,
9300321, 9300322, 9300323, 9300324, 9300330,
9300331, 9300332, 9300333, 9300334, 9300340,
9300350, 9300351, 9300352, 9300356, 9300357,
9300376, & 9300377
C
US
C
US
CM
www.antunes.com
P/N 1010609 Rev. M 04/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDC-20 and is the answer not in the manual?

Questions and answers

Related Manuals for Antunes HDC-20

Summary of Contents for Antunes HDC-20

  • Page 1 HDC-20 Shown Hot Dog Corral Models HDC-20, HDC-20RC, HDC-21A, HDC-30A, HDC-35A, & HDC-50A owner’s manual Manufacturing Numbers: 9300300, 9300302, 9300303, 9300304, 9300305, 9300307, 9300306, 9300308, 9300309, 9300320, 9300321, 9300322, 9300323, 9300324, 9300330, 9300331, 9300332, 9300333, 9300334, 9300340, 9300350, 9300351, 9300352, 9300356, 9300357, 9300376, &...

  • Page 2: Table Of Contents

    HOT DOG CORRAL TABLE OF CONTENTS Owner Information .............2 Operation ..............9 General ..............2 General ..............9 Warranty Information ..........2 Operating Instructions ..........9 Service/Technical Assistance ........3 Maintenance ..............10 Important Safety Information ........3 Cleaning ..............10 Specifications .............5 Inspecting and Aligning Drive Parts ......10 Electrical Ratings ............5 Replacing the Black Nylon Glides ......11 Dimensions ..............6...

  • Page 3: Service/Technical Assistance

    HOT DOG CORRAL OWNER INFORMATION (continued) Service/Technical Assistance Use only genuine Antunes replacement parts in this unit. Use of replacement parts other than those sup- If you experience any problems with the installation plied by the manufacturer will void the warranty.
  • Page 4 HOT DOG CORRAL IMPORTANT SAFETY INFORMATION (continued) In addition to the warnings and cautions in this manual, use FAILURE TO FOLLOW THESE INSTRUCTIONS the following guidelines for safe operation of the unit: COULD RESULT IN SERIOUS INJURY OR DEATH. Electrical ground is required on this unit. •...

  • Page 5: Specifications

    HOT DOG CORRAL SPECIFICATIONS Electrical Ratings Model & Volts Watts Amp. Plug Description Mfg. No. HDC-20 9300300 1000 50/60 NEMA 5-15P 20 Amp., 120 Volt HDC-20 9300302 1000 50/60 CEE 7/7 16 Amp., 250 Volt HDC-20 9300303 1000 50/60 BS-1365 - Fused Permaplug 16 Amp., 250 VAC...

  • Page 6: Dimensions

    (28 kg) Capacities (Refrigerated Product Only–Not Frozen) Model No. Capacity HDC-20 & HDC-20RC Up to 20 four-to-a-pound 5” (127 mm) hot dogs at one time. HDC-21A Up to 21 four-to-a-pound 5” (127 mm) hot dogs at one time. HDC-30A Up to 30 four-to-a-pound 5” (127 mm) hot dogs at one time.

  • Page 7: Installation

    NOTE: If any parts are missing or damaged, contact Antunes Customer Service IMMEDIATELY at +1-877-392-7856 (toll free). 3. Wash driver frame in soap and water. Wipe all surfaces of the unit with a hot damp cloth.

  • Page 8: Food Shield (Optional)

    HOT DOG CORRAL INSTALLATION (continued) Food Shield (Optional) Item Part Description Qty. NOTE: Early style corrals do not have weldnuts on inside of side covers. When installing the food 2120121 Spacer shield, jamnuts (5, figure 2) must be used. 3080158 Screw, Pan Hd., #8-32 x 5/8”...

  • Page 9: Operation

    2. Set the thermostat controls to the desired setting. Figure 3. Controls NOTE: Hot Dog Corrals (except Model HDC-20) have two separate heating zones–upper and lower. Some custom models have left-to-right controls. 3. Timer: Set the timer by pressing the Start button Each zone is controlled by a separate thermostat.

  • Page 10: Maintenance

    HOT DOG CORRAL MAINTENANCE Inspecting and Aligning Drive Parts CAUTION Chlorides or phosphates in cleaning agents (e.g. If the Drive Frame does not move smoothly, or during a bleach, sanitizers, degreasers or detergents) Motor replacement, inspect and align the drive parts as could cause permanent damage to stainless steel follows: equipment.

  • Page 11: Replacing The Black Nylon Glides

    (Figure 6). Install new glides and secure with Retainer Rings. Driver Roller Driver Frame w/ Roller Rods HDC-20/30A/50A ONLY: Using a small screwdriver, pry the four glides up and out of the unit (Figure 6A). Push Right Side Cover the new glides into the unit.

  • Page 12: Technical Theory Of Operation

    Driver Frame Assembly by Assembly, and to the Digital Timer.** moving it up and down. NOTE: HDC-20 units consist of a single ther- As the hot dogs roll, they absorb the heat from the grill mostat that controls the entire grill area tem- surface area.

  • Page 13: Troubleshooting

    HOT DOG CORRAL TROUBLESHOOTING WARNING To avoid possible personal injury and/or damage to the unit, inspection, test and repair of electrical equip- ment should be performed by qualified service personnel. The unit should be unplugged when servicing. Problem Possible Cause Corrective Action Unit will not heat up.

  • Page 14: Replacement Parts

    HOT DOG CORRAL REPLACEMENT PARTS HDC-20/20RC INSET A See Inset A DRIVE PARTS P/N 1010609 Rev. M 04/18...
  • Page 15 REPLACEMENT PARTS (continued) HDC-20/20RC Item Part Description Qty. Item Part Description Qty. 0010434 Driver Assy. 0501752 Panel, Front (HDC-20) 0501633 Panel, Rear 0502125 Panel, Front (HDC-20RC) 0500551 Slide Bracket, Angle 7000382 Grill Kit 0020625 Slide Channel 0800216 Shaft/Arm, Crossover 0700463...
  • Page 16 HOT DOG CORRAL REPLACEMENT PARTS (continued) HDC-21A/30A/35A/50A INSET A See Inset A FOR MFG. NO. 9300377 ONLY DRIVE PARTS P/N 1010609 Rev. M 04/18...
  • Page 17 HOT DOG CORRAL REPLACEMENT PARTS (continued) HDC-21A/31A/35A/50A Item Part No./Qty. Description HDC-21A HDC-30A HDC-35A HDC-50A 0010366 / 1 0020595 / 1 0010368 / 1 7000410 / 1 Driver Assy., Standard 0011583 / 1 7001646 / 1 0011584 / 1 7001645 / 1 Driver Assy., 10 rods, Special Order 7000383 / 1 7000384 / 1...
  • Page 18 HOT DOG CORRAL REPLACEMENT PARTS (continued) Item Part No./Qty. Description HDC-21A HDC-30A HDC-35A HDC-50A 05K1705 / 1 05K1705 / 1 05K1705 / 1 05K1705 / 1 Motor Arm w/Setscrew 080K254 / 1 080K217 / 1 080K254 / 1 080K217 / 1 Connecting Link Kit (Incl.

  • Page 19: Wiring Diagrams

    HOT DOG CORRAL WIRING DIAGRAMS Applies to units with Mfg. No. 9300303, 9300304, 9300305, 9300307, and 9300309 P/N 1010609 Rev. M 04/18...
  • Page 20 HOT DOG CORRAL WIRING DIAGRAMS (continued) Applies to units with Mfg. No. 9300321, 9300323, 9300324, 9300331, 9300333, 9300334, 9300351, & 9300356 P/N 1010609 Rev. M 04/18...
  • Page 21 HOT DOG CORRAL WIRING DIAGRAMS (continued) Applies to units with Mfg. No. 9300357 & 9300376 P/N 1010609 Rev. M 04/18...
  • Page 22 HOT DOG CORRAL WIRING DIAGRAMS (continued) Applies to units with Mfg. No. 9300377 P/N 1010609 Rev. M 04/18...
  • Page 23 HOT DOG CORRAL NOTES P/N 1010609 Rev. M 04/18...

  • Page 24: Limited Warranty

    2 hours (100 miles/160 km) round trip from the nearest authorized service agency. 2. Antunes reserves the right to make changes in design or add any improvements on any product. The right is always reserved to modify equipment because of factors beyond our control and government regulations.
