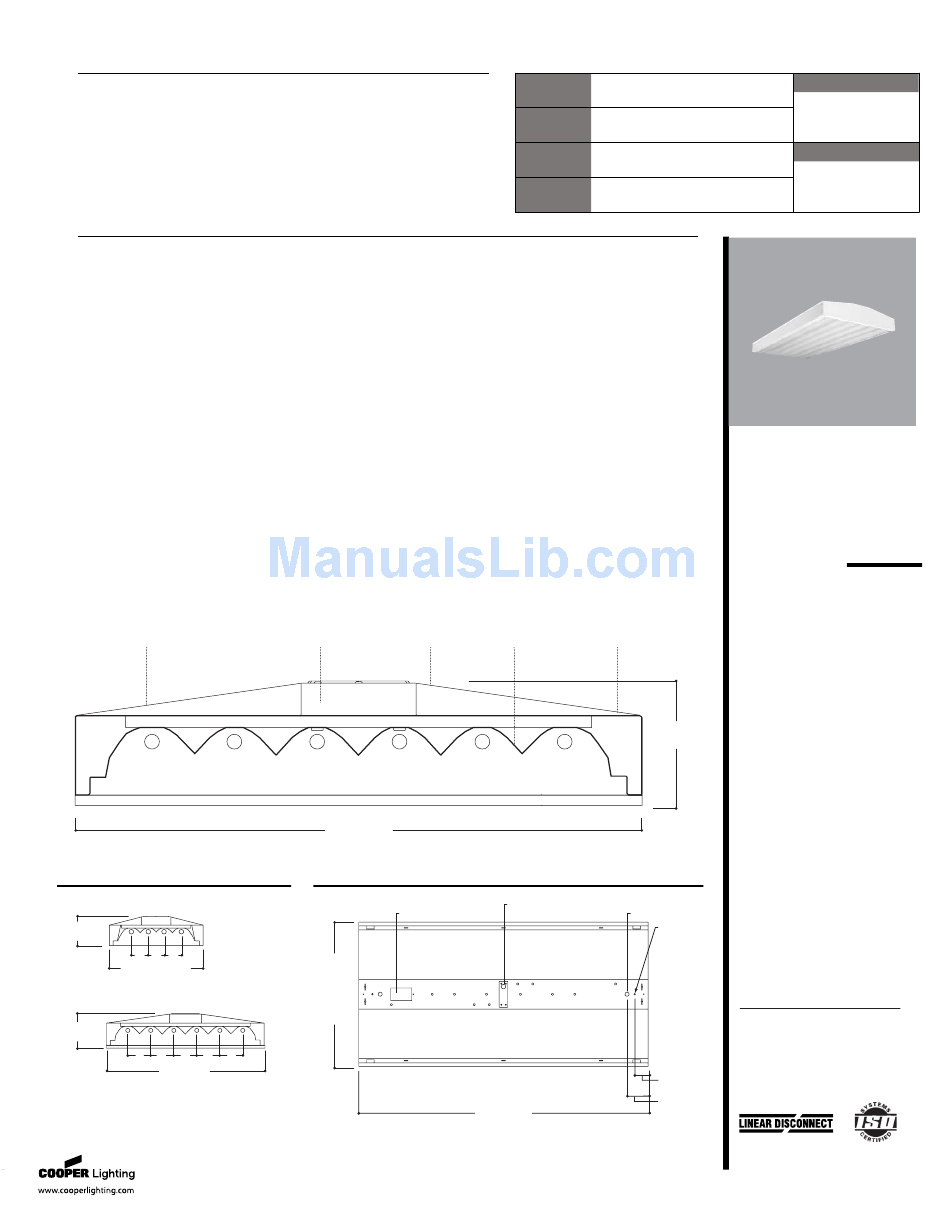

Cooper Lighting Metalux AB Arctic Bay Series Specification

DESCRIPTION

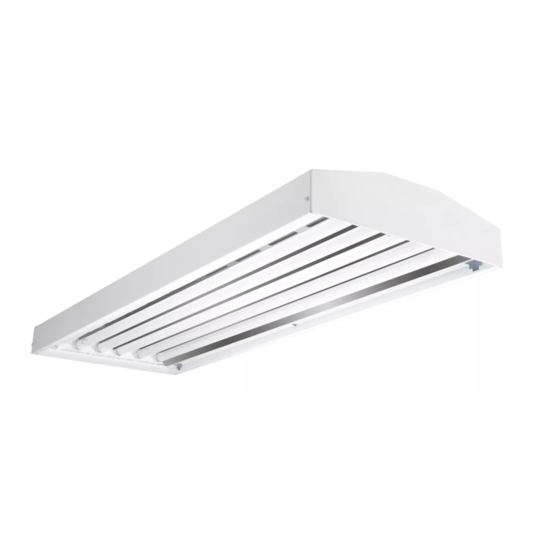

The Arctic Bay Series is designed as a high efficiency solution to sub-zero
ambient environments found in cold storage and refrigerated facilities. The
Arctic Bay has been optimized to provide maximum performance with lamp
and ballast systems that tolerate colder ambient temperatures. For legisla-
tive compliance and additional energy savings, an optional low temperature
motion sensor is available.
SPECIFICATION FEATURES
APPLICATION
The Arctic Bay Series high lumen
package allows for the benefits of
fluorescent lighting to be applied
at high mounting heights that were
traditionally exclusive to H.I.D.
These benefits include exceptional
color rendering, high system
efficacy, 95% lumen maintenance,
long lamp life, instant on, optional
dimming, and uniform brightness
control. Primary applications
include cold storage, refrigerated
facilities and environments with
temperatures as low as -29°C
(-20°F).
A ... Construction
Housing, end plates and socket
tracks are die formed cold rolled
steel. The housing features an
integral ballast channel that adds
strength and provides numerous
KO's for easy installation. Die
formed internal reflectors are
A
LAMP CONFIGURATIONS
4-Lamp
4-3/4"
[121mm]
X=2-7/8" X X X
[74mm]
15-7/16" [392mm]
6-Lamp
5-1/2"
[140mm]
X X X X X
X=3-1/2"
[89mm]
24" [610mm]
COOPER LIGHTING - METALUX
available in either a high
reflectance specular material or a
painted white polyester powder
coat finish. A sealed and gasketed
aluminum door frame in a clear or
prismatic A12 pattern lens provide
for a thermal environment for
optimal lamp operation.
B ... Electrical
Class P ballast, rated for -29°C to
90°C operation, wired to rotor
locked sockets. Optional passive
infra-red motion sensor is rated for
high humidity, low temperature
application. Sensor provides 1400
sq. ft. of coverage in mounting
heights up to 40'. MS/OB option
keeps two inner lamps illuminated
full time using outer lamps for
occupancy control.
MS/AO option relay rotates on/off
cycle between 2 lamp and 4 lamp
ballasts to minimize lamp
degradation. UL/CUL listed.
Suitable for damp location.
B C
24" [610mm]
DIMENSION TOP VIEW
Access Plate Opening
15-7/16"
[392mm]
(4-Lamp)
or
24"
[610mm]
(6-Lamp)
Specifications and Dimensions subject to change without notice.
Consult your representative for additional options and finishes.
Catalog #
Project
Comments
Prepared by
C ... .Post Fabrication
Electrostatically applied baked
white polyester powder coat finish
is preceded by a multistage
cleaning cycle, iron phosphate
coating with rust inhibitor.
D ... Optics
Gasketed door frame and lens
assembly is standard for subzero
ambient environments.
E ... Mounting
The fixture is ideally suited for
surface, suspension mounting with
optional wire hook and chain set,
stem or cable mounting. Top
connector box mounting is also
available.
D E
Mounting for
Top Connector Box 11/16" [18mm] K.O.
[58mm]
[89mm]
48" [1219mm]
AB ARCTIC BAY
15" x 4', 2' x 4'
HIGH-BAY INDUSTRIAL
5-1/2"
[140mm]
E N E R G Y D ATA
Input Watts (@ 277V):
EB Ballast
454 = 229W
654 = 346W
Luminaire Efficacy Rating
17/64"
Diameter Hole
LER =54
Catalog Number: 2AB-654T5-UNV-
EBT2-U
Yearly Cost of 1000 lumens, 3000 hrs
at .08 KWH = $5.08
* Reference the lamp/ballast data in the
Tecnical Section for specific lamp/ballast
requirements
** Consult Pre Sales Technical Support.
2-1/4" LAMPS CONTAIN MERCURY. DISPOSE ACCORDING
TO LOCAL, STATE OR FEDERAL LAWS
3-1/2"
Safe and convenient means of
disconnecting power
10/06/2008 2:10:23 PM
®
Type
Date
SERIES
High-Bay
4 and 6 Lamp
LUMINAIRE
ADF071257
