9

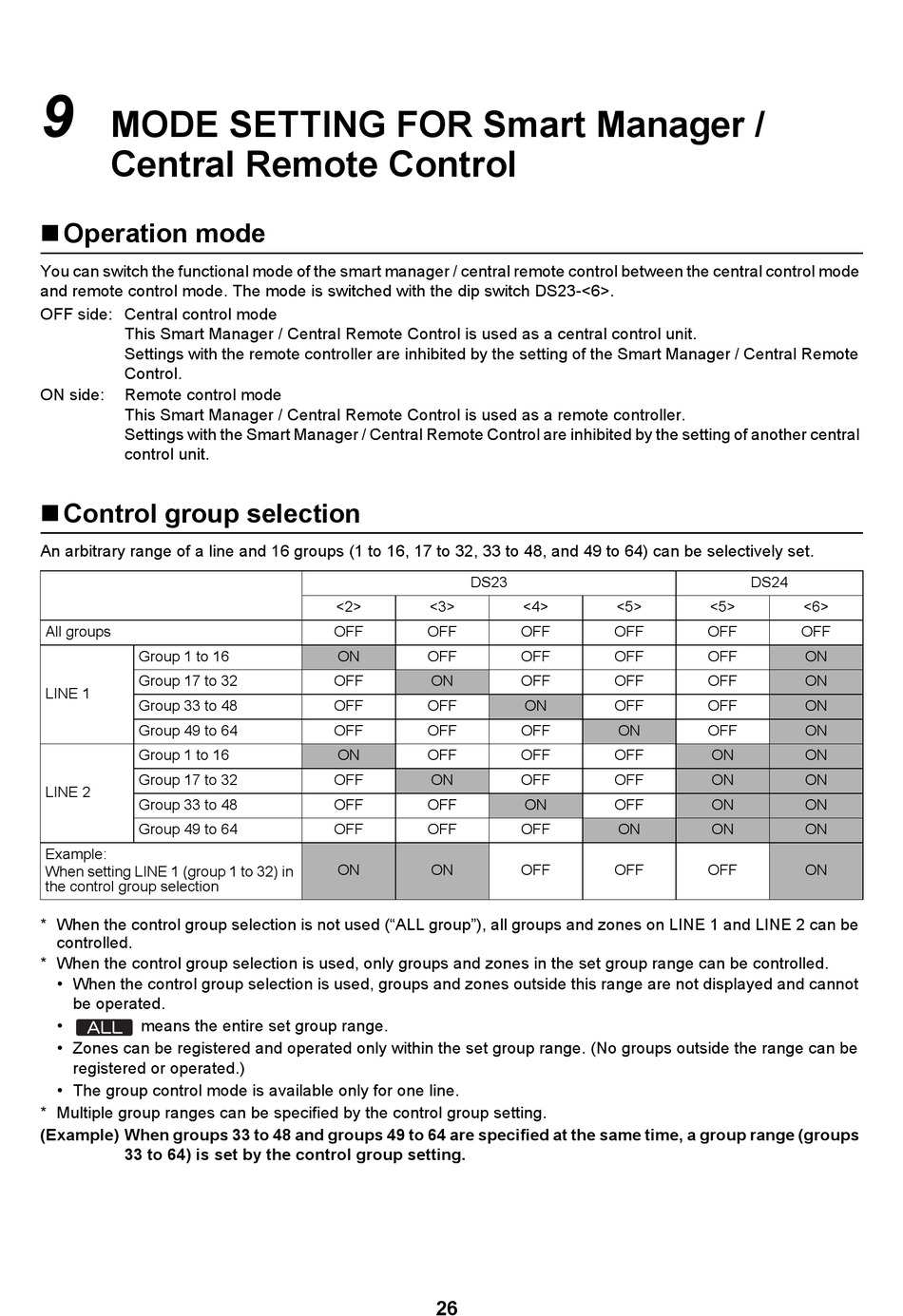

MODE SETTING FOR Smart Manager /
Central Remote Control
Operation mode
You can switch the functional mode of the smart manager / central remote control between the central control mode
and remote control mode. The mode is switched with the dip switch DS23-<6>.
OFF side: Central control mode
This Smart Manager / Central Remote Control is used as a central control unit.
Settings with the remote controller are inhibited by the setting of the Smart Manager / Central Remote
Control.
ON side:
Remote control mode
This Smart Manager / Central Remote Control is used as a remote controller.
Settings with the Smart Manager / Central Remote Control are inhibited by the setting of another central
control unit.
Control group selection
An arbitrary range of a line and 16 groups (1 to 16, 17 to 32, 33 to 48, and 49 to 64) can be selectively set.
All groups
Group 1 to 16
Group 17 to 32
LINE 1
Group 33 to 48
Group 49 to 64
Group 1 to 16
Group 17 to 32
LINE 2
Group 33 to 48
Group 49 to 64
Example:
When setting LINE 1 (group 1 to 32) in
the control group selection
* When the control group selection is not used ("ALL group"), all groups and zones on LINE 1 and LINE 2 can be
controlled.
* When the control group selection is used, only groups and zones in the set group range can be controlled.
• When the control group selection is used, groups and zones outside this range are not displayed and cannot
be operated.
•
means the entire set group range.
• Zones can be registered and operated only within the set group range. (No groups outside the range can be
registered or operated.)
• The group control mode is available only for one line.
* Multiple group ranges can be specified by the control group setting.
(Example) When groups 33 to 48 and groups 49 to 64 are specified at the same time, a group range (groups
33 to 64) is set by the control group setting.
DS23
<2>
<3>
OFF
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
ON
ON
26
<4>
<5>
OFF
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
ON
OFF
OFF
OFF
OFF
ON
OFF
OFF
ON
OFF
OFF
DS24
<5>
<6>
OFF
OFF
OFF
ON
OFF
ON
OFF
ON
OFF
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
ON
