For Serial No. 08K1800 and Higher
Models:
10770 - 3" Pad, Non-Vac
10771 - 3" Pad, Vacuum-Ready 10781 - 3-1/2" Pad, Vacuum-Ready
Index Key
No. Part # Description
1 Sanding Pad: See Chart
2 57262 Balancer Shaft
3 95630 Snap Ring
4 59084 V-Seal
5 56052 Bearing
6 58474 Motor Shaft Balancer
7 54673 Key
8 56046 Lock Ring
9 59057 "Top Hat" Seal
10 59083 Felt
11 02695 Bearing
12 54630 Front Bearing Plate
13 54705 Rotor/Blade Set (5/pkg.)
14 56595 Cylinder
(Includes: 95865 Pin)
15 01020 O-Ring
16 54629 Rear Bearing Plate
17 01206 Bearing
18 56713 Lock Assembly
19 96252 Compression Spring
20 56705 Post Cap
21 57264 Post Assembly
22 56712 Switch Bottom
23 96478 O-Ring
24 Shroud
54458 3"
54459 3-1/2"
25 Housing: See Chart
(Includes: 13161 Grip)
26 56711 Switch Top
27 96489 Screw
28 95627 Pin
29 56582 Safety Throttle Lever
30 98459 O-Ring
31 56579 Valve Stem
32 56578 Speed Regulator
33 01025 O-Ring (3)
34 56598 Seal
35 51944 Tip Valve
36 51943 Spring
37 56586* Vacuum Plug
38 96459 O-Ring
39 56469 Exhaust Gasket
40 56468 Handle Assembly
(Includes, 51938 Inlet Screen)
41 96469 Screw (2)
42 96454 Screw (2)
43 56597* Muffler
44 56596* Muffler Cap
*Parts included with Non-Vacuum
Models Only.
10780 - 3-1/2" Pad, Non-Vac
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
27
26
25
24
23
O
1
20
LEFT HAND
19
T
12 N•m
17
14
12
10
8

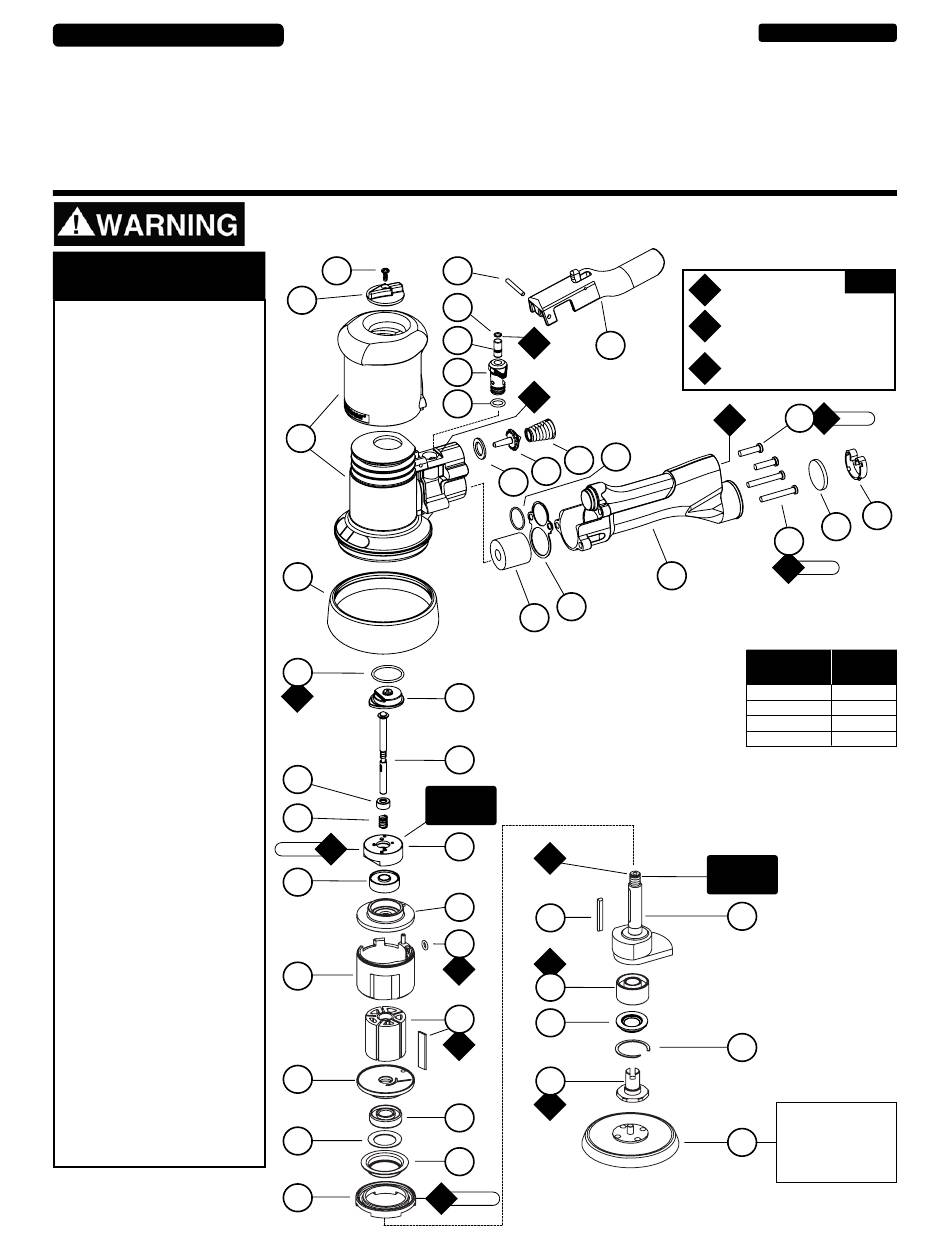

Dual Action Sander
12,000 RPM Air Motor and Machine Parts
28
30
31
O
29
1
32
O
1
33
38
36
35
34
39
37
22
21
THREAD
18
A
3
16
7
15
A
O
2
1
5
13
4
O
1
2
A
2
11
9
T
34 N•m
AUTOMOTIVE
Parts Page Reorder No. APD08•08
Effective November, 2008
Supersedes: APD04•07
Dynalocke
Oil: O
= Air Lube
O
1
A
Adhesive: A
= Loctite #271
2
A
= Loctite #242
3
T
Torque: N•m x 8.85 = In. - lbs.
O
T
41
1
42
T
3 N•m
40
HOUSING
ASSEMBLY #
13150
13151
13153
13154
LEFT HAND
THREAD
6
3
HOOK-FACE
SANDING PADS
1
56087 - 3"
54313 - 3-1/2"
TM
'
s
KEY
3 N•m
44
43
MODEL
NUMBER
10770
10771
10780
10781
Advertisement
Related Manuals for Dynabrade Dynalocke 10770
Summary of Contents for Dynabrade Dynalocke 10770
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools ’ (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade Warning/Safety Operating Instructions for more complete safety information.
- Page 2 2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade Rotary Vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 20 SCFM (example: if the tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 2 drops per minute).
- Page 3 Set (5) onto the motor shaft balancer. 8. Apply the 95842 Dynabrade Air Lube (10W/NR or equivalent) to the blades. 9. Install the 56595 Cylinder over the rotor so that the short line-up pin fits into the front bearing plate.
- Page 4 Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed. Operate tool for 30 seconds to determine if tool is operating properly and to allow lubricating oils to properly penetrate motor.
