Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Models:
10125 – 3" Dynabuffer
WARNING
!
Index Key
No. Part # Description
1 54459 Shroud
2 96416 Set Screw
3 95630 Snap Ring
4 57069 Balancer Shaft
5 95628 Bearing Shield
6 56053 Felt Seal
7 56052 Bearing
8 57422 Shaft Balancer
9 56047 Rotor Key
10 57088 Bearing
11 56046 Lock Ring
12 50659 O-Ring
13 57057 Front Bearing Plate
14 57113 Rotor/Blade Set
15 51354 Cylinder
16 95971 Pin
17 57056 Rear Bearing Plate
18 01206 Bearing
19 95626 Retaining Ring
20 54183 Housing
21 54192 Spring
22 95523 O-Ring (2)
23 56076 Valve Plug
24 51359 Grip
25 97165 Hang Plate
26 01017 Pin
27 95020 Set Screw
28 01020 O-Ring
29 56029 Valve Stem
30 54187 Throttle Lever
31 54188 Handle Grip
32 54689 Adapter (Non-Vac)
33 56091 Nozzle
34 54193 Gasket
35 57423 Adapter
36 01494 Inlet Bushing
37 54199 Muffler Seat
38 54195 Muffler (3)
39 54194 Muffler Cap
40 01791 Split Lock Washer (2)
41 95720 Screw (2)
See inside for Important Operating, Maintenance and Safety Instructions.
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
25
24
23
G
22
1
21
20
18
16
13
12
11
10
9
8

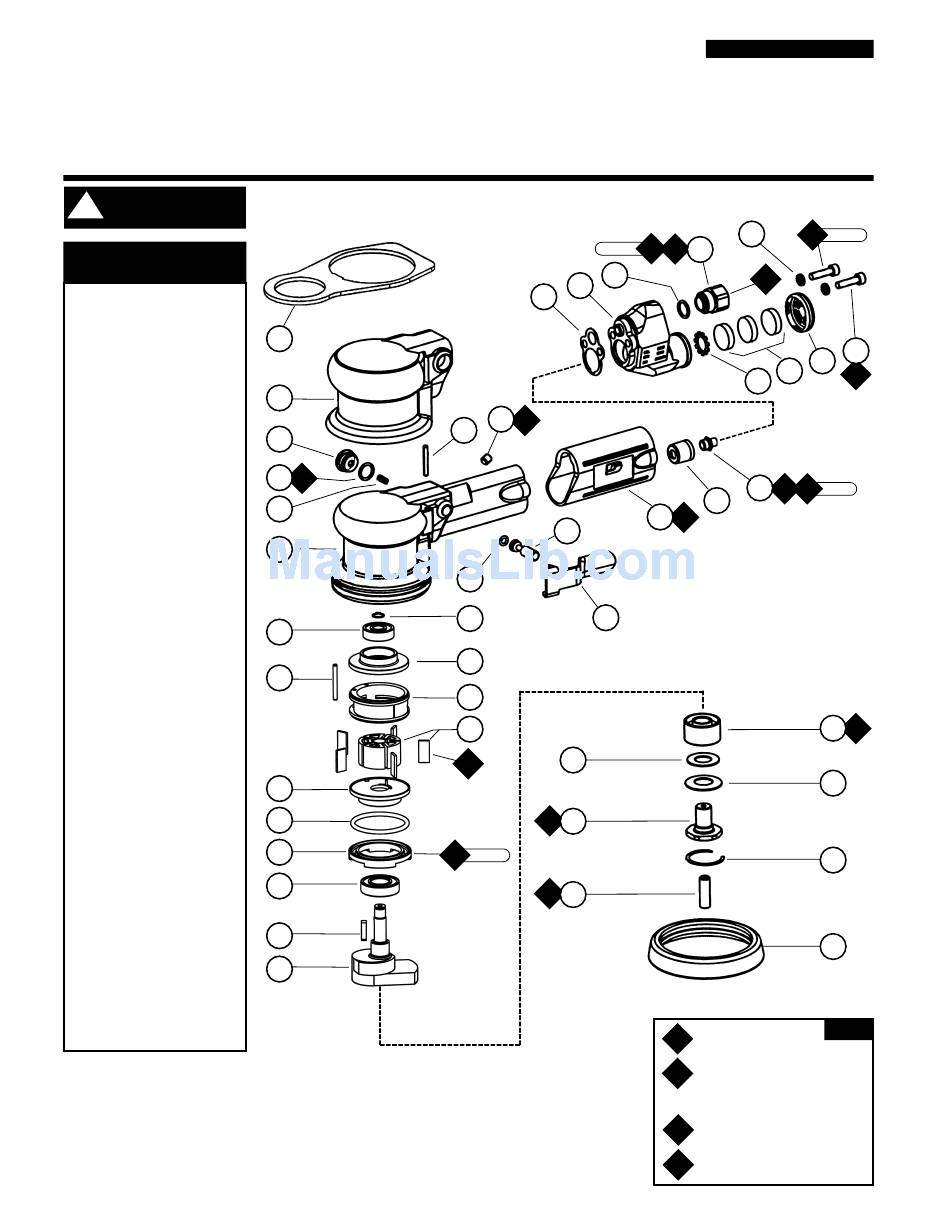

3" Dynabuffer
Air Motor and Machine Parts
28 N•m
22
35
34
27
A
2
26
29
28
30
19
17
15
14
6
O
1
A
4
2
T
34 N•m
A
2
2
AUTOMOTIVE
Parts Page Reorder No. APD01•08
Effective June, 2001
40
T
A
T
36
2
O
1
38
37
33
A
T
3
32
A
31
6
Oil: O
= Air Lube
O
1
A
Adhesive: A
= Loctite #271
2
A
= Loctite #242
3
A
= Loctite #380
6
Torque: N•m x 8.85 = In. - lbs.
T
Grease: G
= Lubriplate 630AA
G
1
'
s
3 N•m
41
39
A
3
3 N•m
A
7
2
5
3
1
KEY
Advertisement
Related Manuals for Dynabrade Dynabuffer 10125
Summary of Contents for Dynabrade Dynabuffer 10125
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools WARNING ’ (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade Warning/Safety Operating Instructions for more complete safety information. 3 N•m 28 N•m...
- Page 2 Apparatus is also required to monitor the load applied to the work surface. Dynabrade offers a Load Cell P/N 80025 that allows the tool to be tested on a bench. First zero out the scale by adjusting the knob on the side of the load cell to read zero when the tool, back-up pad, and waffle are resting on the wear plate of the load cell while connected to the air line.
- Page 3 6. Place the 57090 Rotor and 56047 Rotor Key on the motor shaft balancer. Place the 56073 Vanes into the rotor slots. Front Bearing Plate Note: Vanes should be lightly lubricated with Dynabrade Air Lube P/N 95842 (or equivalent) before installation. 7. Place 51354 Cylinder with 95571 Pin over rotor. The “short” line-up pin goes toward the Front Plate.
- Page 4 Note: Motor should operate at between 9,000 and 11,000 RPM free speed with 80 PSIG of air at the inlet of the tool. RPM should be checked with a tachometer. Before operating, we recommend that 2-3 drops of Dynabrade Air Lube P/N 95842 (or equivalent) be placed directly into the air inlet with throttle lever depressed. Operate the machine for approximately 30 seconds before application to workpiece to determine if machine is working properly and safely and to allow lubricating oils to properly dispense through machine.
