Chapter 2: Configuration of the View-R
5. In "EtherNet Config 0" pane on the configuration screen,
assign the new IP address, Subnet and Gateway addresses
for the View-R as provided by your network administrator
and click the "Submit" button.

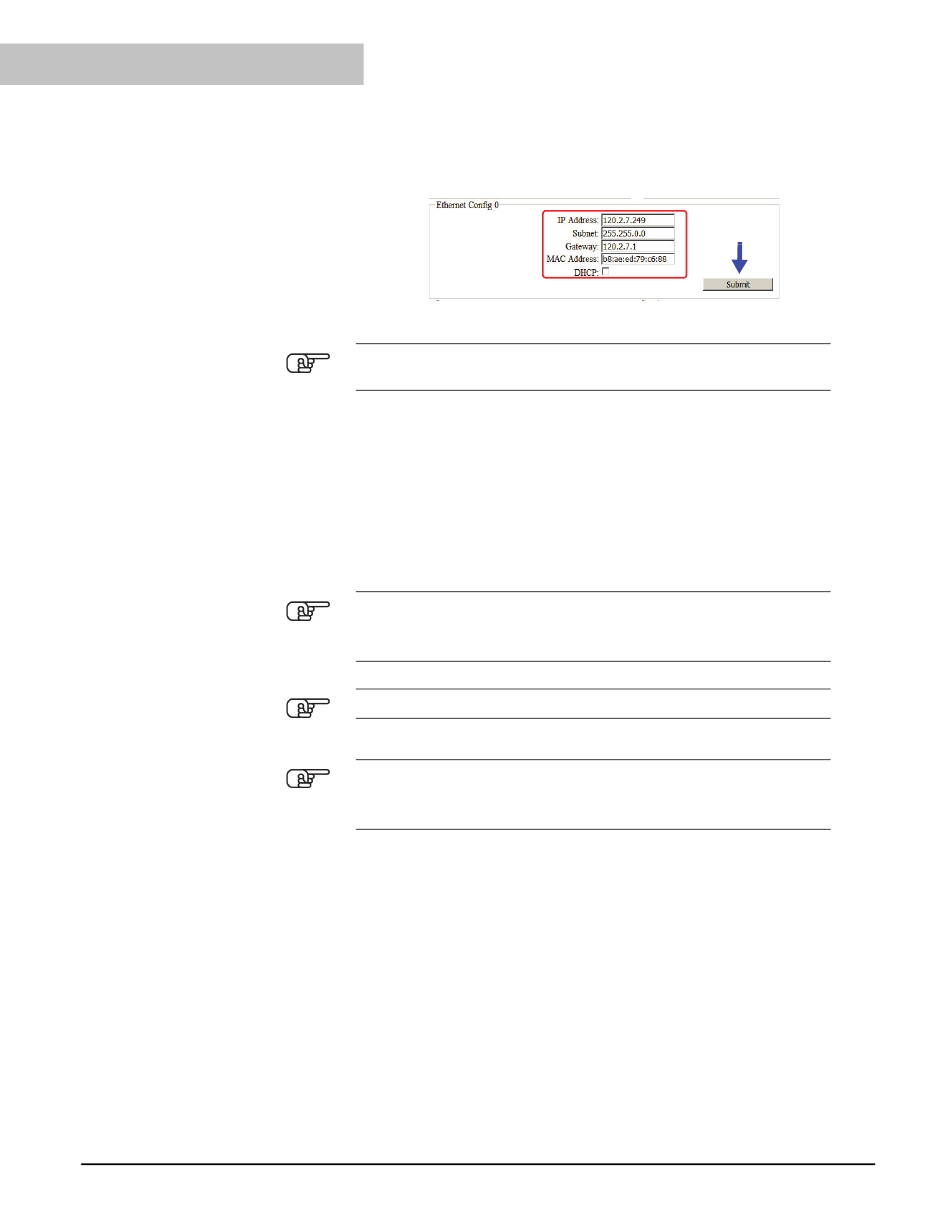

Figure 2.2 EtherNet Config Setup
The new configuration takes about 60 sec. (1 min.) to download and
complete after which the View-R will reboot.
6. In order to add the View-R on the Plant Network, wait for
the device to reboot, then disconnect the network cable
from the laptop and connect to the Plant EtherNet Network.
7. Once the configured View-R is connected to the plant
network, it is it is able to access all weld timers on the Plant
EtherNet. Any remaining View-R configuration should be
done over the Plant EtherNet Network via the Plant Line PC.
MAKE SURE TO REFRESH YOUR BROWSER OR CHANGE THE
URL TO THE NEW SPECIFICATION FOR THE CHANGE TO BE
PROCESSED.
EACH VIEW-R CAN CONNECT TO A MAXIMUM OF 48 TIMERS.
ONCE THE IP ADDRESS HAS BEEN CHANGED VIA THE
CONFIGURATION PAGE THE VIEW-R WILL USE THE NEW IP
ADDRESS.
