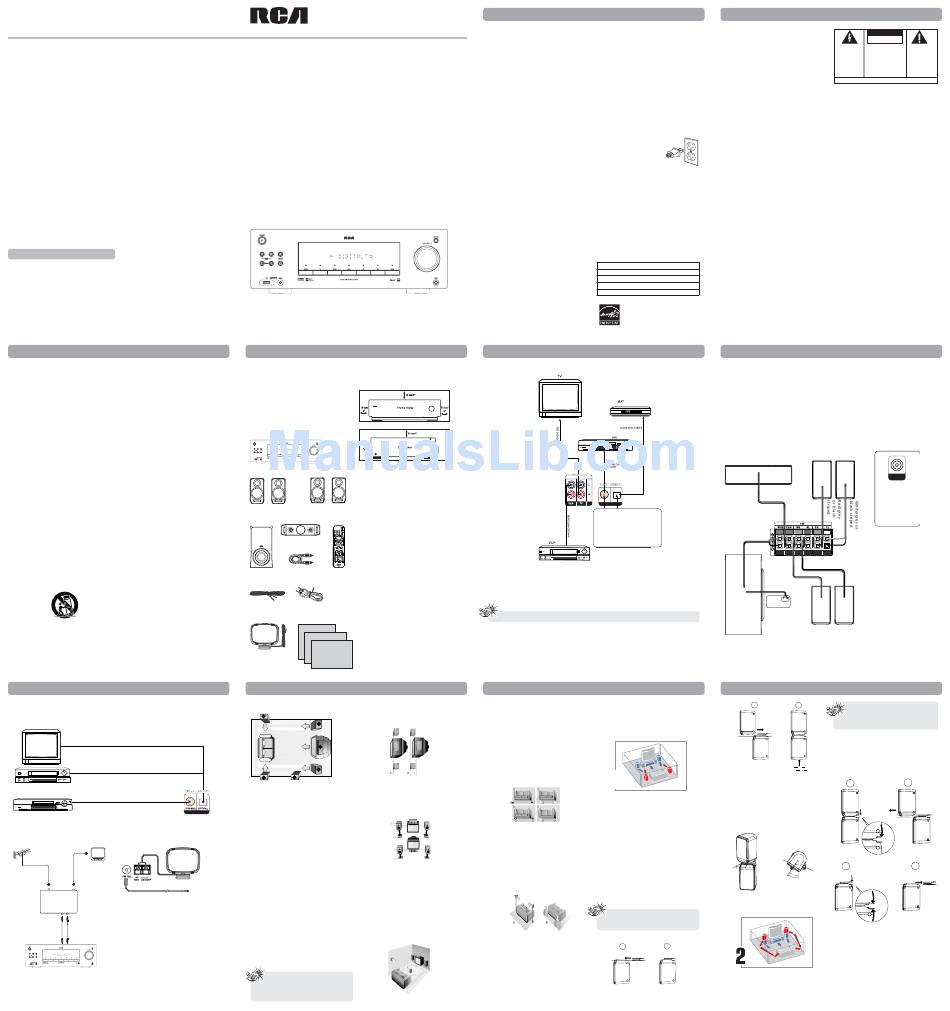

RCA RT2770 User Manual

IMPORTADOR
Comercializadora Thomson de México, S.A. de C.V.
Álvaro Obregón No. 151. Piso 13.
Col. Roma. Delegación Cuauhtémoc
C.P. 06700. México, D.F.
Telefono: 52-55-11-020360
RFC: CTM-980723-KS5
EXPORTER
Thomson Inc.
P.O. Box 1976
Indianapolis, IN 46206-1976
© 2007 Thomson Inc.
Trademark(s) ® Registered
Marca(s) ® Registrada(s)
Marque(s) ® Deposée(s)
www.rcaaudiovideo.com
Printed In China / Impreso en China
5641663A (EN)
Important Safety Instructions
Please read and save for
• Unplug this apparatus during lightning
future reference storms or when unused for long periods
of time.
Some of the following information may not
• Refer all servicing to qualified service
apply to your particular product; however, as
personnel. Servicing is required when the
with any electronic product, precautions should
apparatus has been damaged in any way,
be observed during handling and use.
such as power-supply cord or plug is
damaged, liquid has been spilled or objects
• Read these instructions.
have fallen into the apparatus, the apparatus
• Keep these instructions.
has been exposed to rain or moisture, does
• Heed all warnings.
not operate normally, or has been dropped.
• Follow all instructions.
• Do not use this apparatus near water.
Additional safety information
• Clean only with dry cloth.
• Apparatus shall not be exposed to dripping
• Do not block any ventilation openings.
or splashing and no objects filled with
Install in accordance with the
liquids, such as vases, shall be placed on
manufacturer's instructions.
the apparatus.
• Do not install near any heat sources such as
• Always leave sufficient space around the
radiators,heat registers, stoves, or other
product for ventilation. Do not place product
apparatus (including amplifiers) that
in or on a bed, rug, in a bookcase or cabinet
produce heat.
that may prevent air flow through
• Do not defeat the safety purpose of the
vent openings.
polarized or grounding-type plug. A
• Do not place lighted candles, cigarettes,
polarized plug has two blades with one
cigars, etc. on the product.
wider than the other. A grounding type plug
• Connect power cord only to AC power
has two blades and a third grounding prong.
source as marked on the product.
The wide blade or the third prong is
• Care should be taken so that objects do not
provided for your safety. If the provided plug
fall into the product.
does not fit into your outlet, consult an
• Do not attempt to disassemble the cabinet.
electrician for replacement of the
This product does not contain customer
obsolete outlet.
serviceable components.
• Protect the power cord from being walked
on or pinched particularly at plugs,
If your product operates on batteries,
convenience receptacles, and the point
adhere to the following precautions:
where they exit from the apparatus.
A.Any battery may leak electrolyte if mixed
• Only use attachments/accessories specified by
with a different battery type, if inserted
the manufacturer.
incorrectly, or if all batteries are not replaced
• Use only with the cart, stand, tripod, bracket,
at the same time.
or table specified by the manufacturer, or
B. Any battery may leak electrolyte or explode
sold with the apparatus. When a cart is used,
if disposed of in fire or an attempt is made
use caution when moving the cart/apparatus
to charge a battery not intended to
combination to avoid injury from tip-over.
be recharged.
C. Discard leaky batteries immediately. Leaking
batteries can cause skin burns or other
]
personal injury. When discarding batteries,
be sure to dispose of them in the proper
manner, according to your state/provincial
and local regulations.
Portable Cart Warning
Connections and Setup
Digital Connections
The digital audio jacks can accept Dolby Digital (AC-3) or PCM signals when compatible
components are connected.
Optical Digital In (Audio)
Connect to optical digital output of DVD, SAT or other compatible
devices using the optical Fiber Cable (not included).
DVD/SAT/CAB
Coaxial Digital In (Audio)
Connect to coaxial digital output of DVD, SAT or other
compatible devices using the coaxial digital cable (included).
DVD/SAT
TV Connections
Connecting the Antennas
TVs with RF input may need a RF modulator
Connect the AM and FM antennas to the AM
(not included) for inputting audio signals.
and FM terminals on the system's back panel.
TV
RF cable
RF in RF out
They must be hooked up in order to receive
RF modulator
clear reception. For FM reception, extend
antenna to its full length. For AM reception,
rotate the antenna horizontally to get
Audio out
better reception.
Audio cable
AM Loop Antenna and FM Indoor Antenna
1. Uncoil the antenna wire and locate the base
Audio in
end of the AM antenna.
2. Press down on the antenna tab to open
the terminal.
3. Insert the antenna wires into the terminal
and release the tabs to secure the wires
in place.
4. Make sure the white wire on the AM loop
The illustration shown above may varies from
antenna is inserted into the AM LOOP
your actual RF modulator, please refer to your
terminal and other wire is inserted into the
RF modulator manual.
ground loop terminal.
It is important to read this instruction book prior to using your new product for the first time.
Connections and Setup
Content of Box Set up and Maintenance of
the Unit
• One main unit
• One remote control with batteries
Provide spaces for sufficient ventilation
• One pair of front speakers, one pair of rear
as indicated:
speakers, one center speaker and
one subwoofer
• One pig-tail antenna wire
• One AM loop antenna
• One coaxial digital cable
• One 3.5mm stereo cable for line-in
• One User Manual
• One Quick Start Guide
• One Product Registration Card
Main unit
• Do not connect to the AC power cords until
all connections are completed.
• Do not use your set immediately after
transferring it from a cold place to a warm
place: there is risk of condensation.
• Do not expose your set to water and
excessively high temperatures.
Left and right Left and right
• After having disconnected your set, clean the
front speakers rear speakers case with a soft cloth, or with a slightly damp
leather chamois. Never use strong solvents.
Protect your Components from
Center speaker Overheating
• Do not block ventilation holes in any
component. Arrange the components so that
air can circulate freely.
• Do not stack components directly on top of
Subwoofer each other.
Coaxial digital Remote
• Do not place the unit near other components
cable
control with
that generate heat such as heating vents.
batteries
• Allow adequate ventilation when placing
your components in a stand.
• Place an amplifier near the top shelf of the
stand so heated air rising from it will not
3.5mm stereo
Pig-tail
affect other components. If you have a
cable for
antenna wire
satellite receiver, you should place it on the
line-in
top shelf.
User manual
Quick Start Guide
Product
Registration
AM loop antenna
Card
Connections and Setup
Positioning Speakers Front Speaker Placement
Follow the suggestions for speaker placement
3
below to get the best results.
1
2
1
4
3
Courtesy Dolby Laboratories
Alignment
Align the center speaker evenly with (A) or
1. Left, Right (Front Speakers)
slightly behind (B) (the left and right speakers),
Front speakers carry primarily music and
but not ahead of them.
sound effects.
DVD/SAT/CAB
2. Center
In surround mode, the center speaker carries
most of the dialog as well as music and effects.
It should be set between the left and
right speakers.
3. Surround (Rear Speakers)
The rear speakers' overall sound balance should
be as close as possible to the front speakers.
Proper placement is vital to establish an evenly
distributed sound field.
Angle
Place the left and right speakers to form a 45-
Subwoofer
degree angle with your favorite viewing
position to duplicate the soundtrack
A subwoofer is designed to reproduce powerful
mixer's perspective.
low bass effects (explosions, the rumble of
spaceships, etc.) which dramatically heighten
Height
the action on the screen.
The mid- and high-frequency drivers of the
three front speakers should be as close as
Magnetic Shielding possible to the same height. This often requires
placing the center speaker directly on top (A)
Speakers placed less than two feet from the TV
or beneath (B) the TV set.
set must be magnetically shielded in order to
prevent picture distortion. Front speakers
provided with this unit are magnetically
shielded to protect your TV set.
Note: Place the rear speakers and
subwoofer a foot or more away from
TV when using the Front Surround sound
Effect (FSsE).
FCC Information
user manual
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
RT2770
accept any interference received, including
interference that may cause
undesired operation.
In accordance with FCC requirements, changes
or modifications not expressly approved by
Thomson Inc. could void the user's authority to
operate this product.
This device generates and uses radio frequency
(RF) energy, and if not installed and used
properly, this equipment may cause
interference to radio and television reception.
If this equipment does cause interference to
radio or television reception (which you can
determine by unplugging the unit), try to
correct the interference by one or more of the
following measures:
• Re-orient the receiving antenna (that is, the
antenna for the radio or television that is
"receiving" the interference).
• Move the unit away from the equipment
that is receiving interference.
• Plug the unit into a different wall outlet so
that the unit and the equipment receiving
interference are on different branch circuits.
If these measures do not eliminate the
interference, please consult your dealer or an
experienced radio/television technician for
additional suggestions.
Also, the Federal Communications Commission
has prepared a helpful booklet, "How To
Identify and Resolve Radio TV Interference
Problems." This booklet is available from the
U.S. Government Printing Office, Washington,
DC 20402. Please specify stock number
004-000-00345-4 when ordering copies.
This product complies with DHHS Rules 21 CFR
Subchapter J. Applicable at the date
of manufacture.
Main plug is used as the disconnect device,it
shall remain readily operable and should not
be obstructed during intended used.To be
completely disconnected the apparatus from
supply mains,the main plug of the apparatus
shall be disconnected from the mains socket
outlet completely.
Connections and Setup
Connecting to Audio Components
Digital Connection
• This unit provides one optical and one coaxial digital input jacks for the connection of
your components.
• To connect a SAT receiver or DVD player with a digital output, use an optical digital cable (not
included) or coaxial digital cable (included) to carry the audio signal and enjoy Dolby Digital
sound quality.
• One optical or coaxial cable is needed for each SAT receiver or DVD player.
Note: Optical and coaxial cables carry only the audio portion of the signal.
Connections and Setup
Better Surround Placement
Location
If possible, place surround speakers to either
side of the listening area, not behind it.
Height
If space permits, install surround speakers 2-3
feet above viewers. This helps to minimize
localization effects.
Aiming
Aim surround speakers straight across the
room, not down at viewers, to help create a
more open, spacious surround sound field.
Courtesy Dolby Laboratories
A
Courtesy Dolby Laboratories
Alternative Surround Placement
Rear wall
B
If rear wall mounting is the only choice, aim
the speakers at each other (A), towards the
front (B) or towards the sidewalls (C, D).
Courtesy Dolby Laboratories
Experiment with placement until sounds seem
to surround you, rather than come from
behind you.
Courtesy Dolby Laboratories
No adjacent walls
Surround speakers can go on stands facing
each other to approximate sidewall mounting
(A), or to the sides or rear of the viewing area,
aimed upwards; they can go right on the floor,
or preferably, a few feet off the floor such as
on end tables (B).
Courtesy Dolby Laboratories
FCC Information
Technical Specification Service Information
Product: Audio Receiver with Dolby Digital This product should be serviced only by those
Brand: RCA specially trained in appropriate servicing
Model: RT2770 techniques. For instructions on how to obtain
service, refer to the warranty included in
Electrical Consumption this user manual.
Power Supply: 120V ~ 60Hz
Power consumption: 90 Watts Connecting for Power
Importer
Make sure you connect all your other
Comercializadora Thomson de México,
electronic components and the speakers before
S.A. de C.V. plugging your unit into the outlet. Plug the
Álvaro Obregón No. 151. Piso 13.
power cord in the wall outlet, matching the
Col. Roma. Delegación Cuauhtémoc wide blade of the plug with the wide slot in
C.P. 06700. México, D.F.
the outlet. Be sure to insert the
Telefono: 52-55-11-020360
plug completely.
RFC: CTM-980723-KS5
Headset Safety
For Your Safety
• Do not play your headset at a high volume.
The AC power plug is
Hearing experts warn against extended
polarized (one blade is wider high-volume play.
than the other) and only fits
• If you experience a ringing in your ears,
into AC power outlets one
reduce volume or discontinue use.
way. If the plug won't go into
• You should use extreme caution or
the outlet completely, turn the
temporarily discontinue use in potentially
plug over and try to insert it the other way. If it hazardous situations.
still won't fit, contact a qualified electrician to
• Even if your headset is an open-air type
change the outlet, or use a different one. Do designed to let you hear outside sounds,
not attempt to bypass this safety feature.
don't turn up the volume so high that you
are unable to hear what is around you.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Don't Infringe
This product should only be used for the
For Your Records
purposes for which it is sold, that is,
In the event that service should be required, entertainment, violating no copyright law. Any
you may need both the model number and the
attempts to use this product for which it is not
serial number. In the space below, record the
intended is unlawful and therefore not
date and place of purchase, and the
condoned by Thomson.
serial number:
Model No.
Remote Control No.
Date of Purchase
Place of Purchase
Serial No.
This audio system has earned
the ENERGY STAR.
Connections and Setup
Connecting the Speakers
Speaker wires are color-coded to match the
terminals. Connect the speaker wire from the
back of each speaker to the corresponding
color terminal at the back of the unit. Press
down the tab to open the terminal and insert
the wire. Release the tab to lock wire in
the terminal.
When connecting the speakers, make sure the
polarities ("+" speaker wire to "+" on the unit.
For example, red wire to red terminal on the
unit) of speaker wires and terminals match.
Center Speaker
Green/grey or
black striped
COAXIAL OPTICAL
DVD/SAT/CAB
Digital Input
Connect components capable of
outputting Dolby digital (e.g. DVD or
Purple/grey
SAT) or standard PCM (CD) format
or black
digital signals. Read section on "Input
Signal Setting" under "Advanced striped
Sound Control" carefully to adjust the
matching input settings.
Grey/black striped
Subwoofer
SUBWOOFER
CONTROL
Use this jack on
the rear panel to
connect to the
subwoofer
control cable
(red/black
striped) of the
subwoofer.
Connections and Setup
Front Surround Mode
3
Speaker Placement
Rear
Configuration 1 Speaker
Follow the suggestion for speaker placement in
the section before.
Front
Speaker
Rubber Feet
1
Adjusting the Angle of the Speakers
To achieve the best Front Surround sound
Configuration 1 Effect (FSsE), adjust the mounted front left and
the rear left speakers to the left for an angle of
25 o - 45 o from the center.
Configuration 2
If placing the rear speakers (surround speakers)
Adjust the mounted front right and rear right
at the back is not a good choice for you, you
speakers to the right in the same way.
can use the Front Surround sound Effect(FSsE).
Follow the following instruction for setting
the speakers. (See section "Front Surround
Sound Effect (FSsE) Setting" under "Advanced Rear
Speaker
Sound Control" for details).
Rear
Speaker
Mounting the Speakers
1. Place the front speaker upside down.
2. Slide in the hinge to the bottom of the front
speaker until the 'click' sound is heard.
Front
Speaker
3. Slide in the rear speaker to the hinge until
the 'click' sound is heard.
4. Attach the four rubber feet provided to the
top of the front speaker.
After adjusting the angle, the speaker should
look like this illustration.
Note: Match the front left and rear left
speakers together and match the front right
and rear right speakers together.
1 2
Hinge
Bottom
Front
Speaker Configuration 2
Top
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
T H E L I G H T N I N G CAUTION: TO REDUCE THE THE EXCLAMATION
FLASH AND ARROW- RISK OF ELECTRIC SHOCK, POINT WITHIN THE
HEAD WITHIN THE D O N O T R E M O V E C O V E R T R I A N G L E I S A
T R I A N G L E I S A WARNING SIGN
( O R B A C K ) . N O U S E R -
W A R N I N G S I G N S E RV I C E A B L E PA R T S I N - ALERTING YOU OF
ALERTING YOU OF S I D E . R E F E R S E RV I C I N G I M P O R T A N T
" D A N G E R O U S I N S T R U C T I O N S
T O Q U A L I F I E D S E R V I C E
VOLTAGE" INSIDE PERSONNEL. A C C O M PA N Y I N G
THE PRODUCT. T H E P R O D U C T.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
WARNING:
TO PREVENT FIRE OR ELECTRICAL
SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
GEFAHR EINES
GEFAHR EINES
ELEKTRISCHEN SCHLAGS
ELEKTRISCHEN SCHLAGS
If the cords are reversed, the sound will
be distorted. Do not let the speaker wires
touch each other, it will damage
the speaker.
When connecting subwoofer, connect
subwoofer control cable (red/black striped) at
the back of the subwoofer to the subwoofer
control jack on the unit's rear panel, then press
POWER ON/OFF on the subwoofer speaker to
turn it on.
Front Speakers
Right Left
SUBWOOFER
AUDIO OUT
Use this jack on
the rear panel
to connect
another active
subwoofer
other than the
one supplied.
Blue/grey or black striped
Right Left
Rear Speakers
(Surround Sound)
4
Note: Place the rear speakers and
subwoofer a foot or more away from TV
when using the Front Surround sound
Effect (FSsE).
Disconnecting the Speakers
1. To unlock the speakers, press and hold the
hinge spring as illustrated below.
2. Slide out the rear speaker from the hinge.
3. Press and hold the two hinge springs.
4. Slide out the hinge from the front speaker.
1 2
Rear
Speaker
Hinge Spring
Front
Speaker Press
and
hold
4
3
Front
Speaker
Center
Hinge Spring
Press
and
hold
