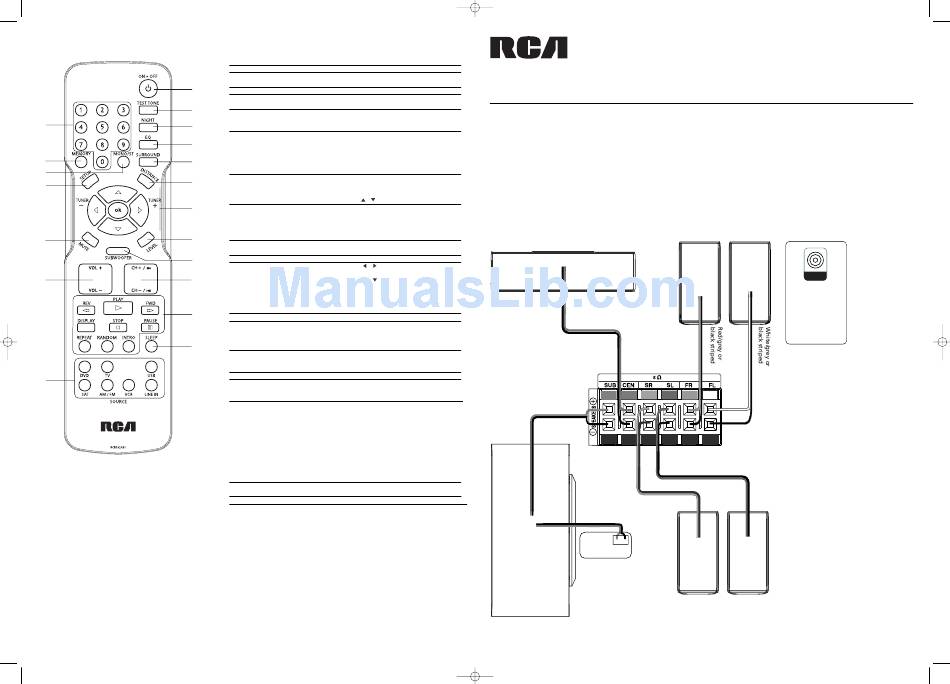

Remote Control
1
5
2
6
7
3
8
4
10
9
11
14
12
13
15 16
17
18
19
1. Turn on/off the unit Press ON•OFF
2. Directly access a preset station in Press the Number buttons
AM/FM mode
3. Store station in AM/FM mode Press MEMORY
4. Select between Stereo and Mono Press MONO/ST
sound in FM mode
5. Test the loudness of the speakers. Press TEST TONE
Refer to "Advanced Sound Control"
for details
6. Select among night mode options Press NIGHT
(DRC OFF, SOFT and ON) which
compresses the volume difference
between normal voices and sounds
such as explosions (Available only
during Dolby digital signal playback)
7. Select among preset Press EQ
equalizer mode (FLAT, POP, JAZZ,
ROCK, CLASSIC, BASS and TREBLE).
• Adjust bass or treble level Press /
8. Select among digital sound Press SURROUND
processor (STEREO, HALL, CHURCH,
CLUB, STADIUM, STUDIO, 3 STEREO,
DOLBY PL EMULATION, DOLBY PL II
MUSIC and DOLBY PL II MOVIE)
9. Enter setup mode Press SETUP
10. Adjust the speakers' distance Press DISTANCE
11. Select among setting items in Press /
setup mode
• Adjust the values when the display Press /
shows the setup you want
to change
• Tune down or up the radio Press TUNER - and TUNER +
frequency in AM/FM mode
12. Mute all sound Press MUTE
13. Select among subwoofer sound Press SUBWOOFER
level (SOFT SUBWOOFER, BALANCE
SUBWOOFER, STRONG SUBWOOFER
and POWERFUL SUBWOOFER)
14. Adjust individual speaker volume. Press LEVEL
Refer to "Advanced Sound Control"
for details
15. Adjust the volume Press VOL + / VOL -
16. Select programmed stations in Press CH+ / CH-
AM/FM mode or directly access the
next or previous file in USB mode
17. Start, stop or pause playback Press PLAY, STOP or PAUSE to access the
(in USB mode only) relative functions.
• Start reverse or forward accelerated Press REV or FWD
play(in USB mode only)
• Access MP3/WMA ID3 information Press DISPLAY
and current play time, current play
folder and track number,
play mode
• Access the repeat function Press REPEAT
• Turn on/off random playback Press RANDOM
• Enter Intro mode Press INTRO
18. Enter sleep mode and selects sleep Press SLEEP
time
19.Select audio sources Press SOURCE buttons

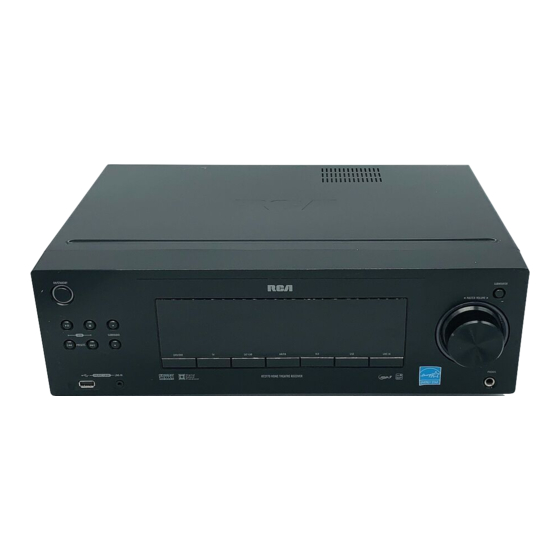

Congratulations on purchasing your new RCA unit.
Please read these instructions for quick tips on using the unit.
Setting up
1. Connecting the Speakers
• Six speakers are provided with the unit:
• 2 front speakers
• 1 center speaker
• 2 rear speakers
• 1 subwoofer.
• Speaker wires are color-coded to match the terminals.
• Connect the speaker wire to the corresponding color terminal as shown below.
• Press down the tab to open the terminal, insert the wire and release the tab.
• When connecting subwoofer, connect subwoofer control cable (red/black striped) at the back of the subwoofer to the subwoofer control jack on
the unit's rear panel, then press POWER ON/OFF on the subwoofer speaker to turn it on.
Center Speaker
Green/grey or
black striped
Purple/grey or
black striped
Blue/grey or black striped
Grey/black striped
Subwoofer
SUBWOOFER
CONTROL
Use this jack on
the rear panel to
connect to the
subwoofer
control cable
(red/black
striped) of the
subwoofer.
QuickStartGuide
www.rcaaudiovideo.com
Front Speakers
Right Left
SUBWOOFER
AUDIO OUT
Use this jack on
the rear panel
to connect
another active
subwoofer
other than the
one supplied.
Right Left
Rear speakers
(Surround Sound)
RT2770
