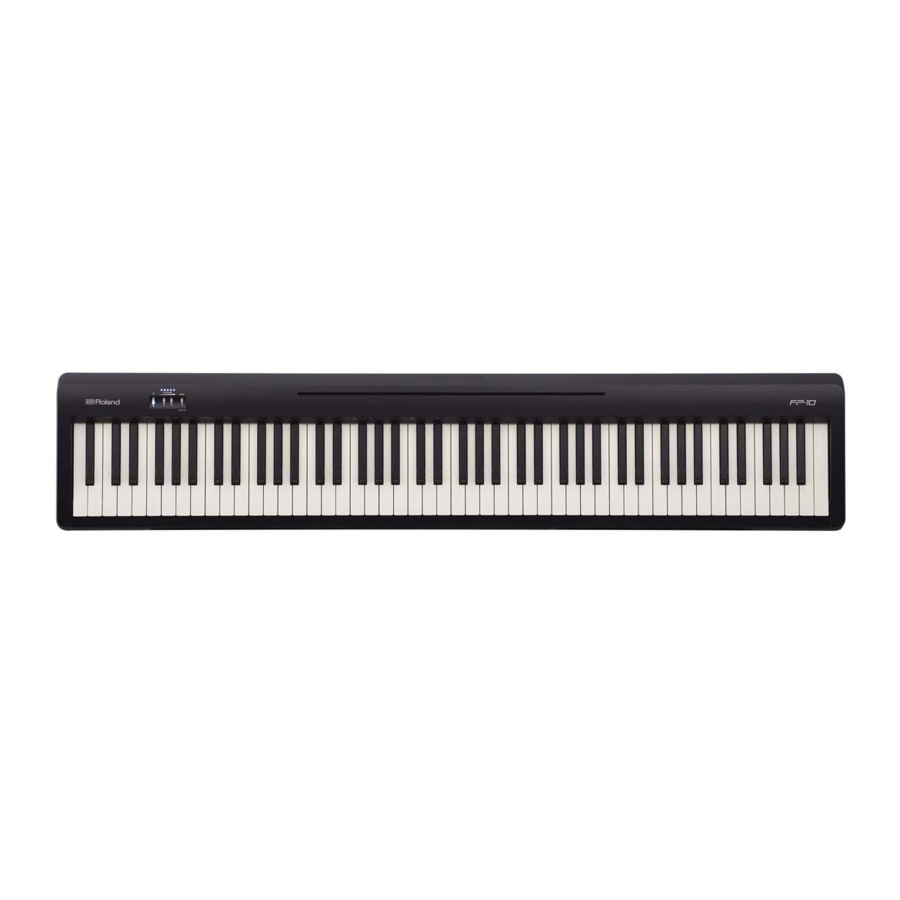

Roland FP-10 - Digital Piano Manual

KS-12
Adjust the height of the stand to the lowest position.

(Adjust the width of the stand so that the rubber feet on the front of the piano fit into the corresponding openings of the stand)

KS-20X
Align the center of the Piano with the center of the stand.

(Adjust the position of the arm sleeves so the piano rests on top of them
Align the front of the Piano with the front of the stand
Adjust the stand so that its width is not less than 700 mm (27-9/16 inch).)

KS-10Z

(Align the front of the Piano with the front of the stand
NOTE
For safety, do not use the stand in its very highest adjustment position.
Place the Piano so that its rubber feet on the front of the piano are on the inner side of the stand)

Note when placing the FP-10 on a stand
Be sure to follow the instructions in the Owner's Manual carefully when placing this unit on a stand. If it is not set up properly, you risk creating an unstable situation which could lead to the unit falling or the stand toppling, and may result in injury.
Beware of overturning!
To prevent the FP-10 from overturning, do not apply excessive force to it, and never sit or stand on it.

Attaching the Music Rest

Insert the music rest into the slit on the top of the FP-10.

Making the Power Automatically Turn Off After a Time (Auto Off)

The power to this unit will be turned off automatically after a predetermined amount of time has passed since it was last used for playing music, or its buttons or controls were operated (Auto Off function). If you do not want the power to be turned off automatically, disengage the Auto Off function.

• Unsaved data is lost when the power turns off. Before turning the power off, save the data that you want to keep ("Reference manual" (PDF) "Saving the Settings (Memory Backup)").
• To restore power, turn the power on again.

Adjusting the Volume

Use the two [VOLUME] buttons to adjust the volume.

You can adjust the speaker volume when using the built-in speakers, or the headphones volume when headphones are connected.
* The number of indicators lit above the [VOLUME] buttons changes according to the volume setting. If all indicators are lit, the volume is at its maximum. If all indicators are unlit, there will be no sound.

Playing an Internal Song

The "Reference manual" (PDF) contains a list of the internal songs.

Playing/Stopping an Internal Song

1. Selects a category.


   Category

   Listening, Tone Demo (*1) (default: Listening)

   *1 Demo songs expressing the character of the tones are built-in.

2. Play all songs in the selected category, or play just one song.
   When you hold down the [FUNCTION] button and press the same key once again, playback stops.


Switching to a Different Song

Starting the Metronome

Turning On/Off the Metronome

Changing the Metronome Volume

Changing the Beat

*2 When the metronome is sounded, all beats are heard with the same sound.

Changing the Tempo

Connect an App on a Mobile Device

If you install an app on your smartphone, tablet, or other mobile device, and connect it via Bluetooth, you can use the app to view the status of the FP-10 on the large screen of your mobile device, and use the app to operate the FP-10. If the Bluetooth function is able to connect, the [FUNCTION] button is lit.

Here we explain the Piano Partner 2 app which expands your enjoyment of the FP-10, and tips for making connections in order to use this app. As an example, we'll explain the settings when using an iPad. If you're using an Android device, refer to the owner's manual of your unit for details on how to make settings for its Bluetooth functionality.

Connecting to Piano Partner 2

Piano Partner 2 is an app made by Roland that supports iOS and Android. You can connect your iPad or other tablet to the FP-10 to enjoy your piano even more. It can display musical scores of the FP-10's internal songs, and lets you enjoyably boost your musical abilities through ear-training games. Since it can take advantage of your tablet's large screen, it's easy to operate. For details, refer to the following URL.
http://roland.cm/pianopartner2

Tips for Connecting via Bluetooth

For details on the connection procedure, refer to the "Reference manual" (PDF).

• Turn on the Bluetooth function of your mobile device.


• You can connect from the settings screen of Piano Partner 2. You can't connect from the Bluetooth screen of your mobile device.


• In the settings screen of Piano Partner 2, tap [Bluetooth MIDI Devices], and then tap [FP-10].


If You Can't Connect via Bluetooth

• If you're using Android 6.0 or later, you turn on Android's location information.
• Make the settings again as described below.
  1. Exit all apps on your mobile device.
     Double-click the home button, and swipe up on the app screen.


  2. If already paired, cancel pairing, and turn off the Bluetooth function.
     1. In the mobile device's screen, tap the "i" located beside "connected," and tap "Forget This Device."


     2. Turn the Bluetooth switch off.



     3. Make the settings again while referring to the "Reference manual" (PDF).

If you are still unable to connect with the app, access the following URL and find your nearest Roland Service Center or authorized Roland distributor in your country.
http://roland.cm/service

USING THE UNIT SAFELY

Concerning the Auto Off function
The power to this unit will be turned off automatically after a predetermined amount of time has passed since it was last used for playing music, or its buttons or controls were operated (Auto Off function). If you do not want the power to be turned off automatically, disengage the Auto Off function.
Use only the stand that is recommended
This unit should be used only with a stand that is recommended by Roland.
Do not place in a location that is unstable
When using the unit with a stand recommended by Roland, the stand must be carefully placed so it is level and sure to remain stable. If not using a stand, you still need to make sure that any location you choose for placing the unit provides a level surface that will properly support the unit, and keep it from wobbling.

Precautions regarding placement of this unit on a stand
Be sure to follow the instructions in the Owner's Manual carefully when placing this unit on a stand. If it is not set up properly, you risk creating an unstable situation which could lead to the unit falling or the stand toppling, and may result in injury.
Use only the supplied AC adaptor and the correct voltage
Be sure to use only the AC adaptor supplied with the unit. Also, make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.
Use only the supplied power cord
Use only the attached power cord. Also, the supplied power cord must not be used with any other device.

Use only the specified stand(s)
This unit is designed to be used in combination with specific stands (KSCFP10, KS-12, KS-20X, KS-10Z) manufactured by Roland. If used in combination with other stands, you risk sustaining injuries as the result of this product dropping down or toppling over due to a lack of stability.
Evaluate safety issues before using stands
Even if you observe the cautions given in the owner's manual, certain types of handling may allow this product to fall from the stand, or cause the stand to overturn. Please be mindful of any safety issues before using this product.
Cautions when moving this unit
If you need to move the instrument, take note of the precautions listed below. At least two persons are required to safely lift and move the unit. It should be handled carefully, all the while keeping it level. Make sure to have a firm grip, to protect yourself from injury and the instrument from damage.

• Check to make sure the screws securing the unit to the stand have not become loose. Fasten them again securely whenever you notice any loosening.
• Disconnect the power cord.
• Disconnect all cords coming from external devices.
• Remove the music rest.

IMPORTANT NOTES

Placement

• Do not allow objects to remain on top of the keyboard. This can be the cause of malfunction, such as keys ceasing to produce sound.
• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface.

Care of the Keyboard

• Do not write on the keyboard with any pen or other implement, and do not stamp or place any marking on the instrument. Ink will seep into the surface lines and become unremovable.
• Do not affix stickers on the keyboard. You may be unable to remove stickers that use strong adhesives, and the adhesive may cause discoloration.
• To remove stubborn dirt, use a commercially available keyboard cleaner that does not contain abrasives. Start by wiping lightly. If the dirt does not come off, wipe using gradually increasing amounts of pressure while taking care not to scratch the keys.

Repairs and Data

• Before sending the unit away for repairs, be sure to make a backup of the data stored within it; or you may prefer to write down the needed information. Although we will do our utmost to preserve the data stored in your unit when we carry out repairs, in some cases, such as when the memory section is physically damaged, restoration of the stored content may be impossible. Roland assumes no liability concerning the restoration of any stored content that has been lost.

Additional Precautions

• Any data stored within the unit can be lost as the result of equipment failure, incorrect operation, etc.
• Roland assumes no liability concerning the restoration of any stored content that has been lost.
• The sound of keys being struck and vibrations produced by playing an instrument can be transmitted through a floor or wall to an unexpected extent. Please take care not to cause annoyance to others nearby.
• Do not apply undue force to the music stand while it is in use.

Caution Regarding Radio Frequency Emissions

• The following actions may subject you to penalty of law.
  • Disassembling or modifying this device.
  • Removing the certification label affixed to the back of this device.

Intellectual Property Right

• It is forbidden by law to make an audio recording, video recording, copy or revision of a third party's copyrighted work (musical work, video work, broadcast, live performance, or other work), whether in whole or in part, and distribute, sell, lease, perform or broadcast it without the permission of the copyright owner.
• Do not use this product for purposes that could infringe on a copyright held by a third party. We assume no responsibility whatsoever with regard to any infringements of third-party copyrights arising through your use of this product.

Main Specifications

Roland FP-10: Digital piano

* This document explains the specifications of the product at the time that the document was issued. For the latest information, refer to the Roland website.
© 2019 Roland Corporation
