Sensors and control zones

This section guides you through a short introduction to the terms used in the manual:
• Area type
• Sensor type
• Controller
• Control Zones
Finally you will be able to assign a number of sensors to the chosen control zones.
1 .1

Sensor types and function

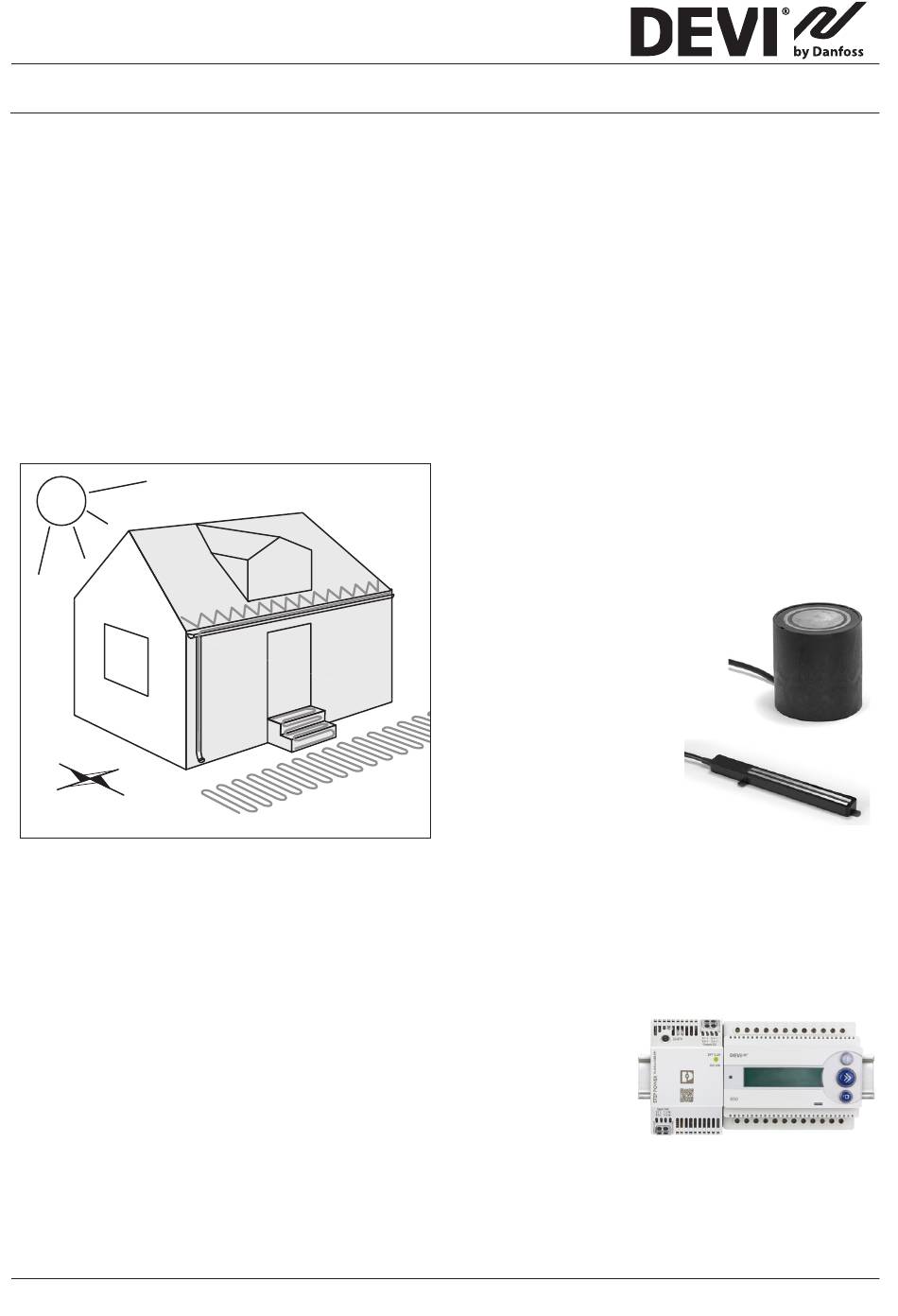

Identify the type(s) of area prepared for the DEVI ice and snow melting system, by
looking at the fig. below:
S
W
E
N
The ground and roof sensors both measure two things on the sensor surface:
• temperature
• moisture from ice, snow, hail or rain
These measurements are input to the DEVIreg™ 850, and it
decides how the ice and snow melting system should control
the heated areas.
Details about the setup of the controller can be found in the
DEVIreg™ 850 installation manual.
Installation and user manual
3
2
4
1
1. Walkways and parking areas
2. Steps and stairs
3. Roofs and roof edges
4. Gutters and down pipes
For ground areas like
1 and 2 you have one or
more ground sensors.
For roof areas like
3 and 4 you have one
or more roof sensors.
