IMPORTANT
READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. THE SPOTLIGHT MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND
ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.
WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS
PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,
CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.
WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE
INSTALLATION OR PERFORMING ANY MAINTENANCE.
RISK OF FIRE/ELECTRIC SHOCK –
RISK OF PERSONAL INJURY –
RISK OF BURN –
ALLOW FIXTURE TO COOL BEFORE SERVICING.

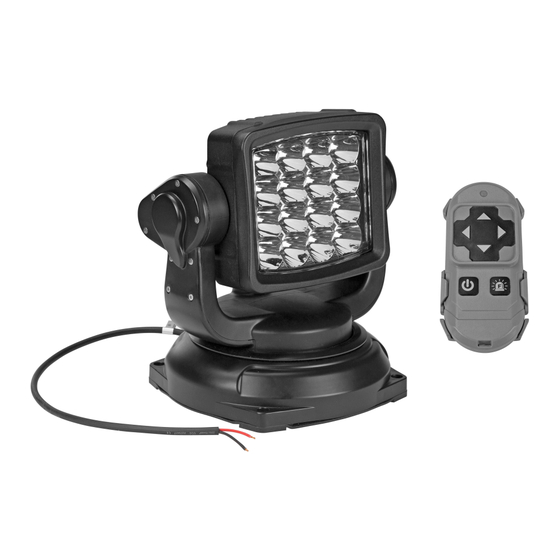

The LE-9XXX from Larson Electronics is a 48 Watt
Motorized LED Spotlight that operates with a handheld
wireless remote control. This particular model is available in
black and is magnetically mounted. It outputs a spot beam
with an effective working length of 1,312 feet and produces
4,320 lumens of bright, white light.
POWER
Check product label for correct input voltage!
The LE-9XXX is equipped with a Deutsch connector and a
16` C-16-CC-CP coil cord for easy connection to cigarette
plugs. Simply connect the coil cord via the Deutsch
connector, and plug the cigarette cord into a compatible
outlet outputting the correct voltage, as identified on the
product label.
MOUNTING
The light can be either magnetically mounted or
permanently mounted depending on the user's desired
application and mounting surface. Spotlight can be
mounted permanently by using the 4 mounting holes in the
base of the unit. Mounting can be achieved on any flat
surface that is capable of supporting the load of the light,
and which the light can be screwed or bolted to. Mounting
hardware is not provided. Alternately, the light can also be
temporarily mounted using the magnets at the base of the
unit. This will work on any magnetized, flat surface that is
capable of supporting the light.
Larson Electronics, LLC
Remote Control LED Spotlight
Instruction Manual
DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.
FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.
Phone: (877) 348-9680
Fax: (903) 498-3364
LE-9XXX Series
www.larsonelectronics.com
1 of 2
