T978544
5
YEAR
GUARANTEE
YEAR
SAFETY AND INSTRUCTION MANUAL
GUARANTEE
PLEASE READ CAREFULLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the goucho T978544 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tower Hobbies goucho T978544

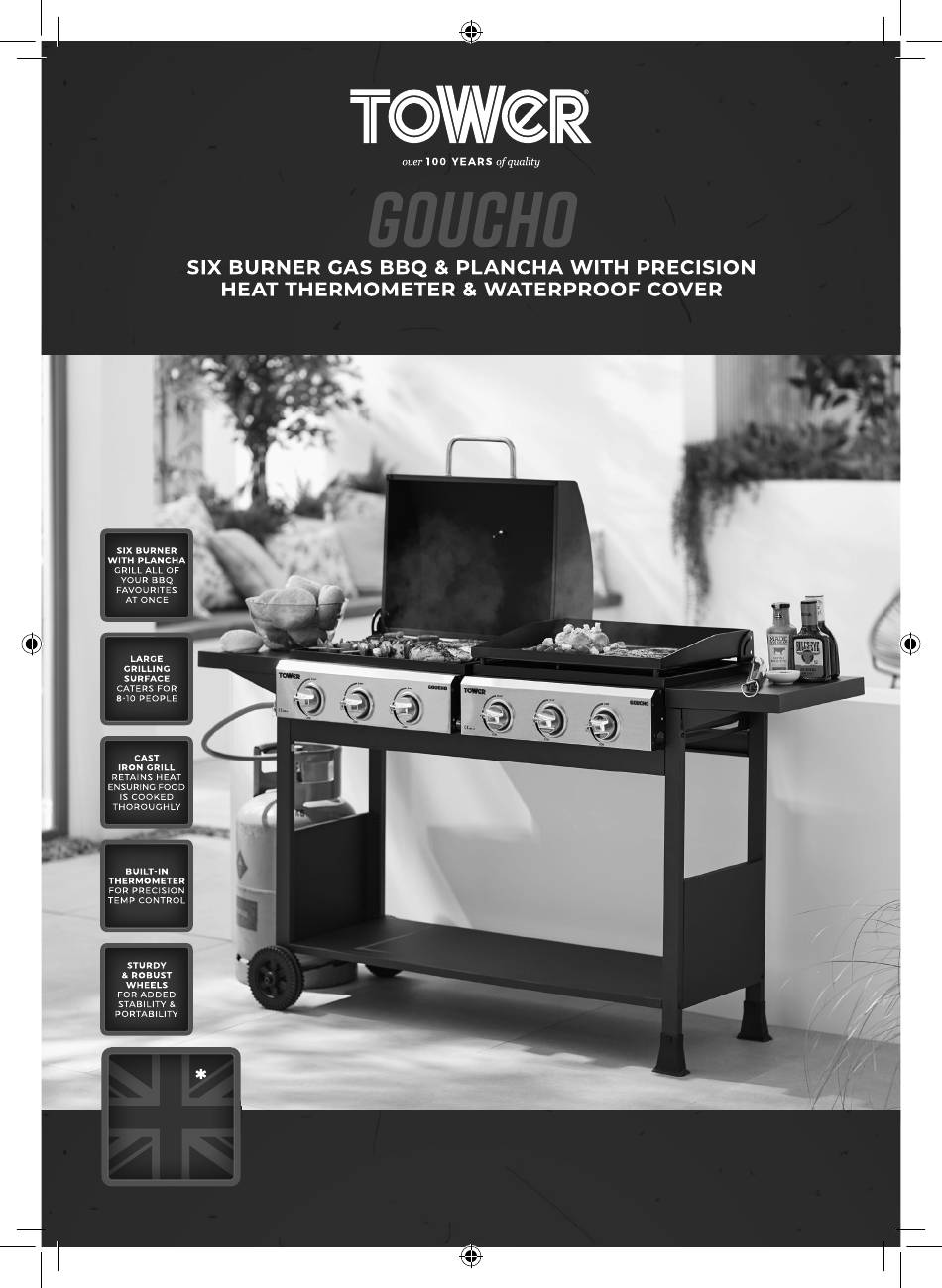

  • Page 1 T978544 YEAR GUARANTEE YEAR SAFETY AND INSTRUCTION MANUAL GUARANTEE PLEASE READ CAREFULLY...
  • Page 2 Important Safety Information: Please read these notes carefully BEFORE using your Tower appliance. Read all of the instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance to these instructions. Failure to follow these instructions may result in serious bodily injury and/ or property damage.
  • Page 3 been given supervision user and other people or instruction concerning in the vicinity of the area use of the appliance in a where the appliance is safe way and understand being used. the hazards involved. • The use of accessory •...
  • Page 4 • When the wind speed is hot food or contains hot above 2 m/s, DO NOT use oil/ liquids. the appliance facing the • wind. WARNING: Changing the gas cylinder • WARNING: should be carried out Never light the grill with away from any source of the lid closed.
  • Page 5 CAUTION drugs may impair the consumer’s ability to properly assemble FOR YOUR SAFETY: or safely operate the Some parts of this product can become very hot and cause burns. appliance. Particular attention must be given where children and vulnerable • In the unlikely event the people are present.
  • Page 6: Regulator And Hose

    IN THE EVENT OF A FAT away from the appliance FIRE: and contact your local dealer or your local Fire • If safe to do so, turn all Brigade. control knobs to the ‘off’ position. REGULATOR AND HOSE • • Turn off the gas supply at Use only a regulator and the gas bottle.
  • Page 7: Gas Cylinder

    • standard for the country If the appliance is not in of use. The length of the use, the cylinder must be hose must be 1.5 meters disconnected. (maximum). • Cylinders must be stored • A worn or damaged hose outdoors in an upright must be replaced.
  • Page 9: Exploded View

    EXPLODED VIEW...
  • Page 10 Parts List:...
  • Page 11 20PC 12PC +1 spare M6x10 M6x50 +1 spare M5x10...
  • Page 12 Assembly M6x50 x 4 M6x10 x 8...
  • Page 13 M6x10 x 8...
  • Page 14 Assembly Before use, using a spanne to tighten it onto the connection thread. If the hose is replaced it must be secured to the appliance and regulator connections with hose clips. Disconnect the regulator from the cylinder (according to the directions supplied with the regulator)when the barbecue is not in use.
  • Page 15 M6x10 M6x10 M6x50 M6x50...
  • Page 16 Assembly...
  • Page 17: For Your Safety

    WARNING FOR YOUR SAFETY: Read the following instructions carefully and be sure your barbecue is properly installed, assembled and cared for. Failure to follow these instructions may result in serious bodily injury and/or property damage.
  • Page 18 Before First Use: WARNING: Read the following instructions carefully and be sure your barbecue is properly installed, assembled and cared for. Failure to follow these instructions may result in serious bodily injury and/or property damage. Remove the parts from the packaging and lay out on an even surface. Check that all parts are present and that there is no visible sign of damage.
  • Page 19 Using Your Appliance: Lighting Instructions: Open the hood of the barbecue before attempting to light the burners. Turn all the control knobs clockwise to OFF position. Connect the regulator to the gas bottle. Turn the gas supply ON at the regulator. Check with the use of soapy water for any gas leakage between the bottle and the regulator.
  • Page 20 Cleaning: “Burning off” the barbecue after every use (for approximately 15 minutes) will keep excessive food residue to a minimum. After each cooking session, turn the barbecue burners to the “high” position and burn for 15 minutes. This procedure will burn off cooking residue, thus making cleaning easier. Make sure the hood is open during this process.
  • Page 21 Cleaning The Burner Assembly: • All cleaning and maintenance should be carried out when the barbecue is cool and with the fuel supply turned OFF at the gas cylinder. • Turn the gas OFF at the control knob and disconnect the cylinder. Remove cooling grate. •...
  • Page 22 BBQ Technical Data Description Six Burner Gas BBQ with Plancha Grill Model T978544 Gas Heat Input 18KW Gas Category I3+(28-30/37) Gas Pressure Propane 37 mbar Pin Code 0063CS7947 Injector Size Main Burner 0.82mm, Side Burner 0.78mm Regulator Technical Data Model No. A127is Gas Type Propane...
  • Page 23 Operating Instructions for A100is Snap On Compact Low Pressure Regulator – 2531CS-0140: Please read thoroughly before use and retain for future reference. Connecting and operating conditions: The “Snap On Compact” is a domestic regulator designed to supply gas to consuming appliances at a pressure and capacity as indicated on the identification label (1).
  • Page 24 Operation: Once the “Snap On Compact” is correctly mounted on the valve, gas supply is possible by turning the regulator handle (5) upwards (anti-clockwise). To shut “OFF” the gas supply, reverse the above procedure. An arrow on the handle indicates the closing direction.
  • Page 25 NOTICE WARNING FOR YOUR SAFETY: To guarantee a proper operation of the excess flow device, the pipe The “Snap On Compact” regulator that supplies gas to the consuming must never be left on the cylinder appliance should be no more than 2 without it being connected to the metres long.
  • Page 26 NOTES:...
  • Page 27 NOTES:...
  • Page 28 Warranty information: The Stealth BBQ has a 5 year warranty (1 year standard, +4 upon registration) Exclusions: This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer.
