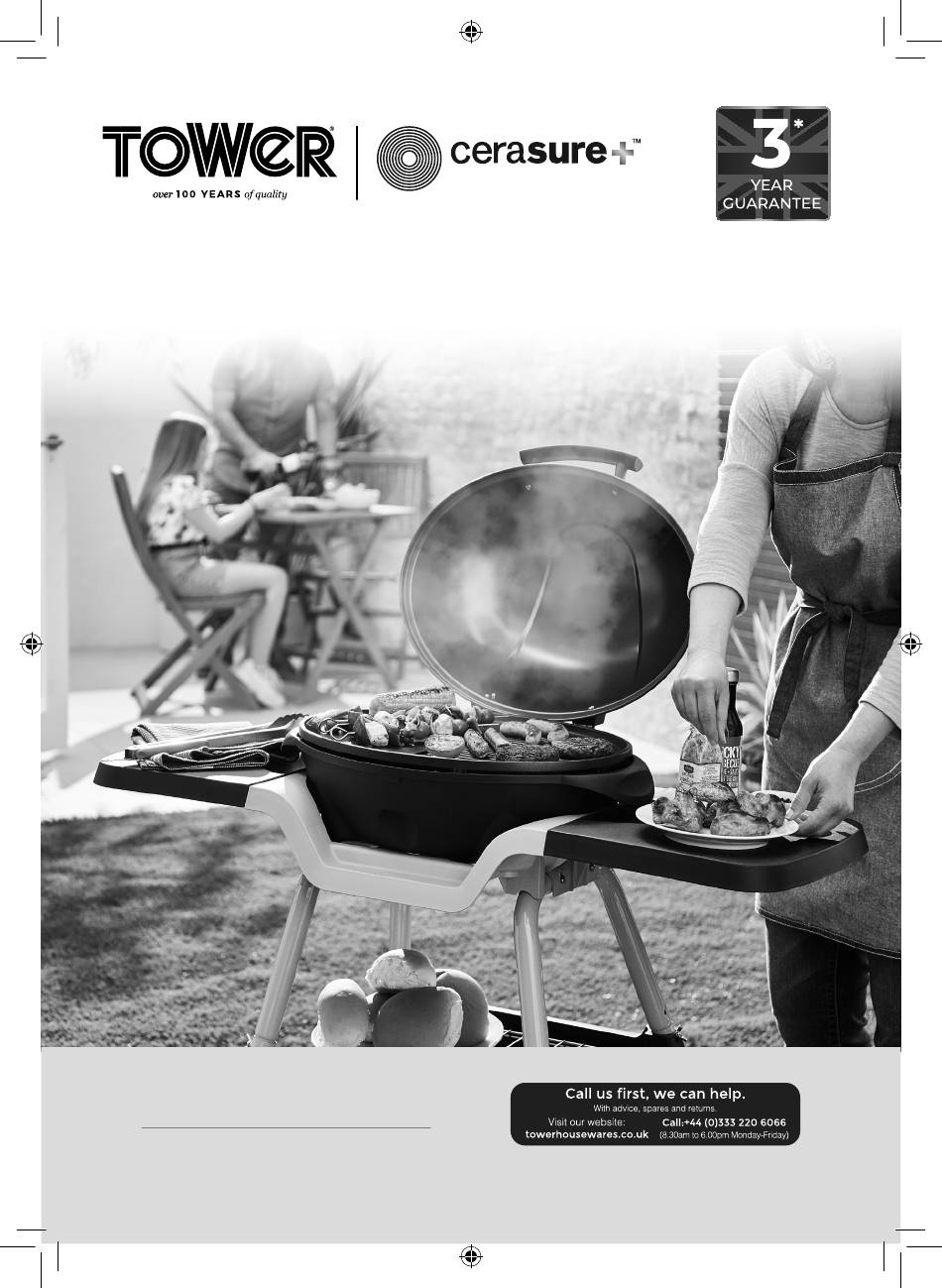

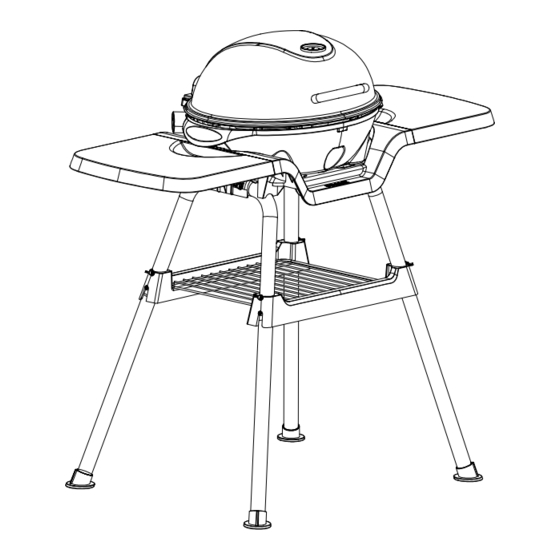

- Page 1 Non-stick coated cooking T14039BLK INDOOR/OUTDOOR XL ELECTRIC BBQ GRILL & GRIDDLE WITH STAND AND FIXED SIDE SHELVES SAFETY AND INSTRUCTION MANUAL PLEASE READ CAREFULLY *Subject to registering your Extended Guarantee online at www.towerhousewares.co.uk.
- Page 2 Specifications: This box contains: Instruction Manual Thermometer and screw nut N Handle of cover Cover Grill Plate Grease pan Base of appliance Stand tube Centre base Side table U-shaped tube Straight tube Rack Plastic rack holder Feet pads C butterfly screw + D washer Handle of base Opening for appliance socket Removable temperature controller...
- Page 3 Technical Data: Description: Indoor/Outdoor XL Electric BBQ Grill & Griddle with Stand And Fixed Side Shelves Model: T14039BLK Rated Voltage: 220-240V Frequency: 50/60Hz Power Consumption: 2000-2400W Documentation We declare that this product conforms to the following product legislation in accordance with...
-
Page 4: Important Safety Information
DISPOSAL OF THE UNIT Appliances bearing the symbol shown here may not be disposed of in domestic rubbish. You are required to dispose of old electrical and electronic appliances like this separately. Please visit www.recycle-more.co.uk or www.recyclenow.co.uk for access to information about the recycling of electrical items. - Page 5 • • Children should not play DO NOT place the BBQ with the appliance. against a wall or against other appliances. Leave at • This appliance can be least 10cm free space on used by children aged the back and sides and from 8 years and above 10cm free space above and persons with reduced...
- Page 6 Before First Use: Read all instructions and safety information carefully before first use. Please retain this information for future reference. Remove the parts from the packaging and lay out on an even surface. Assemble as per the assembly instructions using a flat head screwdriver. Wash the grill plate, grease pan and cover thoroughly.
- Page 7 Insert the straight tube (11) with shrinkage side into the hole of the U-shaped tube (10) without shrinkage side. Align the screw holes (1c) and (2c), tighten the holes with screw (B). Then insert the straight tube(11)without shrinkage side into the hole of the U-shaped tube (10) with shrinkage side.
- Page 8 Place the semicircular groove (7a) at one end of the centre base (8) on the arc surface (7b) corresponding of the U-shaped tube (10). Align the two screw holes (2e). Then take a Butterfly screw (C) and insert it into the washer (D) to align and tighten the two screw holes (2e).
- Page 9 Insert the grease pan (5) into the holder on the back of the base (6). To securely secure the grease pan, align the hole in the grease pan with the positioning protrusion located in the centre of the base. The grease pan can be removed and washed. Make sure that the grease pan is replaced after cleaning.
- Page 10 Install the Cover (3) into the Base (6) Hold the cover by the handle and slide the hinges into the holes of the base. To remove the cover, open the cover at a 45º angle and release the hinges from the holes. The cover must be open at a 45º...
-
Page 11: Troubleshooting
Food to be grilled Temperature setting Cooking time (min.) Fillet of pork 9-10 Whole fish Kebabs 10-12 Various sausages 12-15 Tips for grilling: • Your meat will be tender if you marinade it overnight before cooking (the marinade is always made of oil (to moisten), vinegar (to tenderize) and a mixture of seasonings). - Page 12 Non-stick coated cooking thank you! We hope you enjoy your appliance for many years. This product is guaranteed for 12 months from the date of original purchase. If any defect arises due to faulty materials of workmanship, the faulty products must be returned to the place of purchase.
