Tower Hobbies STEALTH4000 Safety And Instruction Manual

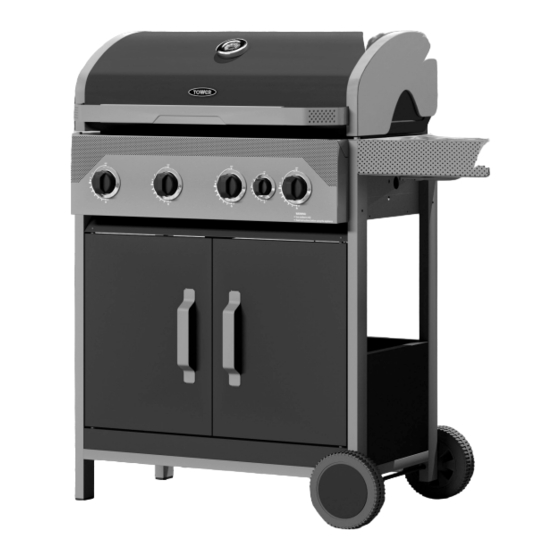

Four burner gas bbq with side burner & cabinets
Hide thumbs

Advertisement

Quick Links

Download this manual
T978502
5
YEAR
GUARANTEE
YEAR
SAFETY AND INSTRUCTION MANUAL
GUARANTEE
PLEASE READ CAREFULLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the STEALTH4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tower Hobbies STEALTH4000

Summary of Contents for Tower Hobbies STEALTH4000

  • Page 1 T978502 YEAR GUARANTEE YEAR SAFETY AND INSTRUCTION MANUAL GUARANTEE PLEASE READ CAREFULLY...
  • Page 2 Important Safety Information: Please read these notes carefully BEFORE using your Tower appliance. Read all of the instructions carefully and ensure that your barbecue is properly installed, assembled, maintained and serviced in accordance to these instructions. Failure to follow these instructions may result in serious bodily injury and/ or property damage.
  • Page 3 been given supervision user and other people or instruction concerning in the vicinity of the area use of the appliance in a where the appliance is safe way and understand being used. the hazards involved. • The use of accessory •...
  • Page 4 • When the wind speed is hot food or contains hot above 2 m/s, DO NOT use oil/ liquids. the appliance facing the • wind. WARNING: Changing the gas cylinder • WARNING: should be carried out Never light the grill with away from any source of the lid closed.Allow the ignition and in accordance...
  • Page 5 CAUTION drugs may impair the consumer’s ability to properly assemble FOR YOUR SAFETY: or safely operate the Some parts of this product can become very hot and cause burns. appliance. Particular attention must be given where children and vulnerable • In the unlikely event the people are present.

  • Page 6: Regulator And Hose

    IN THE EVENT OF A FAT away from the appliance FIRE: and contact your local dealer or your local Fire • If safe to do so, turn all Brigade. control knobs to the ‘off’ position. REGULATOR AND HOSE • • Turn off the gas supply at Use only a regulator and the gas bottle.

  • Page 7: Gas Cylinder

    • standard for the country If the appliance is not in of use. The length of the use, the cylinder must be hose must be 1.5 meters disconnected. (maximum). • Cylinders must be stored • A worn or damaged hose outdoors in an upright must be replaced.
  • Page 14 Assembly...
  • Page 16 Assembly...
  • Page 18 Assembly...
  • Page 20 Assembly...

  • Page 24: For Your Safety

    Before First Use: WARNING: Read the following instructions carefully and be sure your barbecue is properly installed, assembled and cared for. Failure to follow these instructions may result in serious bodily injury and/or property damage. Remove the parts from the packaging and lay out on an even surface. Check that all parts are present and that there is no visible sign of damage.
  • Page 25 Using Your Appliance: Lighting Instructions: Main Burners: Open the lid before lighting. Connect the gas cylinder to the barbecue following the instructions supplied with the regulator. Turn all the control knobs to the ‘OFF’ position. Turn ‘ON’ the gas supply at the cylinder or regulator switch following the regulator connection and operating instructions.
  • Page 26 Tips for grilling: • Your meat will be tender if you marinade it overnight before cooking (the marinade is always made of oil (to moisten), vinegar (to tenderize) and a mixture of seasonings). • To prevent foods from sticking to the cooking surface, use a long handled brush to apply a light coat of cooking or vegetable oil before each barbecuing session.
  • Page 27 Cooking Grid: • Use a mild soapy water solution. Non-abrasive scouring powder can be used on stubborn stains, then rinse with water. Grease Cup: • Regularly check the grease cup after use and remove the oil when 1/3 full. • When the grease cup is cold, move the grease cup holder and remove the grease cup.
  • Page 28 • If the appliance is not in use, the cylinder must be disconnected. Replace the protective cap on the cylinder after disconnecting the cylinder from the appliance. • Cylinders must be stored outdoors in an upright position, in a well ventilated area away from direct sunlight and out of the reach of children.
  • Page 29 Operating Instructions for A100is Snap On Compact Low Pressure Regulator – 2531CS-0140: Please read thoroughly before use and retain for future reference. Connecting and operating conditions: The “Snap On Compact” is a domestic regulator designed to supply gas to consuming appliances at a pressure and capacity as indicated on the identification label (1).
  • Page 30 Operation: Once the “Snap On Compact” is correctly mounted on the valve, gas supply is possible by turning the regulator handle (5) upwards (anti-clockwise). To shut “OFF” the gas supply, reverse the above procedure. An arrow on the handle indicates the closing direction.
  • Page 31 NOTICE WARNING FOR YOUR SAFETY: To guarantee a proper operation of the excess flow device, the pipe The “Snap On Compact” regulator that supplies gas to the consuming must never be left on the cylinder appliance should be no more than 2 without it being connected to the metres long.
  • Page 32 Warranty information: The Stealth BBQ has a 5 year warranty (1 year standard, +4 upon registration) Exclusions: This guarantee does not confer any rights other than those expressly set out above and does not cover any claims for consequential loss or damage. This guarantee is offered as an additional benefit and does not affect your statutory rights as a consumer.

This manual is also suitable for:

T978502
