Summary of Contents for IKEA BRANDBO
- Page 1 BRÄNDBO...
- Page 2 ENGLISH Please refer to the last page of this manual for the full list of IKEA appointed After Sales Service Provider and relative national phone numbers.
- Page 3 ENGLISH...
-
Page 4: Table Of Contents
Energy efficiency Before first use Menu structure Daily use Environmental concerns Clock functions IKEA guarantee Using the accessories Additional functions Subject to change without notice. Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damage. - Page 5 ENGLISH WARNING: The appliance and its accessible parts become • hot during use. Keep children and pets away from the appliance when in use and when cooling down. If the appliance has a child safety device, it should be • activated.
-
Page 6: Safety Instructions
ENGLISH Safety instructions Installation Ventilation opening 560x20 mm Warning! Only a qualified person minimum size. Open‐ must install this appliance. ing placed on the bot‐ tom rear side • Remove all the packaging. • Do not install or use a damaged Mains supply cable 1500 mm appliance. - Page 7 ENGLISH • Do not pull the mains cable to disconnect – do not put water directly into the hot the appliance. Always pull the mains plug. appliance. • Use only correct isolation devices: line – do not keep moist dishes and food in protecting cut-outs, fuses (screw type the appliance after you finish the fuses removed from the holder), earth...
-
Page 8: Installation
ENGLISH Internal lighting • Use original spare parts only. Warning! Risk of electric shock. Disposal Warning! Risk of injury or • Concerning the lamp(s) inside this suffocation. product and spare part lamps sold separately: These lamps are intended to • Disconnect the appliance from the mains withstand extreme physical conditions in supply. -
Page 9: Product Description

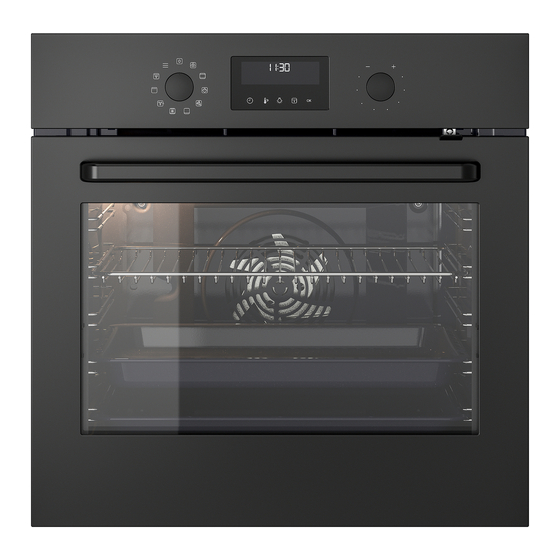

ENGLISH Product description General overview Control panel Knob for the heating functions Display Control knob Heating element Lamp Shelf support, removable Shelf positions Accessories For cakes and biscuits. • Grill- / Roasting pan x 1 • Wire shelf x 1 To bake and roast or as pan to collect fat. -
Page 10: Before First Use
ENGLISH Display Display with key functions. Display indicators Basic indicators Lock Assisted Cooking Settings Fast Heat Up Timer indicators Minute minder Time Delay Uptimer End time Progress bar - for temperature or time. The bar is fully red when the appliance reaches the set temperature. -
Page 11: Daily Use
ENGLISH Preheat the empty oven before the first use. Step 2 Set the maximum temperature for the function: Let the oven operate for 1 h. Step 3 Set the maximum temperature for the function: Let the oven operate for 15 min. The oven can emit an odour and smoke during preheating. - Page 12 ENGLISH How to set: Heating functions Step 1 Turn the knob for the heating functions and select a heating function. Step 2 Turn the control knob to set the temperature. - press and hold to turn on the function: Fast Heat Up. It is available for some oven func‐ tions.
- Page 13 ENGLISH Heating function Application To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown. Turbo Grilling To enter the Menu: Assisted Cooking, Settings. Menu True Fan Cooking, Conventional Cooking: When you set the temperature below 80 °C the lamp automatically turns off after 30 sec.
- Page 14 ENGLISH Legend Preheat the appliance before you start cooking. Shelf level. The display shows P and a number of the When the function ends check if the food is dish that you can check in the table. ready. Dish Weight Shelf level / Accessory Roast Beef, rare Roast Beef, medi‐...
- Page 15 ENGLISH Dish Weight Shelf level / Accessory Pork roast neck 1.5 - 2 kg 2; roasting dish on wire shelf or shoulder Turn the meat after half of the cooking time. Pulled pork (slow 1.5 - 2 kg 2; baking tray cooking) Use your favourite spices.
- Page 16 ENGLISH Dish Weight Shelf level / Accessory Whole fish, gril‐ 0.5 - 1 kg per 2; baking tray fish Fill the fish with butter and use your favourite spices and herbs. Fish fillet 3; casserole dish on wire shelf Use your favourite spices. Cheesecake 28 cm springform tin on wire shelf Apple cake...
-
Page 17: Clock Functions
ENGLISH Dish Weight Shelf level / Accessory Pizza fresh, thick 2; baking tray lined with baking paper Quiche 2; baking tin on wire shelf Baguette / Cia‐ 0.8 kg 2; baking tray lined with baking paper batta / White More time needed for white bread. bread All grain / rye / 1 kg... -
Page 18: Using The Accessories
ENGLISH How to set: Minute minder Step 1 Step 2 Step 3 The display shows: 0:00 Set the Minute minder Press: Press: Timer starts counting down immediately. How to set: Cooking time Step 1 Step 2 Step 3 Step 4 The display shows: 0:00... -
Page 19: Additional Functions
ENGLISH Wire shelf: Push the shelf between the guide bars of the shelf support and make sure that the feet point down. Baking tray / Deep pan: Push the tray between the guide bars of the shelf support. Additional functions Lock This function prevents an accidental change of the appliance function. -
Page 20: Hints And Tips
ENGLISH The Automatic switch-off does not work with the functions: Light, Time Delay. (°C) Cooling fan 30 - 115 12.5 When the appliance operates, the cooling 120 - 195 fan turns on automatically to keep the surfaces of the appliance cool. If you turn off 200 - 245 the appliance, the cooling fan can continue to operate until the appliance cools down. - Page 21 ENGLISH (°C) (min) Sponge flan base flan base tin on wire 15 - 25 shelf Victoria sandwich baking dish on wire shelf 170 40 - 50 Poached fish, 0.3 baking tray or dripping 20 - 25 Whole fish, 0.2 kg baking tray or dripping 25 - 35 Fish fillet, 0.3 kg pizza pan on wire shelf...
- Page 22 ENGLISH Ramekins Pizza pan Baking dish Flan base tin Ceramic Dark, non-reflective Dark, non-reflective Dark, non-reflective 8 cm diameter, 28 cm diameter 26 cm diameter 28 cm diameter 5 cm height Cooking tables for test institutes Information for test institutes Tests according to IEC 60350-1.
-
Page 23: Care And Cleaning
ENGLISH ( °C) (min) Fatless True Fan Wire shelf 40 - 50 Preheat the oven sponge Cooking for 10 min cake, cake mould Ø26 cm Fatless True Fan Wire shelf 2 and 4 40 - 60 Preheat the oven sponge Cooking for 10 min cake,... - Page 24 ENGLISH Notes on cleaning Clean the front of the appliance only with a microfibre cloth with warm wa‐ ter and a mild detergent. Clean and check the door gasket around the frame of the cavity. Use a cleaning solution to clean metal surfaces. Cleaning Clean stains with a mild detergent.
- Page 25 ENGLISH How to remove and install: Door The oven door has three glass panels. You can remove the oven door and the internal glass panels to clean them. Read the whole "Removing and installing door" instruction before you remove the glass panels. Caution! Do not use the oven without the glass panels.
- Page 26 ENGLISH Step 7 Hold the door glass panels by their top edge and carefully pull them out one by one. Start from the top pan‐ el. Make sure the glass slides out of the supports completely. Step 8 Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher.
-
Page 27: Troubleshooting
ENGLISH Before you replace the lamp: Turn off the oven. Wait until Disconnect the oven from the Put a cloth on the bottom of the oven is cold. mains. the cavity. Back lamp Step 1 Turn the glass cover to remove it. Step 2 Clean the glass cover. -
Page 28: Technical Data
ENGLISH Error codes If the display shows an error code that is not in this table turn the house fuse off and on to restart the appliance. If the error code recurs contact an Authorised Service Centre. Service data If you cannot find a solution to the problem yourself, contact an Authorised Service Centre. The necessary data for the service centre is on the rating plate. -
Page 29: Energy Efficiency
ENGLISH Energy efficiency Product Information Sheet according to UK Ecodesign and Energy Labelling Regulations Supplier's name IKEA Model identification BRÄNDBO 805.576.55 Energy Efficiency Index 81.2 Energy efficiency class Energy consumption with a standard load, convention‐ 0.93 kWh/cycle al mode Energy consumption with a standard load, fan-forced 0.69 kWh/cycle... -
Page 30: Menu Structure
ENGLISH warm. The residual heat indicator or When you use this function the lamp temperature appears on the display. automatically turns off after 30 sec. You may turn on the lamp again but this action will Cooking with the lamp off reduce the expected energy savings. -
Page 31: Environmental Concerns
IKEA. The original sales receipt is required as proof of purchase. If service work is What is not covered under this... - Page 32 The dedicated After Sales Service for IKEA faulty or not according to specification. appliances: • The use of the appliance in a non- Please do not hesitate to contact IKEA After domestic environment i.e. professional Sales Service to: use. 1. make a service request under this •...
- Page 33 Do you need extra help? For any additional questions not related to After Sales of your appliances, please contact our nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting...
- Page 34 Magyarország 06-1-252-1773 Belföldi díjszabás Hétköznap 8.00 és 17.00 óra között 050-7111267 ma-vr: 8.00 - 21.00 Nederland Geen extra kosten. (0900-BEL IKEA) zat: 9.00 - 21.00 Luxembourg +31 507111267 Alleen lokaal tarief. zon / pub. vakantie: 10.00 - 18.00 (internationaal) Norge l i t Österreich...
- Page 36 21552 © Inter IKEA Systems B.V. 2022 AA-2350199-1...
