Please read both the user manual and the general manual which were delivered with the equipment.
Characteristics and performance in non-continuous use according to standard EN 13229:
Normal Output
Output
Percentage CO2
Green Flame Class
Particle concentration emitted at 13%
O2
T° smoke
Operating mode
Recommended fuel
Smoke mass debit
Minimum distance from adjacent
flammable material:
(characteristics of the insulation: 5cm layer of Rockwool, maximum conductivity 0.04W/m°C with an aluminium layer on the
combustion chamber side)
229
466
Characteristics of the wood stove
Weight of the stove
Connection to flue via a nozzle on top of the
stove
Volume
Hearth door dimensions
Dimensions of the door glass
Notice plate
Two dual speed axial turbines - manual control - automatic start from 50°C (thermal switch located on the control
plate) - two hot air outputs 125 on the top surface
BP le 07/12/2021

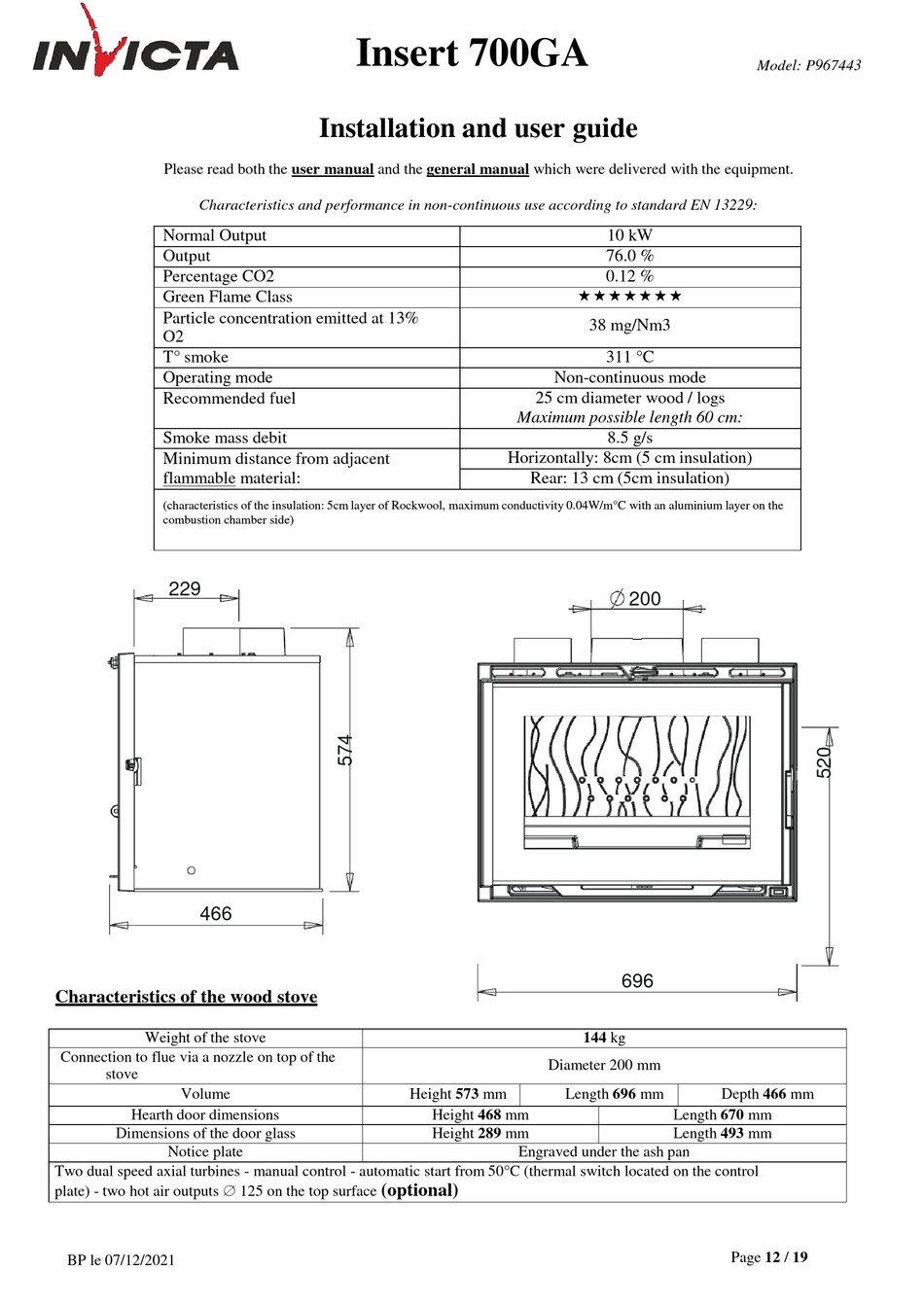

Insert 700GA
Installation and user guide
Height 573 mm
Height 468 mm
Height 289 mm
(optional)
10 kW
76.0 %
0.12 %
38 mg/Nm3
311 °C
Non-continuous mode
25 cm diameter wood / logs
Maximum possible length 60 cm:
8.5 g/s
Horizontally: 8cm (5 cm insulation)
Rear: 13 cm (5cm insulation)
200
696
144 kg
Diameter 200 mm
Length 696 mm
Length 670 mm
Length 493 mm
Engraved under the ash pan
Model: P967443
Depth 466 mm
