7. External Connections
An adapter cable is included with the SSP-200/300 to convert the 9-pin PCMCIA output
connector into a standard D-9 female connector, data terminal equipment (DTE), as shown in the
figures below.
External Connections

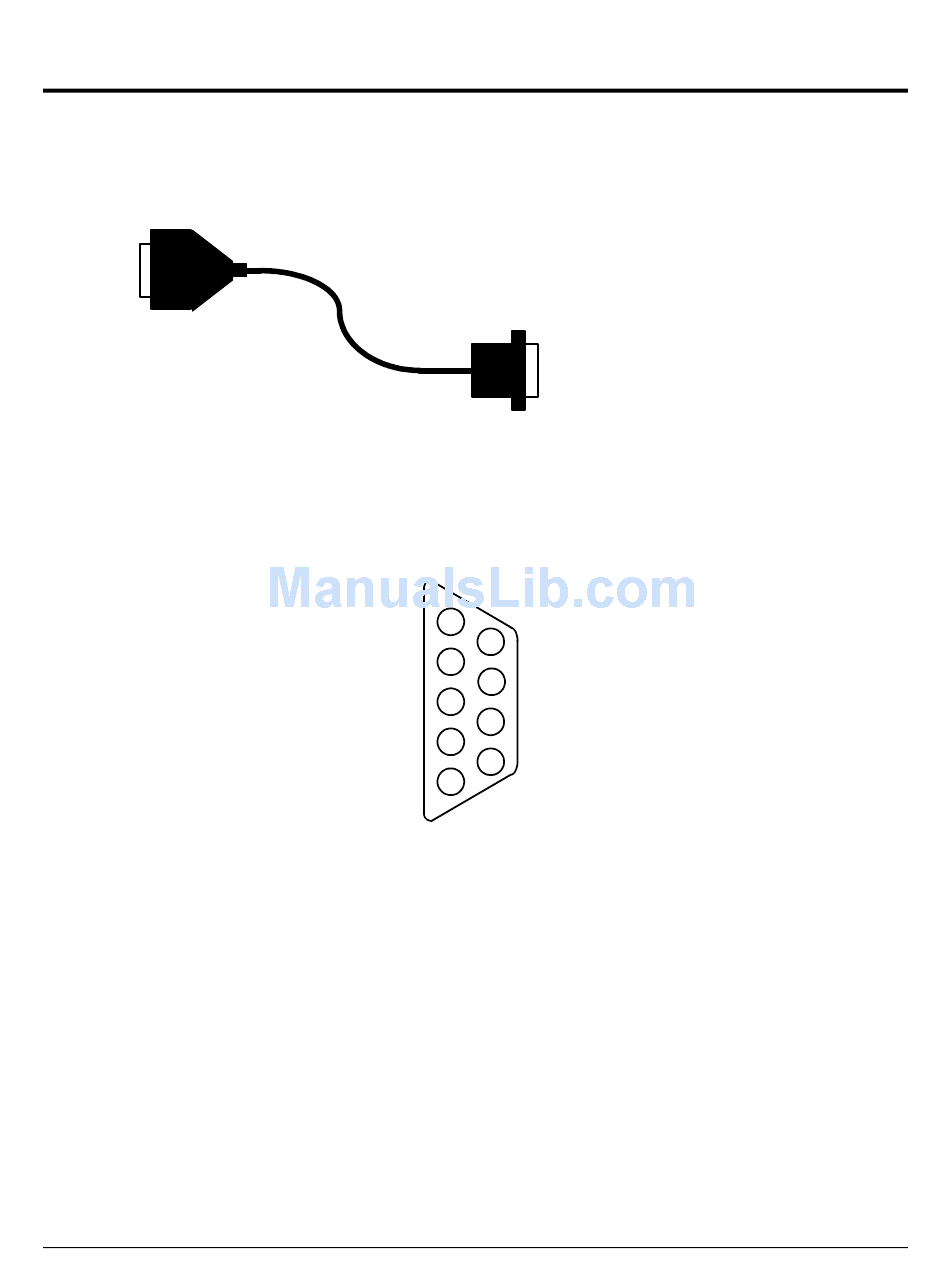

Figure 0. SSP-200/300 Adapter Cable.
AUXOUT+
1
DATAOUT+
2
GND
3
DATAIN+
4
AUXIN+
5
D-9 Female Connector
Figure 0. RS-422/485 Signal Assignment.
Standard D-9
(Female)
AUXOUT-
6
DATAOUT-
7
DATAIN -
8
AUXIN -
9
7-2
