4.2.1 Viewing Resource Settings with Device Manager

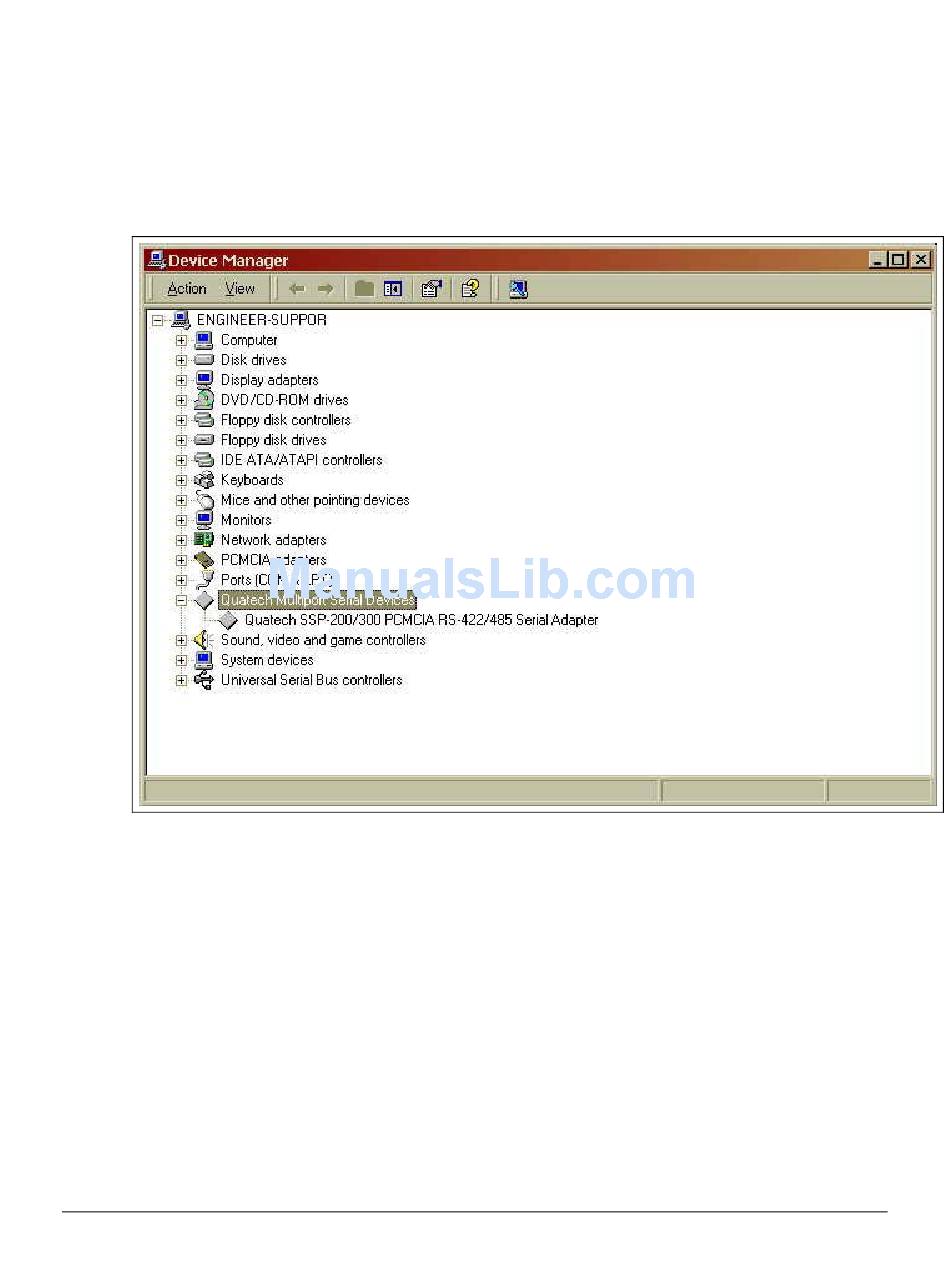

1. Start the Windows 2000 Device Manager.

2. Double click on the hardware class Quatech Multiport Serial Devices to list

hardware devices in the class.

3. The SSP-200/300 "parent device" belongs to this hardware class. The device name

for the SSP-200/300 is Quatech SSP-200/300 PCMCIA RS-422/RS-485 Serial

Adapter.

4. Open the Properties dialog for the SSP-200/300 device, then click the Resources tab

to view the Input/Output Range and Interrupt Request resource allocations. Examine

and remember the Input/Output Range, then close the properties window.

5. Double click the hardware class Ports (Com and LPT). The Quatech PCMCIA

Serial Port listed in this class is the "child device" of the SSP-200/300 "parent

device."

Windows 2000

4-6
