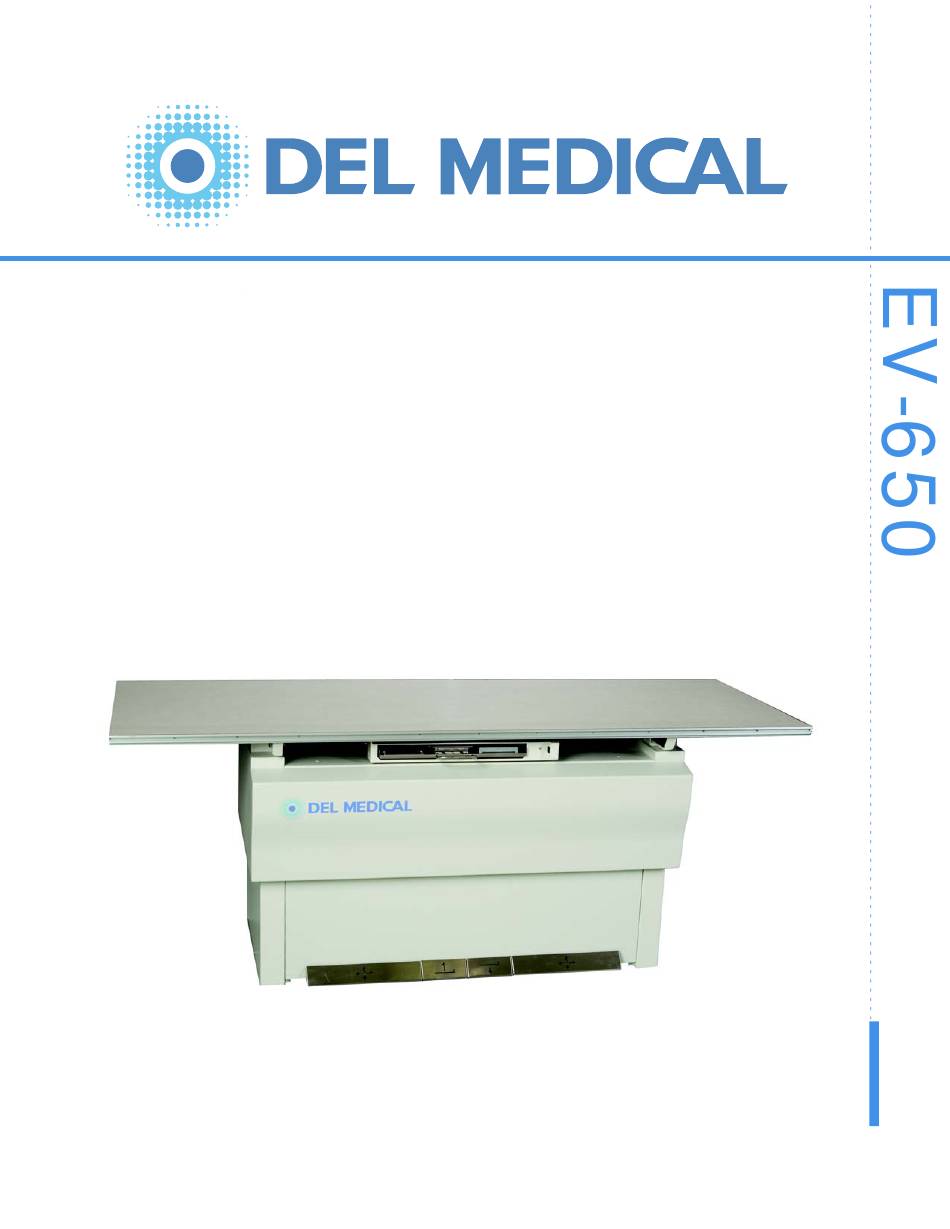

EV-650
Elevating Table
Installation, Operation &
Service Manual
P/N 8000-EV-650-D
Revision: A, July 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV-650 and is the answer not in the manual?

Questions and answers

Related Manuals for Del Medical EV-650

Summary of Contents for Del Medical EV-650

  • Page 1 EV-650 Elevating Table Installation, Operation & Service Manual P/N 8000-EV-650-D Revision: A, July 2005...
  • Page 2 Copyright 2005, Del Medical Systems. All rights reserved. This document is the property of Del Medical Systems and contains confidential and proprietary information owned by Del Medical Systems. Any unauthorized copying, use or disclosure of it without the prior written permission of Del Medical Systemsis strictly prohibited.

  • Page 3: Table Of Contents

    Table of Contents Safety Information Introduction ..........ii-1 Statement of Liability .
  • Page 4 EV-650 Elevating Table Installation, Operation and Service Manual Chapter 4 — Periodic Maintenance 4.1 Periodic Maintenance Schedule ......4-1 4.2 Cleaning External Surfaces .
  • Page 5 EV-650 Elevating Table Installation, Operation and Service Manual 6.18 Replacing In-Out Table Brake......6-37 Chapter 7 —...
  • Page 6 EV-650 Elevating Table Installation, Operation and Service Manual 9.17 Transverse Lock Assembly (122-5053) ....9-38 9.18 Collision Avoidance Assembly (112-5040G1 & 112-5040G2) . 9-39 9.19 SID/Limit Switch Assembly (112-5244G1) .

  • Page 7: Safety Information

    Safety Information Introduction The policy of Del Medical Systems Group is to manufacture X-ray equipment that meet high standards of performance and reliability. We enforce strict quality control techniques to eliminate the potential for defects and hazards in our products.

  • Page 8: Statement Of Liability

    Del Medical Systems Group is not liable for damage or injury arising from the use of this product for any other use than that intended by the manufacturer.

  • Page 9: Definitions

    EV-650 Elevating Table Installation, Operation & Maintenance Manual Definitions The table below defines the meaning of various symbols used on labels on the machine. This warning symbol is used to indicate a potential hazard to operators, service per- sonel or equipment. It indicates a requirement to refer to the accompanying documentation for details.

  • Page 10: Safety Conventions Used In This Manual

    EV-650 Elevating Table Installation, Operation & Maintenance Manual Safety Conventions Used in this Manual Specific safety information is listed in this manual in the form of WARNING and CAUTION statements. Pay close attention to these statements - they contain important information on avoiding potential hazards to you or the equipment.

  • Page 11: Caution Statements

    EV-650 Elevating Table Installation, Operation & Maintenance Manual Caution Statements • are used to indicate hazards or unsafe practices which could result in minor personal injury or product or property damage. • appear in bold type. • have a triangular symbol with an exclamation point above the text.

  • Page 12: Equipment Safety Guidelines

    EV-650 Elevating Table Installation, Operation & Maintenance Manual Equipment Safety Guidelines The following warnings and cautions are specific to the EV-650 Elevating Table. Read them carefully - some of them are not obvious to typical equipment use. Warning Turn off electrical power to table at power source before servicing table.
  • Page 13 EV-650 Elevating Table Installation, Operation & Maintenance Manual Warning Make sure that the operator or the patient does not touch the table unlock pedals when the patient is getting on or off table. This may cause the patient to fall off the table and cause serious injury. See Figure below.
  • Page 14 EV-650 Elevating Table Installation, Operation & Maintenance Manual Warning All of the movable assemblies and parts of this equipment should be operated with care and routinely inspected in accordance with the manufacturer’s recommendations contained in this manual. Only properly trained and qualified personnel should be permitted access to any internal parts.

  • Page 15: Emergency Stop Button (For Service Technicians Only

    EV-650 Elevating Table Installation, Operation & Maintenance Manual Emergency Stop Button (For Service Technicians Only) There is an Emergency Stop Button located in the table’s base that can be pressed to stop the motion of the table in an emergency. It is meant only to be used by technicians who are troubleshooting the table.
  • Page 16 EV-650 Elevating Table Installation, Operation & Maintenance Manual ii-10 Emergency Stop Button (For Service Technicians Only)

  • Page 17: Chapter 1 - Introduction

    Introduction 1.1 Introduction This manual provides installation, operation and service information for the EV-650 Elevating Table. This manual also includes a spare parts list for the table. 1.2 Description The EV-650 elevating radiographic table is designed for general purpose radiography and is ideally suited for modern hospitals, urgent care centers, clinics and private practices.

  • Page 18: Dimensions

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 1.3 Dimensions 4.25” 4.25” 10.8cm 10.8cm 31.9” 86.6” 81.0cm 220.0cm 30.5” 33.7” Max 77.5cm 85.7cm Film 21.7” Min Plane 55.2cm 12.1” 24.4” Rad. Center Table Center 30.7cm 62.0cm 26.4” 13.7” Rad. Center Table Center 67.2cm...
  • Page 19 EV-650 Elevating Table Installation, Operation & Maintenance Manual 52 7/8” 1344mm 1 11/16” 3/8” 42mm 48 3/16” 1223mm 6 7/16” 2” 50mm 162mm 14” 355mm 25” 634mm 1” 25mm 5 1/8” 130mm Cable Access Base Thickness 8” (203mm) X 16 ga. C.R.S. .059” (1.5mm) 26 3/8”...

  • Page 20: Minimum Space Requirements

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 1.4 Minimum Space Requirements Minimum 12” (30 cm) Side & Rear Hazard-Free Buffer Zone Required Beyond Table Range -137” X 52” (348 cm X 132 cm) Table Top Range of Motion - 125” X 40” (317 cm X 102cm) Table Base - 52 7/8”...

  • Page 21: Specifications

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 1.5 Specifications Specifications Compatibility The EV-650 Elevating Table is compatible with a wide variety of generators, wallstands and tubestands. It is intended to be used in a stationary diagnostic x-ray configuration. Voltage...

  • Page 22: Abbreviations

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 1.6 Abbreviations Percent AWG American Wire Gauge British Thermal Unit ° C Degree Celcius Communautés Européennes Centimeter C.R.S. Cold Rolled Steel ° F Degree Fahrenheit Gauge Hecto Pascal inHg Inches Mercury Kilogram...

  • Page 23: Optional Accessories

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 1.7 Optional -Accessories Head Clamps Hand Grips Compression Band Lateral Cassette Holder 1.7 Optional -Accessories Rev A...
  • Page 24 EV-650 Elevating Table Installation, Operation & Maintenance Manual 1.7 Optional -Accessories Rev A...

  • Page 25: Chapter 2 - Installation

    Installation 2.1 Installation Instructions Tools Required: • 5/16” nut driver • diagonal cutters (side cutters) • medium phillips screwdriver • pallet hoist • power drill and masonry bit (size determined by installer) • scale for measuring downward force of up to 120 lbs (53 Kg.) •...
  • Page 26 EV-650 Table Installation, Operation & Service Manual Move base pallet to approximate position where base will be installed. Use diagonal cutters to cut steel straps (1 in Figure 2-2). Remove straps and top cover (2). Figure 2-2. Steel Shipping Straps Remove front cover (1 in Figure 2-3) from box and unwrap it.
  • Page 27 EV-650 Table Installation, Operation & Service Manual Cut and remove tywraps (1 in Figure 2-4). Peel off tape (2) on both ends of base. Only one end is shown in Figure 2-4. Pull power cord (3) out of base and unwrap it.
  • Page 28 EV-650 Table Installation, Operation & Service Manual Press and hold Up pedal (1 in Figure 2-5) until base rises to it’s mid- level position where it will stop. Press and hold Up pedal again until base rises to its highest position where it will stop. .
  • Page 29 EV-650 Table Installation, Operation & Service Manual Unscrew four middle panel screws (1 in Figure 2-6) and remove middle panel (2). Unscrew two lower panel clamps screws (3), remove brackets (4) and lift lower panel (5) up and out. 3 & 4 1 (X4) Figure 2-6.
  • Page 30 EV-650 Table Installation, Operation & Service Manual Warning Use must use four 1/2’-13 x 3” (M12 X 75mm) bolts and appropriate anchors and washers to mount table base to floor. Use of any size smaller may cause the table base to break free from the floor under extreme load and leverage conditions.
  • Page 31 EV-650 Table Installation, Operation & Service Manual PBL Option Installation If your table does not have a PBL (Positive Beam Limitation) option , go to step 29. If it does have a PBL option, do the following steps. Unscrew bucky rear cover screw (1 in Figure 2-7) and remove rear cover (2).
  • Page 32 EV-650 Table Installation, Operation & Service Manual Unpack the PBL kit. Figure 2-8. PBL Kit (Typical) 2.1 Installation Instructions Rev A...
  • Page 33 EV-650 Table Installation, Operation & Service Manual Cut tywraps (1 in Figure 2-9) off of cable. Very carefully cut shrink tubing (2) off of cable. Be careful not to cut underlying wires. Figure 2-9. PBL Cable Install PBL plate assembly (1 in Figure 2-10) on bucky and secure in place with four mounting screws (2).
  • Page 34 EV-650 Table Installation, Operation & Service Manual Remove three wire jumpers from PBL kit. Install jumpers across terminals 1 and 4; 2 and 3; 3 and 6. See figure below for terminal locations. Connect PBL cable to terminal block as follows:...
  • Page 35 EV-650 Table Installation, Operation & Service Manual Ion Chamber Option Installation If your table does not have a ion chamber option, go to step 39. If it does have a ion chamber option, do the following steps. Unpack the ion chamber kit.
  • Page 36 EV-650 Table Installation, Operation & Service Manual Remove grommet (1 in Figure 2-15) from cover (2). Figure 2-15. Cover Grommet Install ion chamber assembly (1 in Figure 2-16) in bucky and secure in place with two mounting screws (2). Unscrew two clamp nuts (3) and remove clamp (4).
  • Page 37 EV-650 Table Installation, Operation & Service Manual Connect internal ion chamber cable (1 in Figure 2-17) to ion chamber and secure with two mounting screws (2). Install clamp (3) over cable and secure with two nuts (4). Insert grommet (5) over cable.
  • Page 38 EV-650 Table Installation, Operation & Service Manual Reinstall cover (1 in Figure 2-18) and secure with four screws (2). Make sure that chamber mates with grommet installed in the previous step when reattaching cover. 2 (x4) 1 Figure 2-18. Ion Chamber Cover 2-14 2.1 Installation Instructions...
  • Page 39 EV-650 Table Installation, Operation & Service Manual Grid Option Installation Unscrew two top cover screws (1 in Figure 2-19) and remove top cover (2). 1 (x2) Figure 2-19. Bucky Top Cover Unscrew four clamp screws (1 in Figure 2-20) and remove clamps (2).
  • Page 40 EV-650 Table Installation, Operation & Service Manual Unpack the grid from it’s box. Figure 2-21. Grid Box (Typical) Caution Be careful not to overtighten grid clamp screws in the following step or you may crack the grid. 2-16 2.1 Installation Instructions...
  • Page 41 EV-650 Table Installation, Operation & Service Manual Install grid as shown below and secure in place with clamps and screws. Figure 2-22. Grid Installation 2.1 Installation Instructions 2-17 Rev A...
  • Page 42 EV-650 Table Installation, Operation & Service Manual Reattach bucky top cover (1 in Figure 2-23) and secure in place with two screws (2). 2 (x2) Figure 2-23. Bucky Top Cover 2-18 2.1 Installation Instructions Rev A...
  • Page 43 EV-650 Table Installation, Operation & Service Manual Feed cables from peripheral equipment (wall bucky, collimator, etc) through port (1 in Figure 2-24) in bottom of table. There is also a port on the back of the table (1 in Figure 2-25) that can be used for this purpose.
  • Page 44 EV-650 Table Installation, Operation & Service Manual Warning Make sure power to table and all peripheral equipment (generator, tubestand, etc.) is turned off before doing the following steps. You can be seriously injured if you do not. Connect peripheral cables to base chassis as shown in figure below.
  • Page 45 EV-650 Table Installation, Operation & Service Manual Disconnect power cord cables from TB102 on main chassis shown below and remove power cord. Wiring Safety Information • X-ray apparatus shall be grounded and powered in accordance with the National and Local Electrical Codes.
  • Page 46 EV-650 Table Installation, Operation & Service Manual Warning Make sure power to table is turned off at disconnect switch before doing the following steps. Also make sure that power to bucky is turned off by turning off generator before doing the following steps.
  • Page 47 EV-650 Table Installation, Operation & Service Manual Hook top cover (1 in Figure 2-29 below) onto upper rail (4 in Figure 2- 28 above) and secure in place with two screws (2 in Figure 2-29 below). Figure 2-29. Upper and Lower Panel Screws Unpack table top from its shipping box.
  • Page 48 EV-650 Table Installation, Operation & Service Manual Remove four bumpers (1 in Figure 2-31) from accessory kit. Figure 2-31. Bumpers 2-24 2.1 Installation Instructions Rev A...
  • Page 49 EV-650 Table Installation, Operation & Service Manual Warning The bumpers must be installed. If they are not, the table top may slide off of its base during use and severely injure the patient or operator. Mount bumper (1 in Figure 2-32) with two screws (2) in all four corners of table.
  • Page 50 EV-650 Table Installation, Operation & Service Manual Caution Do not exceed 110 lbs (49 Kg) of force in the following step or the table may get damaged. If the force appears that it will exceed 110 lbs (49 Kg), release the down pedal immediately.
  • Page 51 EV-650 Table Installation, Operation & Service Manual Cassette Tray Insertion Remove cassette tray from its shipping box. Figure 2-34. Cassette Tray Box (Typical) 2.1 Installation Instructions 2-27 Rev A...
  • Page 52 EV-650 Table Installation, Operation & Service Manual Remove shipping tape (1 in Figure 2-35) from cassette tray. Pull pin (2) back and remove guide (3). Place guide in desired slots (4). 4 (Typical) Figure 2-35. Cassette Tray Preparation 2-28 2.1 Installation Instructions...
  • Page 53 EV-650 Table Installation, Operation & Service Manual Insert cassette tray into bucky as shown in figure below. Figure 2-36. Cassette Tray Insertion Installation is complete. 2.1 Installation Instructions 2-29 Rev A...
  • Page 54 EV-650 Table Installation, Operation & Service Manual 2-30 2.1 Installation Instructions Rev A...

  • Page 55: Chapter 3 - Operation

    Operation 3.1 Safety Precautions Before attempting to operate the table, familiarize yourself with the safety concerns listed in this section. Warning Do not place any objects within the vertical motion area above or below table. Objects in such areas can present crush hazards for the patient or operator and can also damage the table.
  • Page 56 EV-650 Elevating Table Installation, Operation & Service Manual Warning Make sure that the operator or the patient do not touch the table unlock pedals when the patient is getting on or off table. This may cause the patient to fall off the table and cause serious injury. See Figure below.
  • Page 57 EV-650 Elevating Table Installation, Operation & Service Manual Warning This table is intended to be used as part of a system for the intended generation of X-rays for medical diagnosis. X-rays generate a potential risk for both patients and operators.

  • Page 58: Operation Specifications

    EV-650 Elevating Table Installation, Operation & Service Manual 3.2 Operation Specifications Operation Specifications Compatibility The EV-650 Elevating Table is compatible with a wide variety of generators, wallstands and tubestands. It is intended to be used in a stationary diagnostic x-ray con- figuration.

  • Page 59: Controls

    EV-650 Elevating Table Installation, Operation & Service Manual 3.3 Controls This section describes the controls of the table. Figure 3-3 below shows the controls of the table. Table Top Bucky Carriage Power Indicator Bucky Carriage Lock Release Up Pedal Down Pedal...
  • Page 60 EV-650 Elevating Table Installation, Operation & Service Manual Up Pedal Press the Up Pedal to raise the table. The table can be raised to 34” (86 cm) above the floor. The table moves up at a constant speed when you press and hold the Up Pedal.

  • Page 61: Cassette Tray Removal

    EV-650 Elevating Table Installation, Operation & Service Manual 3.4 Cassette Tray Removal To completely remove cassette tray, do the following: Manually pull cassette tray out as far as it will go. While pressing on limit button (1 in Figure 3-4), pull the cassette tray completely out of the bucky.

  • Page 62: Emergency Stop Button (For Service Technicians Only)

    EV-650 Elevating Table Installation, Operation & Service Manual 3.5 Emergency Stop Button (For Service Technicians Only) There is an Emergency Stop Button located in the table’s base that can be pressed to stop the motion of the table in an emergency. It is meant only to be used by technicians who are troubleshooting the table.
  • Page 63 EV-650 Elevating Table Installation, Operation & Service Manual 3.5 Emergency Stop Button (For Service Technicians Only) Rev A...
  • Page 64 EV-650 Elevating Table Installation, Operation & Service Manual 3-10 3.5 Emergency Stop Button (For Service Technicians Only) Rev A...

  • Page 65: Periodic Maintenance Schedule

    Periodic Maintenance 4.1 Periodic Maintenance Schedule Refer to the schedule below for information on when to perform periodic maintenance on the printer. Note: Due to varying operating conditions, the procedures listed below may have to be performed at greater or lesser intervals. You may have to adjust intervals according to your table’s performance.

  • Page 66: Cleaning External Surfaces

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 4.2 Cleaning External Surfaces Tools Required: • cleaning wipes • non-abrasive, hospital-grade cleaner Use cleaning wipes and non-abrasive, hospital-grade cleaner to clean external surfaces of table and base. Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc) at power sources before servicing table.
  • Page 67 EV-650 Elevating Table Installation, Operation & Maintenance Manual • Clean painted parts with a cloth and products appropriate for cleaning plastic materials; after cleaning wipe the surfaces with a clean, dry cloth. • Do not spray cleaning or disinfection solution directly on the equipment.

  • Page 68: Greasing Lift Racks

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 4.3 Greasing Lift Racks Tools Required: • 5/16” nut driver • cleaning wipes • medium phillips screwdriver • Mobilith AW2 grease or No.2 lithium equivalent • small, stiff brush to apply grease Run table to it’s uppermost position...
  • Page 69 EV-650 Elevating Table Installation, Operation & Maintenance Manual Unscrew four middle panel screws (1 in Figure 4-2) and remove middle panel (2). Unscrew two lower panel clamps screws (3), remove brackets (4) and lift lower panel (5) up and out.
  • Page 70 EV-650 Elevating Table Installation, Operation & Maintenance Manual Using brush, apply a medium film of grease to the gear faces of each of the eight racks (1 in Figure 4-3). Wipe up any spilled grease. Reverse steps to reassemble. Left Side Right Side Figure 4-3.

  • Page 71: Checking & Adjusting Chain Tension

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 4.4 Checking & Adjusting Chain Tension Tools Required: • set of hex wrenches • scale (ruler) at least 6” (150mm) long • two open-end 9/16” wrenches Run table to it’s uppermost position Warning Turn off all electrical power to table and all it’s peripheral...
  • Page 72 EV-650 Elevating Table Installation, Operation & Maintenance Manual Press on lower part of chain in position shown below. There should be no more than 1/8” (3mm) of deflection. If there is not, reassemble table. If there is, tighten the chain according to the steps that follow: 1/8”...
  • Page 73 EV-650 Elevating Table Installation, Operation & Maintenance Manual Loosen jam nut (1 in Figure 4-6) a few turns. Loosen tightener mounting screws (2) a few turns. Turn tightener screw (3) until chain is within 1/8” (3mm) tolerance. Do not tighten chain too tight. There should be at least some visible deflection left in it after tightening.
  • Page 74 EV-650 Elevating Table Installation, Operation & Maintenance Manual 4-10 4.4 Checking & Adjusting Chain Tension Rev A...

  • Page 75: Chapter 5 - Maintenance

    Maintenance 5.1 Introduction This chapter provides maintenance and adjustment procedures for the elevating table. 5.1 Introduction Rev A...

  • Page 76: Removing Front Panels

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.2 Removing Front Panels This is a common procedure that is referenced to in many of the replacement procedures that follow in this chapter. Tools Required: • 5/16” nut driver • medium Phillips screwdriver Run table to it’s uppermost position.
  • Page 77 EV-650 Elevating Table Installation, Operation & Maintenance Manual Unscrew four middle panel screws (1 in Figure 5-2) and remove middle panel (2). Unscrew two lower panel clamps screws and remove brackets (4) and lower panel (5). 3 & 4 1 (X4) Figure 5-2.

  • Page 78: Replacing Fuses F2, F3, & F4

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.3 Replacing Fuses F2, F3, & F4 Tools Required: • set of hex wrenches • small flat-tip screwdriver Remove front panels according to Section 5.2. Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc.) at power sources before...

  • Page 79: Replacing Fuses F1, Fl1, & Fl2

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.4 Replacing Fuses F1, FL1, & FL2 Tools Required: • small flat-tip screwdriver Turn off all power to table. Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc.) at power sources before servicing table.

  • Page 80: Replacing 24V Power Supply Board Fuse

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.5 Replacing 24V Power Supply Board Fuse Tools Required: • set of hex wrenches • small flat-tip screwdriver Remove front panels according to Section 5.2. Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc.) at power sources before...

  • Page 81: Replacing Dc Motor Speed Control Fuse

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.6 Replacing DC Motor Speed Control Fuse Tools Required: • set of hex wrenches • small flat-tip screwdriver Remove front panels according to Section 5.2. Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc.) at power sources before...
  • Page 82 EV-650 Elevating Table Installation, Operation & Maintenance Manual Fuse, Bussmann ABC 20-Amp Fast Acting Figure 5-6. Fuse Location 5.6 Replacing DC Motor Speed Control Fuse Rev A...

  • Page 83: Manually Raising & Lowering Table Top

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.7 Manually Raising & Lowering Table top Tools Required: • 3/4“ socket with ratchet wrench • 7/16” open-end wrench • emergency motor coupling (p/n 232-5002P1 - included with table’s accessory kit) • set of hex wrenches Warning Turn off all electrical power to table and all it’s peripheral...
  • Page 84 EV-650 Elevating Table Installation, Operation & Maintenance Manual Unscrew motor cap screws (1 in Figure 5-7) and remove motor cap (2). Figure 5-7. Motor Cap Insert coupling (1 in Figure 5-8) over motor shaft and secure in place with screw (2). Screw only has to be finger tight.
  • Page 85 EV-650 Elevating Table Installation, Operation & Maintenance Manual Manually turn coupling with ratchet wrench to raise or lower table. Reverse steps to reassemble. 5.7 Manually Raising & Lowering Table top 5-11 Rev A...

  • Page 86: Changing Input Voltage From 120V To 240V

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.8 Changing Input Voltage from 120V to 240V The table can run on either 120V or 240V input power. To change the input voltage from 120V to 240V do the steps below. To change the input voltage from 240V to 120V, go to section 5.9.
  • Page 87 EV-650 Elevating Table Installation, Operation & Maintenance Manual Remove large jumpers (1 & 2 in Figure 5-10) from positions 5 and 6. 1 & 2 Figure 5-10. Remove 5 & 6 Large Jumpers Insert small jumper (1 in Figure 5-11) into position 5/6.
  • Page 88 EV-650 Elevating Table Installation, Operation & Maintenance Manual Set the two power jumpers (1 & 2 in Figure 5-122) on motor control board to 240V positions. 1 & 2 Figure 5-12. Motor Control Board Jumpers (Shown in 240V Positions) Remove fuse F2 and replace with 0.5 Amp 250V T fuse.

  • Page 89: Changing Input Voltage From 240V To 120V

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.9 Changing Input Voltage from 240V to 120V The table can run on either 120V or 240V input power. To change the input voltage from 240V to 120V do the steps below. To change the input voltage from 120V to 240V, go to section 5.8.
  • Page 90 EV-650 Elevating Table Installation, Operation & Maintenance Manual Remove small jumper (1 in Figure 5-15) from position 5/6. Save jumper for future use. Figure 5-15. Remove 5/6 Jumper Insert large jumpers (1 & 2 in Figure 5-16) into positions 5 and 6.
  • Page 91 EV-650 Elevating Table Installation, Operation & Maintenance Manual Set the two power jumpers (1 & 2 in Figure 5-17) on motor control board to 120V positions. 1 & 2 Figure 5-17. Motor Control Board Jumpers (Shown in 120V Positions) Remove fuse F2 and replace with 1 Amp 250V T fuse.

  • Page 92: Changing Elevation Restart Mode

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.10 Changing Elevation Restart Mode The mid-point elevation restart mode of the up and down pedals can be changed from manual to automatic and vice versa as follows: Tools Required: • set of hex wrenches •...
  • Page 93 EV-650 Elevating Table Installation, Operation & Maintenance Manual Locate Restart Mode Pot and Jumpers on motor control board using figure below. Then go to the next step. Main Chassis Restart Mode Pot & Jumpers Figure 5-20. Restart Mode Pot & Jumpers 5.10 Changing Elevation Restart Mode...
  • Page 94 EV-650 Elevating Table Installation, Operation & Maintenance Manual Set jumpers to desired settings as shown in figure below. For automatic mode, set pot to desired setting, test delay time and readjust as necessary. Reverse steps to reassemble. Automatic Restart Mode...

  • Page 95: Adjust Table Elevation Mid-Point Height

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.11 Adjusting Table Elevation Mid-Point Height The height at which the table stops at it’s mid-point (SID height) can be adjusted according to the following steps. Tools Required: • medium-size phillips screw driver •...
  • Page 96 EV-650 Elevating Table Installation, Operation & Maintenance Manual Loosen two cam plate screws (1 in Figure 5-22), move plate to desired position and retighten screws. Test new mid-table pause position. Readjust as necessary. Reassemble table. Figure 5-22. Cam Plate Position 5-22 5.11 Adjusting Table Elevation Mid-Point Height...

  • Page 97: Testing & Adjusting Collision Avoidance Switches

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 5.12 Testing & Adjusting Collision Avoidance Switches Tools Required: • 5/16” open-end wrench • medium phillips screwdriver • set of hex wrenches Testing Switches Move table top to it’s leftmost position. Turn power to table on.
  • Page 98 EV-650 Elevating Table Installation, Operation & Maintenance Manual Scale Figure 5-23. Scale & Stool Under Table Top Adjusting Switches Turn off all power to table. Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc.) at power sources before servicing table.
  • Page 99 EV-650 Elevating Table Installation, Operation & Maintenance Manual Unscrew bumper screws (1 in Figure 5-24) and remove bumpers (2) from all four corners of table top. Figure 5-24. Bumper Removal 5.12 Testing & Adjusting Collision Avoidance Switches 5-25 Rev A...
  • Page 100 EV-650 Elevating Table Installation, Operation & Maintenance Manual Slide table top (1 in Figure 5-25) past switch assembly (2) to expose switch assembly. Figure 5-25. Switch Access 5-26 5.12 Testing & Adjusting Collision Avoidance Switches Rev A...
  • Page 101 EV-650 Elevating Table Installation, Operation & Maintenance Manual Loosen jam nut (1 in Figure 5-26). Turn adjustment screw (2) in 1/4 turn increments and retest pressure. Turn it clockwise to reduce table stoppage pressure and counterclockwise to increase pressure. Caution Be careful not to adjust the pressure so much that the switch’s arm...
  • Page 102 EV-650 Elevating Table Installation, Operation & Maintenance Manual 5-28 5.12 Testing & Adjusting Collision Avoidance Switches Rev A...

  • Page 103: Chapter 6 - Component Replacement

    Component Replacement 6.1 Introduction This chapter provides instructions for replacing most of the major assemblies on the elevating table. 6.1 Introduction Rev A...

  • Page 104: Removing Front Panels

    EV-650 Elevating Table Installation, Operation & Service Manual 6.2 Removing Front Panels This is a common procedure that is referenced to in many of the replacement procedures that follow in this chapter. Tools Required: • 5/16” nut driver • medium Phillips screwdriver Run table to it’s uppermost position.
  • Page 105 EV-650 Elevating Table Installation, Operation & Service Manual Unscrew four middle panel screws (1 in Figure 6-2) and remove middle panel (2). Unscrew two lower panel clamps screws (3), remove brackets (4) and lift lower panel (5) up and out.

  • Page 106: Replacing Main Chassis

    EV-650 Elevating Table Installation, Operation & Service Manual 6.3 Replacing Main Chassis Tools Required: • 5/16” nut driver • 7/16” open-end wrench • small flat-tip screwdriver If not already done so, remove front panels according to Section 6.2 Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc.) at power sources before...
  • Page 107 EV-650 Elevating Table Installation, Operation & Service Manual Insert small screwdriver into each power cable hole (1 in Figure 6-4) and pull power cables (2) out. Unscrew rear nut (3) and remove chassis (4). Reverse steps to install chassis. Figure 6-4. Rear Chassis Nut (Top View) 6.3 Replacing Main Chassis...

  • Page 108: Replacing Foot Treadle Assembly

    EV-650 Elevating Table Installation, Operation & Service Manual 6.4 Replacing Foot Treadle Assembly Tools Required: • 5/16” nut driver If not already done so, remove front panels according to Section 6.2. Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc.) at power sources before...
  • Page 109 EV-650 Elevating Table Installation, Operation & Service Manual Unscrew two foot treadle mounting screws (1 in Figure 6-6) and remove treadle assembly (2) Reverse steps to install treadle. Figure 6-6. Foot Treadle 6.4 Replacing Foot Treadle Assembly Rev A...

  • Page 110: Repacing K301 Relay

    EV-650 Elevating Table Installation, Operation & Service Manual 6.5 Replacing K301 Relay Tools Required: • set of hex wrenches If not already done so, remove front panels according to Section 6.2. Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc.) at power sources before...

  • Page 111: Replacing Drive Motor Assembly

    EV-650 Elevating Table Installation, Operation & Service Manual 6.6 Replacing Drive Motor Assembly Tools Required: • 9/16” (14mm) open-end wrench • medium flat-tip screwdriver • set of hex wrenches Note Do not use an off-the-shelf replacement motor. The motor in your table has been specially modified at the Del factory for this application.
  • Page 112 EV-650 Elevating Table Installation, Operation & Service Manual Unscrew four motor mounting bolts (1 in Figure 6-9). Pull motor (2) off of gearbox (3). Reverse steps to install motor. Make sure that keyway in motor lines up with key on gearbox shaft when reinstalling motor. Use Loctite or equivalent to secure key to motor shaft keyway.

  • Page 113: Replacing 24V Power Supply Board

    EV-650 Elevating Table Installation, Operation & Service Manual 6.7 Replacing 24 V Power Supply Board Tools Required: • phillips screwdriver • set of hex wrenches If not already done so, remove front panels according to Section 6.2. Turn off all power to table.
  • Page 114 EV-650 Elevating Table Installation, Operation & Service Manual Unscrew four mounting screws (1 in Figure 6-11) and remove power supply (2). Reverse steps to install power supply. Each wire or cable leading up to power supply is marked with its corresponding connector number.

  • Page 115: Replacing Motor Controller Board

    EV-650 Elevating Table Installation, Operation & Service Manual 6.8 Replacing Motor Controller Board Tools Required: • set of hex wrenches • small flat-tip screwdriver If not already done so, remove front panels according to Section 6.2. Turn off all power to table.
  • Page 116 EV-650 Elevating Table Installation, Operation & Service Manual Unplug connectors (J201,J202, & J203 in Figure 6-12). Unscrew four mounting screws (1 in Figure 6-12) and remove controller board (2). Reverse steps to install motor controller board. Each wire or cable leading up to controller board is marked with its corresponding connector number.

  • Page 117: Replacing Dc Motor Speed Control

    EV-650 Elevating Table Installation, Operation & Service Manual 6.9 Replacing DC Motor Speed Control Tools Required: • medium Phillips-tip screwdriver • set of hex wrenches If not already done so, remove front panels according to Section 6.2. Turn off all power to table.
  • Page 118 EV-650 Elevating Table Installation, Operation & Service Manual Disconnect terminals called out in figure below. Unscrew four mounting screws (1 in Figure 6-13) and remove DC controller board (2). Remove yellow jumper shown in figure below and place on same terminals (START &...

  • Page 119: Replacing Dc Motor Speed Control Relay

    EV-650 Elevating Table Installation, Operation & Service Manual 6.10 Replacing DC Motor Speed Control Relay (K103) Tools Required: • set of hex wrenches If not already done so, remove front panels according to Section 6.2. Turn off all power to table.
  • Page 120 EV-650 Elevating Table Installation, Operation & Service Manual Disconnect terminals called out in figure below. Unscrew two mounting screws (1 in Figure 6-14) and remove relay (2). Reverse steps to install relay. Each wire or cable leading up to relay is marked with its corresponding connector number.

  • Page 121: Replacing Emergency Stop Switch

    EV-650 Elevating Table Installation, Operation & Service Manual 6.11 Replacing Emergency Stop Switch Tools Required: • set of hex wrenches • small flat-tip screwdriver If not already done so, remove front panels according to Section 6.2. Turn off all power to table.

  • Page 122: Replacing Treadle Switch

    EV-650 Elevating Table Installation, Operation & Service Manual 6.12 Replacing Treadle Switch Tools Required: • set of hex wrenches If not already done so, remove front panels according to Section 6.2. Turn off all power to table. Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc.) at power sources before...
  • Page 123 EV-650 Elevating Table Installation, Operation & Service Manual Reverse steps to install switch. Adjust switch so that its arm (1 in Figure 6-17) engages switch but still has a little play left in it - it’s not forced against switch.
  • Page 124 EV-650 Elevating Table Installation, Operation & Service Manual 6.13 Replacing Left-Right Table Lock Tools Required: • medium flat-tip screwdriver • medium phillips screwdriver • set of hex wrenches • small flat-tip screwdriver • two people are required to do this procedure Turn off all power to table.
  • Page 125 EV-650 Elevating Table Installation, Operation & Service Manual Warning Table top is heavy. Two people are required to handle it in the following step. You can get injured if you try to do the step by yourself. Carefully slide table top off of base.
  • Page 126 EV-650 Elevating Table Installation, Operation & Service Manual Loosen terminal block screws (1 in Figure 6-20) and slide lock wires out of terminal block. Unscrew lock screw (2) and remove lock (3). Reverse steps to install brake. Caution Use care not to damage locks when sliding table top back onto base.

  • Page 127: Replacing Height Limit Switches

    EV-650 Elevating Table Installation, Operation & Service Manual 6.14 Replacing Height Limit Switches This procedure gives general instructions for replacing height limit switches. The figures might not represent the exact switch you are replacing but will give you general information about replacing the switch.
  • Page 128 EV-650 Elevating Table Installation, Operation & Service Manual Disconnect terminals (1 in Figure 6-22). Unscrew two mounting screws (2) and remove switch and screw bar (3). Opposite Side of Switch Figure 6-22. Limit Switch (Typical) Reverse steps to install switch. Adjust switch so that its arm (1 in Figure 6-23) engages switch but still has a little play left in it when it is on the flat part of the cam (2) - it’s not forced against switch.
  • Page 129 EV-650 Elevating Table Installation, Operation & Service Manual 6.15 Replacing Bucky Lock Tools Required: • 1/4” open-end wrench • medium phillips screwdriver • set of hex wrenches • small flat-tip screwdriver • two people are required to do this procedure Turn off all power to table.
  • Page 130 EV-650 Elevating Table Installation, Operation & Service Manual Warning Table top is heavy. Two people are required to handle it in the following step. You can get injured if you try to do the step by yourself. Carefully slide table top off of base.
  • Page 131 EV-650 Elevating Table Installation, Operation & Service Manual Unscrew four bucky mounting screws (1 in Figure 6-26). 1 (x4) Figure 6-26. Bucky Mounting Screws 6.15 Replacing Bucky Lock 6-29 Rev A...
  • Page 132 EV-650 Elevating Table Installation, Operation & Service Manual Loosen terminal block screws (1 in Figure Figure 6-27) and slide lock wires out of terminal block. The terminal block is located under the bucky and you can access it through the front of the machine.
  • Page 133 EV-650 Elevating Table Installation, Operation & Service Manual Unscrew lock screws (1 in Figure 6-28) and remove locks. You will have to lift the bucky (2) up to access the screws Reverse steps to install lock. Caution Use care not to damage table locks when sliding table top back onto base.

  • Page 134: Replacing Collision Avoidance Switches

    EV-650 Elevating Table Installation, Operation & Service Manual 6.16 Replacing Collision Avoidance Switches Tools Required: • 3/8” open-end wrench • medium phillips screwdriver • set of hex wrenches • small-flat-tip screwdriver Turn off all power to table. Warning Turn off all electrical power to table and all it’s peripheral equipment (generator, tubestand, etc.) at power sources before...
  • Page 135 EV-650 Elevating Table Installation, Operation & Service Manual Slide table top (1 in Figure 6-30) past switch assembly (2) to expose switch assembly. Figure 6-30. Switch Access 6.16 Replacing Collision Avoidance Switches 6-33 Rev A...
  • Page 136 EV-650 Elevating Table Installation, Operation & Service Manual Disconnect terminals (1 in Figure 6-31). Unscrew two nuts (2) and remove plate assembly (3). Unscrew mounting screws (4) from rear of plate assembly and remove switch (5) Reverse steps to install switch.
  • Page 137 EV-650 Elevating Table Installation, Operation & Service Manual 6.17 Replacing K101 & K102 Relays Tools Required: • set of hex wrenches If not already done so, remove front panels according to Section 6.2. Turn off all power to table. Warning Turn off all electrical power to table and all it’s peripheral...
  • Page 138 EV-650 Elevating Table Installation, Operation & Service Manual Disconnect terminals leading up to relays. Unscrew three mounting screws (1 in Figure 6-32) and remove relays (2). Reverse steps to install relay. Each wire or cable leading up to relay is marked with its corresponding connector and relay number.
  • Page 139 EV-650 Elevating Table Installation, Operation & Service Manual 6.18 Replacing In-Out Table Locks Tools Required: • medium flat-tip screwdriver • medium phillips screwdriver • set of hex wrenches • two people are required to do this procedure Turn off all power to table.
  • Page 140 EV-650 Elevating Table Installation, Operation & Service Manual Warning Table top is heavy. Two people are required to handle it in the following step. You can get injured if you try to do the step by yourself. Carefully slide table top off of base.
  • Page 141 EV-650 Elevating Table Installation, Operation & Service Manual Unscrew four lock cover screws (1 in Figure 6-35 and remove lock cover (2) the side of table where suspected faulty lock is located (there are two sets of locks - on left and right side of table).
  • Page 142 EV-650 Elevating Table Installation, Operation & Service Manual Unplug connector (1 in Figure 6-36). Unscrew two mounting screws (2) and remove bracket assembly (3) Unscrew lock screw (4) and remove lock (5). Reverse steps to install lock. Caution Use care not to damage locks when sliding table top back onto base.

  • Page 143: Chapter 7 - Troubleshooting

    Troubleshooting 7.1 Introduction This chapter is divided into three sections. The first section is a group of troubleshooting charts that will guide you through most of the problems that may occur with the table. The second section is made up of an overall schematic of the table and a group of illustrations and photos that show the actual parts depicted on the schematic and their location on the table.

  • Page 144: Troubleshooting Index & Charts

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 7.2 Troubleshooting Index & Charts Use the following troubleshooting index and troubleshooting charts as an aid in solving your table’s malfunction. Problem Refer to Page: Table will not do anything. Bucky indicator light is not illuminated.
  • Page 145 EV-650 Elevating Table Installation, Operation & Maintenance Manual Problem Possible Cause Remedy Table will not do No power. Make sure that switch at anything. Bucky indicator wall power source is light is not illuminated. turned on. Make sure that circuit breaker at wall power source is turned on.
  • Page 146 EV-650 Elevating Table Installation, Operation & Maintenance Manual Problem Possible Cause Remedy Table will raise but not Collision avoidance Test and adjust switches lower or downward switches not properly according to Section 5-13. motion is intermittent. adjusted or are faulty.
  • Page 147 EV-650 Elevating Table Installation, Operation & Maintenance Manual Problem Possible Cause Remedy Table will lower but not Treadle up switch or up Check mechanical and raise. limit switch is faulty. electrical operation of down treadle switch S12. See Figure 7-4 on page 7- 17 for location of switch.
  • Page 148 EV-650 Elevating Table Installation, Operation & Maintenance Manual Problem Possible Cause Remedy Table will not raise or No power to motor or Check motor fuse F1 lower. But other functions motor control boards. according to Section 5.4. If of table will work.
  • Page 149 EV-650 Elevating Table Installation, Operation & Maintenance Manual Problem Possible Cause Remedy Table will not raise or Continued from previous Check for 24 VDC across lower. But other functions page. terminals 1 and 0 on relay of table will work...
  • Page 150 EV-650 Elevating Table Installation, Operation & Maintenance Manual Problem Possible Cause Remedy In-out table locks are Locks are jammed or a Remove table top weak - they do not hold solenoid coil is bad. according to Section 6.18. table securely.
  • Page 151 EV-650 Elevating Table Installation, Operation & Maintenance Manual Problem Possible Cause Remedy Bucky locks are weak - Locks are jammed or a Remove table top they do not hold bucky solenoid coil is bad. according to Section 6.15. securely. Check for and remove any obstructions in locks.

  • Page 152: Schematic Troubleshooting

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 7.3 Schematic Troubleshooting The schematic diagram on the next page can be used to troubleshoot electrical problems with the table. The schematic covers all of the electrical components in the table. Figures 7-2 thru 7-7 show actual diagrams and photos of the components listed on the schematic.

  • Page 154: Component Listing

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 7.3.1 Component Listing The table below lists all of the components on the machine’s overall schematic. The table cross references a figure that you can refer to in order to locate the component of the machine.
  • Page 155 EV-650 Elevating Table Installation, Operation & Maintenance Manual Callout Component Type Refer to Figure: Long Locks Coil Left Long Locks Coil Right Motor Con- Motor Control PCB 7-2 & 7-3 trol PCB Power Sup- Power Supply 7-2 & 7-3 Switch, Lock Release...

  • Page 156: Main Chassis Location/Layout

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 7.3.2 Main Chassis Location/Layout Main Chassis Figure 7-2. Main Chassis Location 7.3 Schematic Troubleshooting 7-15 Rev A...
  • Page 157 EV-650 Elevating Table Installation, Operation & Maintenance Manual Figure 7-3. Main Chassis Layout 7-16 7.3 Schematic Troubleshooting Rev A...

  • Page 158: Teadle Switch Location/Layout

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 7.3.3 Treadle Switch Location/Layout Figure 7-4. Treadle Location 7.3 Schematic Troubleshooting 7-17 Rev A...

  • Page 159: Limit Switch Location/Layout

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 7.3.4 Limit Switch Location/ Layout S101A S101B S103 S102A S102B Figure 7-5. Limit Switch Location 7-18 7.3 Schematic Troubleshooting Rev A...

  • Page 160: Bucky Lock Release Location

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 7.3.5 Bucky Lock Release Switch Location S301 Figure 7-6. Bucky Lock Release Switch Location 7.3 Schematic Troubleshooting 7-19 Rev A...

  • Page 161: Various Switch Location

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 7.3.6 Various Switch Location Long Locks Left Long Locks Right S304 S305 Cross Cross Locks Locks Left Right Figure 7-7. Various Switch Locations 7-20 7.3 Schematic Troubleshooting Rev A...

  • Page 162: Bucky Coil Locks

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 7.3.7 Bucky Coil Locks L301 L302 Figure 7-8. Bucky Coil Locks 7.3 Schematic Troubleshooting 7-21 Rev A...

  • Page 163: Main Chassis Connector Pinout Definitions

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 7.4 Main Chassis Connector Pinout Definitions Use the table below along with Figure 7-9 to test for proper pin-out voltages and cable continuity. Table 7-2: Main Chassis Connector Pinout Definitions 7-22 7.4 Main Chassis Connector Pinout Definitions...
  • Page 164 EV-650 Elevating Table Installation, Operation & Maintenance Manual J107 J106 J105 J104 J102 J101 Figure 7-9. Main Chassis Connector Locations 7.4 Main Chassis Connector Pinout Definitions 7-23 Rev A...
  • Page 165 EV-650 Elevating Table Installation, Operation & Maintenance Manual 7-24 7.4 Main Chassis Connector Pinout Definitions Rev A...

  • Page 166: Chapter 8 - Electrical Schematics

    Diagrams & Electrical Schematics Electrical Schematics This chapter contains the electrical schematics for the table. Electrical Schematics Rev A...

  • Page 167: Electrical Schematics

    EV-650 Elevating Table Installation, Operation & Maintenance Manual Electrical Schematics Rev A...

  • Page 177: Chapter 9 - Illustrated Parts List

    Illustrated Parts List 9.1 Ordering Parts For your convenience, replacement parts and accessories can be ordered from Del Medical Systems by fax 24 hours a day. Please have the following information available to ensure quick, easy, and accurate service. • Your name and telephone number •...

  • Page 178: How To Use This Parts List

    The lists are divided into four columns. The item/index numbers refer to the identification number located on the drawing. The part number is the Del Medical part number, used to identify the part for ordering. The part description column lists each part name, and the quantity column lists the quantity of that part used in that particular assembly.
  • Page 179 EV-650 Elevating Table, Installation, Operation & Service Manual Part Description Part number Contactor Auxiliary Switches 645-5004P2 Microswitch, Pedal, Limit, Collision Avoidance 632-5005P1 Emergency Service Switch (Mushroom) 632-0027P1 Emergency Service Switch Contacts 632-0028P1 Electro Magnet, Table Lock, 24VDC 5500-3204 Electro Magnet, Bucky Lock, 24VDC...

  • Page 180: Overall Elevating Table Assembly (110-5047)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.4 Overall Elevating Table Assembly (110-5047) 32,33,39 Figure 9-1. Overall Table Assembly (Sheet 1 of 5) 9.4 Overall Elevating Table Assembly (110-5047) Rev A...
  • Page 181 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 112-5050G1 Lower Frame Assembly (Refer to Section 9.8 for Breakdown) 112-5043G2 Treadle Channel Assembly (Refer to Section 9.11 for Breakdown) 112-5018G1 Main Chassis Assembly (Refer to “9.12 Main Chassis Assembly (120- 5018G1)”...
  • Page 182 EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.4 Overall Elevating Table Assembly (110-5047) 36,37,38 Figure 9-2. Overall Table Assembly (Sheet 2 of 5) 9.4 Overall Elevating Table Assembly (110-5047) Rev A...
  • Page 183 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 112-5053G1 Drive Frame Assembly (Refer to “9.6 Drive Frame Assembly (112- 5053G1)” on page 9-16 for Break- down) 112-5051G1 Upper Frame Assembly (Refer to “9.9 Upper Frame Assembly (112- 5051G1)”...
  • Page 184 EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.4 Overall Elevating Table Assembly (110-5047) 38,41 40,45 44,45 Figure 9-3. Overall Table Assembly (Sheet 3 of 5) 9.4 Overall Elevating Table Assembly (110-5047) Rev A...
  • Page 185 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 112-5056G1 Upper Shroud Assembly (Refer to “9.13 Upper Shroud Assembly (112-5056G1)” on page 9-28 for Breakdown) 112-5240G1 Support Bracket Assembly-Left Hand (Refer to “9.16 Support Bracket Assembly (Left Hand) (112- 5241G1)”...
  • Page 186 EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.4 Overall Elevating Table Assembly (110-5047) 18,57 46,61 51,52 56,62,63 Figure 9-4. Overall Table Assembly (Sheet 4 of 5) 9-10 9.4 Overall Elevating Table Assembly (110-5047) Rev A...
  • Page 187 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 112-5243G1 Inner Frame Assembly (Refer to Section 9.5 for Breakdown) 100012P8 Screw, Trim, 8-32 X 3/8 204-5026P1 Cover, Table Support, Med Wht 642-5025P1 STND, M-F 5/16” X 2.06, 8-32...
  • Page 188 EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.4 Overall Elevating Table Assembly (110-5047) 101-104 58,59,60 32,33 44,45 Figure 9-5. Overall Table Assembly (Sheet 5 of 5) 9-12 9.4 Overall Elevating Table Assembly (110-5047) Rev A...
  • Page 189 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 114-5029G1 Lower Front Panel 753-40-19105011 Screw, SHCS 10-32 X 1/2” 785-11-19000011 Washer, Flat #10 Narrow 408-5131P1 Label, Serial/Rating 760-20-16207511 Screw, PPNHMS 8-32 X 3/4” 785-11-16000011 Washer, Flat #8 Narrow...

  • Page 190: Inner Frame Assembly (112-5343G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.5 Inner Frame Assembly (112-5243G1) 18,19 20 8,15 17,23 4,16 Figure 9-6. Inner Frame Assembly 9-14 9.5 Inner Frame Assembly (112-5243G1) Rev A...
  • Page 191 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 202-5034P1 Panel, Frame Cover, Med White 114-5110G1 Inner Frame Weldment, Med Wht 201-5106P1 Cover, Inner Frame, Med Wht 230-0075P1 Stud, Wheel Ret. 232-0015P1 Nut, Bearing 232-0016P1 Stud, Eccentric 236-5030P1 Block, Finger Guard, Med.

  • Page 192: Drive Frame Assembly (112-5053G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.6 Drive Frame Assembly (112-5053G1) 8 (Ref.) 6 & 7 Figure 9-7. Drive Frame Assembly Fig ref. Part number Description 122-5009G99 Drive Motor Assembly 652-0004P2 Reducer Gearbox, Winsmith 917- MDVS 420-0005P1 Sprocket, Drive 426-0008P1 Key, Drive Sprocket 1/4”...
  • Page 193 EV-650 Elevating Table, Installation, Operation & Service Manual Page Intentionally Blank 9.6 Drive Frame Assembly (112-5053G1) 9-17 Rev A...

  • Page 194: Drive Shaft Assembly (112-0322G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.7 Drive Shaft Assembly (112-0322G1) 15,16,18 21,36,37 15,16,18 15,16 15,16,19,20 19,20 26,27 26,27 34 36,37 7, 38 Figure 9-8. Drive Shaft Assembly Fig ref. Part number Description 236-0105P2 Bearing Plate, Med. WHT...
  • Page 195 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 760-22-14203811 Screw, PPNHM 6-32 X 3/8” 46-170012P36 Nut, Hex, KEPS 6-32 760-22-14206311 Screw, PPNHM 6-32 X 5/8” 100624P1 Screw, SHCS 5/16-18 X 2.0 422-0031P1 Screw, HHMS 3/8-16 X 2 1/2”...

  • Page 196: Lower Frame Assembly (112-5050G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.8 Lower Frame Assembly (112-5050G1) 13,15 10,11 8,9,12 13,15 13,14,17 Figure 9-9. Lower Frame Assembly 9-20 9.8 Lower Frame Assembly (112-5050G1) Rev A...
  • Page 197 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 112-5035G2 Lower Frame End, Right, Med Wht 202-5029P1 Channel, Frame Tie, Med Wht 203-5024P1 Panel, Rear Lower Frame Med Wht 202-0071P1 Bracket, Zinc Plated 202-0072P1 Retainer Bracket, Zinc Plated...

  • Page 198: Upper Frame Assembly (112-5051G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.9 Upper Frame Assembly (112-5051G1) 12,14,17 18,20 12,17 21,22 Figure 9-10. Upper Frame Assembly 9-22 9.9 Upper Frame Assembly (112-5051G1) Rev A...
  • Page 199 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 201-5023P1 Panel, Upper Frame LH Med Wht 201-5022P1 Panel, Upper Frame RH Med Wht 424-0004P1 Gear Rack, Long 202-5027P1 Angle, Upper Frame, Med Wht 203-5036P1 Channel Stiffener, Med. Wht...

  • Page 200: Sid/Limit Switch Cam Plate Assembly (112-5239G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.10 SID/Limit Switch Cam Plate Assembly (112- 5239G1) Figure 9-11. SID/Limit Switch Cam Plate Assembly Fig ref. Part number Description 201-5104P1 Plate, SID/LIM SW Med Wht 240-5036P1 Cam, 40” SID Switch 201-5036P1...

  • Page 201: Treadle Channel Assembly (112-5043G2)

    EV-650 Elevating Table, Installation, Operation & Service Manual 9.11 Treadle Channel Assembly (112-5043G2) 8 & 9 Figure 9-12. Treadle Channel Assembly Fig ref. Part number Description 202-5009P1 Pedal, Lock Release 202-5008P1 Pedal, Table Down 202-5007P1 Pedal, Table Up 405-5005P1 Spring, Lock Release...

  • Page 202: Main Chassis Assembly (120-5018G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.12 Main Chassis Assembly (120-5018G1) 16 & 17 9 & 10 Figure 9-13. Main Chassis Assembly 9-26 9.12 Main Chassis Assembly (120-5018G1) Rev A...
  • Page 203 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 636-5003P1 Transformer, A-41-175-20 649-5001P1 DC Motor Speed Control 603-5003P1 Resistor, 50W, 10 Ohm 645-5003P1 Relay, 30 Amp 2Form A 24VDC 645-0006P1 Relay Socket, Newark 57F 46-136370P1 Relay, 4 PDT 24 VDC...

  • Page 204: Upper Shroud Assembly (112-5056G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.13 Upper Shroud Assembly (112-5056G1) 8,9,22 18,19 Figure 9-14. Upper Shroud Assembly 9-28 9.13 Upper Shroud Assembly (112-5056G1) Rev A...
  • Page 205 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 114-5113G1 Cover, Upper LH Med Wht 114-5027G1 Cover, Upper RG Med Wht 203-0102P2 Rear Cover, Med Wht 201-5024P1 Channel, Front Upper Med Wht 201-0121P1 Channel, Rear Med Wht 203-5144P1 Panel.
  • Page 206 EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.14 Bucky Carriage Assembly (112-5242G1) 21,25 17 ref. 4 ref. 6 ref. 17 ref. 13 ref. 6 ref. Figure 9-15. Bucky Carriage Assembly 9-30 9.14 Bucky Carriage Assembly (112-5242G1) Rev A...
  • Page 207 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 205-5015P1 Table Guide, Black 265-0003P2 Tube, Bucky Mounting Left 5500-3502 Magnet Assembly, Bucky Lock 785-11-19000011 Washer, Flat #10 Narrow 126-5203G1 Harness, Bucky Connector 202-5054P1 Bracket, Reverse, Zinc...

  • Page 208: Bucky Carriage Assembly (112-5242G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual Fig ref. Part number Description 126-5042G1 Cable, Bucky Drive 760-22-19102511 Screw, PPNHM, 10-32 X 1/4” 500-5024P2 Cable, Aid Ion Chamber (Included with Aid Ion Chamber) Table 9-16: Bucky Carriage Assembly 9-32 9.14 Bucky Carriage Assembly (112-5242G1)
  • Page 209 EV-650 Elevating Table, Installation, Operation & Service Manual Page Intentionally Blank 9.14 Bucky Carriage Assembly (112-5242G1) 9-33 Rev A...

  • Page 210: Support Bracket Assembly (Right Hand) (112-5240G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.15 Support Bracket Assembly (Right Hand) (112- 5240G1) 3,4,5 8,11 15,16,17 Figure 9-16. Support Bracket Assembly (Right Hand) 9-34 9.15 Support Bracket Assembly (Right Hand) (112-5240G1) Rev A...
  • Page 211 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 114-5111G1 Support Weld RH Med Wht 250-5007P1 Shoe, Trans, Brg 400-5005P1 Brg Radial 12mm X 28mm X12 mm 799-20-46000010 Ret Ring, 5100-46 400-5006P1 Brg Radial 8mm X 19mm X 6mm...

  • Page 212: Support Bracket Assembly (Left Hand) (112-5241G1)

    EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.16 Support Bracket Assembly (Left Hand) (112- 5241G1) 3,4,5 9,13 15,16,17 Figure 9-17. Support Bracket Assembly (Left Hand) 9-36 9.16 Support Bracket Assembly (Left Hand) (112-5241G1) Rev A...
  • Page 213 EV-650 Elevating Table, Installation, Operation & Service Manual Fig ref. Part number Description 114-5112G1 Support Weld LH Med Wht 250-5007P1 Shoe, Trans, Brg 400-5005P1 Brg Radial 12mm X 28mm X12 mm 799-20-46000010 Ret Ring, 5100-46 400-5006P1 Brg Radial 8mm X 19mm X 6mm...
  • Page 214 EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.17 Transverse Lock Assembly (122-5053) Figure 9-18. Transverse Lock Assembly Fig Ref. Part Number Description 5500-3191 Bracket, Brake 5500-3204 Magnet, Electro, 24VDC 763-0603-2032 HSNG, 3CKT Molex .062 PIN 763-0601-2103 Pin, .062 Molex Male 18-24 642-5020P1 Cable Tie, .10”W X 4.0”...
  • Page 215 EV-650 Elevating Table, Installation, Operation & Service Manual 9.18 Collision Avoidance Assembly (Left & Right Hand) (112-5040G1 & 112-5040G2) 7 & 8 Figure 9-19. Collision Avoidance Assembly (Right Hand Version Shown) Fig ref. Part number Description 799-20-31200010 Retaining Ring 5100-46...
  • Page 216 EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.19 SID/Limit Switch Assembly (112-5244G1) 7,8,9 7,8,9 Figure 9-20. SID/Limit Switch Assembly Fig ref. Part number Description 126-5195G1 Harness Assembly 823-5009G14 Lead Data 204-5004P1 Limit Switch Bracket 632-5005P1 Switch, V7-2B17D8-201 2235-0315 Microswitch Insulation Pad 753-40-11212520 Screw, SHSSCS 4-40 X 1.25”...
  • Page 217 EV-650 Elevating Table, Installation, Operation & Service Manual 9.20 Cable Chain Assembly (112-5253G1) Figure 9-21. Cable Chain Assembly Fig ref. Part number Description 439-5019P1 Cable, Chain 203-5141P1 Bracket, Cable Chain Mounting 202-5077P1 Plate, Cable Chain Mounting 762-20-11202511 Screw, PFHMS 4-40 X 1/4 Table 9-22: Cable Chain Assembly 9.20 Cable Chain Assembly (112-5253G1)
  • Page 218 EV-650 Elevating Table Installation, Operation & Maintenance Manual 9.21 Bucky Cover/Harness Assembly (112-5058G1) 3 & 4 Figure 9-22. Bucky Cover Harness Assembly Fig ref. Part number Description 114-5033G99 Weldment, Bucky Front Cover 126-5077G1 Harness, Bucky Switch 307-0007P1 Bumper, Bucky 46-170068P2...
  • Page 219 EV-650 Elevating Table, Installation, Operation & Service Manual 9.22 Elevating Table Options & Accessories Part number Description 0920-0022B Patient Head Clamps (Must be Pair ordered with part #0920-0040) 0920-0018 Patient Hip Clamps (Must be ordered with part #0920-0040) 110-0067G1 Patient Hand Grips...
  • Page 220 EV-650 Elevating Table Installation, Operation & Maintenance Manual 9-44 9.22 Elevating Table Options & Accessories Rev A...
