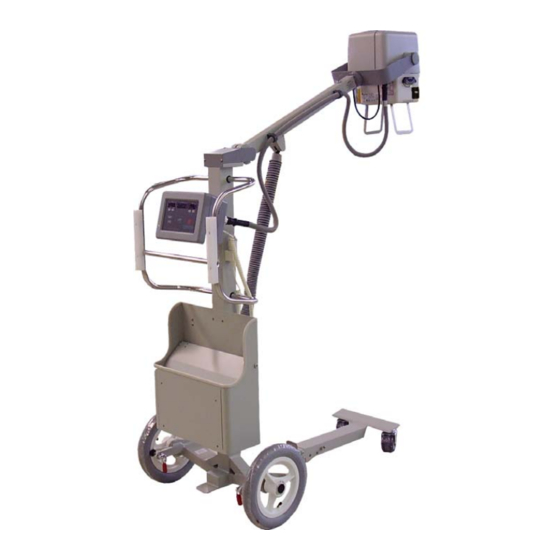

Portable x-ray system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Table of
Contents
Safety
Phantom
Introduction
Portable X-Ray System
Installation
Installation, Operation & Service
Operation
Manual
Periodic
Maintenance
Calibration &
Adjustment
Component
Replacement
Trouble-
Shooting
Electrical
Schematics
Illustrated
Parts List
P/N 8000-Phantom
Notes
Revision: B, November 8, 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DynaRad Phantom-8000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Del Medical DynaRad Phantom-8000

Summary of Contents for Del Medical DynaRad Phantom-8000

  • Page 1 Table of Contents Safety Phantom Introduction Portable X-Ray System Installation Installation, Operation & Service Operation Manual Periodic Maintenance Calibration & Adjustment Component Replacement Trouble- Shooting Electrical Schematics Illustrated Parts List P/N 8000-Phantom Notes Revision: B, November 8, 2007...
  • Page 2 Copyright 2007, Del Medical Systems. All rights reserved. This document is the property of Del Medical Systems and contains confidential and proprietary information owned by Del Medical Systems. Any unauthorized copying, use or disclosure of it without the prior written permission of Del Medical Systemsis strictly prohibited.

  • Page 3: Table Of Contents

    Table of Contents Chapter i — Safety Information Introduction..........i–1 Statement of Liability .
  • Page 4 Phantom Installation, Operation and Service Manual Chapter 3 — Operation 3.1 Safety Precautions........3–1 3.2 Operation Specifications .
  • Page 5 Phantom Installation, Operation and Service Manual Chapter 7 — Troubleshooting 7.1 Introduction..........7–1 7.2 Troubleshooting Index &...
  • Page 6 Phantom Installation, Operation and Service Manual...

  • Page 7: Chapter I - Safety Information

    Safety Information Introduction The policy of Del Medical Systems Group is to manufacture X-ray equipment that meet high standards of performance and reliability. We enforce strict quality control techniques to eliminate the potential for defects and hazards in our products.

  • Page 8: Statement Of Liability

    Del Medical Systems Group is not liable for damage or injury arising from the use of this product for any other use than that intended by the manufacturer.

  • Page 9: Definitions

    Phantom Installation, Operation & Service Manual Definitions The table below defines the meaning of various symbols used on labels on the machine. This warning symbol is used to indicate a potential haz- ard to operators, service personnel or equipment. It indi- cates a requirement to refer to the accompanying documentation for details.

  • Page 10: Safety Conventions Used In This Manual

    Phantom Installation, Operation & Service Manual Safety Conventions Used in this Manual Specific safety information is listed in this manual in the form of WARNING and CAUTION statements. Pay close attention to these statements - they contain important information on avoiding potential hazards to you or the equipment.

  • Page 11: Caution Statements

    Phantom Installation, Operation & Service Manual Caution Statements • are used to indicate hazards or unsafe practices which could result in minor personal injury or product or property damage. • appear in bold type. • have a triangular symbol with an exclamation point above the text. •...

  • Page 12: Equipment Safety Guidelines

    Phantom Installation, Operation & Service Manual Equipment Safety Guidelines The following are general safety precautions: • Do not defeat or bypass built-in equipment safety features. • Observe all warnings and cautions, stated or implied, in the procedures. • Follow all safety labels on the equipment. The following warnings and cautions are specific to the Phantom.
  • Page 13 Phantom may cause serious injury to the patient, serious injury to the operator, or equipment damage. Warning The Phantom includes no user serviceable parts. For service assistance, contact Del Medical. Equipment Safety Guidelines i-7...
  • Page 14 Phantom Installation, Operation & Service Manual Warning The Phantom produces ionizing radiation. Operators must meet all state and local requirements and regulations. Warning The Phantom and associated cables must not be operated in the presence of moisture. Warning The Phantom is rated as Class I Equipment, ensure that the earth grounding connections between the Phantom and its power source is maintained at all times.

  • Page 15: Safety And Compliance

    Phantom Installation, Operation & Service Manual Safety and Compliance Exposure to ionizing radiation such as X-rays can be hazardous. United States federal regulations establish appropriate exposure limits so that the patient, the operator, and the general public are not unnecessarily being exposed to such radiation.

  • Page 16: Radiation Protection

    Phantom Installation, Operation & Service Manual Radiation Protection Serious unfavorable health effects can result from short term exposure to high levels of ionizing radiation (such as X-rays) as well as from long term exposure to low levels. Personnel who operate the Phantom should familiarize themselves with both the short term and the long term effects of radiation exposure and take appropriate measures to minimize the amount of radiation to which they are exposed while performing their...

  • Page 17: Maximum Permissible Dose (Mpd

    Phantom Installation, Operation & Service Manual substantial radiation dose to the operator or any other personnel in the facility. Moveable screens may be used to shield occupied areas from scattered radiation. The X-ray Generator/host system used to power the Phantom only produces X-rays when high voltage is applied to the X-ray tube.

  • Page 18: Identification Labels

    Phantom Installation, Operation & Service Manual Identification Labels The Phantom components have manufacturing and certification information affixed. The manufacturing label contains: • The full name and address of the manufacturer of the component • The place, month, and year of manufacture •...

  • Page 19: Radiation Safety

    Phantom Installation, Operation & Service Manual Radiation Safety Safety Everyone associated with X-ray work must be familiar with the recommendations of the Center for Devices and Radiological Health (CDRH), the National Institute for Standards and Technology (NIST), the National Council on Radiation Protection (NCRP), and the International Committee on Radiation Protection (ICRP).

  • Page 20: Manufacturer's Responsibility

    Phantom Installation, Operation & Service Manual Manufacturer’s Responsibility Although this equipment incorporates protection against X-ray radiation other than the useful beam, practical design does not provide complete protection. Equipment design does not compel the operator or assistants to take the necessary precautions; nor does it prevent the possibility of improper use (authorized or unauthorized persons carelessly, unwisely, or unknowingly exposing themselves or others to direct or secondary radiation).

  • Page 21: Radiation Protection Survey

    Phantom Installation, Operation & Service Manual A common method of determining whether personnel have been exposed to excessive radiation is the use of film badges. These are X-ray sensitive film enclosed in a badge that incorporates metal filters of varying degrees of transparency to X-ray radiation.

  • Page 22: Hazardous Materials

    The hardware specified for use with the Phantom has been selected, tested, and verified by Del Medical to meet the intended applications. All specified hardware meets applicable regulatory agency requirements for those countries where it is offered for sale with respect to its intended applications.

  • Page 23: Applicable Standards

    Phantom Installation, Operation & Service Manual Applicable Standards This X-ray generator complies with the following regulatory requirements and design standards: FDA 21 CFR Subchapter J, UL187 & CAN/CSA C22.2 No. 114-M90. Type of protection against electric shock: Class I Degree of protection against electric shock is Type B Applied Parts. Degree of protection against harmful ingress of water: IPXO.Ordinary Mode of Operation: 0.5% Duty Cycle.
  • Page 24 Phantom Installation, Operation & Service Manual i-18 Applicable Standards...

  • Page 25: Chapter Ii - Record Of Revisions

    Record of Revisions Revision History Date Reason for Change 6-15-06 Original 10-2-07 Chapter 1: Line Volt Regulation added to Specifications Chapter 3: Line Volt Regulation added to Specifications, start-up indications added Chapter 4: items added to periodic maintenance Chapter 5: calibration added Chapter 6: instructions to remove control console back cover added, X-Ray tube head replacem.
  • Page 26 Phantom Installation, Operation & Service Manual ii-2...

  • Page 27: Chapter 1 - Introduction

    Introduction 1.1 Introduction This manual provides installation, operation and service information for the Phantom Portable X-Ray System. This manual also includes a spare parts list for the system. X-Ray Tube Head Collimator Lev-O-Gage Tube Arm Control & SID Tape Display Measure Console Source to Skin Distance...

  • Page 28: Description

    Phantom Installation, Operation & Service Manual 1.2 Description The DynaRad Phantom is a portable and rugged x-ray system that provides high-quality x-ray images at an affordable price. The Phantom can retract into a small, self-contained package that can be easily transported and set up in the most demanding environments. And it’s easy to maneuver and operate.

  • Page 29: Dimensions

    Phantom Installation, Operation & Service Manual 1.3 Dimensions 4.0” (10cm) Ti m e 12.5mA 50- 100 kVp 0. 01- 4 . 00 sec. REA DY RESET X-RA Y FA ULT HI GH FREQUENCY X- RAY SYSTEM WARNI NG: SAFE EXPOSURE FACTORS AND OPERATI S X- RAYUNI T MAY BE DAN T MAY BE DAN GER OUS T O PATI ENT AND OPERAT O R, UNLESS NG I NSTUCTIONS ARE OBSERVED.

  • Page 30: Specifications

    Phantom Installation, Operation & Service Manual 1.4 Specifications Specifications Voltage 104-126VAC/208 - 253 VAC Line Voltage Regulation 5% maximum at maximum output Current 30 Amps Maximum Momentary @ 115VAC Requires 30 amp or greater dedicated breaker or line fuse. 18 Amps Maximum Momentary @ 230VAC Requires 18 amp or greater dedicated breaker or line fuse.

  • Page 31: Abbreviations

    Phantom Installation, Operation & Service Manual 1.5 Abbreviations Percent British Thermal Unit ° C Degree Celsius Centimeter ° F Degree Fahrenheit Gauge Hecto Pascal inHg Inches Mercury Kilogram Pound Meter max. Maximum min. Minimum Millimeter Underwriters Laboratories Abbreviations...

  • Page 32: Accuracy Statements

    Phantom Installation, Operation & Service Manual 1.6 Accuracy Statements Kilovoltage will not deviate from the selected value by more than +/- 5% Measurements made with a Keithley kVp Divider model 35080A and a Keithley Dosimeter model 35050A at 0.1 seconds. mAs will not deviate from the selected value more than +/- 10% or .5 mAs which ever is greater within a range of .125 - 50 mAs.

  • Page 33: Chapter 2 - Installation

    Installation 2.1 Assembly Instructions Tools Required: • Claw Hammer • Diagonal Cutters • Medium Flat-Tip Screwdriver Cut and remove shipping straps (1 in Figure 2-1). Remove box cover (2). Remove nails (3) from side of shipping box with claw hammer. (3 x 16) Figure 2-1.
  • Page 34 Phantom Installation, Operation & Service Manual Cut strap (1 in Figure 2-2) and remove accessories box (2). Remove shipping braces (3). Figure 2-2. Shipping Box - Open Open and empty accessories box. Figure 2-3 shows proper contents of box. Figure 2-3. Accessory Box Contents Assembly Instructions...
  • Page 35 Phantom Installation, Operation & Service Manual Remove shipping plastic from rear wheels (1 in Figure 2-4), front wheels (2), handle bars (3) and X-ray head (4). Disengage wheel brakes (5) by turning red knobs inward. Figure 2-4. Phantom on Pallet Lift unit off of its shipping skid and place it on floor as shown below Pull out retraction pin (1 in Figure 2-5).
  • Page 36 Phantom Installation, Operation & Service Manual Tilt front leg assembly (1 in Figure 2-6) to its vertical position and lock in place by reinserting pin (2). Lift up on handle bar (3) to tilt unit into its upright position as shown in Figure 2-7.
  • Page 37 Phantom Installation, Operation & Service Manual SLide release lever (1 in Figure 2-7) forward and tilt tube arm assembly (2) into an approximate horizontal position as shown in Figure 2-7. 2 (x7) Figure 2-7. Release Lever on Tube Arm Figure 2-8. Tube Arm - Horizontal Position Assembly Instructions...
  • Page 38 Phantom Installation, Operation & Service Manual Tilt X-ray assembly (1 in Figure 2-9) down. Figure 2-9. X-Ray Head Assembly Align four pins (1 in Figure 2-10)on control console with holes (2) on frame. Then tap console into place with the ball of your hand as shown in Figure 2-11.
  • Page 39 Phantom Installation, Operation & Service Manual Figure 2-11. Control Console Mounting Caution Be very gentle in the next step. The clamps are very fragile and break easily. Very gently insert screwdriver into each clamp hole (1 in Figure 2-12) and gently open each clamp. Figure 2-12.
  • Page 40 Phantom Installation, Operation & Service Manual Connect interconnect cable (1 in Figure 2-13). Female end to X-ray head (2) and male end to control console (3). Figure 2-13. Interconnect Cable Connections Insert cable into clamps (1 in Figure 2-14) and close clamps. Figure 2-14.
  • Page 41 Phantom Installation, Operation & Service Manual Insert handswitch cable (1 Figure 2-15) into control console and place handswitch (2) into its holder. Figure 2-15. Handswitch Connection Remove power cable (1 in Figure 2-16) from its hook and unwrap it. Figure 2-16. Power Cord Assembly Instructions...
  • Page 42 Phantom Installation, Operation & Service Manual Connect power cord (1 in Figure 2-17) to control console. Figure 2-17. Power Cord Hookup Installation is Complete 2-10 Assembly Instructions...

  • Page 43: Chapter 3 - Operation

    Operation 3.1 Safety Precautions Warning X-rays generate a potential risk for both patients and operators. For this reason, the application of X-rays for a given medical purpose must aim at the minimization of radiation exposure to any persons. Those persons responsible for the application must have the specific knowledge according to legal requirements and regulations and must establish safe exposure procedures for this kind of system.

  • Page 44: Operation Specifications

    Phantom Installation, Operation & Service Manual 3.2 Operation Specifications Specifications Voltage 104-126VAC/208 - 253 VAC Line Voltage Regulation 5% maximum at maximum output Current 30 Amps Maximum Momentary @ 115VAC Requires 30 amp or greater dedicated breaker or line fuse. 18 Amps Maximum Momentary @ 230VAC Requires 18 amp or greater dedicated breaker or line fuse.

  • Page 45: Controls

    Phantom Installation, Operation & Service Manual 3.3 Controls This section describes the controls of the Phantom x-ray system. 3.3.1 Main Control Panel Figure 3-1 below shows the main control panel of the Phantom X-ray system. The paragraphs that follow describe each control. Figure 3-1.

  • Page 46: Miscellaneous Controls

    Phantom Installation, Operation & Service Manual 3.3.2 Miscellaneous Controls Figure 3-2 below shows the miscellaneous controls of the Phantom X-ray system. The paragraphs that follow describe each control. X-Ray Head Tube Arm Locking Cylinder Front Leg Assembly Figure 3-2. Miscellaneous Controls Prep/ Exposure - This two-position switch controls x-ray output.
  • Page 47 Phantom Installation, Operation & Service Manual Lev-O-Gage - This gage indicates the angular position of the X-Ray head. Release Lever - This device locks and unlocks the tube arm and allows the X-ray head to be moved up or down. The tube arm is connected to a locking cylinder that acts as a counterweight to the 39lb x-ray head and allows the head to be moved with the touch of...

  • Page 48: Collimator Controls

    Phantom Installation, Operation & Service Manual 3.3.3 Collimator Controls Figure 3-3 below shows the collimator controls of the Phantom X-ray system. The paragraphs that follow describe each control. Figure 3-3. Collimator Controls Lamp Button - Pressing this button will turn the collimator lamp on. The lamp turns itself off automatically after about thirty seconds.

  • Page 49: Operating Instructions

    Phantom Installation, Operation & Service Manual 3.4 Operating Instructions Warning Make sure that you are familiar with the safety issues listed in Prelude I “Safety” of this manual before attempting to operate the Phantom for the first time. You may get seriously injured if you do not.
  • Page 50 Phantom Installation, Operation & Service Manual If not already done so, disengage wheel brakes (1 in Figure 3-5). Figure 3-5. Wheel Brakes Roll the unit over to the patient area. If necessary, plug power cord in (1 in Figure 3-7). Caution Make sure that power cord is plugged into dedicated power line (no other devices are connected to power line.
  • Page 51 Phantom Installation, Operation & Service Manual Turn power switch (2) on. The control panel lights up as shown in Figure 3-6. Figure 3-6. Control panel at start-up. Place cassette under patient. Slide the tube arm release lever (3) forward. This will allow the x-ray head to move up and down.
  • Page 52 Phantom Installation, Operation & Service Manual When head is adjusted properly, close tube arm lock and reengage brakes. X-Ray Head Figure 3-7. Positioning X-Ray Head Figure 3-8. SID Tape Measure Using the Technique Chart in Section 3.5 as a guide, set the desired kVp by pressing buttons (1 in Figure 3-9) until desired setting appears in display (2).
  • Page 53 Phantom Installation, Operation & Service Manual Set the desired time us by pressing buttons (3) until desired setting appears in display (4). The computed mAs will appear in display (5) Wait for the Ready Light (6) to light up. In some cases, as when the unit is first turned on, this may take a couple of minutes.

  • Page 54: Technique Chart

    Phantom Installation, Operation & Service Manual 3.5 Technique Chart Film Screen: Kodak OG Film: Lanex Regular Screen (400 Speed) 40” SID Examination Thickness Grid Hand 2-4 cm 5-7 cm Wrist 2-4 cm 5-7cm Forearm (AP) 2-4 cm 5-7 cm 8-10 cm Forearm (LAT) 4-6 cm 7-9 cm...
  • Page 55 Phantom Installation, Operation & Service Manual Examination Thickness Grid Pelvis/Hip 12-14 cm 20-22 cm 26-28 cm Chest (AP) 12-16 cm 22-24 cm 30-34 cm Chest (LAT) 32-36 cm 36-40 cm Abdomen 8-12 cm 18-22 cm 28-32 cm Technique Chart 3-13...

  • Page 56: Unfolding Phantom

    Phantom Installation, Operation & Service Manual 3.6 Unfolding Phantom Unfold the Phantom as follows: Pull pin (1 in Figure 3-10) out. Figure 3-10. Reinserting Pin Tilt front leg assembly (1 in Figure 3-11) all the way up. Figure 3-11. Tilting Front Leg Assembly Back 3-14 Unfolding Phantom...
  • Page 57 Phantom Installation, Operation & Service Manual Reinsert pin (1 in Figure 3-12). Figure 3-12. Inserting Pin Unfolding Phantom 3-15...
  • Page 58 Phantom Installation, Operation & Service Manual Tilt unit up as shown below. Place your foot on the tab on the bottom of the frame to stabilize unit. Figure 3-13. Tilting Unit Up 3-16 Unfolding Phantom...
  • Page 59 Phantom Installation, Operation & Service Manual Slide release lever (1 in Figure 3-14) forward and lift the tube arm (2) up so that it’s approximately horizontal as shown in Figure 3-15. Figure 3-14. Release lever Figure 3-15. Phantom fully unfolded Unfolding Phantom 3-17...
  • Page 60 Phantom Installation, Operation & Service Manual Turn X-ray head (1 in Figure 3-16) so that it points down. Figure 3-16. X-Ray Head Procedure Complete 3-18 Unfolding Phantom...

  • Page 61: Folding Phantom

    Phantom Installation, Operation & Service Manual 3.7 Folding Phantom The Phantom can be folded into a smaller profile for storage or transport. Fold the Phantom as follows: Turn X-ray head (1 in Figure 3-17) to its 180° position. Slide the tube arm lever (2) forward and push tube arm (3) all the way down as shown in Figure 3-18.
  • Page 62 Phantom Installation, Operation & Service Manual Caution Make sure that cable does not get pinched between ram and frame when turning tube arm down or cable may get damaged. Not OK Figure 3-19. Good and Bad Cable Positioning 3-20 Folding Phantom...
  • Page 63 Phantom Installation, Operation & Service Manual Place your foot on the tab on the bottom of the frame and tilt the unit back and down as shown below. Figure 3-20. Tilting Unit Back and Down Folding Phantom 3-21...
  • Page 64 Phantom Installation, Operation & Service Manual Pull pin (1 in Figure 3-21) out. Figure 3-21. Release Pin Ring Press down on latch (1 in Figure 3-22) and tilt leg assembly (2) all the way down. Figure 3-22. Tilting Leg Assembly Back Reinsert pin (1 in Figure 3-23).
  • Page 65 Phantom Installation, Operation & Service Manual Figure 3-23. Reinserting Pin Folding Complete Folding Phantom 3-23...
  • Page 66 Phantom Installation, Operation & Service Manual 3-24 Folding Phantom...

  • Page 67: Periodic Maintenance Schedule

    Periodic Maintenance 4.1 Periodic Maintenance Schedule Refer to the schedule below for information on when to perform periodic maintenance on the Phantom. Note: Due to varying operating conditions, the procedures listed below may have to be performed at greater or lesser intervals. You may have to adjust intervals according to your unit’s performance.

  • Page 68: Cleaning External Surfaces

    Phantom Installation, Operation & Service Manual 4.2 Cleaning External Surfaces Tools Required: • cleaning wipes • non-abrasive, hospital-grade cleaner Use cleaning wipes and non-abrasive, hospital-grade cleaner to clean external surfaces of the Phantom. Warning This equipment is NOT classified as anaesthetic-proof and may ignite flammable anesthetics.

  • Page 69: Check Fasteners For Tightness

    Phantom Installation, Operation & Service Manual 4.3 Check fasteners for tightness Tools Required: • medium flat screw driver • phillips screw driver • set of open-end wrenches • set of hex keys Check all exposed fasteners and hardware for tightness and tighten accordingly.

  • Page 70: Check Collimator Tightness

    Phantom Installation, Operation & Service Manual 4.4 Check collimator tightness Tools Required: • n/a Check that collimator is tight mounted to the tube. Should the collimator be loose, refer to“X-ray to light field alignment” on page 5-8 to re-align and tighten the collimator. Check collimator tightness...

  • Page 71: Check Interconnect Cables

    Phantom Installation, Operation & Service Manual 4.5 Check interconnect cables Tools Required: • n/a Check all interconnect cables for broken or frayed wires. Replace any broken or frayed wires. Check interconnect cables...

  • Page 72: Check Tube Head Rotation (Friction Lock)

    Phantom Installation, Operation & Service Manual 4.6 Check tube head rotation (friction lock) Tools Required: • 5/16” Allen Wrench Warning Ensure that the both wheels are securely locked before beginning this inspection. Check that the tube head rotation (friction lock) is properly adjusted, proceed as follows: Check to ensure that there is no gap (1 in Figure 4-1) between the tube head arm (2) and the friction pad (3) and that the bolt is flush (4).
  • Page 73 Phantom Installation, Operation & Service Manual When the gap and bolts is ok, check the tube head rotation as follows. With the boom arm in the up position, put the 5/16” Allen wrench into shoulder bolt (#383121), noting location of the Allen wrench (1 in Figure 4-4).
  • Page 74 Phantom Installation, Operation & Service Manual Check tube head rotation (friction lock)

  • Page 75: Chapter 5 - Calibration And Adjustments

    Calibration and Adjustments 5.1 Introduction This chapter provides calibration and adjustment procedures for the Phantom. Introduction...

  • Page 76: Calibration

    Phantom Installation, Operation & Service Manual 5.2 Calibration The calibration procedure for the Phantom requires many special tools and fixtures and should be done by Del Medical trained technicians only. Tools required • dual channel oscilloscope • mAs meter (Keithely model 35035) •...

  • Page 77: Equipment Setup

    Phantom Installation, Operation & Service Manual 5.2.1 Equipment setup Connect the mAs (Keithely model 35035) meter to the phone jack (J4), located in the bottom plate of the X-ray tube head. Load the kVp divider (Keithely model 35080A) with the 50 = 135 kVp filter pack #37946 and place it in the X-ray field, being careful to collimate down to the size of the filter pack.

  • Page 78: Kvp Waveform

    Phantom Installation, Operation & Service Manual 5.2.3 kVp waveform If the kVp leading starts low and slopes upward toward the desired kV value, then reset the switches as shown about four rows downward on Table 5-3 (about row 22). If the kVp leading edge is still starting low and sloping, reset the switches about four more rows downward (about row 26) and re-test.
  • Page 79 Phantom Installation, Operation & Service Manual Selectable cap Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 values 0.270uF 0.285uF 0.303uF 0.318uF 0.338uF 0.353uF 0.371uF 0.386uF 0.397uF 0.412uF 0.430uF 0.445uF 0.465uF 0.480uF 0.498uF 0.513uF 0.560uF 0.575uF 0.593uF 0.608uF 0.628uF 0.643uF...

  • Page 80: Beam Current (Ma)

    Phantom Installation, Operation & Service Manual Selectable cap Switch 1 Switch 2 Switch 3 Switch 4 Switch 5 Switch 6 values 0.788uF 0.803uF 0.830uF 0.845uF 0.863uF 0.878uF 0.898uF 0.913uF 0.931uF 0.946uF 0.957uF 0.972uF 0.990uF 1.005uF 1.025uF 10.040uF 1.058uF 1.073uF Table 5-3: Binary Capacitor Chart X = Switch closed (On) 5.2.4 Beam current (mA) Set the kVp to 80 and the exposure time to 1.0 seconds.

  • Page 81: Tube Potential

    Phantom Installation, Operation & Service Manual Make another exposure and note the measured mA. Re-adjust if necessary and repeat step 4 If the filament pre-heat requires calibration and the leading edge of the waveform on channel 2 is low, add to the waveform by adjusting R12 (located on the High Voltage control PCB #500978) counter clockwise.

  • Page 82: Exposure Time

    Phantom Installation, Operation & Service Manual 5.2.6 Exposure time Remove the phone plug from the mA jack. Measure the time base of the kVp waveform at the 50% level. 5.2.7 X-ray to light field alignment Ensure that the collimator is level in both the front-to-back and the side-to-side directions.
  • Page 83 Phantom Installation, Operation & Service Manual collimator within 1% of SID. If required, adjust the collimator knobs to obtain the correct reading. Repeat steps for collimator positions, 90° left and 90° right. Note: When rotating the collimator, re-adjust coins as required to indicate the new light field position.

  • Page 84: Adjustments

    Phantom Installation, Operation & Service Manual 5.3 Adjustments Not applicable for this product. 5-10 Adjustments...

  • Page 85: Chapter 6 - Component Replacement

    Component Replacement 6.1 Introduction This chapter provides instructions for replacing many of the major assemblies on the Phantom. Introduction...

  • Page 86: Replacing Control Console

    Phantom Installation, Operation & Service Manual 6.2 Replacing Control Console Replace control console as follows: Tools Required: • None Unplug power supply cord from power outlet. Warning Unplug power supply cord before servicing Phantom. Also, do not perform any maintenance procedures on the unit for at least five minutes after the power cord has been unplugged.
  • Page 87 Phantom Installation, Operation & Service Manual Unplug power supply cord (1 in Figure 6-2) from control console (2). Figure 6-2. Power Cord Unplug hand switch cord (1 in Figure 6-3). Figure 6-3. Hand Switch Cord Replacing Control Console...
  • Page 88 Phantom Installation, Operation & Service Manual Jerk control console firmly backwards to disengage it from its spring- loaded mounting clamps. Reverse steps to reassemble. Figure 6-4. Control Console To access the inside of the control console, use a 1/4” wrench to unscrew the four screws (1 in Figure 6-5) that hold the back cover of the control console.

  • Page 89: Interconnect Cable Replacement

    Phantom Installation, Operation & Service Manual 6.3 Interconnect Cable Replacement Replace main cable as follows: Tools Required: • Medium Flat-Tip Screwdriver Unplug power supply cord from power outlet. Warning Unplug power supply cord before servicing Phantom. Also, do not perform any maintenance procedures on the unit for at least five minutes after the power cord has been unplugged.
  • Page 90 Phantom Installation, Operation & Service Manual Caution Be very gentle in the next step. The clamps are fragile. Very gently insert screwdriver into each clamp hole (1 in Figure 6-7) and gently open each clamp. Pull cable out (2) of clamps. Figure 6-7.
  • Page 91 Phantom Installation, Operation & Service Manual Disconnect the interconnect cable (1 in Figure 6-8) from X-ray head (2) and control console (3). Reverse steps to reassemble. Female end of cable to X-ray head (2) and male end to control console (3). Figure 6-8.

  • Page 92: X-Ray Head Replacement

    Phantom Installation, Operation & Service Manual 6.4 X-Ray Head Replacement Replace x-ray head as follows: Tools Required: • None Unplug power supply cord from power outlet. Warning Unplug power supply cord before servicing Phantom. Also, do not perform any maintenance procedures on the unit for at least five minutes after the power cord has been unplugged.
  • Page 93 Phantom Installation, Operation & Service Manual Slide release lever (1 in Figure 6-10) forward and position tube arm (2) in its horizontal position (or a little higher) as shown in Figure 6-10. Disconnect interconnect cable (3) from x-ray head (4). Figure 6-10.
  • Page 94 Phantom Installation, Operation & Service Manual While pressing down the leg assembly (1 in Figure 6-12) with your foot and wiggle the X-ray head sideways/back and forth/pressing it up with one hand, use the other hand to pull the pin (2) out. Figure 6-12.
  • Page 95 Phantom Installation, Operation & Service Manual Pull the X-ray head out of the tube arm. Caution The X-ray head is heavy - 39 lbs (17.7 kg). Use caution when removing it. Figure 6-13. X-Ray Head Removal Warning Never leave the Phantom unattended with the arm in horizontal position when the X-ray head is removed.
  • Page 96 Phantom Installation, Operation & Service Manual Reverse steps to reassemble. Make sure to insert the safety pin (1 in Figure 6-14) immediately after putting the new X-ray head in place. Figure 6-14. Replace and secure pin before lowering arm. 6-12 X-Ray Head Replacement...

  • Page 97: Locking Cylinder Replacement

    Phantom Installation, Operation & Service Manual 6.5 Locking Cylinder Replacement Replace locking cylinder as follows: Tools Required: • 3/16” Hex Wrench Unplug power supply cord from power outlet. Warning Unplug power supply cord before servicing Phantom. Also, do not perform any maintenance procedures on the unit for at least five minutes after the power cord has been unplugged.
  • Page 98 Phantom Installation, Operation & Service Manual Remove x-ray head according to Section “X-Ray Head Replacement” on page 6-8. Carefully set the tube arm to full upright position. Unscrew top screw (1 in Figure 6-16). Unscrew cylinder (2) from bottom bracket (3). Reverse steps to reassemble.

  • Page 99: Release Cable Replacement

    Phantom Installation, Operation & Service Manual 6.6 Release Cable Replacement Replace release cable as follows: Tools Required: • 3/16” Hex Wrench • Diagonal Cutters (Side Cutters) • Slip Joint Pliers (Channel Locks) • Snap Ring Pliers Unplug power supply cord from power outlet. Warning Unplug power supply cord before servicing Phantom.
  • Page 100 Phantom Installation, Operation & Service Manual Remove x-ray head according to Section “X-Ray Head Replacement” on page 6-8. Remove locking cylinder according to Section “Locking Cylinder Replacement” on page 6-13. Unscrew four cover screws (1 in Figure 6-18) and remove cover (2). 1 (x4) Figure 6-18.
  • Page 101 Phantom Installation, Operation & Service Manual Attache a feeder wire to the cable sheath. Cut cable (1 in Figure 6-20) and pull bracket (2) off of cable sheath (3). Discard bracket. Figure 6-20. Cable and Bracket Make sure the feeder wire is securely attached to the cable sheath. Unscrew two release lever screws (1 in Figure 6-21) and pull release lever (2) and cable assembly out of unit.
  • Page 102 Phantom Installation, Operation & Service Manual Attache the new cable to the feeder wire. Route the new cable through the tube arm and the frame in the direction of arrows shown below by pulling the feeder wire back. Secure release lever (1 in Figure 6-22) in place with two mounting screws (2).
  • Page 103 Phantom Installation, Operation & Service Manual Crimp bracket onto cable as shown below. Figure 6-23. Crimping Cable Insert cable sheath (1) into upper part of bracket (2). Figure 6-24. Cable and Bracket Release Cable Replacement 6-19...
  • Page 104 Phantom Installation, Operation & Service Manual Connect bracket (1 in Figure 6-25) to frame with pin (2) and retaining ring (3). Figure 6-25. Retaining Ring and Pin 6-20 Release Cable Replacement...
  • Page 105 Phantom Installation, Operation & Service Manual Screw locking cylinder (1 in Figure 6-26) all the way into the bracket (2). Connect upper end of locking cylinder with bolt (3). Reattach x-ray head by reversing steps in Section “X-Ray Head Replacement” on page 6-8. Figure 6-26.
  • Page 106 Phantom Installation, Operation & Service Manual 6-22 Release Cable Replacement...

  • Page 107: Chapter 7 - Troubleshooting

    Troubleshooting 7.1 Introduction This chapter is divided into three sections. The first section is a list of error messages that may appear on the Phantom’s display and how to remedy them. The second section is made up of an overall schematic of the Phantom and a group of photos that show the actual parts depicted on the schematic and their location on the table.

  • Page 108: Troubleshooting Index & Charts

    Phantom Installation, Operation & Service Manual 7.2 Troubleshooting Index & Charts If your machine malfunctions, it may display an error message number on its main display. Use the following error message index as an aid in solving your machine’s malfunction. Error Message No.

  • Page 109: Schematic Troubleshooting

    Phantom Installation, Operation & Service Manual 7.3 Schematic Troubleshooting The two first schematic diagrams in chapter 8 “Electrical Schematics” can be used to troubleshoot electrical problems with the Phantom. The schematics covers all of the electrical components in the Phantom. Figures 7-1 and 7-2 show actual photos of the components listed on the schematics.

  • Page 110: Main Control Console Layout

    Phantom Installation, Operation & Service Manual 7.3.1 Main Control Console Layout Microprocessor Board PC BD, Fuse Power Supply Board Spare Fuse Board Figure 7-1. Main Control Console Schematic Troubleshooting...

  • Page 111: Generator Layout

    Phantom Installation, Operation & Service Manual 7.3.2 Generator Layout H.V. Control Board 124-5063G1 PC BD, Fuse Capacitor Board Figure 7-2. Generator Layout Schematic Troubleshooting...

  • Page 112: Technical Theory Of Operation

    Phantom Installation, Operation & Service Manual 7.4 Technical Theory of Operation 7.4.1 System Overview The Phantom incorporates three major electrical sub-assemblies. The Generator Assembly consists of the high voltage circuitry, the x-ray tube and the collimator (further discussed in section 7.4.2). The Control Assembly houses all of the electronics, microprocessor, high frequency generating circuits and the front panel controls (further discussed in section 7.4.3).
  • Page 113 Phantom Installation, Operation & Service Manual the DC voltage back to high frequency AC to drive the high voltage transformer in the generator assembly (approx. 20 kHz). The X-ray regulator/Full bridge driver PCB (A1) takes commands from the microprocessor and converts them into high frequency signals to drive the full bridge.
  • Page 114 Phantom Installation, Operation & Service Manual 4, 3 and 6. This buss represents the calibration selection signals coming from the BCD switch on the filament control board. The filament regulator U1 receives an unregulated input voltage (approx. 24 VDC) from P5 pin 4 and provides a regulated voltage (approx. 15V) on P5 pin 6.

  • Page 115: Electrical Schematics

    Electrical Schematics 8.1 Electrical Schematics This chapter contains the electrical schematics for the Phantom. Drawing Number Drawing Description # Sheets Current Rev. 700271 Control Chassis Schematic 700272 High Frequency Generator Schematic 700258 High Voltage Tank Schematic 700269 Microprocessor Schematic 501018 Microprocessor PCB Assembly 700273 Control PCB Schematic...
  • Page 116 Phantom Installation, Operation & Service Manual Electrical Schematics...

  • Page 128: Chapter 9 - Illustrated Parts List

    Illustrated Parts List 9.1 Ordering Parts For your convenience, replacement parts and accessories can be ordered from Del Medical Systems by fax 24 hours a day. Please have the following information available to ensure quick, easy, and accurate service. • Your name and telephone number •...

  • Page 129: Commonly Ordered Parts (Collimator)

    The lists are divided into four columns. The item/index numbers refer to the identification number located on the drawing. The part number is the Del Medical part number, used to identify the part for ordering. The part description column lists each part name, and the quantity column lists the quantity of that part used in that particular assembly.

  • Page 130: Commonly Ordered Parts (Main Unit)

    Phantom Installation, Operation & Service Manual 9.4 Commonly Ordered Parts (Main Unit) Part Description Part number Modified Tape Measure 218001 Gage, Level 218003 Interconnect Cable Assembly 501043 Power Cord Assembly 501038 Hand Switch, Exposure Control 501022 Fuse, 1 Amp 203018 Pad, Friction 103088 Screw, Fillister Head...

  • Page 131: Overall Assembly (501031)

    Phantom Installation, Operation & Service Manual 9.5 Overall Assembly (501031) 7 & 8 Figure 9-1. Overall Assembly Overall Assembly (501031)
  • Page 132 Phantom Installation, Operation & Service Manual Fig ref. Part number Description 500946 Generator Assembly (See Section “Generator Assembly (500946)” on page 9-6 for breakdown of assem- bly) 218003 Gage, Level 218001 Modified Tape Measure 501043 Interconnect Cable Assembly 501038 Power Cord Assembly 500982 Portable Stand Assembly (See Section “Generator Chassis...

  • Page 133: Generator Assembly (500946)

    Phantom Installation, Operation & Service Manual 9.6 Generator Assembly (500946) 24-25 20-21 27 26 16-18 10-13 Figure 9-2. Generator Assembly Generator Assembly (500946)
  • Page 134 Phantom Installation, Operation & Service Manual Fig ref. Part number Description 415011 Tie wrap, Small 500977 Generator Chassis Assembly (See Section “Generator Chassis Assembly (500977)” on page 9-8 for breakdown of assembly) 203018 Fuse, 1 Amp 103075 Cover, Generator 103970 Band, Shroud 380553 Screw, Truss Head...

  • Page 135: Generator Chassis Assembly (500977)

    Phantom Installation, Operation & Service Manual 9.7 Generator Chassis Assembly (500977) 35-37 31 32 29-30 10 9 19-20 23 22 11-13 17-18 Figure 9-3. Generator Chassis Assembly Generator Chassis Assembly (500977)
  • Page 136 Phantom Installation, Operation & Service Manual Fig ref. Part number Description 500979 Capacitor PCB Assembly 380514 Screw, 6-32 X 3/8” Pan Head 380502 Washer, #6 Splick Lock 103105 Generator Chassis 315015 IGBT, Half Bridge 383085 Nut, 8-32 Hex 381001 Washer, #8 Flat 381002 Washer, #8 Split Lock 340001...

  • Page 137: Portable Stand Assembly (500982)

    Phantom Installation, Operation & Service Manual 9.8 Portable Stand Assembly (500982) 6 & 55 42 44 Figure 9-4. Portable Stand Assembly 9-10 Portable Stand Assembly (500982)
  • Page 138 Phantom Installation, Operation & Service Manual Fig ref. Part number Description 380556 Screw, 6-32 X 1/4” Truss Head 103125 Pivot Cover 103135 Boom Arm Pivot 382027 Screw, 1/4”-20 X 9/16” Socket Head Cap Screw 103299 Control Bracket 380514 Screw, 6-32 X 3/8” Pan Head 219028 Retaining Ring 219027...
  • Page 139 Phantom Installation, Operation & Service Manual Fig ref. Part number Description 103424 Bumper 216002 Bushing, Flanged 381576 Screw, 10-32 X 1/2” Flat Head 102086 Shaft Retainer 382064 Nut, Locking 216018 Bushing, Flange 213010 Spring, Extension 500980 Leg Assembly, Front (See Section “Front Leg Assembly (500980)”...

  • Page 140: Front Leg Assembly (500980)

    Phantom Installation, Operation & Service Manual 9.9 Front Leg Assembly (500980) Figure 9-5. Front Leg Assembly Fig ref. Part number Description 216054 Bushing 102021 Hinge, Right Hand 102018 Hinge, Left Hand 382004 Screw, 1/4”-20 X 5/8” Flat Socket Head 383612 Pin, Lock 381006 Screw, 8-32 X 3/8 Pan Head...

  • Page 141: Tube Arm Assembly (500981)

    Phantom Installation, Operation & Service Manual 9.10 Tube Arm Assembly (500981) Figure 9-6. Tube Arm Assembly 9-14 Tube Arm Assembly (500981)
  • Page 142 Phantom Installation, Operation & Service Manual Fig ref. Part number Description 104594 Cap, End 214032 Plug, Hole 382028 Screw, 1/4” X 5/8” Socket Head 382002 Washer, 1/4” Split Lock 104638 Arm, Tube 101607 Axle, Arm 381067 Screw, 8-32 X 5/8 Flat Socket Head 380515 Screw, 6-32 X 5/8”...

  • Page 143: Control Assembly (501020)

    Phantom Installation, Operation & Service Manual 9.11 Control Assembly (501020) 25-26 20-21 5 or 6 12-13 Figure 9-7. Control Assembly 9-16 Control Assembly (501020)
  • Page 144 Phantom Installation, Operation & Service Manual Fig ref. Part number Description 103470 Thermal Barrier 103524 Case, Control 380501 Washer, #6 Flat 218055 Stud, Ball Label (115V) Label, (230V) 203018 Fuse, Time Lag, (1A) 250V 203019 Fuse, Time Lag, (2A) 250V 380510 Screw, 6-32 X 1/4”...

  • Page 145: Control Chassis Assembly (501203)

    Phantom Installation, Operation & Service Manual 9.12 Control Chassis Assembly (501203) 31-32 27-28 10-12 25-26 23-24 17-20 15-16 Figure 9-8. Control Chassis Assembly 9-18 Control Chassis Assembly (501203)
  • Page 146 Phantom Installation, Operation & Service Manual Fig ref. Part number Description 381001 Washer, Flat #8 381002 Washer, Lock #8 383085 Nut, Lock 8-32 360580 Transformer Assembly 380002 Washer, Lock #4 Split 380023 Nut, Hex 4-40 103288 Holder, Jack 380001 Washer, Flat Not Used 380000 Nut, Hex 4-40...
  • Page 147 Phantom Installation, Operation & Service Manual 9-20 Control Chassis Assembly (501203)

  • Page 148: Notes

    Phantom Installation, Operation & Service Manual Notes...
  • Page 149 Phantom Installation, Operation & Service Manual Notes...
  • Page 150 Phantom Installation, Operation & Service Manual Notes...
  • Page 151 Phantom Installation, Operation & Service Manual Notes...

Table of Contents
