Thank you for your purchase of a SolarSpectrum H-alpha-filter with matching telecentric
system. The various SolarSpectrum-filter only differ in the filter size and their control unit,
so we describe them altogether in this manual.
This manual also describes the various telecentric systems which are used to match the
filter to different telescopes
For best results, we recommend that you spend a few minutes reading this manual befo-
re using the filters and telecentric systems.
– EN ver. 07/2023 –
BAADER PLANETARIUM
Zur Sternwarte 4 • D-82291 Mammendorf • Tel. +49 (0) 8145 / 8089-0 • Fax +49 (0) 8145 / 8089-105
www.baader-planetarium.com • kontakt@baader-planetarium.de • www.celestron.de

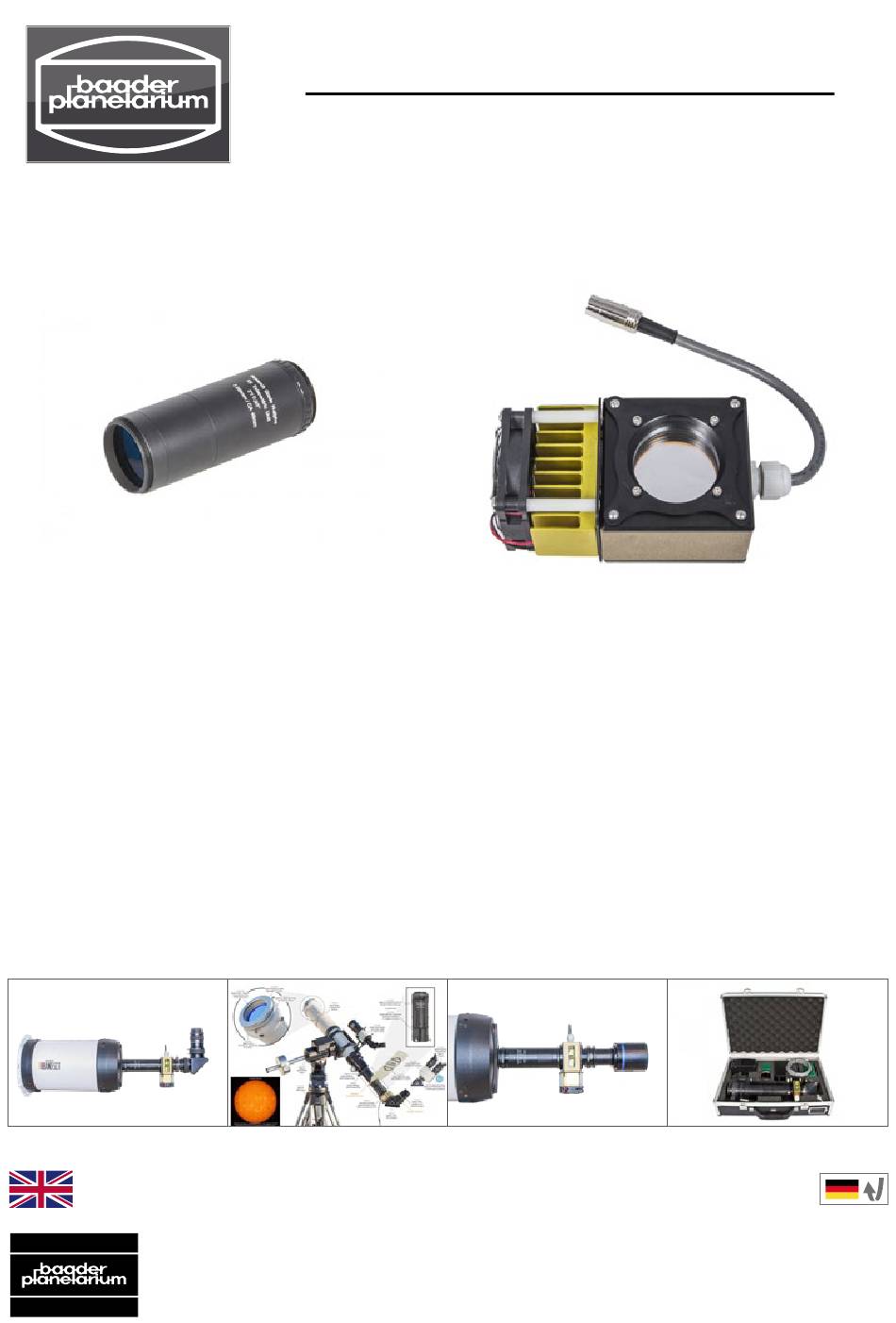

SolarSpectrum H-alpha-Filter
Baader Planetarium
Telecentric Systems
Manual
and Application Tipps
G
M
B
H
Advertisement
Table of Contents
Related Manuals for Baader Planetarium SolarSpectrum RG18
Summary of Contents for Baader Planetarium SolarSpectrum RG18
- Page 1 SolarSpectrum H-alpha-Filter Baader Planetarium Telecentric Systems Manual and Application Tipps Thank you for your purchase of a SolarSpectrum H-alpha-filter with matching telecentric system. The various SolarSpectrum-filter only differ in the filter size and their control unit, so we describe them altogether in this manual.
-
Page 2: Table Of Contents
Tips for Observing the Sun . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems... -
Page 3: Quick Start
7. Point the telescope at the sun and wait, until the filter has reached its operating temperature. Wait a couple of minutes, until the whole filter is on the same tempe- rature 8. Have fun! Sample configuration of a SolarSpectrum H-alpha-filter © 2023 Baader Planetarium GmbH... -
Page 4: The Solarspectrum Filters
• 1x 2"a to T-2a Adapter # 1508035 (# 2904000, • 2x T-2 T-2 Dust caps 2904010) • Power supply: 12V/5A, 5,5 mm / 2,1 mm plug, tip positive • Requires a D-ERF front filter Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems... -
Page 5: Solar Spectrum Research Grade Rg18 - 18 Mm Clear Aperture, 0,30Å
# 2958242 • 1x 2"a to T-2a Adapter # 1508035 (# 2904000, • 2x T-2 T-2 Dust caps 2904010) • Power supply: 12V/5A, 5,5 mm / 2,1 mm plug, tip positive • Requires a D-ERF front filter © 2023 Baader Planetarium GmbH... -
Page 6: Solar Spectrum Research Grade Rg46 - 46 Mm Clear Aperture, 0,3-0,65Å
• Power supply: 12V/3A, 5,5 mm / 2,1 mm plug, tip positive The SunDancer II by Baader Planetarium uses an Etalon by Solar Spectrum. It is only available as a complete set with the SunDancer II 3x Telecentric (TZ-3S) and an integrated blocking filter. -
Page 7: Scope Of Delivery
Please note: Do not reverse the polarity of the power supply. If possible, use the po- wer supply unit supplied or cables with reverse polarity protection. Damage caused by reversed polarity is not covered by the warranty. © 2023 Baader Planetarium GmbH... -
Page 8: Choosing An Energy Rejection Filter
Tip: Our TriBand telescopes are based on Schmidt-Cassegrain telescopes with aper- tures of 8", 9¼" and 11". These telescopes do not need an additional energy protec- tion filter, it is already integrated in the coating of the Schmidt plate. Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems... -
Page 9: The Telecentric System And Suitable Telescopes
Teleskopsystemen (Newton) steht bauartbedingt der erforderliche Fokussierweg zum Anschluss deren Teleskopsystemen (Newton) steht bauartbedingt der erforderliche Fokussierweg zum Anschluss © 2023 Baader Planetarium GmbH des Zubehˆrs zur H- Beobachtung nicht zur Verf¸gung. des Zubehˆrs zur H- Beobachtung nicht zur Verf¸gung. -
Page 10: The Telecentric Systems
TZ-4S # 1363080 achromatic systems that can also be The clear aperture of the SunDancer TZ-3S # 1363070 (27,5 mm, left) and TZ-4S # 1363080 (36 mm, right) used as barlow lenses. Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems... -
Page 11: 2" Research Grade Tz-3 Telecentric System
• Primarily calculated and produced for H-alpha at 656,3 nm, delivering maximum Strehl (definition brightness) • Working distance to camera sensor: 230 mm • The original focus point of the telescope is ~93 mm behind the end of the telecentric system © 2023 Baader Planetarium GmbH... -
Page 12: Sundancer Ii Telecentric System Tz-3S
SunDancer II H-alpha filter. The 37 mm aperture also allows use with larger H-alpha filters with additional blocking/energy rejecting filter. Focal plain of your eyepiece Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems or camera Reference original focal... -
Page 13: Additional Optical Accessories
0.7-0.8 mm, the image quality suffers, which is due to both the deep red wavelength used and the optimisation of most optics to the green wave- length range in the middle of the spectrum. © 2023 Baader Planetarium GmbH... -
Page 14: Reducer
Therefore, only use mirrors that use silver or aluminium as the mirror material. You can use both 1¼" and 2" star diagonals. The installation is always done behind the SolarSpectrum H-alpha filter. Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems... -
Page 15: Getting Started
Tele-Kompendium. The large diameter of the M68-system carries even heavy loads without twisting. Especially for the longer telecentric systems, we recommend a screw connection to the telescope to avoid tilting. M68 Tele-Kompendium # 2459258 with telezentric system TZ-4 # 2459258 © 2023 Baader Planetarium GmbH... -
Page 16: Example Adaptations
The solar shade places the eyepiece into the shadow, which makes a better cont- rast possible when looking in the eyepiece. The VarioFinder can be equipped with the 65 mm AstroSolar Spotting Scope Filter (ASSF) # 2459336 as conveniant solar finder. Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems... -
Page 17: Example Configuration For Solarspectrum H-Alpha-Filter - Visual Use, M48-System
When using the eyepiece clamp , the quick changer can be replaced with M48 extensions, or vice versa. Instead of using , the nosepieces of our 2" star diagonals can also be screwed directly onto a M48 extension tube. © 2023 Baader Planetarium GmbH... -
Page 18: Example Configuration For Solarspectrum H-Alpha-Filter - Visual Use, T-2-System
36 mm Hyperion Aspheric 2" eyepiece – can be used as 2"-eyepiece as well as 1¼"-eyepiece Please note: The perfect working distance of the TZ-3 is 250±10 mm, but in practice the system is very good-natured. Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems... -
Page 19: Example Configuration For Solarspectrum H-Alpha-Filter - Bino-Viewer
MaxBright II or # 2456410 Mark V Großfeld (Giant)- Binocular, to be used without glasspath corrector In this configuration, the generous working distance of the TZ-3 shines, and you can observe the sun with both eyes. © 2023 Baader Planetarium GmbH... -
Page 20: Example Configuration For Solarspectrum H-Alpha-Filter - For Photography Without Reducer
Please note: You can also integrate a camera tilter or an ADC into the stack of T-2-extensions to avoid Newtonian rings in your images. Cameras with M48-thread can be adapted with a T-2-adapter or using the M48-system as described on page 17. Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems... -
Page 21: Example Configuration For Solarspectrum H-Alpha-Filter - For Photography With A Reducer
Please note the adjacent dia- gram for the correct orientation of the reducer. # 2958244 Baader Reducing Ring 2"i / T-2a, with 1.5 mm optical length T-2-extension(s) to set the wor- king distance for your camera Monochrome camera © 2023 Baader Planetarium GmbH... -
Page 22: Example Configuration For Sundancer Tz3-S, Tz4-S And Sundancer Ii H-Alpha-Filter
SunDancer II H-alpha-filter with bino-viewer TZ-4S zu verwenden (links), muss der silbern and star diagonal in front of the filter schimmernde Blockfilter aus der roten TZ-3S (rechts) in die TZ-4S umgebaut werden . Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems... -
Page 23: Example Configuration For Baader Flipmirror Ii
250 mm, here we recommend additi- onally two pieces # 1508153 Baader T-2 / 40 mm Extension Tube. The Flip Mirror II behind a Baader SunDancer II (above) and a SolarSpectrum Filter (below, without the additional 40 mm T-2-extensions). © 2023 Baader Planetarium GmbH... - Page 24 H-alpha line; decreasing it shifts it to the blue wing At the control box with one display, the display shows the difference to the operating temperature. On the left during heating up, on the right after reaching the target temperature. Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems...
- Page 25 We recommend the following filters: • Single Polarizing Filter: 1¼" 2408343; 2" # 2408342 • Neutral Density Filter ND 0,6 (T=25%): 1¼": 2458343; 2": # 2458321 • Neutral Density Filter ND 0,9 (T=12,5%): 1¼": 2458344; 2": # 2458322 © 2023 Baader Planetarium GmbH...
- Page 26 After about 30 to 60 seconds (depending on the filter diameter) it will be back to the desired wavelength. Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems...
- Page 27 In case of tilting, first check whether your focuser tube is correctly adjusted or whe- ther it has play and gives way under load. Simple clamping screws on the focuser or star diagonal can also cause tilting. © 2023 Baader Planetarium GmbH...
-
Page 28: Determining The Perfect Distances
Baul‰nge von 55 mm (me- nge 60 mm) hat. Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems ecke" kann mit Teilen aus dem Astro T-2 System aufgebaut werden, wie z.B. die... -
Page 29: Cleaning And Maintenance
Blow on the lens at a shallow angle for a few seconds. For further removal of stuck dirt, use Optical Wonder Fluid from Baader Planetarium and a soft cloth (Kleenex (!) – no other brand!) to remove any remaining residue. -
Page 30: Tips For Observing The Sun
Sometimes they only appear when observing with (or without) a reducer. There are two ways to eliminate them: Newtonian ringe are caused by interferences in a monochrome camera (here: ZWO ASI120MM). Manual: SolarSpectrum H-alpha-Filter and Baader Planetarium Telecentric Systems... - Page 31 You can connect a guiding camera via the VarioFinder with a suitab- le solar filter (see p. 19). Software such as Sharpcap offers the option of "feature tracking" to also track sunspots. • Take flats to compensate for dirt on the sensor or on the telescope. © 2023 Baader Planetarium GmbH...
- Page 32 .com © 2023 Baader Planetarium GmbH. All Rights reserved. Products or instructions may change without notice or ob- ligation. Images and illustrations may differ from the original products. We reserve the right of errors. Reproduction of this instruction manual, complete or in parts, only with written permission by BAADER PLANETARIUM Zur Sternwarte 4 •...
