Beko BCSD173 Manual

Beko BCSD173 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
food storage instructions
BCSD173

Advertisement

Table of Contents
loading

Related Manuals for Beko BCSD173

Summary of Contents for Beko BCSD173

  • Page 1 BCSD173...
  • Page 3 Please read this manual first! Dear Customer, We hope that your product, which has been produced in modern factories and checked under the most meticulous quality control procedures, will provide you with years of good service. For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future reference.

  • Page 4: Table Of Contents

    CONTENTS 1 Your refrigerator 4 Before operating Final Check ........20 2 Warnings 5 Using your refrigerator 21 Electrical requirements ....... 6 TEMPERATURE CONTROL AND Warning! This appliance must be ADJUSTMENT ......... 21 earthed ..........6 SUGGESTED ARRANGEMENT OF Energy saving tips ......7 FOOD IN THE FRIDGE/FREEZER ..

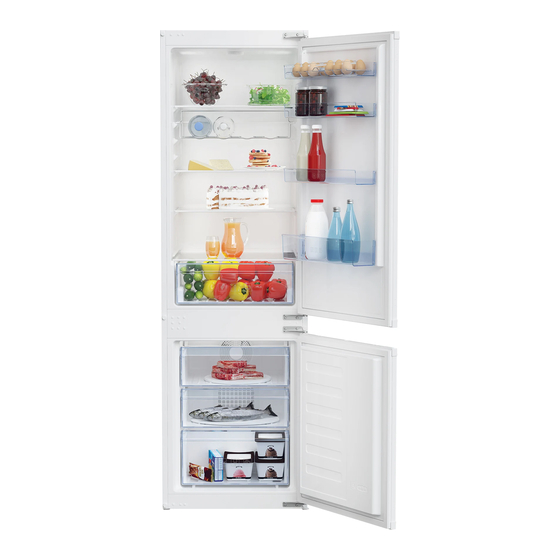

  • Page 5: Your Refrigerator

    Your refrigerator 1. Fridge compartment door 7. Adjustable body shelves shelves 8. Wine rack 2. Egg holders 9. Interior Light 3. Bottle Shelf 10. Thermostat knob 4. Deep-freeze compartment 11. Fridge compartment 5. Crisper 12. Freezer compartment 6. Defrost Water Collection Channel C Figures that take place in this instruction manual are schematic and may not correspond exactly with your product.

  • Page 6: Warnings

    • Do not dispose of the appliance structure, clear of obstruction. on a fire. At BEKO, the care and • Do not use mechanical devices protection of our environment is an or other means to accelerate the ongoing commitment.

  • Page 7: Electrical Requirements

    With alternative plugs a 13 A fuse must from a BEKO authorised service be fitted either in the plug or adaptor agent. or in the main fuse box. If in doubt Warning! This appliance contact a qualified electrician.

  • Page 8: Energy Saving Tips

    Energy saving tips product with normal domestic and 1. Ensure your appliance is installed in a other wastes at the end of its service life. Take it to the collection center for well ventilated area. 2. Ensure the time between buying the recycling of electrical and electronic equipment.

  • Page 9: Installation

    Installation system may also give rise to noise, Please remember that the even if the compressor is not running manufacturer shall not be held liable if and this is quite normal. the information given in the instruction 5.Front edges of the refrigerator may feel manual is not observed.

  • Page 10: Disposing Of Your Old Refrigerator

    Disposing of your old refrigerator Dispose of your old refrigerator without giving any harm to the environment. •You may consult your authorised dealer or waste collection center of your municipality about the disposal of your refrigerator. Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children...

  • Page 11: Transportation Instructions

    Do not allow children to play with the The manufacturer will not be held appliance or tamper with the controls. responsible if these instructions are BEKO declines to accept any liability disregarded. should the instructions not be 4. The appliance must be protected followed.

  • Page 12: Installation Instructions

    INSTALLATION INSTRUCTIONS 1. The space in the room where the appliance is installed must not be smaller than 10 cubic metres. 2. Do not place the appliance near cookers, radiators or in direct sunlight as this will cause your appliance to work harder.

  • Page 13: Replacing The Interior Light Bulb

    REPLACING THE INTERIOR LIGHT BULB To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService. The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

  • Page 14: Reversing Thedoors

    REVERSING THEDOORS Top Door 1.Unscrew top hinge (1). 2.Carefully remove the top door.(2) 3.Unscrew lower hinge (3) 4.Remove plastic plugs (7 & 8). 5.Refit top hinge (1) as lower hinge (17) on the left hand side. 6.Replace top door (18) 7.Refit lower hinge (3) as top hinge (19) on the left hand side.
  • Page 15 Reversing the doors Proceed in numerical order .
  • Page 16 No wooden Backwall Adjusting the legs (*optional) If your refrigerator is unbalanced: You can balance your refrigerator by turning the legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.
  • Page 18 Torx Wood Plastic Sheet Wood (PS) (1TW) view 42 mm ≤ 17 Note: Installation step for 2, screws for connecting top plastic part should not be screwed very hard, because of moving the plastic part easily left or right side.
  • Page 21 4 2 . (1TW)
  • Page 22 4 2 , (1TW) 4 2 , (1TW)
  • Page 23 2.0 mm 21 mm...
  • Page 24 2 mm 2 mm 2 mm...

  • Page 25: Before Operating

    Before operating Final Check 5. You will hear a noise as the Before you start using the fridge/ compressor starts up. The liquid and freezer check that: gases sealed within the refrigeration system may also give rise to noise, whether the compressor is running or 1.

  • Page 26: Using Your Refrigerator

    Using your refrigerator TEMPERATURE CONTROL AND ADJUSTMENT The interior temperature of your refrigerator changes for the following reasons: • Seasonal temperatures; • Frequent opening of the door and leaving the door open for long periods; • Food put into the refrigerator without cooling down to the room temperature;...

  • Page 27: Suggested Arrangement Of Food In The Fridge/Freezer

    SUGGESTED The following guidelines and ARRANGEMENT OF FOOD recommendations are suggested to IN THE FRIDGE/FREEZER obtain the best results and storage hygiene. 1. The fridge compartment is for the short term storage of fresh food and drinks. 2. The freezer compartment is rated and suitable for the freezing and storage of pre frozen food.

  • Page 28: Storing Frozen Food

    melons, cucumbers, tomatoes and If there is a power failure do not open similar produce in polythene bags. the door. Frozen food should not be affected if the failure lasts for less than 10. Place chilled cooked food and 13 hrs. If the failure is longer, then the similar food near the rear of the fridge food should be checked and either inner liner where the cold wall is...

  • Page 29: Making Ice Cubes

    MAKING ICE CUBES Fill the ice - cube tray 3/4 full with water and place it in the Ice Bank. Loosen frozen trays with the handle of a spoon, never use sharp edged objects such as knives, forks. Store ice-cubes in the Ice Bank. DEFROSTING B) FREEZER COMPARTMENT Defrosting is very easy and without mess...

  • Page 30: Maintenance And Cleaning

    Maintenance and cleaning ** We recommend that you switch ** Check door seals regularly to ensure off the appliance at the socket outlet they are clean and free from food and pull out the mains plug before particles. cleaning. ** Removal of door tray ** Never use any sharp abrasive •...

  • Page 31: Do's And Don'ts

    Do’s and Don’ts Do- Wrap all food in aluminium foil or Do- Clean your appliance regularly freezer quality polythene bags and (See “Cleaning and Care”) make sure any air is excluded. Do- Keep raw meat and poultry below Do- Wrap frozen food when you buy it cooked food and dairy products.
  • Page 32 PROBLEM SOLVING Don’t- Exceed the maximum freezing loads (4 kg in any 24 hours) when If the appliance does not operate when freezing fresh food. switched on, check whether: Don’t- Give children ice-cream and • The plug is inserted properly in the water ices direct from the freezer.
  • Page 33 • The cost of functional replacement parts, but excluding consumable items. • The labour costs of a Beko approved repairer to carry out the repair. What is not covered? • Transit, delivery or accidental damage or misuse and abuse.
  • Page 34 Otherwise please call the appropriate number above where service can be obtained at a charge. Should you experience any difficulty in obtaining service please contact the Beko Customer Help-Line. Tel: 0845 6004911 e-mail: service@beko.co.uk...
  • Page 36 Watford Hertfordshire 4578336303/AB...
