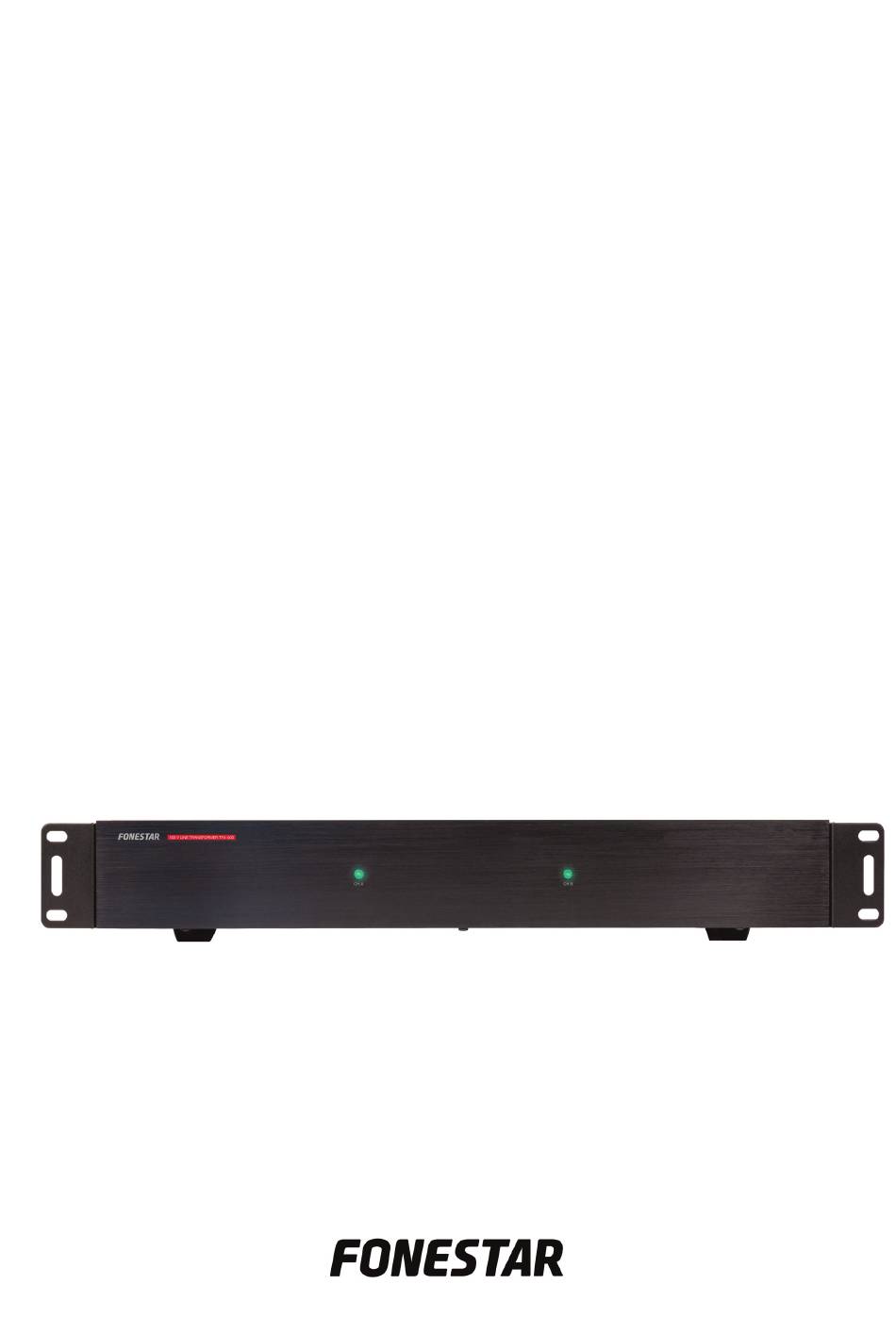

- Page 1 TFA-500 100 V LINE TRANSFORMER FOR AMPLIFIERS INSTRUCTION MANUAL...
- Page 2 DESCRIPTION The TFA-500 is a 100 V line transformer for amplifiers. It converts the amplifier or low impedance (4-8 Ω) stereo power amp output into a high impedance output for loudspeakers with 100 or 70 V line transformer. CONTROLS AND FUNCTIONS FRONT PANEL CH A/CH B: LEDs that light up when a signal is detected at input CH A or CH B respectively.
- Page 3 STEREO MODE In this mode, the two channels operate independently. That is, input CH A must go to output CH A, and input CH B must go to output CH B. Set the operating mode on the rear of the power amplifier to STEREO. Connect the 4-8 Ω...
- Page 4 TECHNICAL SPECIFICATIONS TFA-500 CHARACTERISTICS 100 V line transformer for amplifiers. Converts the amplifier or low impedance (4-8 Ω) stereo power amp output into a high impedance output for loudspeakers with 100 or 70 V line transformer. POWER 500 + 500 W RMS...
