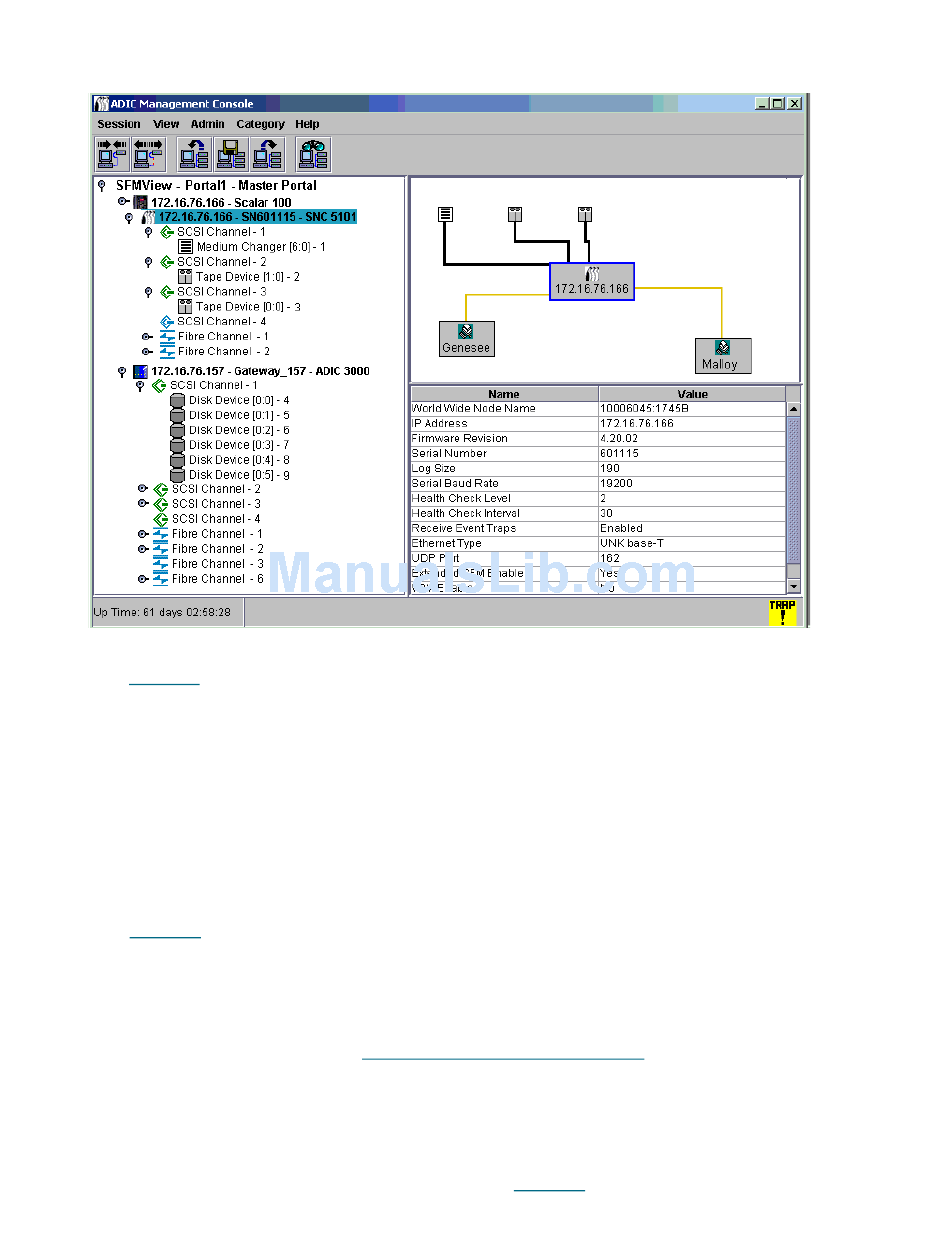

Figure 14 Assigned LUNs 1-9 in the navigation panel
In Figure 13 on page 82, registered hosts are shown in the column on the left. When a host is online its
name is displayed in black. When a host is registered but not currently online its name is displayed in
blue.
The number in the "Internal LUN" row is in black if a LUN is online. Otherwise the Internal LUN number
is grayed out.
To have complete host information appear in the display, you must first be running HRS. Consult your
service representative.
4 Type a number into an Internal LUN check box to indicate that access is enabled between a LUN and
the corresponding host.
Delete the number to revoke access.
In Figure 13 on page 82, each host has had LUNs mapped to it that it will see as LUNs 0-3.
5 Select the OK button to keep the changes you made to host data fields and LUN assignments.
Select the Cancel button to cancel all changes.
Select the Help button to get context-sensitive help.
6 Save your configuration. Refer to
Assigning LUNs to host(s) using the host perspective
1 Select the Host LUN Mapping command from the Host menu on the eVPS Access Summary dialog
box.
The Host LUN Mapping dialog box is displayed. See
ADIC Management Console User's Guide
Saving and Loading the Configuration
Figure 15
on page 58.
on page 84.
