Summary of Contents for Jung MK100RF

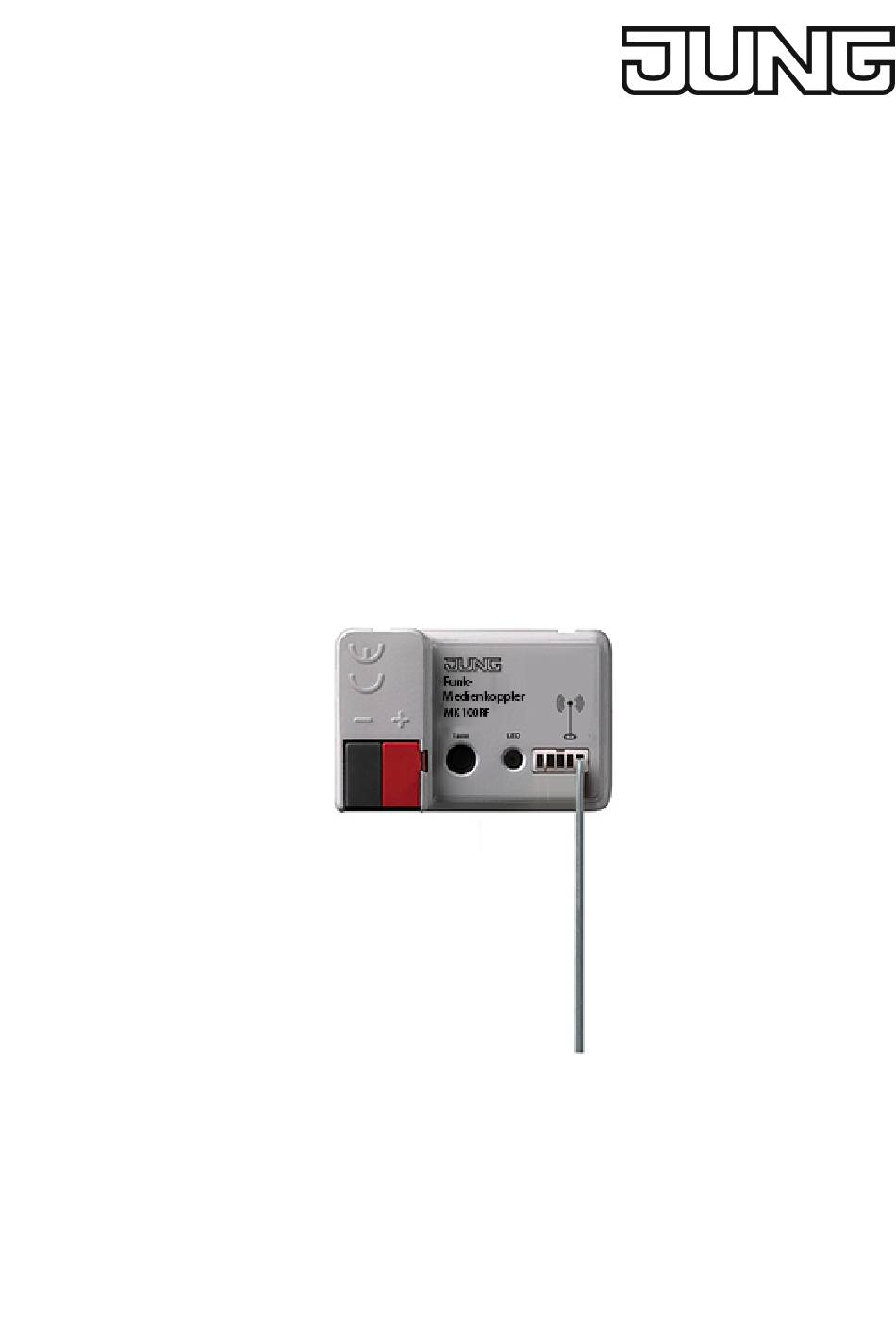

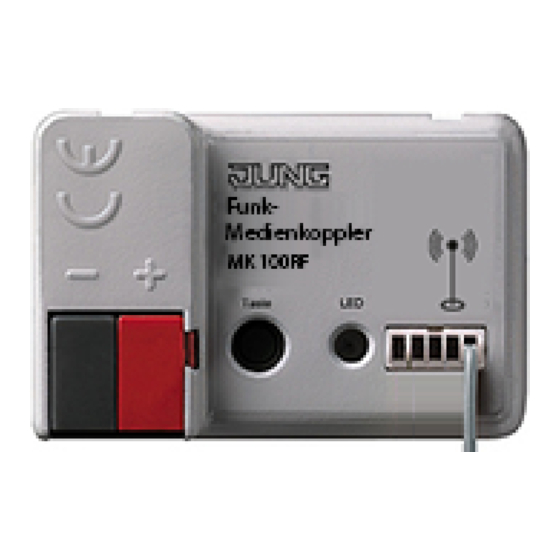

- Page 1 Operating instructions KNX RF radio converter Art. no. MK100RF ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 05.09.2022 82591123 J0082591123 www.jung.de...
-
Page 2: Table Of Contents
KNX RF radio converter Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 4 Operation as media coupler or segment coupler .............. 5 Operation as RF repeater without routing function ............ 6 Information for electrically skilled persons ................ 6 Mounting and electrical connection................ 6 Commissioning ...................... -
Page 3: Safety Instructions
KNX RF radio converter Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. The radio communication takes place via a non-exclusively available transmission path, and is therefore not suitable for safety-related applications, such as emergency stop and emergency call. -
Page 4: Function
ETS application program. See the technical docu- mentation for details. Simplified Declaration of Conformity Hereby Albrecht Jung GmbH & Co. KG declares that the radio system type Art. no. MK100RF corresponds to the directive 2014/53/EU. You can find the full article number on the device. -
Page 5: Operation As Media Coupler Or Segment Coupler
KNX RF radio converter Image 2: Media coupler and RF participant Image 3: Media coupler and RF participant, supplemented by repeater Media coupler or segment coupler KNX power supply with choke Repeater Power supply Operation as media coupler or segment coupler Media coupler: The physical address is the address of a line or a backbone coupler x.y.0 and must match the logical topology of the KNX system. -
Page 6: Operation As Rf Repeater Without Routing Function
KNX RF radio converter Operation as RF repeater without routing function The physical address of the radio repeater is the address of a normal KNX participant x.y.z (z≠0) within the address range of the KNX radio system. Observe the instruc- tions in the technical documentation regarding the address. -
Page 7: Commissioning
KNX RF radio converter – Do not mount the media coupler near the earth or ground. – Do not place KNX RF devices in metallic small distribution boards or boxes. – If several adjacent media couplers are used, place them so their radio ranges either do not overlap at all, or so they can receive each other. -
Page 8: Technical Data
KNX RF radio converter ￭ Press programming button again and hold about 5 seconds until status LED goes out. ￭ Release the programming button. The status LED lights red briefly and then yellow. The device is reset to default setting. Technical data KNX RF KNX medium... -
Page 9: Accessories
Art. no. NT 2415 REG VDC mounting Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
