Art. No. : FM GATE 1 ZSNA
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Adapter plugs may not be connected in series and must be easily accessible.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

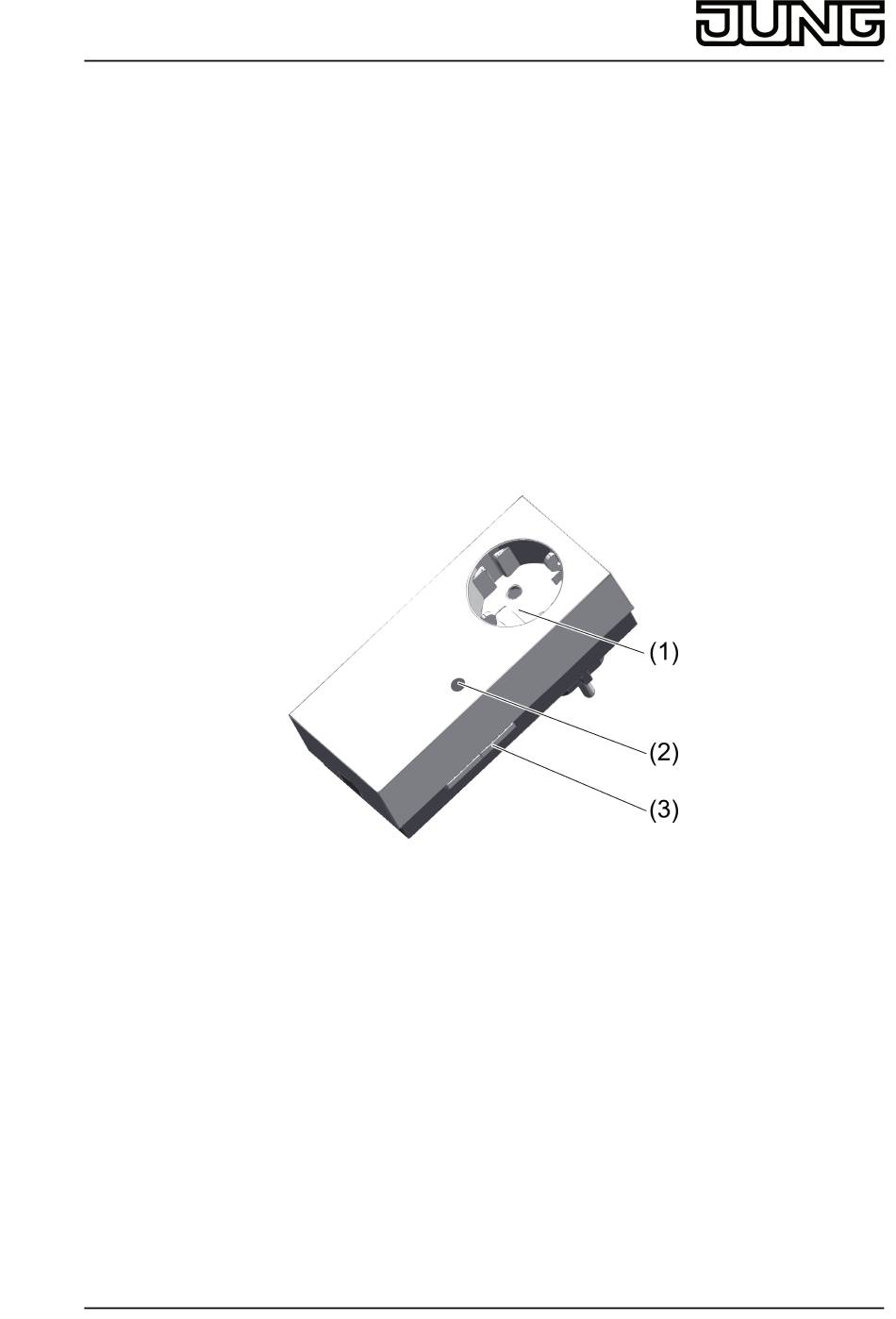

(1) SCHUKO socket with increased contact protection
(2) Red status LED, covered
(3) Button Prog
3 Function
System information
This device is a part of the eNet system and the Radio Management system.
The range of a radio system depends on various external circumstances. The range can be
optimised by the choice of installation location.
This device complies with the requirements of the R&TTE Directive 1999/5/EC. Declaration of
Conformity and further information on the eNet and Radio Management system can be found on
our website.
The device may be operated in all EU and EFTA countries.
Intended use
-
Control of eNet actuators by Radio Management transmitters
82582113
J:0082582113
Figure 1: Gateway
1/8
13.03.2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eNet FM GATE 1 ZSNA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jung eNet FM GATE 1 ZSNA

  • Page 1 eNet Radio converter in SCHUKO housing Radio converter in SCHUKO housing Art. No. : FM GATE 1 ZSNA Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Adapter plugs may not be connected in series and must be easily accessible.
  • Page 2 eNet Radio converter in SCHUKO housing Control of Radio Management actuators by eNet transmitters Mounting of SCHUKO sockets indoors i The following Radio Management devices are not supported: motion detectors, presence detectors, HVAC devices, repeaters, window contacts, KNX gateways and Centrals. Product characteristics Reception of Radio Management commands and conversion into eNet commands Reception of eNet commands and conversion into Radio Management commands...
  • Page 3 eNet Radio converter in SCHUKO housing Insert device into a SCHUKO socket. 4.1 Commissioning DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. During commissioning, cover the parts carrying voltage on radio transmitters and actuators and in their surrounding area. 4.2 eNet transmitter controls Radio Management actuators i Commissioning is not possible via the eNet server.
  • Page 4 eNet Radio converter in SCHUKO housing Exit the programming mode of the Radio Management actuators (see Radio Management actuator instructions). Disconnect the connection to the Radio Management actuator (C) Figure 4: Disconnecting Disconnection should take place before an actuator is replaced, so that occupied gateway channels can be made free again, or before a reset.
  • Page 5 eNet Radio converter in SCHUKO housing 4.3 Radio Management transmitter controls eNet actuators Connect the Radio Management transmitter and eNet actuators Figure 5: Connecting the Radio Management transmitter Press the Prog button (3) of the gateway for approx. 4 seconds. The LED (2) of the gateway flashes slowly.
  • Page 6: Technical Data

    eNet Radio converter in SCHUKO housing Disconnect the connection between the Radio Management transmitter and the eNet actuator Figure 6: Disconnecting Press the Prog button (3) of the gateway for approx. 4 seconds. The LED (2) of the gateway flashes slowly. The device is in programming mode for approx.
  • Page 7: Parameter List

    eNet Radio converter in SCHUKO housing Ambient temperature -5 ... +45 °C Dimensions W×H×D 57×127×78 mm eNet radio data Radio frequency 868.3 MHz Transmitting power max. 20 mW Transmitting range in free field typical 100 m Radio Management radio data Carrier frequency 433.42 MHz (ASK) Transmitting power...
  • Page 8 Radio converter in SCHUKO housing ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04 kundencenter@jung.de www.jung.de Service Center Kupferstr. 17-19 44532 Lünen Germany 82582113 13.03.2014 J:0082582113...
