Radio Management
Radio-KNX converter
Radio-KNX converter
Art. No. : 2700AP
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
Do not shorten, extend or strip the antenna. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Operation LED and reception indication
Lights up green: operation
Flashes green: receiving telegrams
Flashes red: telegram traffic
(2) Screws for connection compartment
(3) Antenna
3 Function
KNX system information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database. Planning, installation and commissioning of the device are
carried out with the aid of KNX-certified software. The latest versions of product database and
the technical descriptions are available on our website.
32532823
J0082532823

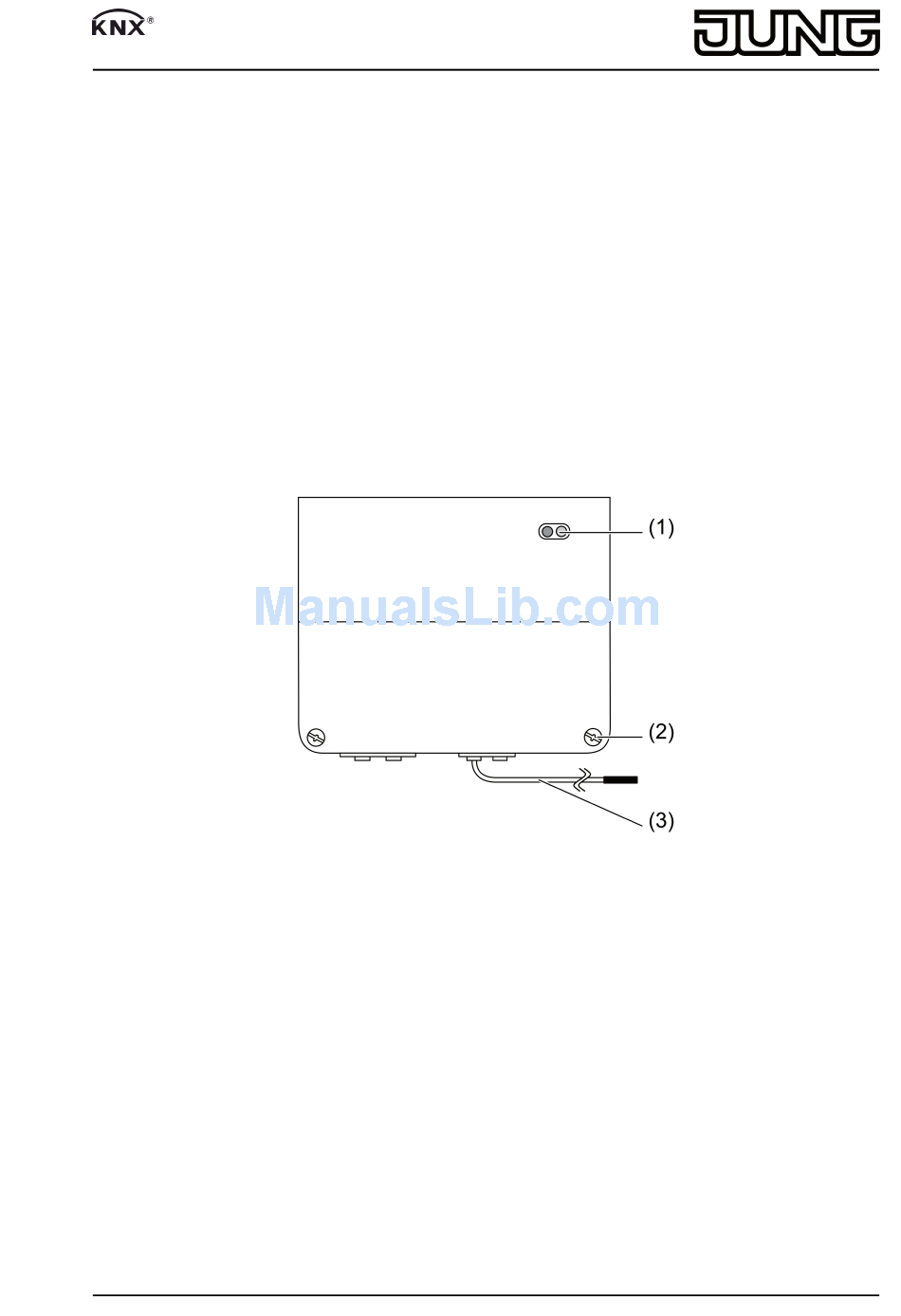

Figure 1: View, connection compartment closed
1/10
28.10.2016
Advertisement
Related Manuals for Jung 2700AP
Summary of Contents for Jung 2700AP
-
Page 1: Safety Instructions
Radio Management Radio-KNX converter Radio-KNX converter Art. No. : 2700AP Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. - Page 2 Radio Management Radio-KNX converter System information By statute, the transmitting power, the reception characteristics and the antenna cannot be changed. The range of a radio system from the transmitter to the receiver depends on various circumstances. The range of the system can be optimised by selecting the optimal installation location, taking into account the structural circumstances.
- Page 3 Radio Management Radio-KNX converter Hand transmitter and wall transmitter: Switching, – Light scene buttons Switchover, Value transmitter, Light scene extension, Light scene Hand transmitter: Switching – All On button Hand transmitter and wall transmitter: Switching – All Off button Hand transmitter: Switching, –...
- Page 4 Radio Management Radio-KNX converter (10) Programming LED (11) Programming button (12) n / o buttons for selecting the radio channel (13) Channel display Maintain a distance of at least 0.5 m from metal surfaces and electrical devices, e.g. microwave ovens, hi-fi and TV systems, electronic ballasts or transformers. Maintain a distance of at least 1 m between transmitter and receiver in order to prevent overmodulation of the receiver.
- Page 5 Radio Management Radio-KNX converter Bedroom roller shutters Wall transmitter, Venetian blind rocker switch 3 Garage exterior light Radio motion detector Radio motion detector, switching 50 / Cellar light 1gang wall transmitter Switching Wall transmitter, rocker switch B / 1 Create necessary channels in KNX commissioning software. Parameterise channels according to requirements.
- Page 6 Radio Management Radio-KNX converter Figure 5: Assignment mode Use the n / o buttons (12) to select the desired radio channel in accordance with the planned and programmed configuration. The display (13) shows the desired radio channel. Trigger a teach telegram on the desired radio transmitter (see instructions for radio transmitter).
- Page 7 Radio Management Radio-KNX converter The right-hand decimal point lights up additionally in the display (figure 5). Use the n / o buttons (12) to select the desired new radio channel. The display (13) shows the radio channel. Trigger a teach telegram on the desired radio transmitter (see instructions for radio transmitter).
- Page 8 Radio Management Radio-KNX converter Figure 9: Display „- - “ – deletion of a radio transmitter Deleting all radio transmitters of a radio channel Connection compartment is opened. Connect 9 V block battery to connection clip (8). The channel display (13) lights up (figure 4). Press both buttons n and o (12) for approx.
-
Page 9: Warranty
Dimensions W×H×D 110×94×38 mm 5.2 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. 2700AP corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce... - Page 10 Radio Management Radio-KNX converter ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 32532823 10/10 28.10.2016 J0082532823...
