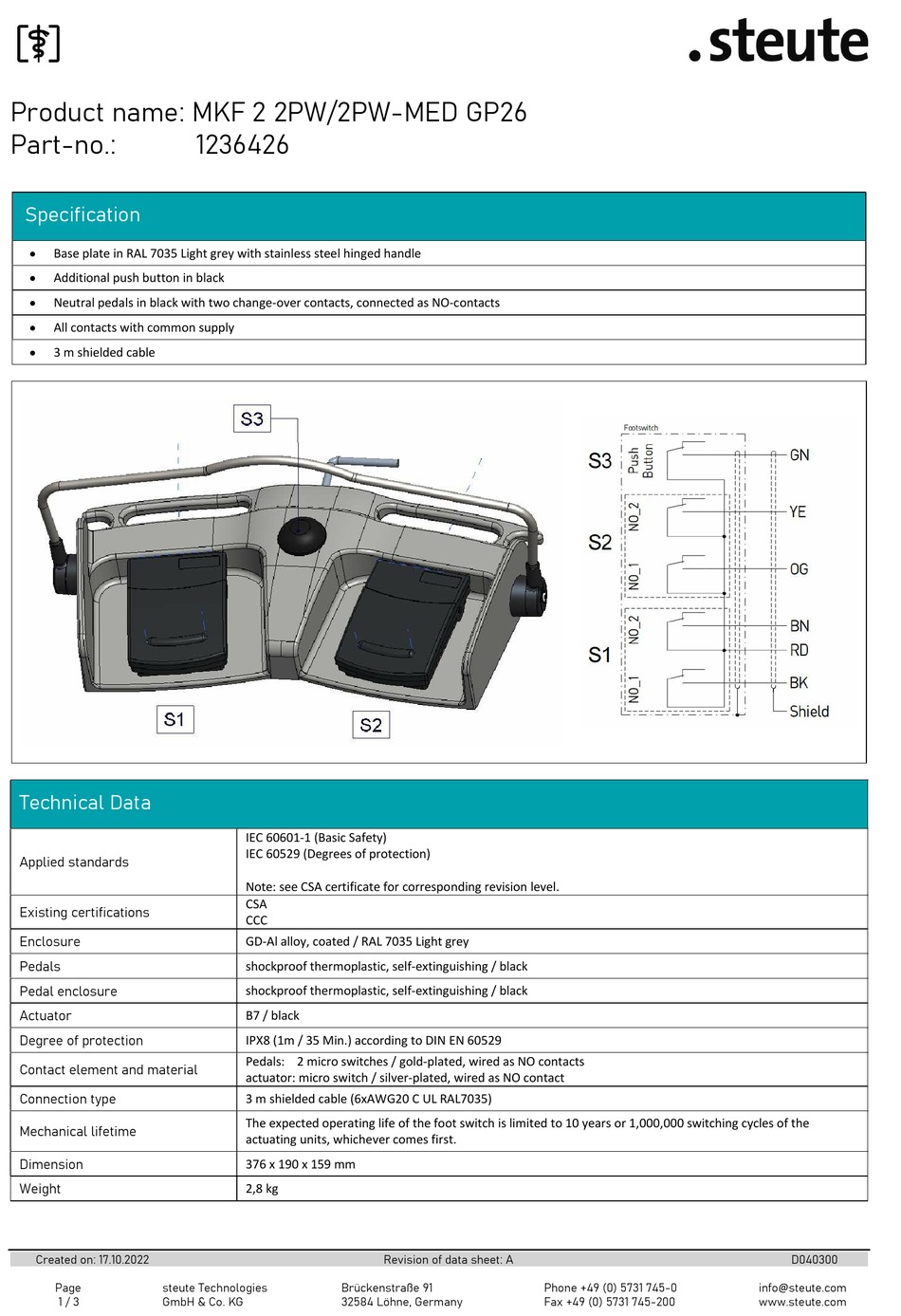

steute MKF 2 2PW/2PW-MED GP26 Quick Start Manual

Product name: MKF 2 2PW/2PW-MED GP26
Part-no.:

Specification

 Base plate in RAL 7035 Light grey with stainless steel hinged handle
 Additional push button in black

Neutral pedals in black with two change-over contacts, connected as NO-contacts

All contacts with common supply
 3 m shielded cable

Technical Data

Applied standards
Existing certifications
Enclosure
Pedals
Pedal enclosure
Actuator
Degree of protection
Contact element and material
Connection type
Mechanical lifetime
Dimension
Weight
Created on: 17.10.2022
Page steute Technologies
1 / 3 GmbH & Co. KG
1236426
IEC 60601-1 (Basic Safety)
IEC 60529 (Degrees of protection)
Note: see CSA certificate for corresponding revision level.
CSA
CCC
GD-Al alloy, coated / RAL 7035 Light grey
shockproof thermoplastic, self-extinguishing / black
shockproof thermoplastic, self-extinguishing / black
B7 / black
IPX8 (1m / 35 Min.) according to DIN EN 60529
Pedals: 2 micro switches / gold-plated, wired as NO contacts
actuator: micro switch / silver-plated, wired as NO contact
3 m shielded cable (6xAWG20 C UL RAL7035)
The expected operating life of the foot switch is limited to 10 years or 1,000,000 switching cycles of the
actuating units, whichever comes first.
376 x 190 x 159 mm
2,8 kg
Brückenstraße 91
32584 Löhne, Germany
Revision of data sheet: A
