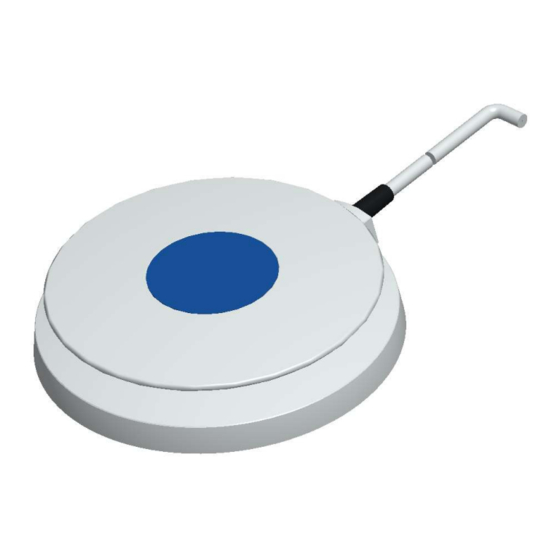

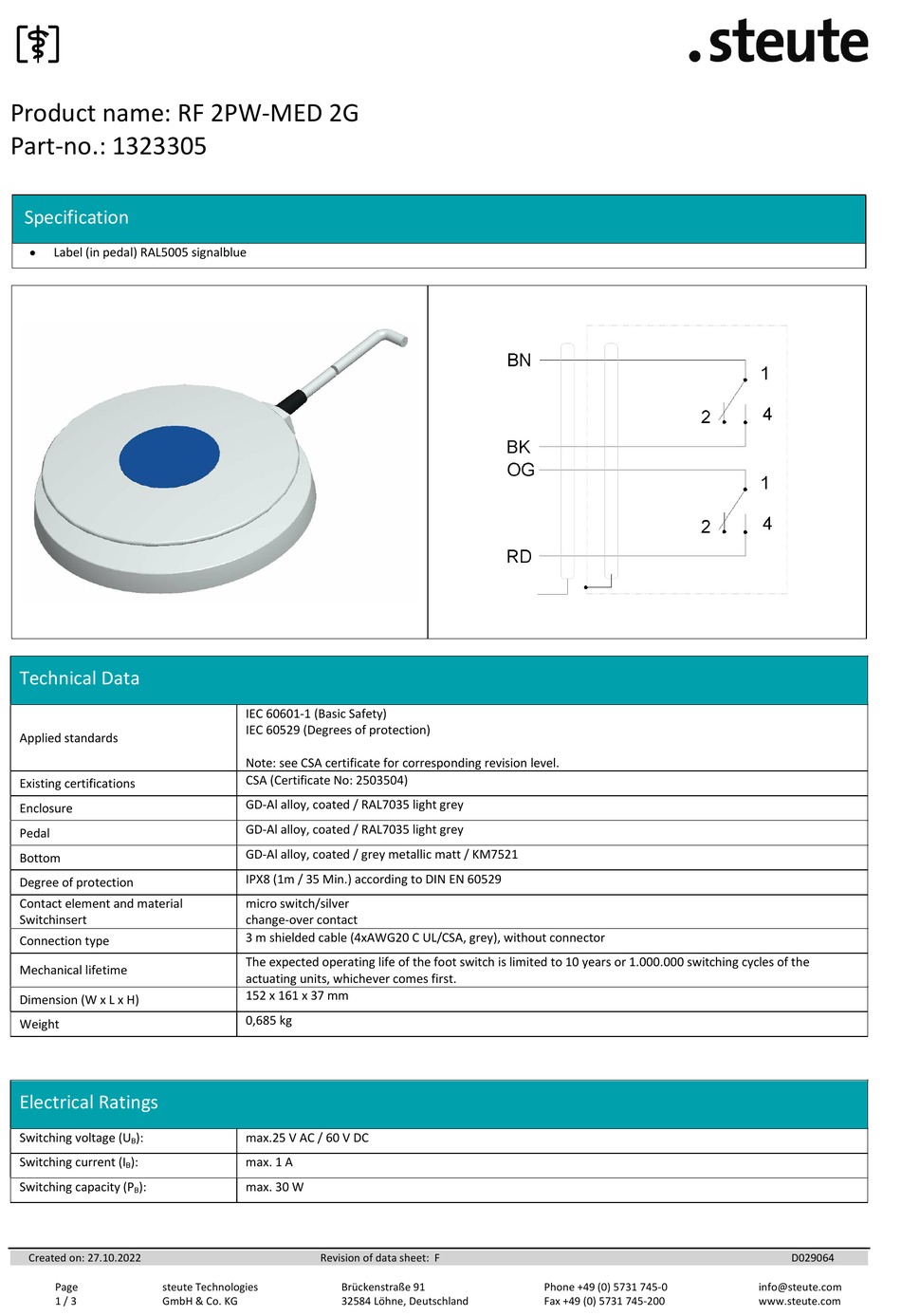

Product name: RF 2PW-MED 2G
Part-no.: 1323305
Specification
Label (in pedal) RAL5005 signalblue
Technical Data
Applied standards
Existing certifications
Enclosure
Pedal
Bottom
Degree of protection
Contact element and material
Switchinsert
Connection type
Mechanical lifetime
Dimension (W x L x H)
Weight
Electrical Ratings
Switching voltage (U
):
B
Switching current (I
):
B
Switching capacity (P
):
B
Created on: 27.10.2022
Page
steute Technologies
1 / 3
GmbH & Co. KG
IEC 60601-1 (Basic Safety)
IEC 60529 (Degrees of protection)
Note: see CSA certificate for corresponding revision level.
CSA (Certificate No: 2503504)
GD-Al alloy, coated / RAL7035 light grey
GD-Al alloy, coated / RAL7035 light grey
GD-Al alloy, coated / grey metallic matt / KM7521
IPX8 (1m / 35 Min.) according to DIN EN 60529
micro switch/silver
change-over contact
3 m shielded cable (4xAWG20 C UL/CSA, grey), without connector
The expected operating life of the foot switch is limited to 10 years or 1.000.000 switching cycles of the
actuating units, whichever comes first.
152 x 161 x 37 mm
0,685 kg
max.25 V AC / 60 V DC
max. 1 A
max. 30 W
Revision of data sheet: F
Brückenstraße 91
32584 Löhne, Deutschland
Phone +49 (0) 5731 745-0
Fax +49 (0) 5731 745-200
D029064
info@steute.com
www.steute.com
