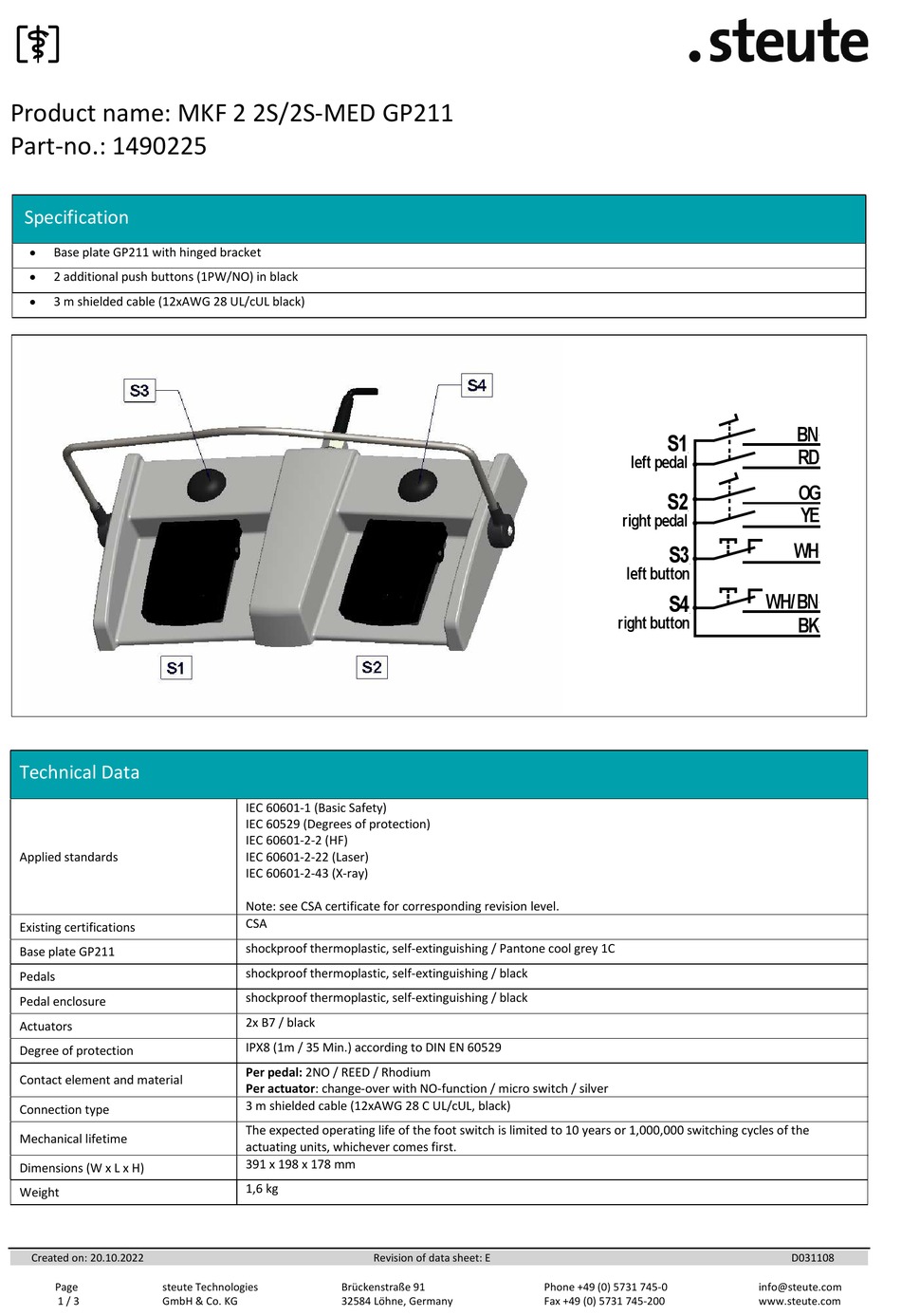

Product name: MKF 2 2S/2S-MED GP211
Part-no.: 1490225
Specification
Base plate GP211 with hinged bracket
2 additional push buttons (1PW/NO) in black
3 m shielded cable (12xAWG 28 UL/cUL black)
Technical Data
Applied standards
Existing certifications
Base plate GP211
Pedals
Pedal enclosure
Actuators
Degree of protection
Contact element and material
Connection type
Mechanical lifetime
Dimensions (W x L x H)
Weight
Created on: 20.10.2022
Page
steute Technologies
1 / 3
GmbH & Co. KG
IEC 60601-1 (Basic Safety)
IEC 60529 (Degrees of protection)
IEC 60601-2-2 (HF)
IEC 60601-2-22 (Laser)
IEC 60601-2-43 (X-ray)
Note: see CSA certificate for corresponding revision level.
CSA
shockproof thermoplastic, self-extinguishing / Pantone cool grey 1C
shockproof thermoplastic, self-extinguishing / black
shockproof thermoplastic, self-extinguishing / black
2x B7 / black
IPX8 (1m / 35 Min.) according to DIN EN 60529
Per pedal: 2NO / REED / Rhodium
Per actuator: change-over with NO-function / micro switch / silver
3 m shielded cable (12xAWG 28 C UL/cUL, black)
The expected operating life of the foot switch is limited to 10 years or 1,000,000 switching cycles of the
actuating units, whichever comes first.
391 x 198 x 178 mm
1,6 kg
Revision of data sheet: E
Brückenstraße 91
32584 Löhne, Germany
S1
left pedal
S2
right pedal
S3
left button
S4
right button
Phone +49 (0) 5731 745-0
Fax +49 (0) 5731 745-200
BN
RD
OG
YE
WH
WH/BN
BK
D031108
info@steute.com
www.steute.com
